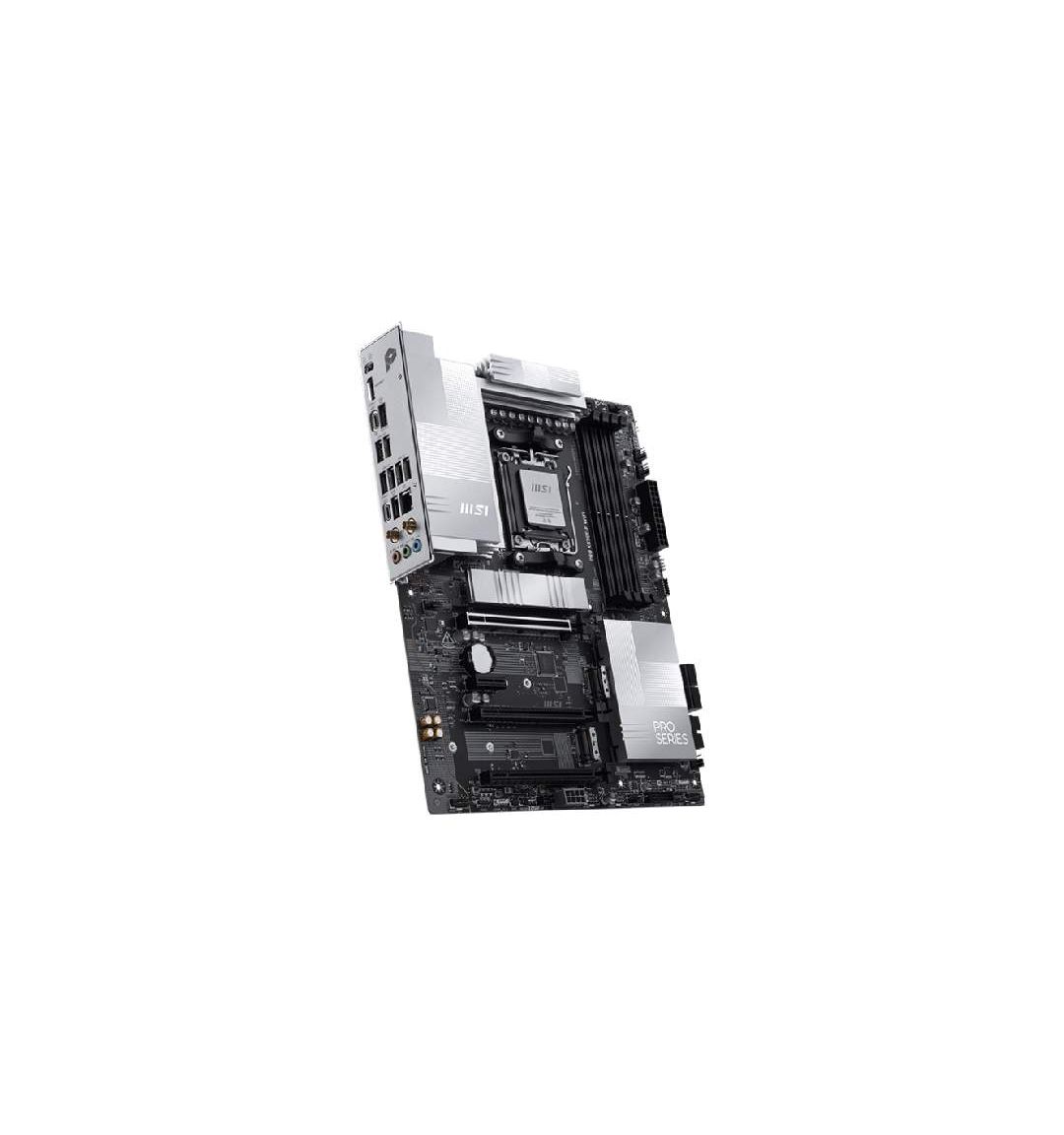

MSI PRO X870E-P WIFI AM5 ATX Motherboard
Please sign in so that we can notify you about a reply
Specification
| Category | Details |
|---|---|
| Model | MSI PRO X870E-P WIFI |
| Supported CPU | AMD Ryzen™ 9000 / 8000 / 7000 Series |
| Socket | AM5 |
| Chipset | AMD X870E |
| BIOS | Flash BIOS Button |
| Form Factor | ATX (243.84 × 304.8 mm) |
| Memory Type | DDR5 |
| Memory Slots | 4× UDIMM |
| Maximum Memory | Up to 256GB |
| Supported Speed | 8200–5600 MT/s (OC), 5600–4800 MT/s (JEDEC) |
| PCIe Slots | 1× PCIe 5.0 x16, 1× PCIe 4.0 x4, 2× PCIe 3.0 x1 |
| M.2 Slots | 3× M.2 (1× PCIe 5.0 x4, 2× PCIe 4.0 x4) |
| SATA Ports | 4× SATA 6Gb/s |
| Graphics Output | 1× HDMI 2.1 (4K@60Hz), 1× USB4 Type-C DP (4K@60Hz) |
| USB (Rear) | USB4 40Gbps Type-C, USB 20Gbps Type-C, 2× USB 10Gbps Type-A, 2× USB 5Gbps Type-A, 4× USB 2.0 |
| USB (Front) | 1× USB 10Gbps Type-C, 4× USB 5Gbps Type-A, 6× USB 2.0 |
| LAN | Realtek 8126VB 5Gbps LAN |
| Wi-Fi / Bluetooth | Wi-Fi 7 (802.11be), Bluetooth 5.4 |
| Audio | Realtek ALC897, 7.1-Channel HD Audio |
| RAID Support | RAID 0/1/10 (SATA), RAID 0/1/5 (NVMe – Ryzen 9000 only) |
| Cooling Support | 1× CPU Fan, 1× Pump Fan, 6× System Fans |
| RGB Support | 3× ARGB, 1× RGB |
| Debug Features | EZ Debug LED, EZ Memory Detection LED |
| TPM Support | TPM 2.0 Header |
| Warranty | 3 Years Manufacturing Warranty |
Description
The MSI PRO X870E-P WIFI AM5 ATX Motherboard is a professional-grade, future-ready platform designed for high-performance gaming PCs, workstations, and content creation systems built around AMD Ryzen 9000, 8000, and 7000 Series processors. Powered by the advanced AMD X870E chipset and supporting the AM5 socket, this motherboard delivers exceptional performance with support for up to 256GB of ultra-fast DDR5 memory running at speeds of up to 8200 MT/s (OC) using AMD EXPO profiles. It features a PCIe 5.0 x16 slot for next-generation graphics cards, along with three high-speed M.2 slots including a PCIe 5.0 x4 slot for ultra-fast NVMe SSDs, making it fully prepared for future storage and GPU upgrades. Connectivity is outstanding, offering USB4 40Gbps, USB 20Gbps Type-C, multiple USB 10Gbps and 5Gbps ports, Wi-Fi 7, Bluetooth 5.4, and 5Gbps LAN for extreme data transfer speeds and low-latency networking. Display support includes HDMI 2.1 and USB4 DisplayPort for crisp 4K visuals on supported CPUs with integrated graphics. Built with robust power delivery, premium PCB design, extended cooling support, and professional features like Flash BIOS Button, EZ Debug LEDs, TPM 2.0, and extensive fan headers, the MSI PRO X870E-P WIFI stands as a powerful, stable, and highly expandable motherboard ideal for users who demand reliability, performance, and long-term upgrade flexibility.
