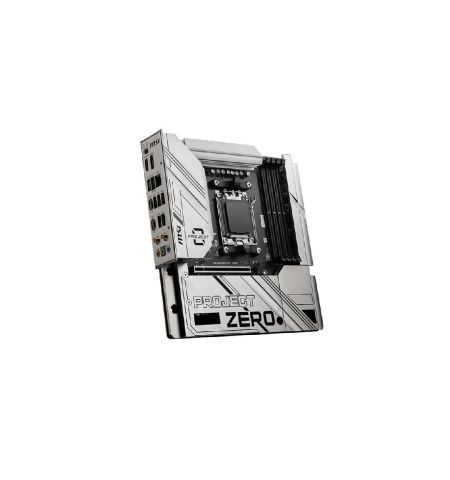

MSI B650M PROJECT ZERO AM5 m-ATX Motherboard
Please sign in so that we can notify you about a reply
Specification
| Category | Details |
|---|---|
| Model | MSI B650M PROJECT ZERO |
| Supported CPU | AMD Ryzen™ 9000 / 8000 / 7000 Series |
| Socket | AM5 |
| Chipset | AMD B650 |
| Form Factor | Micro-ATX (243.84 × 243.84 mm) |
| Memory Type | DDR5 |
| Memory Slots | 4× DIMM |
| Maximum Memory | Up to 128GB |
| Supported Speed | Up to 7600+ MT/s (OC), 4800 MT/s (JEDEC) |
| PCIe Slots | 1× PCIe 4.0 x16, 1× PCIe 3.0 x1 |
| M.2 Slots | 2× M.2 (PCIe 4.0 x4) |
| SATA Ports | 4× SATA 6Gb/s |
| Graphics Output | 1× HDMI 2.1 (4K@60Hz), 1× DisplayPort 1.4 (4K@60Hz) |
| USB (Rear) | USB 2.0, USB 5Gbps Type-A, USB 10Gbps Type-A, USB 10Gbps Type-C, USB 20Gbps Type-C |
| USB (Front) | USB 2.0, USB 5Gbps Type-A, USB 10Gbps Type-C |
| LAN | Realtek RTL8125BG 2.5G LAN |
| Wireless | AMD Wi-Fi 6E + Bluetooth 5.3 |
| Audio | Realtek ALC897, 7.1-Channel HD Audio, S/PDIF |
| RAID Support | RAID 0/1/10 (SATA), RAID 0/1 (NVMe) |
| Cooling Support | 1× CPU Fan, 1× Pump Fan, 3× System Fans |
| RGB Support | 3× ARGB Headers |
| Debug Features | Flash BIOS Button, Clear CMOS Button |
| TPM Support | TPM 2.0 Header |
| Back-Connect Design | Yes (Project Zero cable-free layout) |
| Operating System | Windows 11 64-bit Supported |
| Warranty | 3 Years Manufacturing Warranty |
Description
The MSI B650M PROJECT ZERO AM5 m-ATX Motherboard is a next-generation, cable-free motherboard designed for clean PC builds, high performance, and modern connectivity. Built on the AMD B650 chipset, it supports AMD Ryzen 9000, 8000, and 7000 Series processors and delivers outstanding memory performance with up to 128GB of DDR5 RAM running at speeds up to 7600+ MT/s (OC) using AMD EXPO profiles. Its innovative back-connect design hides all major power and I/O connectors behind the motherboard tray, creating a visually clean and professional-looking build with improved airflow. For storage, it features two PCIe Gen 4 x4 M.2 slots with M.2 Shield Frozr thermal protection and four SATA ports with RAID support for high-speed and secure storage setups. Expansion is handled by a PCIe 4.0 x16 slot optimized for modern GPUs and a PCIe 3.0 x1 slot for additional devices. Connectivity is excellent with Realtek 2.5G LAN, AMD Wi-Fi 6E, Bluetooth 5.3, and a wide selection of high-speed USB ports including a 20Gbps USB Type-C. Display output supports HDMI 2.1 and DisplayPort 1.4 with 4K resolution, while audio is powered by the Realtek ALC897 codec with 7.1-channel HD sound and S/PDIF support. Combined with MSI’s advanced thermal design, Flash BIOS, Memory Boost, and Lightning USB technologies, the MSI B650M PROJECT ZERO delivers a premium, future-ready platform ideal for gamers, creators, and enthusiasts who want performance with a perfectly clean aesthetic.
