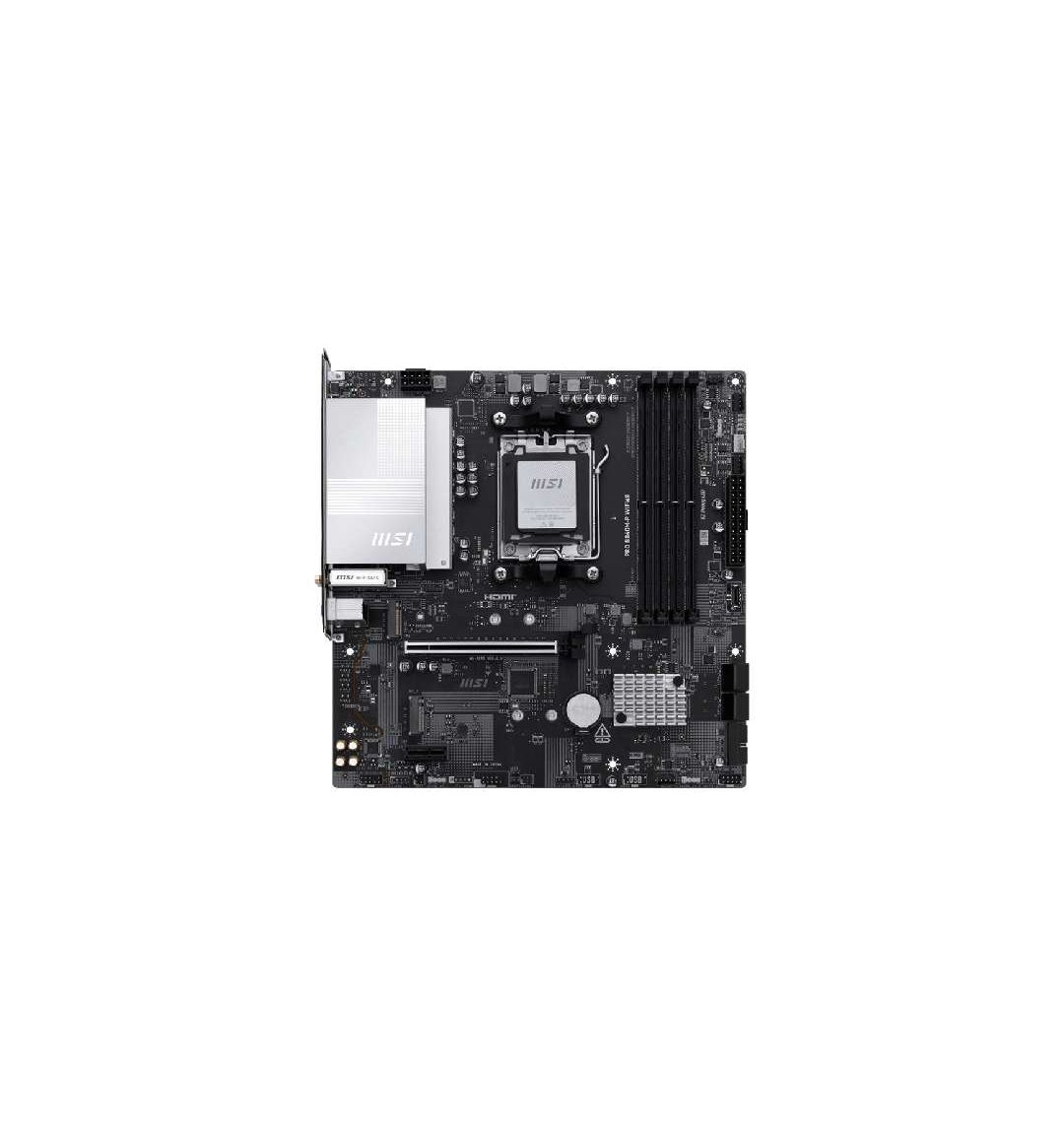

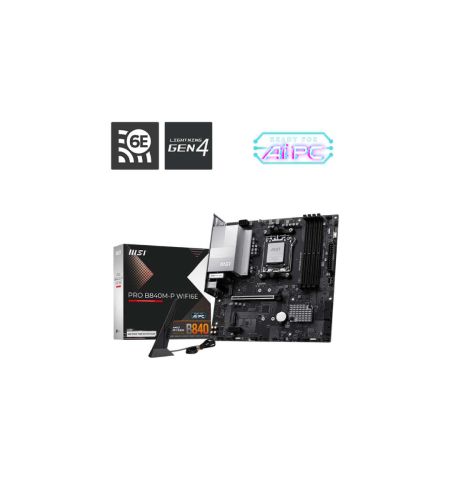

MSI PRO B840M-P WIFI6E AM5 mATX Motherboard
Please sign in so that we can notify you about a reply
Specification
| Category | Details |
|---|---|
| Model | MSI PRO B840M-P WIFI6E |
| Supported CPU | AMD Ryzen™ 9000 / 8000 / 7000 Series |
| Socket | AM5 |
| Chipset | AMD B840 |
| BIOS | Flash BIOS Button |
| Form Factor | mATX (243.84 × 243.84 mm) |
| Memory Type | DDR5 |
| Memory Slots | 4× UDIMM |
| Maximum Memory | Up to 256GB |
| Supported Speed | 8000–5600 MT/s (OC), 5600–4800 MT/s (JEDEC) |
| PCIe Slots | 1× PCIe 4.0 x16, 1× PCIe 3.0 x1 |
| M.2 Slots | 2× PCIe 4.0 x4 |
| SATA Ports | 4× SATA 6Gb/s |
| Graphics Output | 1× HDMI 2.1 (4K@60Hz) |

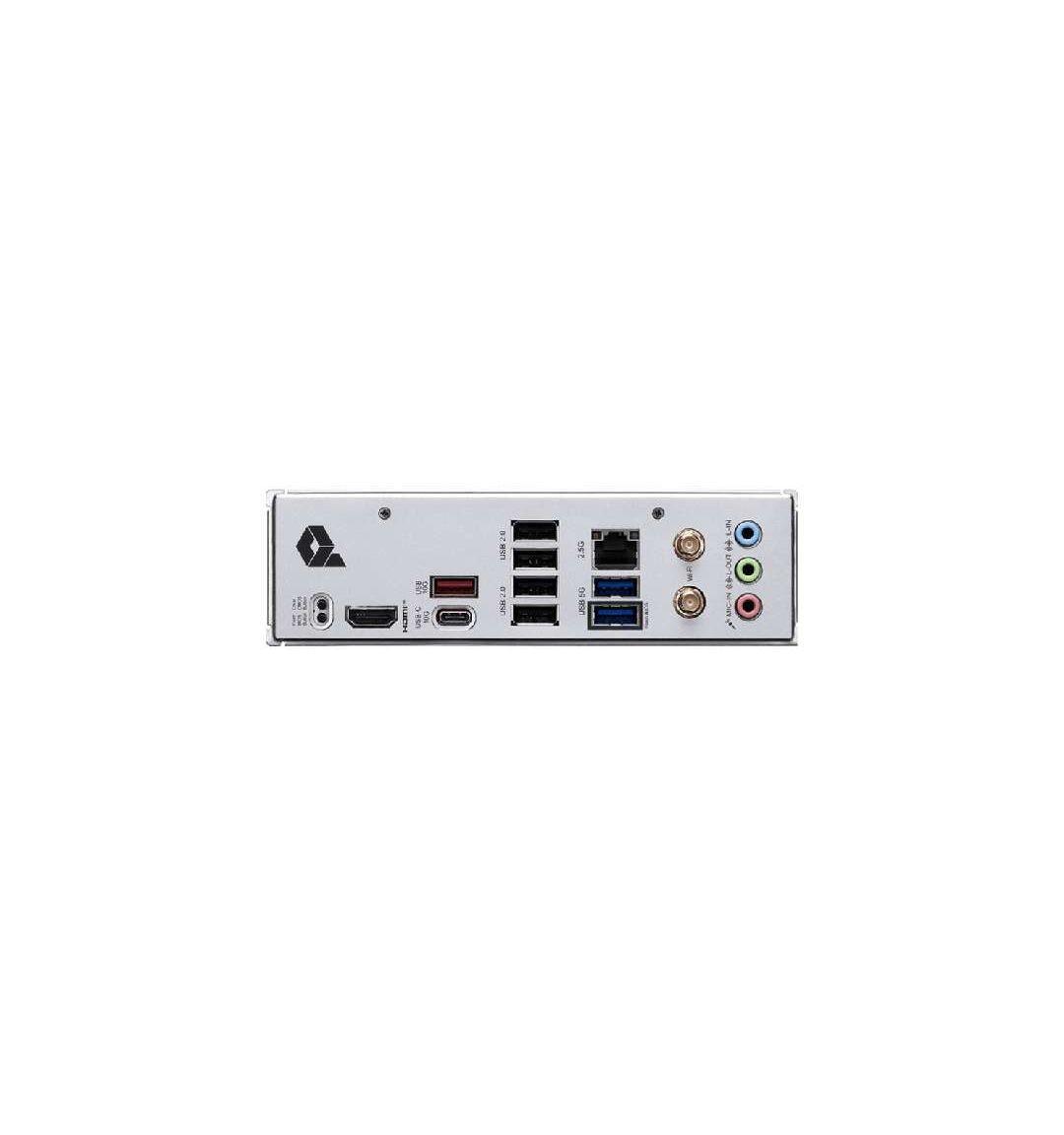

| USB (Rear) | 4× USB 2.0, 2× USB 5Gbps Type-A, 1× USB 10Gbps Type-A, 1× USB 10Gbps Type-C |
| USB (Front) | 4× USB 2.0, 2× USB 5Gbps Type-A, 1× USB 5Gbps Type-C |
| LAN | Realtek 8125D 2.5G LAN |
| Wireless | Wi-Fi 6E + Bluetooth 5.3 |
| Audio | Realtek ALC897, 7.1-Channel HD Audio |
| RAID Support | RAID 0/1/10 (SATA), RAID 0/1 (NVMe) |
| Cooling Support | 1× CPU Fan, 1× Pump Fan, 3× System Fans |
| RGB Support | 3× ARGB, 1× RGB |
| Debug Features | 4× EZ Debug LED, EZ Memory Detection LED |
| TPM Support | TPM 2.0 Header |
| Operating System | Windows 11 64-bit Supported |
| Warranty | 3 Years Manufacturing Warranty |
Description
The MSI PRO B840M-P WIFI6E AM5 mATX Motherboard is a powerful and future-ready solution designed for users who demand stability, performance, and modern connectivity in a compact form factor. Built on the AMD B840 chipset, it supports AMD Ryzen 9000, 8000, and 7000 Series desktop processors on the AM5 socket and delivers exceptional memory performance with dual-channel DDR5 support up to 8000+ MT/s (OC) across four DIMM slots, making it ideal for gaming, content creation, and multitasking. The board features a PCIe 4.0 x16 slot for modern graphics cards, two PCIe 4.0 x4 M.2 slots for ultra-fast NVMe SSDs, and four SATA 6Gb/s ports with RAID support for flexible storage configurations. Networking is handled by Realtek 8125D 2.5G LAN alongside built-in Wi-Fi 6E and Bluetooth 5.3, ensuring high-speed and low-latency connectivity for both wired and wireless environments. Visual output is supported through HDMI 2.1 with up to 4K@60Hz resolution on compatible processors, while audio is powered by the Realtek ALC897 codec delivering immersive 7.1-channel HD sound. With user-friendly features such as Flash BIOS Button, EZ Debug LEDs, EZ Memory Detection LED, multiple RGB headers, and strong thermal design with expanded heatsinks and MOSFET pads, the MSI PRO B840M-P WIFI6E offers a reliable, efficient, and modern foundation for high-performance AM5 PC builds.
