ASUS ROG CROSSHAIR X870E HERO AMD AM5 ATX Gaming Motherboard
Please sign in so that we can notify you about a reply
Technical Specifications
| Attribute | Detailed Specification |
| Product Full Name | ASUS ROG CROSSHAIR X870E HERO Gaming Motherboard |
| Model & Part Number | ROG CROSSHAIR X870E HERO / 90MB1J30-M0EAY0 |
| Brand / Manufacturer | ASUS |
| Body Color | Black / Dark Gunmetal |
| Chipset | AMD X870E |
| Chipset Brand | AMD |
| Form Factor | ATX Form Factor (30.5 cm × 24.4 cm / 12.0 in × 9.6 in) |
| Generation | AMD Ryzen 9000 / 8000 / 7000 Series Desktop Processors |
| Socket Support | AMD Socket AM5 |
| Memory Type | DDR5 Non-ECC & ECC Un-buffered DIMM (Dual-Channel Architecture, AMD EXPO Support, NitroPath DRAM Technology) |
| Memory Slot | 4 × DDR5 DIMM Slots |
| Max Memory | Up to 256 GB (Up to DDR5 8600+ MT/s OC) |
| M.2/SSD Expansion Slot | Total 5 × Onboard M.2 Slots + 1 × SlimSAS Slot + 4 × SATA 6Gb/s Ports: • M.2_1: PCIe 5.0 x4 (Key M, type 2242/2260/2280 via CPU) • M.2_2: PCIe 5.0 x4 (Key M, type 2242/2260/2280 via CPU) • M.2_3: PCIe 5.0 x4 (Key M, type 2242/2260/2280 via CPU) • M.2_4: PCIe 4.0 x4 (Key M, type 2242/2260/2280 via AMD X870E Chipset) • M.2_5: PCIe 4.0 x4 (Key M, type 2280 via AMD X870E Chipset) • 1 × SlimSAS Connector (Supports PCIe 4.0 x4 mode via SFF-8654) |
| RGB Support | Yes (Aura Sync: 3 × Addressable Gen 2 Headers + Integrated Polymo Lighting II I/O Shroud) |
| WiFi | Wi-Fi 7 (802.11be, 2x2, 2.4/5/6GHz, 320MHz Bandwidth, up to 6.5 Gbps) + Bluetooth 5.4 |
| VGA Port | No |
| DVI Port | No |
| HDMI Port | 1 × HDMI 2.1 Port (Supports up to 4K @ 60Hz) |
| DisplayPort (DP) | Supported via USB4 Type-C (Supports DisplayPort 1.4a Video Output up to 4K @ 60Hz) |
| Thunderbolt | 2 × USB4 Ports (40 Gbps, Type-C, Compatible with DisplayPort Alt Mode & Thunderbolt devices) |
| PCIe Expansion Slots | 2 × PCIe 5.0 x16 SafeSlots with PCIe Slot Q-Release Slim (Supports x16 or x8/x8 or x8/x4/x4 modes) |
| SATA & Storage Ports | 4 × SATA 6Gb/s Ports 1 × SlimSAS Port (PCIe 4.0 x4) |
| RAID Support | AMD RAIDXpert2 Technology: RAID 0/1/5/10 (NVMe & SATA) |
| Wired Networking (LAN) | 1 × Realtek 5Gb Ethernet (5G RJ45) 1 × Intel 2.5Gb Ethernet (2.5G RJ45) with ASUS LANGuard |
| Audio Solution | ROG SupremeFX 7.1 Surround Sound ALC4082 CODEC with ESS ES9219 QUAD DAC (120 dB SNR Playback, 110 dB SNR Recording, Gold-plated Audio Jacks) |
| Display / Telemetry | Polymo Lighting II Dual-Layer Micro-Structure RGB Array on I/O Cover + Q-Code Diagnostic LED |

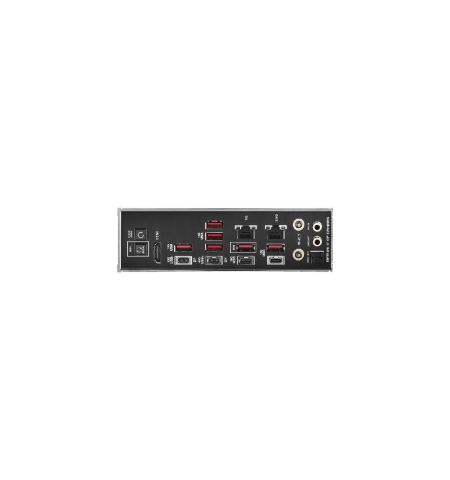

| Back Panel USB Ports | 2 × USB4 (40 Gbps, Type-C) 8 × USB 10Gbps (6 × Type-A + 2 × Type-C) 1 × BIOS FlashBack Button 1 × Clear CMOS Button |
| Front Panel USB Headers | 1 × USB 20Gbps Type-C Connector (Supports Quick Charge 4+ up to 60W and USB Wattage Watcher) 1 × USB 20Gbps Type-C Connector 2 × USB 5Gbps Headers (Supports 4 additional ports) 2 × USB 2.0 Headers (Supports 4 additional ports) |
| Cooling & VRM Architecture | 18(110A)+2(110A)+2 Power Stages with Integrated I/O Cover & Connected VRM Heatsinks, 3D Vapor Chamber M.2 Heatsink, Multi-layer Thermal Pads & Full M.2 Backplates |
| Overclocking & Hardware Controls | Extreme OC Kit (FlexKey, LN2 Mode Jumper, ReTry Button, Start Button), AI Overclocking, Dynamic OC Switcher, Core Flex, AI Cooling II |
| Operating System Support | Windows 11 (64-bit), Windows 10 (64-bit) |
| Target Workload Applications | Enthusiast Gaming PC Builds, Extreme Overclocking, High-Bitrate Live Streaming, 3D Rendering, Content Creation Workstations |
| Package Contents | 1 × ROG CROSSHAIR X870E HERO Motherboard 1 × ASUS Wi-Fi Q-Antenna 4 × SATA 6Gb/s Cables 1 × ASUS AIO Q-Connector Pack M.2 Q-Latch, Q-Release, and Thermal Pad Accessories 1 × USB Drive with Utilities and Drivers |
| Warranty | 3 Years Standard Limited Manufacturer Warranty |
Product Description

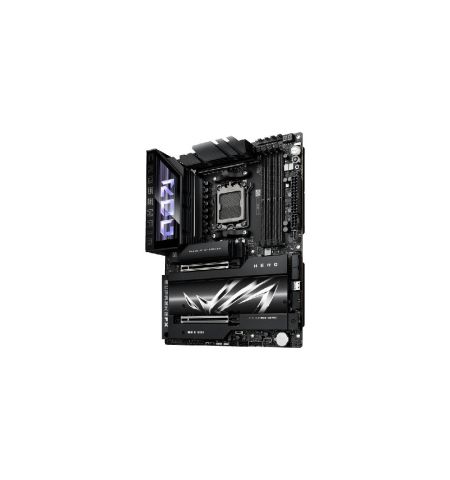

The ASUS ROG CROSSHAIR X870E HERO is an enthusiast-tier ATX gaming motherboard engineered to maximize the processing, multitasking, and overclocking capabilities of AMD Ryzen 9000, 8000, and 7000 Series desktop processors on socket AM5. Finished in dark gunmetal tones and highlighted by customizable Polymo Lighting II RGB illumination across the I/O shroud, this board balances heavy hardware power delivery with ASUS AI tuning tools.
Power delivery is driven by an 18(110A)+2(110A)+2 power-stage VRM layout utilizing MicroFine alloy chokes, 10K black metallic capacitors, and dual ProCool II 8-pin inputs. Thermal management is handled by substantial aluminum VRM heatsinks joined by an integrated heatpipe, direct-contact thermal pads, full-coverage M.2 backplates, and a dedicated 3D vapor chamber heatsink on the primary M.2 slot. Memory overclocking is elevated by NitroPath DRAM Technology across 4 DDR5 DIMM slots, optimizing trace pathways to support up to 256 GB of memory at speeds up to 8600+ MT/s (OC) via AMD Extended Profiles for Overclocking (EXPO).
Expansion is anchored by two PCIe 5.0 x16 SafeSlots utilizing the PCIe Slot Q-Release Slim mechanism for tool-free graphics card swaps. Storage configurations accommodate up to five onboard M.2 slots (three operating at PCIe 5.0 x4 and two at PCIe 4.0 x4), one high-speed SlimSAS PCIe 4.0 x4 connector, and four SATA 6Gb/s ports.
Connectivity includes dual wired Ethernet (Realtek 5-Gigabit and Intel 2.5-Gigabit) and native Wi-Fi 7 (802.11be) with 320 MHz channel width for multi-gigabit throughput. The rear panel provides dual USB4 40Gbps Type-C ports supporting 4K display output, while internal front headers offer dual USB 20Gbps Type-C ports, including one configured for up to 60W Quick Charge 4+ with live USB Wattage Watcher hardware monitoring. Accompanied by the ROG SupremeFX ALC4082 audio codec paired with an ESS ES9219 QUAD DAC and supported by a 3-year warranty, the ROG CROSSHAIR X870E HERO provides a comprehensive platform for high-end gaming and creation rigs.
