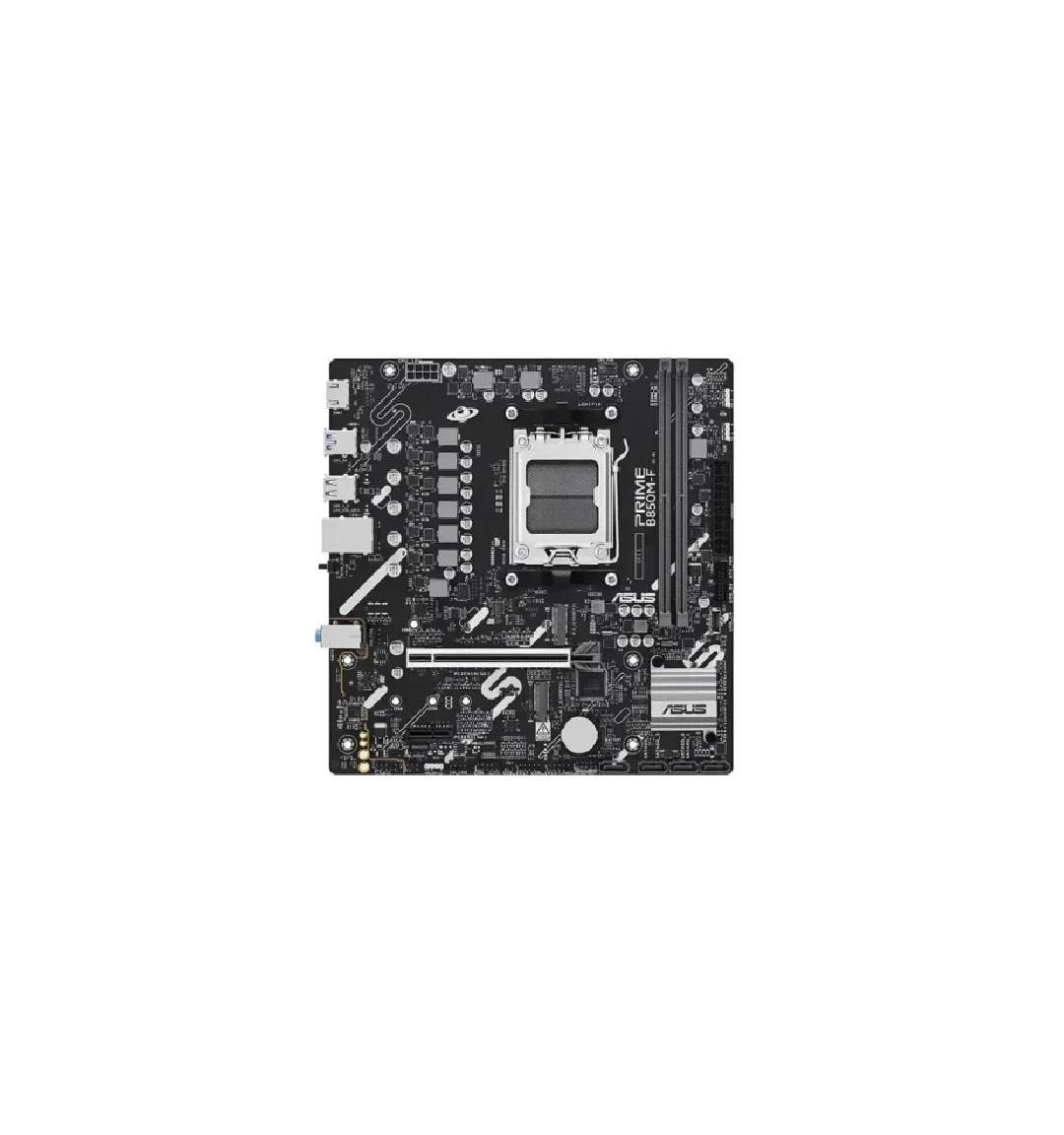

ASUS PRIME B850M-F WIFI-CSM AMD AM5 Micro-ATX Commercial Motherboard
Please sign in so that we can notify you about a reply
Technical Specifications
| Attribute | Detailed Specification |
| Product Full Name | ASUS PRIME B850M-F WIFI-CSM Commercial Motherboard |
| Model & Part Number | PRIME B850M-F WIFI-CSM / 90MB1KZ0-M0EAY0 |
| Brand / Manufacturer | ASUS |
| Body Color | Black Commercial PCB with Silver Metallic Thermal Heatsink Accents |
| Chipset | AMD B850 |
| Chipset Brand | AMD |
| Form Factor | Micro-ATX Form Factor (24.4 cm × 22.1 cm / 9.6 in × 8.7 in) |
| Generation | AMD Ryzen 9000 / 8000 / 7000 Series Desktop Processors |
| Socket Support | AMD Socket AM5 |
| Memory Type | DDR5 Non-ECC & ECC Un-buffered DIMM (Dual-Channel Architecture, AMD EXPO Support, ASUS AEMP) |
| Memory Slot | 2 × DDR5 DIMM Slots |
| Max Memory | Up to 128 GB (Up to DDR5 8000+ MT/s OC) |
| M.2/SSD Expansion Slot | Total 2 × Onboard M.2 Slots + 4 × SATA 6Gb/s Ports: • M.2_1: PCIe 5.0 x4 (Key M, 2242/2260/2280 via CPU) • M.2_2: PCIe 4.0 x4 (Key M, 2242/2260/2280 via AMD B850 Chipset) |
| RGB Support | Yes (Aura Sync: 1 × Addressable Gen 2 Header + 1 × 4-pin Aura RGB Header) |
| WiFi | Wi-Fi 6 (802.11ax, 2x2, 2.4/5GHz Dual-Band) + Bluetooth 5.3 |
| VGA Port | 1 × VGA Port |
| DVI Port | No |
| HDMI Port | 1 × HDMI 2.1 Port (Supports up to 4K @ 60Hz) |
| DisplayPort (DP) | No |
| Thunderbolt | No |
| PCIe Expansion Slots | 1 × PCIe 5.0 x16 SafeSlot (supports x16 mode with Ryzen 9000/7000) 1 × PCIe 4.0 x1 Slot (via Chipset) |
| SATA & Storage Ports | 4 × SATA 6Gb/s Ports |
| RAID Support | AMD RAIDXpert2 Technology: RAID 0/1/10 (NVMe & SATA) |
| Wired Networking (LAN) | 1 × Realtek 2.5Gb Ethernet (2.5G RJ45) with ASUS LANGuard |
| Audio Solution | Realtek 7.1 Surround Sound High Definition Audio CODEC (Audio Shielding, Dedicated Audio PCB Layers, Premium Audio Capacitors) |
| Diagnostic & Display | Q-LED Core Indicators (CPU, DRAM, VGA, Boot Device status) |

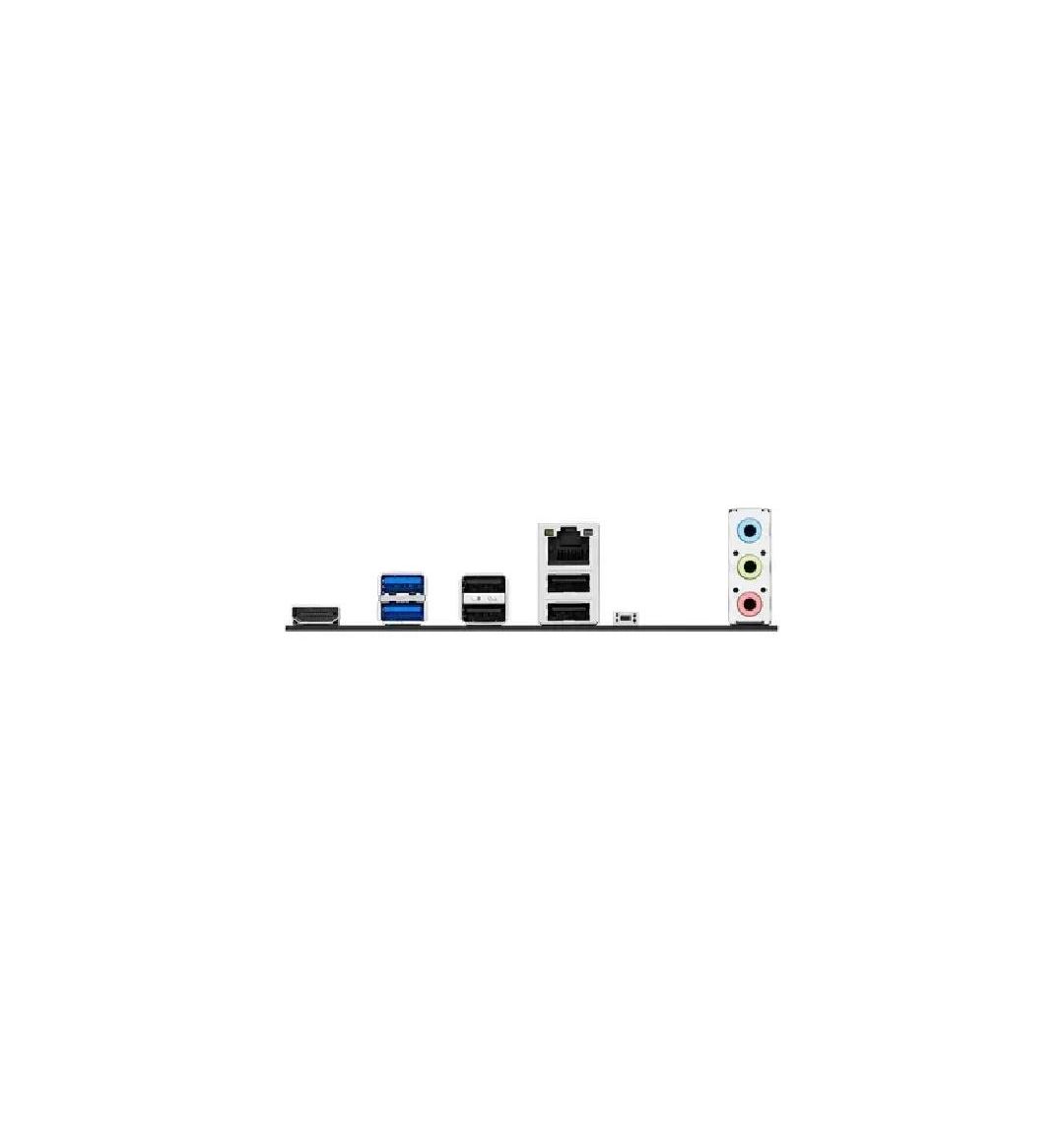

| Back Panel USB Ports | 2 × USB 10Gbps (Type-A) 2 × USB 5Gbps (Type-A) 2 × USB 2.0 (Type-A) 1 × BIOS FlashBack Button |
| Front Panel USB Headers | 1 × USB 5Gbps Type-C Connector 1 × USB 5Gbps Header (Supports 2 additional Type-A ports) 2 × USB 2.0 Headers (Supports 4 additional Type-A ports) |
| Cooling & VRM Architecture | Digital Multi-Stage Power Delivery with ASUS DIGI+ VRM, Extruded Silver Aluminum VRM Heatsink, High-Conductivity Thermal Pads, and Primary M.2 Heatsink |
| Corporate Stable Model (CSM) | ASUS Control Center Express (ACCE) centralized IT management software license included, guaranteed long lifecycle supply (up to 36 months), and Event Notice Service (EOL notice 6 months prior) |
| ASUS Special & DIY Features | ASUS 5X Protection III (DIGI+ VRM, LANGuard, Overvoltage Protection, SafeSlot Core+, Stainless Steel Back I/O), M.2 Q-Latch, BIOS FlashBack, Q-Antenna |
| Operating System Support | Windows 11 (64-bit), Windows 10 (64-bit) |
| Target Workload Applications | Corporate IT Fleets, Small-to-Medium Enterprise Desktops, Commercial Automation, Daily Office Productivity, Government & Educational Workstations |
| Package Contents | 1 × ASUS PRIME B850M-F WIFI-CSM Motherboard 1 × ASUS Wi-Fi Black Directional Antenna 2 × SATA 6Gb/s Cables 1 × M.2 Screw Package / Rubber Pads 1 × ASUS Control Center Express License Voucher 1 × User Documentation |
| Warranty | 3 Years Standard Limited Manufacturer Warranty |
Product Description
The ASUS PRIME B850M-F WIFI-CSM is a commercial Micro-ATX motherboard engineered to deliver rock-solid reliability, enterprise-grade manageability, and high-speed core connectivity for AMD Ryzen 9000, 8000, and 7000 Series desktop processors on the AM5 platform. Designed under the ASUS Corporate Stable Model (CSM) program, this board is tailored for corporate deployments, commercial workstation fleets, and educational systems requiring long product availability, proactive lifecycle notices, and centralized remote IT infrastructure.
Voltage regulation is managed by a multi-stage digital power delivery architecture controlled by ASUS DIGI+ VRM and powered via an 8-pin ProCool CPU power connector. Silver-anodized extruded aluminum heatsinks cover the primary power stages, coupled with high-conductivity thermal pads and a dedicated primary M.2 heatspreader to maintain sustained stability and low component thermals during uninterrupted 24/7 commercial operations. Across 2 DDR5 DIMM slots, the motherboard accommodates up to 128 GB of high-speed system memory with transfer rates reaching 8000+ MT/s (OC) through AMD Extended Profiles for Overclocking (EXPO) and ASUS Enhanced Memory Profile (AEMP).
Graphics and system storage leverage modern PCIe architecture. The primary PCIe 5.0 x16 SafeSlot is structurally reinforced to securely support discrete workstation GPUs and add-in cards. Storage versatility is provided by two onboard M.2 slots (a primary slot operating at ultra-fast PCIe 5.0 x4 bandwidth and a secondary slot operating at PCIe 4.0 x4) alongside four SATA 6Gb/s ports for extensive SATA-based data archiving.
System networking is anchored by onboard Wi-Fi 6 (802.11ax) paired with an included directional antenna, alongside a Realtek 2.5-Gigabit Ethernet port fortified by ASUS LANGuard for low-latency, stable network integration. Display flexibility is supported through HDMI 2.1 and legacy VGA video outputs, accommodating both modern monitors and traditional commercial display infrastructure. Complete with an included ASUS Control Center Express (ACCE) management license, ASUS 5X Protection III hardware safeguards, and a 3-year warranty, the ASUS PRIME B850M-F WIFI-CSM provides an efficient, dependable foundation for modern enterprise desktop fleets.
