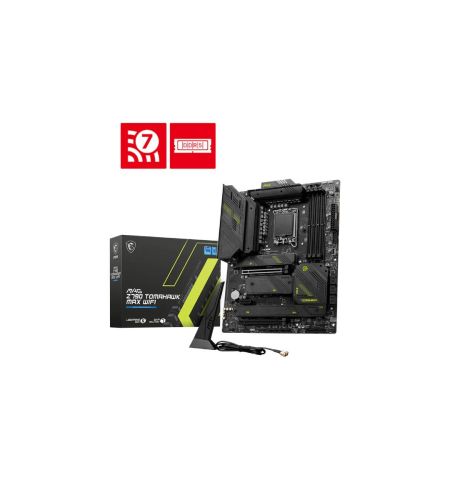

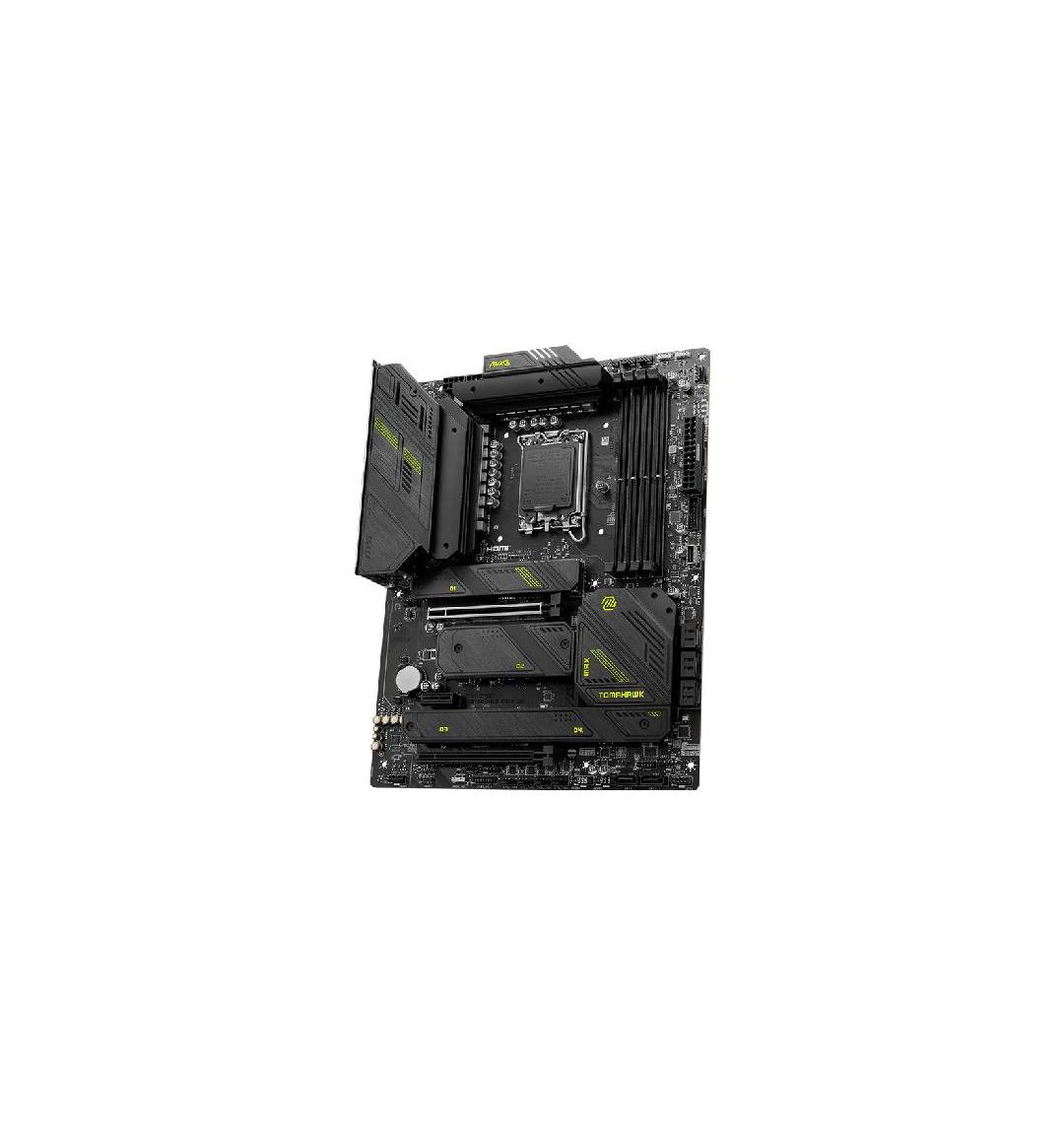

MSI MAG Z790 TOMAHAWK MAX WIFI LGA1700 ATX Motherboard
Please sign in so that we can notify you about a reply
Technical Specifications
| Attribute | Detailed Specification |
| Product Full Name | MSI MAG Z790 TOMAHAWK MAX WIFI LGA1700 ATX Motherboard |
| Product Model / SKU | MAG Z790 TOMAHAWK MAX WIFI |
| Brand / Manufacturer | MSI (Micro-Star International) |
| Product Series | MSI MAG Series (Arsenal Gaming) |
| Form Factor | Full ATX Form Factor (304.8 mm × 243.84 mm / 12.0" × 9.6") |
| CPU Socket | Intel LGA1700 |
| Supported Processors | Intel 14th, 13th, and 12th Generation Core, Pentium Gold, and Celeron Desktop Processors |
| Chipset | Intel Z790 Express Chipset |
| Power Delivery Architecture | 16+1+1 Mirrored Power Arrangement with 90A Smart Power Stages (SPS) & Dual 8-Pin CPU Connectors |
| PCB Construction | Server-Grade 6-Layer PCB with 2oz Thickened Copper |
| Memory Architecture | Dual-Channel DDR5 Memory Architecture |
| Memory Slots (DIMM) | 4 × DDR5 DIMM Sockets |
| Maximum Memory Capacity | Up to 192 GB (Supports 24GB / 48GB Non-Binary Modules) |
| Memory Clock Speeds | Supports DDR5 7800+(OC) / 7600(OC) / 7200(OC) down to 4800(JEDEC) MHz; Intel XMP 3.0 Ready |
| PCIe Expansion Slots | 1 × PCIe 5.0 x16 Slot (PCI_E1, from CPU, Steel Armor) 1 × PCIe 4.0 x16 Slot (PCI_E3, runs at x4, from Chipset) 1 × PCIe 3.0 x1 Slot (PCI_E2, from Chipset) |
| On-Board Graphics Interfaces | 1 × HDMI 2.1 Port (Supports up to 4K @ 60Hz) 1 × DisplayPort 1.4 Port (Supports up to 4K @ 60Hz) |
| M.2 Storage Interfaces | 4 × M.2 Slots: • M.2_1 (From CPU): Supports Type 2260/2280/22110 PCIe 5.0 x4 (Screwless M.2 Shield Frozr) • M.2_2 (From CPU): Supports Type 2260/2280 PCIe 4.0 x4 • M.2_3 (From Chipset): Supports Type 2242/2260/2280 PCIe 4.0 x4 • M.2_4 (From Chipset): Supports Type 2242/2260/2280 PCIe 4.0 x4 & SATA 6Gb/s |
| M.2 Thermal Management | M.2 Shield Frozr on all slots with double-sided thermal pads & patented Toolless/Screwless installation on M.2_1 |
| SATA Storage Interfaces | 8 × SATA 6Gb/s Ports (6 from Z790 Chipset + 2 from ASMedia ASM1061) |
| RAID Array Support | RAID 0, 1, 5, 10 supported for NVMe and SATA storage devices |
| Audio Chipset & Channels | Realtek ALC4080 7.1-Channel USB High Performance Audio Codec with Audio Boost 5 & Isolated PCB Design |
| Wired Network (LAN) | Intel 2.5 Gbps (2.5G) High-Speed Ethernet LAN Controller |
| Wireless & Bluetooth | Next-Gen Wi-Fi 7 (802.11be, 320MHz Bandwidth, up to 5.8Gbps) + Bluetooth 5.4 with EZ Antenna |
| Rear I/O Ports | 1 × USB 3.2 Gen 2x2 20Gbps Type-C 1 × USB 3.2 Gen 2 10Gbps Type-C 4 × USB 3.2 Gen 2 10Gbps Type-A 4 × USB 3.2 Gen 1 5Gbps Type-A 1 × HDMI 2.1 1 × DisplayPort 1.4 1 × Flash BIOS Button 1 × Clear CMOS Button 1 × RJ-45 2.5G LAN Port 2 × Wi-Fi 7 EZ Antenna Connectors 5 × Gold-Plated Audio Jacks 1 × Optical S/PDIF Out Connector |
| Internal Headers & Connectors | 1 × 24-Pin ATX Main Power 2 × 8-Pin ATX 12V Power 1 × 4-Pin CPU Fan Header 1 × 4-Pin Water Pump Fan Header 6 × 4-Pin System Fan Headers 1 × Front USB 3.2 Gen 2 10Gbps Type-C Header 1 × Front USB 3.2 Gen 1 5Gbps Header (Supports 2 Ports) 2 × USB 2.0 Headers (Supports 4 Ports) 1 × 4-Pin RGB LED Header 3 × 3-Pin ARGB (Addressable V2) Headers 1 × Front Panel Audio Header 1 × TPM 2.0 Header |
| Diagnostic & Ease of Use | EZ Debug LED, EZ M.2 Clip, Screwless M.2 Shield Frozr, EZ Antenna Push-In Design |
| VRM & Board Cooling | Extended Heatsink Design with Heavy Plated Fin Matrix, 7W/mK MOSFET Thermal Pads, Choke Thermal Pads |
| BIOS Type & Features | 256 Mb Flash ROM, UEFI AMI BIOS, Click BIOS 5, Resizable BAR (Re-BAR) Support |
| Operating System Support | Windows 11 64-Bit / Windows 10 64-Bit |
| Warranty Policy | 3 Years Official Manufacturer / Distributor Replacement & Service Warranty |
Product Description
The MSI MAG Z790 TOMAHAWK MAX WIFI LGA1700 ATX Motherboard is a flagship-tier military-styled desktop platform designed for hardcore gamers, competitive overclockers, content creators, and PC enthusiasts who demand maximum electrical stability and cutting-edge I/O bandwidth from Intel 14th, 13th, and 12th Generation Core processors. Built around an ultra-durable 6-layer server-grade PCB infused with 2oz thickened copper, the board features a stealth matte-black aesthetic with heavy plated industrial heatsinks that maintain optimal thermal equilibrium under prolonged maximum computing loads.
Power delivery is driven by a robust 16+1+1 Duet Rail Power System (DRPS) featuring 90A Smart Power Stages (SPS) and dual 8-pin CPU power inputs. This elite VRM topology delivers clean, high-amperage current to unlock peak multi-core boost clocks during intensive gaming, 3D rendering, and compiling. Memory capabilities are accelerated via MSI Memory Boost and isolated trace routing, supporting up to 192GB of dual-channel DDR5 across 4 DIMM slots with aggressive overclocking speeds reaching 7800+ MHz (OC) via Intel XMP 3.0 profiles.
Storage and expansion architectures are fully future-proofed. The primary graphics slot utilizes PCIe 5.0 x16 technology with Steel Armor shielding to handle the heaviest modern GPUs without physical bending or electrical interference. Storage is expansive, highlighted by a dedicated Gen5 M.2 slot providing PCIe 5.0 x4 bandwidth (up to 128Gbps), complemented by 3 additional high-speed PCIe 4.0 x4 M.2 slots and 8 SATA 6Gb/s ports. All M.2 slots are cooled by MSI's double-sided M.2 Shield Frozr system, with the primary slot featuring a patented screwless mechanism and EZ M.2 clips for fast, tool-free SSD swaps.
Networking is upgraded to next-generation Wi-Fi 7 technology featuring wide 320MHz channel bandwidths and transfer speeds up to 5.8Gbps, paired with an easy-snap EZ Antenna and Bluetooth 5.4, alongside an Intel 2.5Gbps high-speed Ethernet controller for latency-free competitive online play. Studio-grade audio is delivered by the Realtek ALC4080 USB audio processor with dedicated high-grade capacitors and optical S/PDIF out. Outfitted with dual rear USB Type-C ports (including a 20Gbps USB 3.2 Gen 2x2 port), physical Clear CMOS and Flash BIOS buttons, and an official 3-year warranty, the MSI MAG Z790 TOMAHAWK MAX WIFI stands as the premier foundation for modern high-performance desktop builds.
