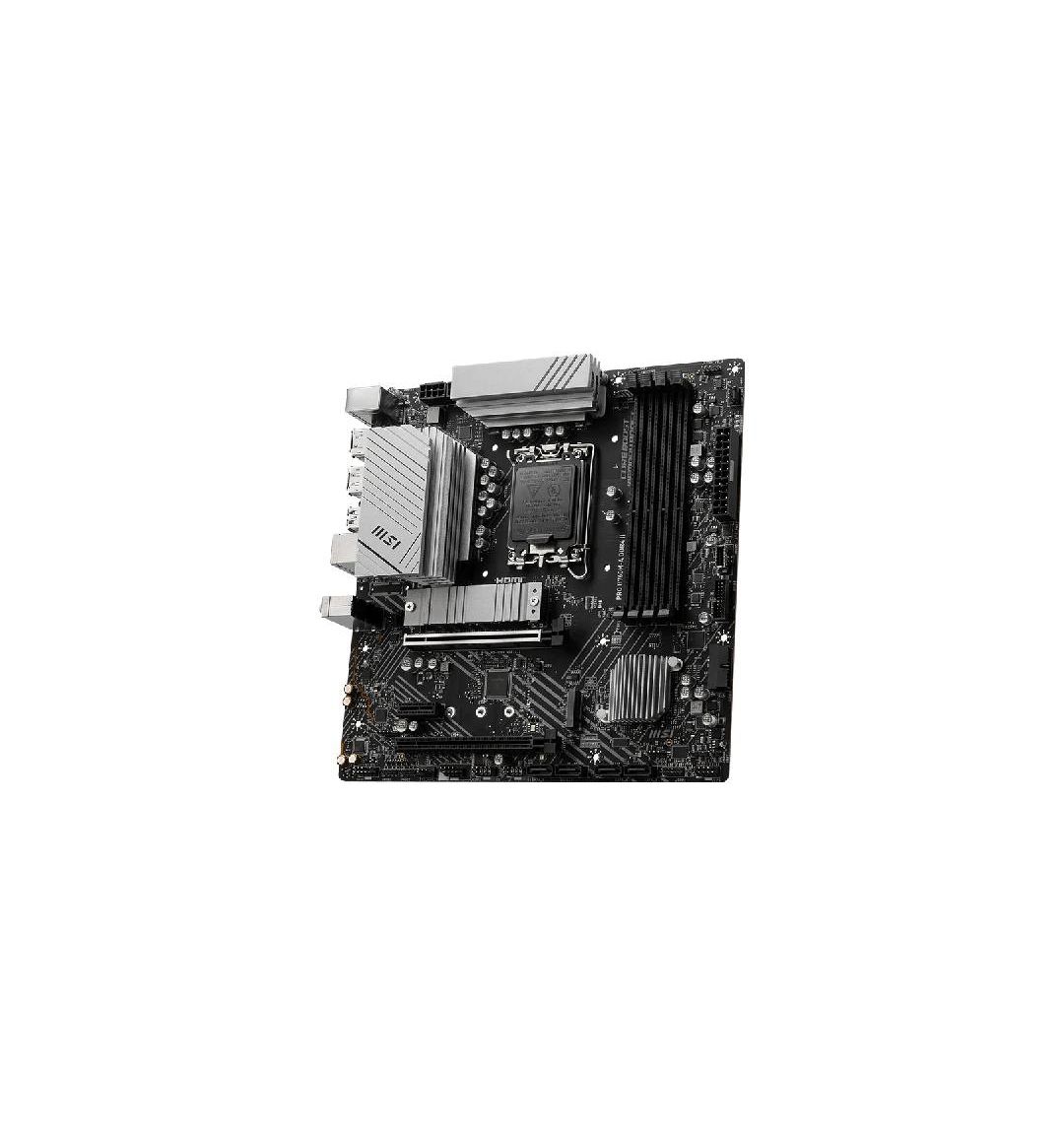

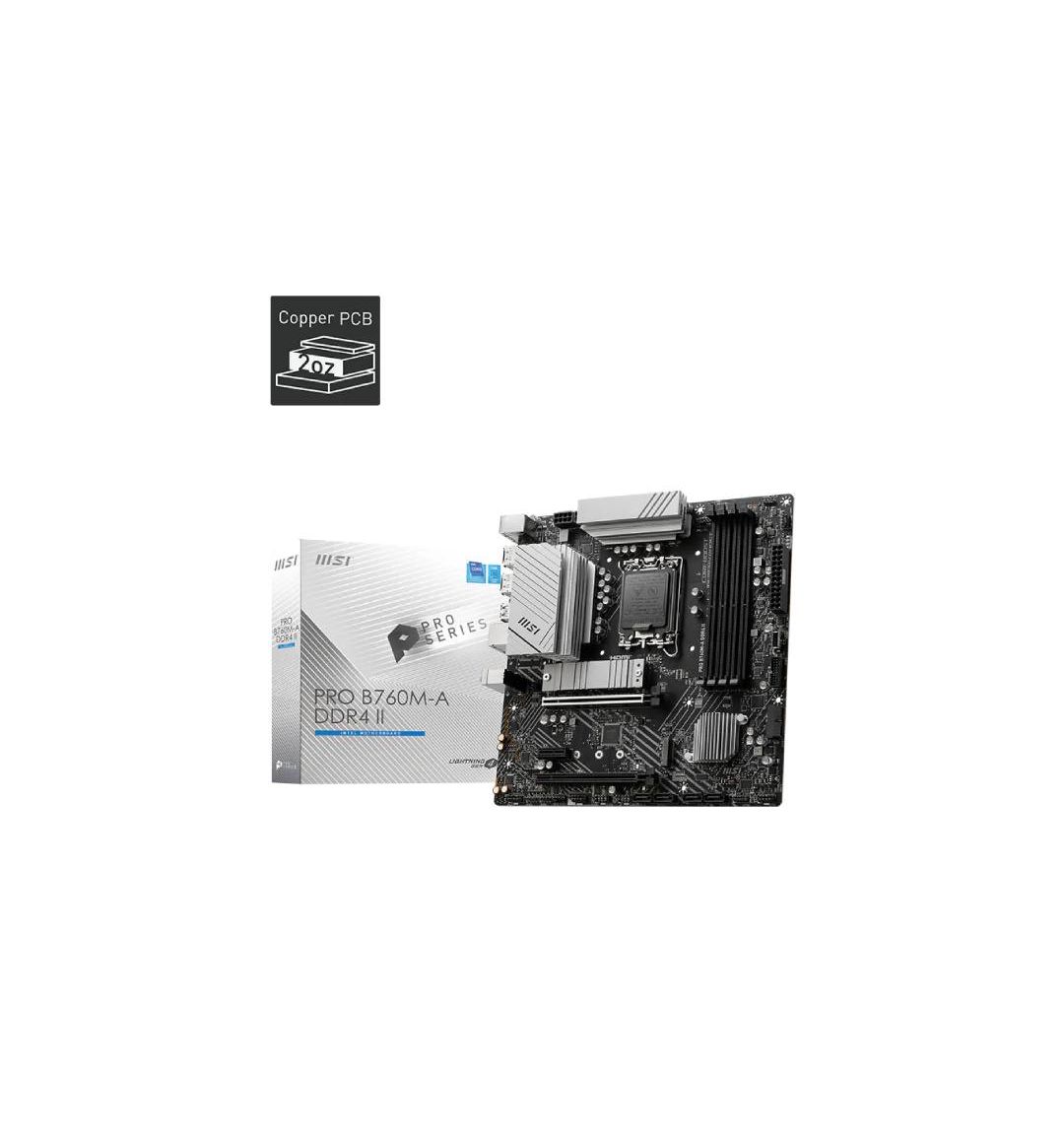

MSI PRO B760M-A DDR4 II LGA1700 mATX Motherboard
Please sign in so that we can notify you about a reply
Technical Specifications
| Attribute | Detailed Specification |
| Product Full Name | MSI PRO B760M-A DDR4 II LGA1700 Micro-ATX Motherboard |
| Product Model / SKU | PRO B760M-A DDR4 II |
| Brand / Manufacturer | MSI (Micro-Star International) |
| Product Series | MSI PRO Series (Business, Enterprise & Everyday Productivity) |
| Form Factor | Micro-ATX (mATX) Architecture (243.84 mm × 243.84 mm / 9.6" × 9.6") |
| CPU Socket | Intel LGA1700 |
| Supported Processors | Intel 14th, 13th, and 12th Generation Core, Pentium Gold, and Celeron Desktop Processors |
| Chipset | Intel B760 Express Chipset |
| Power Delivery Architecture | 12+1+1 Duet Rail Power System (DRPS) with P-PAK & Dual 8-Pin CPU Power Connectors |
| PCB Construction | 6-Layer Server-Grade PCB with 2oz Thickened Copper |
| Memory Architecture | Dual-Channel DDR4 Memory Architecture |
| Memory Slots (DIMM) | 4 × DDR4 DIMM Sockets |
| Maximum Memory Capacity | Up to 128 GB |
| Memory Clock Speeds | Supports DDR4 5333+(OC) / 5200(OC) / 5000(OC) / 4800(OC) / 4600(OC) down to 2133(JEDEC) MHz; Intel XMP 2.0 Ready |
| PCIe Expansion Slots | 2 × PCIe 4.0 x16 Slots: • PCI_E1 (From CPU): Supports PCIe 4.0 x16 (Steel Armor) • PCI_E2 (From Chipset): Supports PCIe 4.0 x4 1 × PCIe 3.0 x1 Slot (PCI_E3, From Chipset) |
| On-Board Graphics Interfaces | 2 × HDMI 2.1 Ports (Supports 4K @ 60Hz) 2 × DisplayPort 1.4 Ports (Supports 4K @ 60Hz) |
| M.2 Storage Interfaces | 2 × M.2 Slots (All PCIe 4.0 x4 Mode): • M.2_1 (From CPU): Supports Type 2242/2260/2280 PCIe 4.0 x4 • M.2_2 (From Chipset): Supports Type 2242/2260/2280 PCIe 4.0 x4 & SATA Mode |
| M.2 Thermal Management | M.2 Shield Frozr Heatsink on Primary Slot (M.2_1) with Dedicated High-Efficiency Thermal Pad |
| SATA Storage Interfaces | 4 × SATA 6Gb/s Ports (Supports RAID 0, RAID 1, RAID 5, and RAID 10 for SATA Storage Devices) |
| Audio Chipset & Channels | Realtek ALC897 7.1-Channel High Definition Audio Codec with Dedicated Audio Capacitors & Isolated PCB Layer |
| Wired Network (LAN) | Realtek RTL8125BG 2.5 Gbps (2.5G) High-Speed Ethernet Controller |

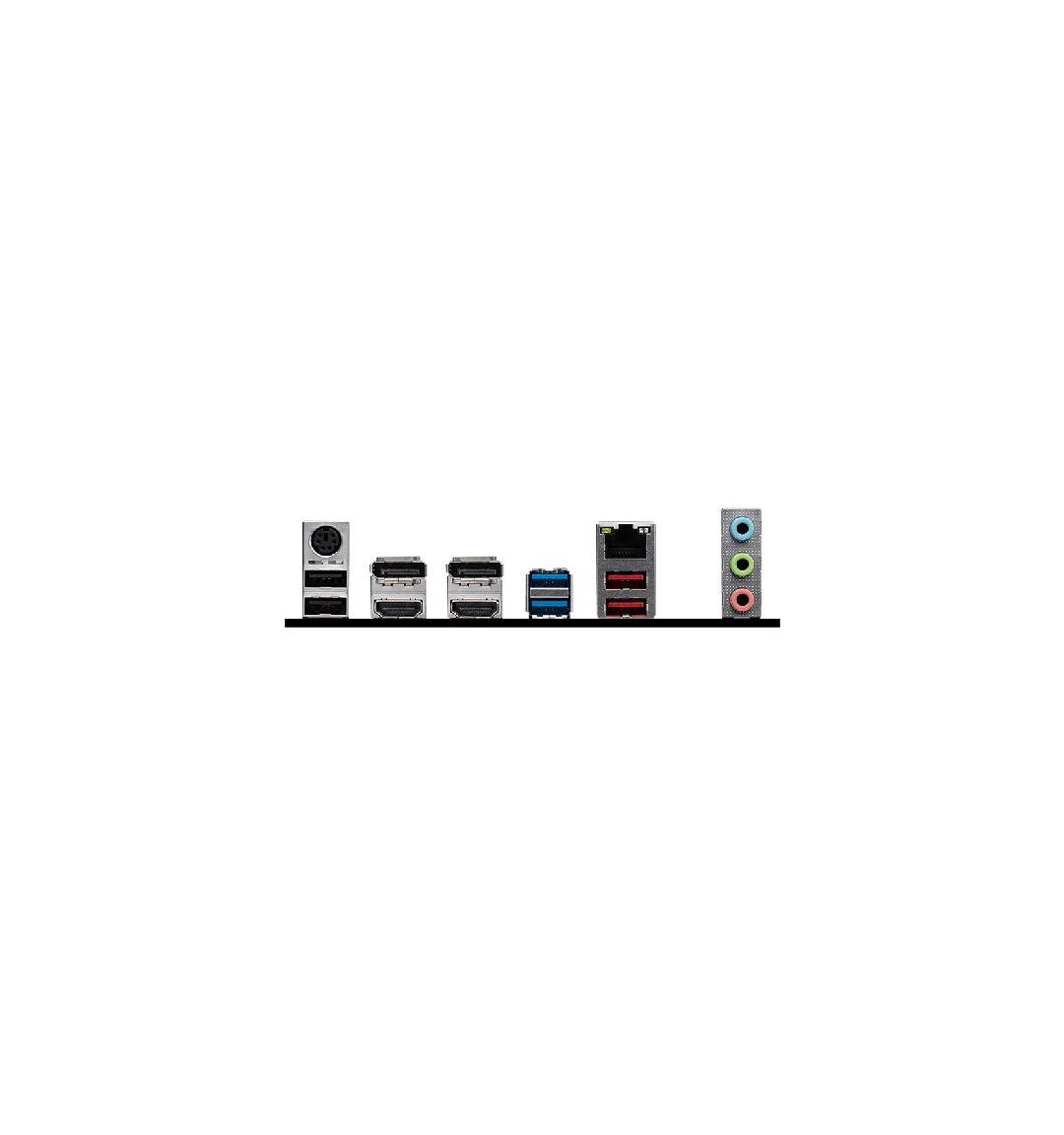

| Rear I/O Ports | 2 × USB 3.2 Gen 2 10Gbps Type-A Ports 4 × USB 2.0 Type-A Ports 2 × HDMI 2.1 Outputs 2 × DisplayPort 1.4 Outputs 1 × RJ-45 2.5G Ethernet Port 1 × PS/2 Keyboard/Mouse Combo Port 3 × 3.5 mm High Definition Audio Jacks |
| Internal Headers & Connectors | 1 × 24-Pin ATX Main Power Connector 2 × 8-Pin ATX 12V CPU Power Connectors 1 × 4-Pin CPU Fan Header 1 × 4-Pin Water Pump Fan Header 2 × 4-Pin System Fan Headers 1 × Front USB 3.2 Gen 1 5Gbps Type-C Header 1 × Front USB 3.2 Gen 1 5Gbps Header (Supports 2 Ports) 2 × USB 2.0 Headers (Supports 4 Ports) 2 × 4-Pin RGB LED Headers 2 × 3-Pin ARGB (Addressable V2) LED Headers 1 × Front Panel Audio Header 1 × TPM 2.0 Module Header |
| Diagnostic Utilities | MSI EZ Debug LED (CPU, DRAM, VGA, BOOT Status Indicators) |
| Thermal & VRM Cooling | Extended Heatsink Design, 7W/mK MOSFET Thermal Pads, Choke Thermal Pads, Heavy Plated Heat Spreaders |
| BIOS Type & Features | UEFI AMI BIOS, Click BIOS 5, Resizable BAR (Re-BAR) Support |
| Operating System Support | Windows 11 64-Bit / Windows 10 64-Bit |
| Warranty Policy | 3 Years Official Manufacturer / Distributor Replacement & Service Warranty |
Product Description
The MSI PRO B760M-A DDR4 II LGA1700 Micro-ATX Motherboard is a reliable, high-value commercial desktop motherboard designed for enterprise offices, business workstations, content creators, and cost-conscious system builders looking to harness the performance of Intel 14th, 13th, and 12th Generation Core processors using cost-effective DDR4 memory. Engineered on a compact micro-ATX form factor with a 6-layer server-grade PCB featuring 2oz thickened copper, the board blends the classic MSI PRO Series matte-black aesthetic with solid-metal extended heatsinks to ensure durable, long-term thermal stability during prolonged business workflows.
Power delivery is driven by a 12+1+1 Duet Rail Power System (DRPS) equipped with dual 8-pin CPU power connectors. This VRM configuration delivers consistent, clean electrical current directly to the CPU socket, sustaining boost clock speeds during intense multitasking, database management, and media compiling. The board features four DDR4 DIMM sockets supporting up to 128GB of dual-channel memory, capable of reaching high overclocked speeds of up to 5333+ MHz via Intel XMP 2.0 profiles and MSI Memory Boost isolated circuitry, which isolates signal paths to reduce electromagnetic noise.
For graphics and storage expansion, the motherboard includes a reinforced PCIe 4.0 x16 slot with MSI Steel Armor to prevent slot damage and signal interference from heavy discrete graphics cards. Storage performance is anchored by dual high-speed PCIe 4.0 x4 M.2 NVMe slots for rapid operating system load times and file transfers, with the primary M.2 slot protected by an M.2 Shield Frozr heatsink to prevent thermal throttling. A standout productivity highlight is its enterprise display array featuring dual HDMI 2.1 and dual DisplayPort 1.4 ports, enabling multi-monitor setups with up to four independent 4K displays straight from the motherboard. Finished with a 2.5Gbps high-speed Ethernet controller, front-panel USB-C support, 7.1-channel HD Audio, and an official 3-year warranty, the MSI PRO B760M-A DDR4 II delivers an efficient and flexible computing platform.
