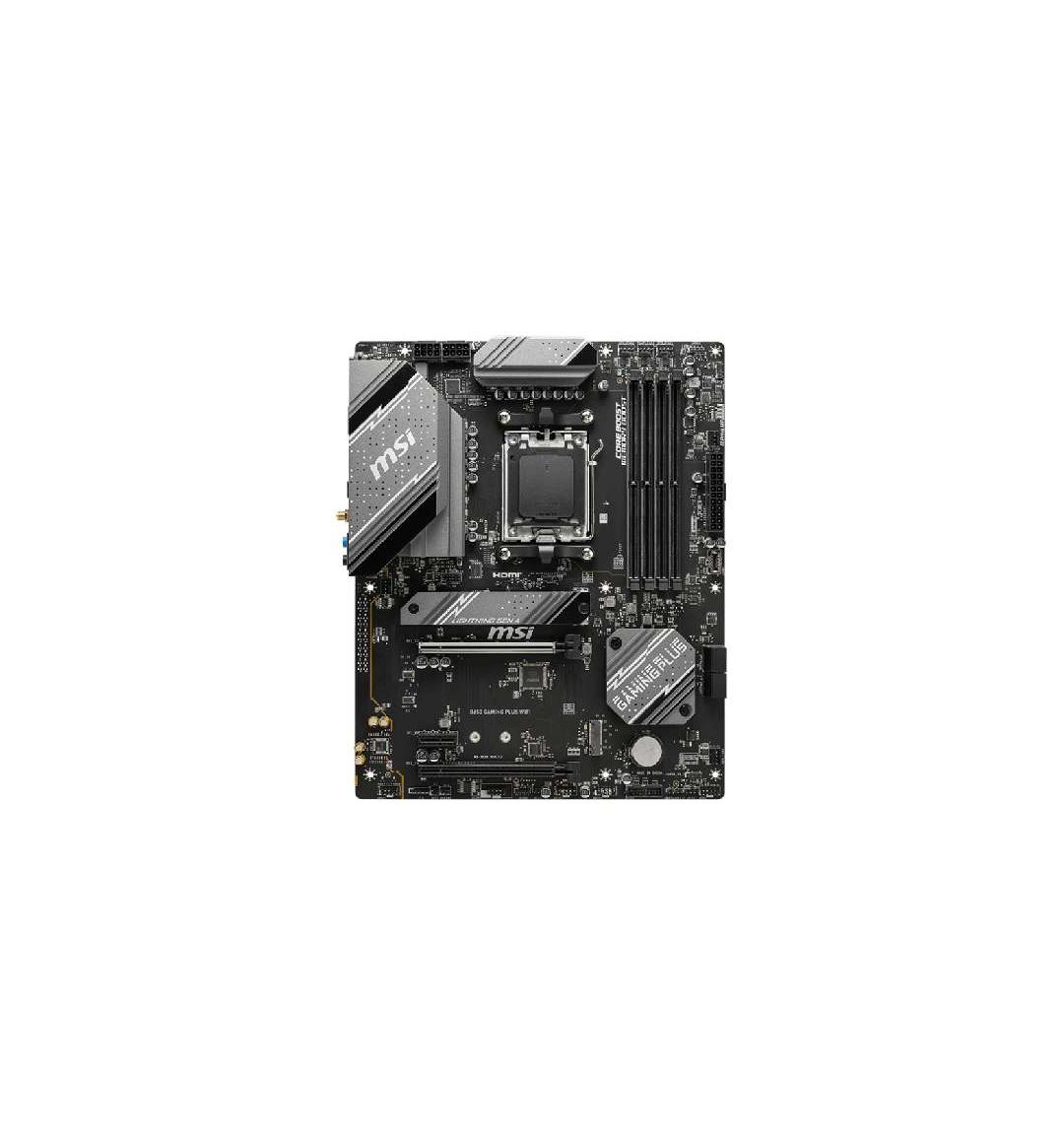

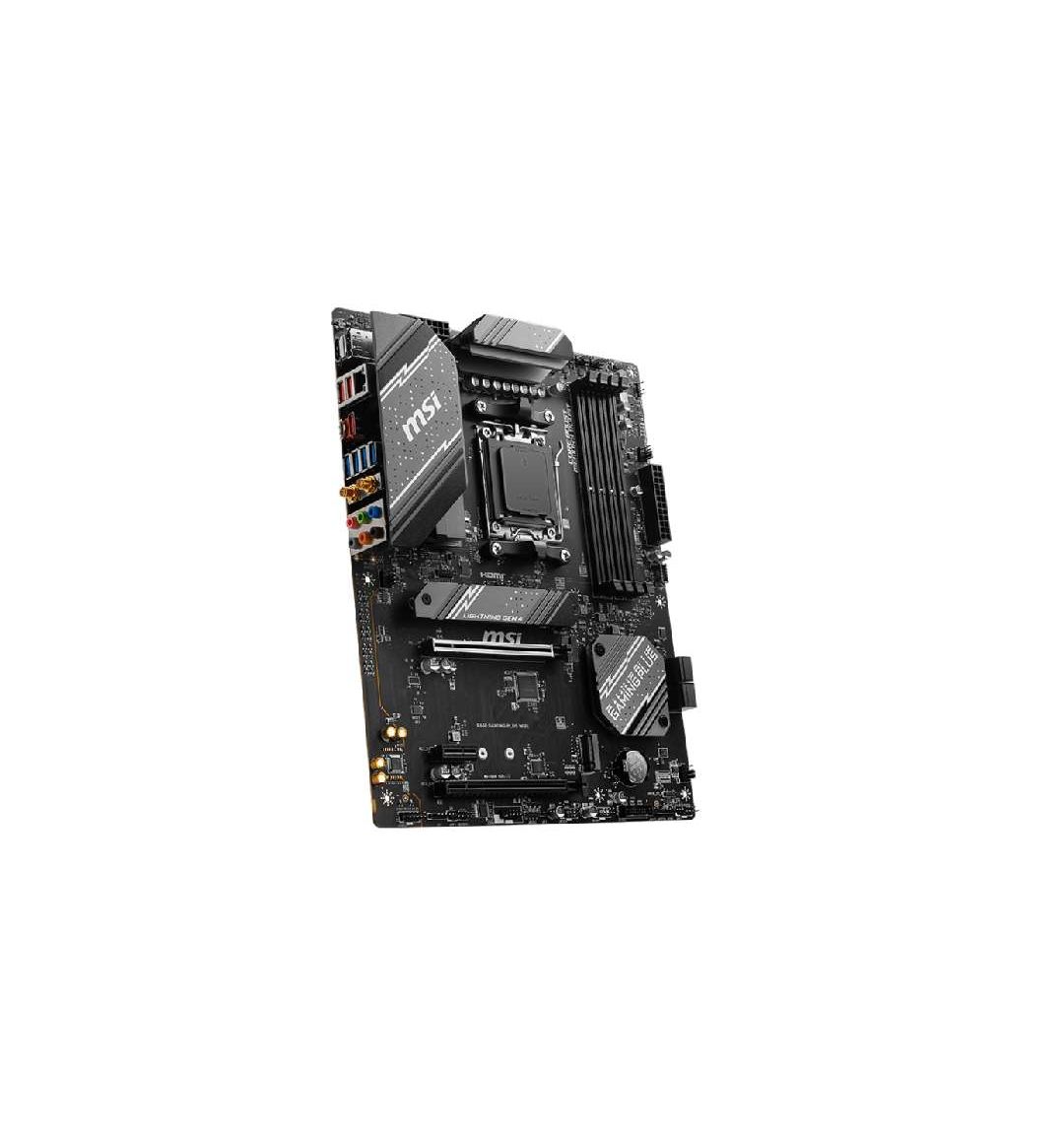

MSI B650 GAMING PLUS WIFI AMD AM5 Motherboard
Please sign in so that we can notify you about a reply
pecification
| Category | Details |
|---|---|
| Model | MSI B650 GAMING PLUS WIFI |
| Supported CPU | AMD Ryzen™ 9000 / 8000 / 7000 Series |
| Socket | AM5 |
| Chipset | AMD B650 |
| Form Factor | ATX (243.84 × 304.8 mm) |
| Memory Type | DDR5 |
| Memory Slots | 4× DIMM |
| Maximum Memory | Up to 192GB |
| Supported Speed | Up to 6000+ MT/s (OC), 4800 MT/s (JEDEC) |
| Memory Features | Dual-Channel, AMD EXPO, Non-ECC, Unbuffered |
| PCIe Slots | 1× PCIe 4.0 x16, 1× PCIe 4.0 x4, 1× PCIe 3.0 x1 |
| Multi-GPU | AMD Multi-GPU Support |
| M.2 Slots | 2× M.2 (PCIe 4.0 x4) |
| SATA Ports | 4× SATA 6Gb/s |
| Graphics Output | 1× HDMI 2.1 (4K@60Hz), 1× DisplayPort 1.4 (4K@60Hz) |
| USB (Rear) | USB 3.2 Gen1 Type-A, USB 3.2 Gen2 Type-A, USB 3.2 Gen2x2 Type-C |
| USB (Front) | USB 2.0, USB 3.2 Gen1 Type-A, USB 3.2 Gen2 Type-C |
| LAN | Realtek RTL8125BG 2.5G LAN |
| Wireless | AMD Wi-Fi 6E + Bluetooth 5.3 |
| Audio | Realtek ALC897, 7.1-Channel HD Audio |
| RAID Support | RAID 0 / 1 (SATA & NVMe) |
| Cooling Support | 1× CPU Fan, 1× Pump Fan, 4× System Fans |
| RGB Support | 2× ARGB Headers, 2× RGB Headers |
| Debug Features | 4× EZ Debug LED |
| TPM Support | TPM 2.0 Header |
| Operating System | Windows 11 64-bit Supported |
| Warranty | 3 Years Manufacturing Warranty |
Description
The MSI B650 GAMING PLUS WIFI AM5 ATX Motherboard is a high-performance gaming-focused platform built for AMD Ryzen 9000, 8000, and 7000 Series processors, delivering excellent stability, connectivity, and future-ready performance. Powered by the AMD B650 chipset, it supports up to 192GB of dual-channel DDR5 memory with overclocked speeds reaching 6000+ MT/s using AMD EXPO profiles, ensuring smooth multitasking and responsive gameplay. The board features a robust 12+2+1 Duet Rail Power System with dual 8-pin CPU connectors, reinforced by Core Boost and Memory Boost technologies for stable power delivery under heavy loads. Expansion includes a PCIe 4.0 x16 slot for modern GPUs, additional PCIe slots for add-on cards, and two PCIe Gen 4 x4 M.2 slots with M.2 Shield Frozr to prevent thermal throttling. Connectivity is top-tier with Realtek 2.5G LAN, AMD Wi-Fi 6E, Bluetooth 5.3, and a wide range of high-speed USB ports including a 20Gbps USB Type-C. Display output supports HDMI 2.1 and DisplayPort 1.4 for 4K visuals, while audio is handled by the Realtek ALC897 codec delivering immersive 7.1-channel HD sound. Built on a premium 6-layer PCB with 2oz thickened copper and advanced thermal design, the MSI B650 GAMING PLUS WIFI is a reliable and future-proof choice for gamers and creators seeking performance, durability, and modern connectivity in an ATX form factor.
