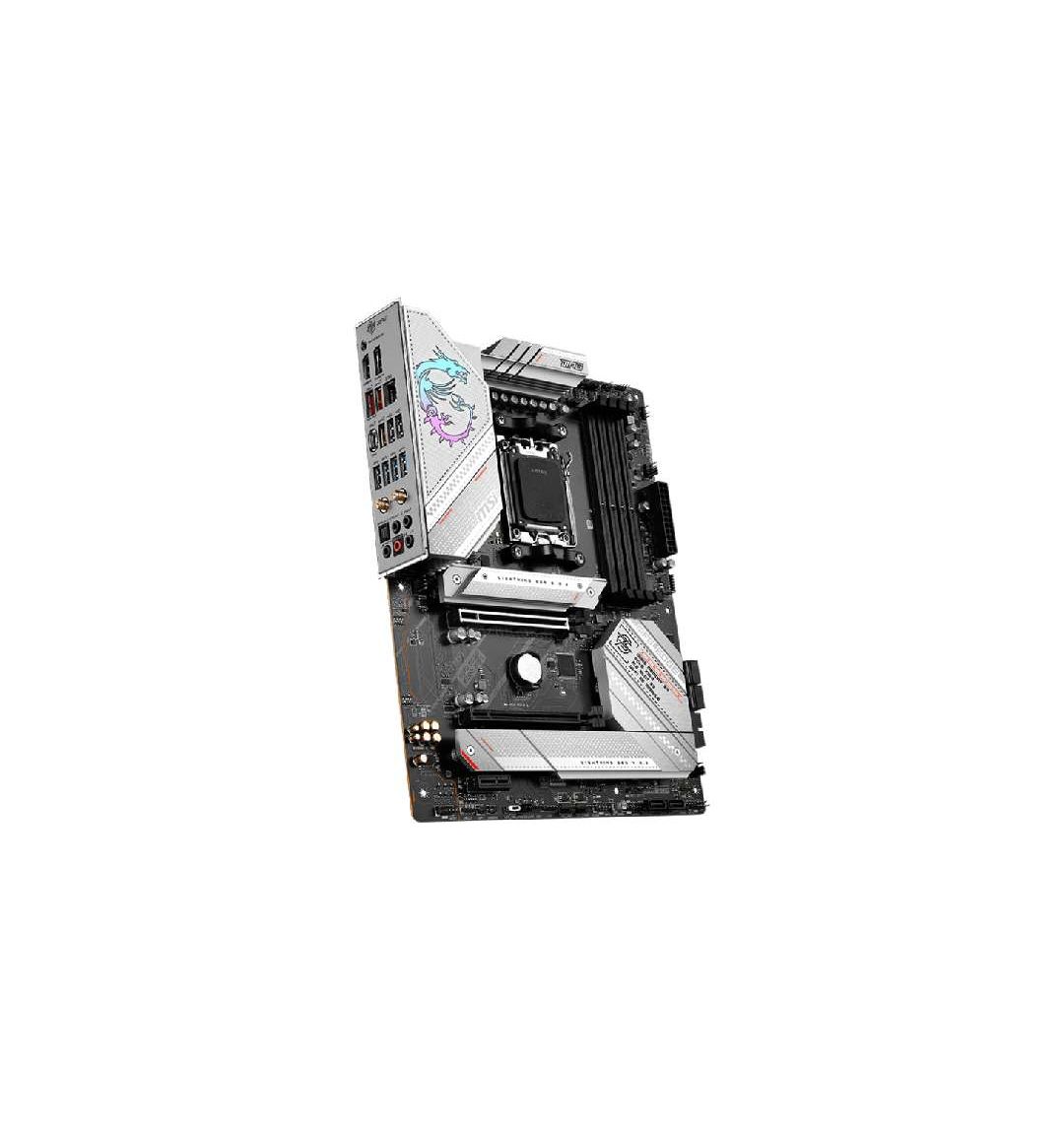

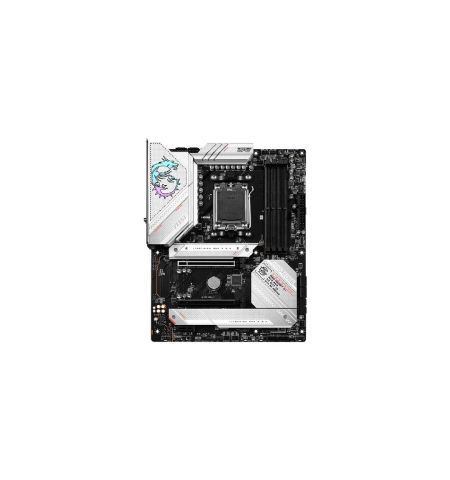

MSI MPG B650 EDGE WIFI DDR5 AMD AM5 ATX Motherboard
Please sign in so that we can notify you about a reply
Specification
| Category | Details |
|---|---|
| Model | MSI MPG B650 EDGE WIFI |
| Supported CPU | AMD Ryzen™ 9000 / 8000 / 7000 Series |
| Socket | AM5 |
| Chipset | AMD B650 |
| Form Factor | ATX (243.84 × 304.8 mm) |
| Memory Type | DDR5 |
| Memory Slots | 4× DIMM |
| Maximum Memory | Up to 128GB |
| Supported Speed | Up to 6600+ MT/s (OC) |
| PCIe Slots | 2× PCIe 4.0 x16, 1× PCIe 3.0 x1 |
| M.2 Slots | 3× M.2 (1× PCIe 5.0, 2× PCIe 4.0) |
| SATA Ports | 6× SATA 6Gb/s |
| Graphics Output | 1× HDMI 2.1 (4K@60Hz), 1× DisplayPort 1.4 (8K@60Hz) |
| USB (Rear) | 2× USB 2.0, 4× USB 5Gbps, 3× USB 10Gbps, 1× USB 20Gbps Type-C |
| USB (Front) | 4× USB 2.0, 2× USB 5Gbps, 1× USB 10Gbps Type-C |
| LAN | Realtek RTL8125BG 2.5G LAN |
| Wireless | AMD Wi-Fi 6E + Bluetooth 5.2 |
| Audio | Realtek ALC4080, 7.1-Channel USB HD Audio |
| RAID Support | RAID 0/1/10 (SATA & NVMe) |
| Cooling Support | 1× CPU Fan, 1× Pump Fan, 6× System Fans |
| RGB Support | 2× ARGB, 2× RGB |
| Debug Features | 4× EZ Debug LED, EZ LED Control |
| TPM Support | TPM 2.0 Header |
| Operating System | Windows 11 64-bit Supported |
| Warranty | 3 Years Manufacturing Warranty |
Description
The MSI MPG B650 EDGE WIFI DDR5 AM5 ATX Motherboard is a premium gaming and enthusiast-class motherboard built for high-performance AMD systems. Powered by the AMD B650 chipset, it supports AMD Ryzen 9000, 8000, and 7000 Series processors and delivers excellent memory performance with up to 128GB of DDR5 RAM clocked at speeds up to 6600+ MT/s (OC) using AMD EXPO profiles. Designed for next-generation hardware, it features PCIe 5.0 support for ultra-fast NVMe storage, multiple PCIe 4.0 slots for modern GPUs, and three M.2 slots with MSI’s M.2 Shield Frozr cooling to prevent thermal throttling. Connectivity is top-tier with Realtek 2.5G LAN, AMD Wi-Fi 6E, Bluetooth 5.2, and a wide range of high-speed USB ports including a 20Gbps USB Type-C. Visual output is supported via HDMI 2.1 and DisplayPort 1.4 with up to 8K resolution, while audio is powered by the Realtek ALC4080 codec offering studio-grade 7.1-channel sound. With a robust 6-layer PCB, advanced thermal design, extensive fan headers, and MSI’s EZ Debug and RGB control features, the MSI MPG B650 EDGE WIFI is a future-ready, high-end motherboard ideal for gaming, streaming, and professional workloads.
