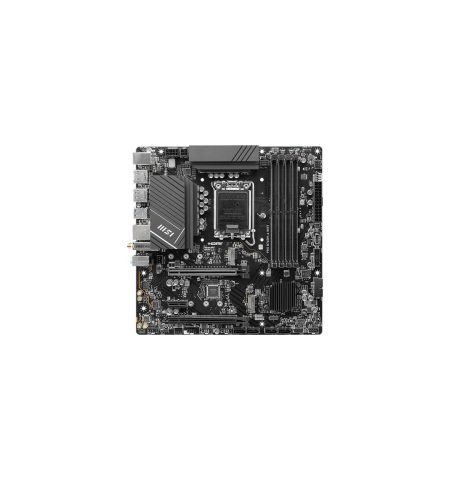

MSI PRO B760M-A Wi-Fi DDR5 Intel Motherboard

Specification

MSI PRO B760M-A Wi-Fi DDR5 Intel Motherboard

Elevate Your PC Build with the MSI PRO B760M-A

The MSI PRO B760M-A Wi-Fi DDR5 motherboard is crafted for high-performance computing with its advanced features and robust design. Ideal for users seeking reliability and performance, this Micro-ATX motherboard supports the latest Intel processors and offers a range of connectivity options.

Key Features:

• Chipset and CPU Support: Equipped with the Intel B760 chipset, the PRO B760M-A supports 12th, 13th, and 14th Gen Intel Core processors, as well as Pentium Gold and Celeron CPUs. It features an LGA1700 socket and is built to handle intensive workloads with ease.
• Memory Support: Boost your system's performance with support for up to 192GB of DDR5 memory. The motherboard supports a wide range of memory speeds, from 4800MHz to 6800MHz, ensuring that you can take advantage of the latest memory technology.
• Storage Options: With two M.2 slots (PCIe 4.0 x4) and four SATA ports, the PRO B760M-A provides flexible and high-speed storage solutions. Whether you’re installing SSDs or traditional hard drives, this motherboard ensures fast data access and ample storage capacity.
• Graphics and Expansion: Integrated graphics support is available with the CPU, while the motherboard features two PCIe x16 slots and one PCIe x1 slot for additional expansion cards. It does not support multi-GPU setups, but offers ample slots for your expansion needs.
• Network and Connectivity: Experience blazing-fast network speeds with the Realtek RTL8125BG 2.5G LAN and the latest Wi-Fi 6E technology, which supports the 6GHz band for improved wireless performance. Bluetooth 5.3 adds additional connectivity options.
• Audio: Enjoy immersive audio with the Realtek ALC897 codec, which delivers 7.1 channel high-definition audio for a rich and dynamic sound experience.

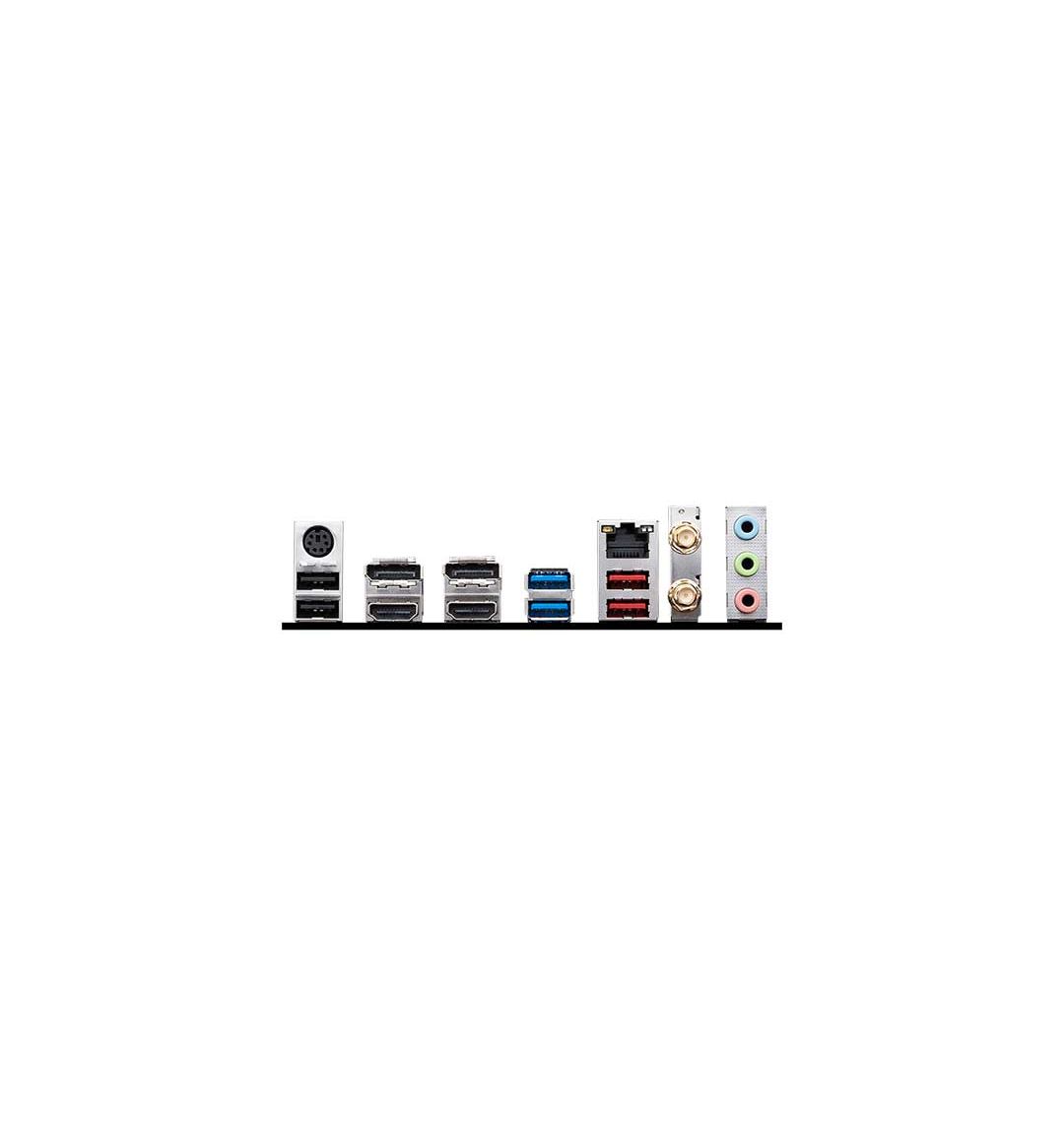

• Ports and Connectors: The PRO B760M-A includes a range of connectivity options, including two USB 3.2 Gen 2 Type-A ports, two USB 3.2 Gen 1 Type-A ports, two USB 2.0 ports, and HDMI/DisplayPort outputs. Additional connectors include an RGB LED header for customizable lighting and a TPM port for enhanced security.
• Form Factor: This motherboard is designed in a compact Micro-ATX form factor, making it suitable for a wide range of cases while still offering ample connectivity and expansion options.
• Warranty: Backed by a 3-year warranty, the MSI PRO B760M-A provides peace of mind and reliability for your PC build.

Why Choose the MSI PRO B760M-A?

• Advanced DDR5 Support: Take advantage of the latest memory technology for superior performance.
• Enhanced Connectivity: Enjoy fast network speeds and the latest wireless standards with Wi-Fi 6E and 2.5G LAN.
• Flexible Expansion: With multiple PCIe slots and M.2 connectors, customize your system to meet your needs.

FAQ for MSI PRO B760M-A Wi-Fi DDR5 Intel Motherboard

1. What CPUs are compatible with the MSI PRO B760M-A?

• The MSI PRO B760M-A supports 12th, 13th, and 14th Gen Intel Core processors, as well as Pentium Gold and Celeron processors. It uses the LGA1700 socket.

2. How much RAM can I install on this motherboard?

• This motherboard supports up to 192GB of DDR5 RAM across four DIMM slots. It is compatible with memory speeds ranging from 4800MHz to 6800MHz.

3. How many M.2 slots does the MSI PRO B760M-A have, and what are their specifications?

• The MSI PRO B760M-A has two M.2 slots:
  • M.2_1 (from CPU) supports PCIe 4.0 x4 and is compatible with 2280/2260/2242 devices.
  • M.2_2 (from Chipset) supports PCIe 4.0 x4 or SATA mode and is also compatible with 2280/2260/2242 devices.

4. What are the networking features of this motherboard?

• The motherboard features Realtek RTL8125BG 2.5G LAN for high-speed wired networking and supports Wi-Fi 6E for advanced wireless connectivity. It also includes Bluetooth 5.3.

5. Can I use multiple GPUs with this motherboard?

• No, the MSI PRO B760M-A does not support multi-GPU setups. It has two PCIe x16 slots and one PCIe x1 slot for expansion but does not support CrossFire or SLI configurations.

6. What type of audio does the motherboard support?

• The MSI PRO B760M-A provides 7.1 channel high-definition audio through the Realtek ALC897 codec.

7. How many and what types of USB ports are available?

• The motherboard includes:
  • 2 x USB 3.2 Gen 2 Type-A (rear)
  • 2 x USB 3.2 Gen 1 Type-A (rear)
  • 2 x USB 2.0 (rear)
  • 2 x USB 3.2 Gen 1 Type-A (front)
  • 1 x RGB LED connector

8. What is the form factor of this motherboard?

• The MSI PRO B760M-A is a Micro-ATX motherboard with dimensions of 9.6 inches x 9.6 inches (24.4 cm x 24.4 cm).

9. Does the motherboard support RAID configurations?

• Yes, the motherboard supports RAID 0, RAID 1, RAID 5, and RAID 10 configurations.

10. What operating systems are compatible with this motherboard?

• The MSI PRO B760M-A is compatible with Windows 10 and Windows 11.

11. What kind of warranty does MSI offer for this motherboard?

• MSI provides a 3-year warranty for the PRO B760M-A motherboard.

12. Does the motherboard come with any additional software?

• Yes, the motherboard includes MSI’s EZ Debug LED for troubleshooting and Frozr AI Cooling for automated system fan adjustments. It also supports RGB customization via MSI’s software.
