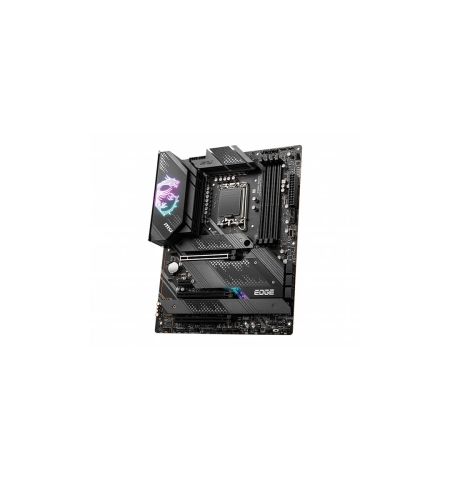

MSI MPG Z690 EDGE WIFI DDR5 12th Gen ATX Motherboard
Save 1%
Please sign in so that we can notify you about a reply
MSI MPG Z690 EDGE WIFI DDR5 ATX Motherboard
SPECIFICATION
| Supported CPU | Supports 12th Gen Intel Core, Pentium Gold and Celeron Processors Processor socket LGA1700 |
| Chipset | Intel Z690 Chipset |
| Memory | 4x DDR5 memory slots, support up to 128 GB Supports 1R 4800 MHz, 2R 4000 MHz (by JEDEC & POR)1 Max. overclocking frequency: 1DPC 1R Max speed up to 6400+ MHz 1DPC 2R Max speed up to 5400+ MHz 2DPC 1R Max speed up to 4000+ MHz 2DPC 2R Max speed up to 4000+ MHz Supports Dual-Channel mode Supports non-ECC, un-buffered memory Supports Intel Extreme Memory Profile (XMP) |
| Graphics | 1x HDMI 2.1 with HDR port, supports a maximum resolution of 4K 60Hz 1x DisplayPort 1.4 port with HBR3, supports a maximum resolution of 4K 60Hz |
| Multi-GPU Support | Supports AMD CrossFire Technology |
| Slots | 3x PCIe x16 slots PCI_E1 slot (From CPU) Supports PCIe 5.0 x16 PCI_E3 & PCI_E4 slots (From Z690 chipset) Supports PCIe 3.0 x4 1x PCIe 3.0 x1 slot (From Z690 chipset |
| Supported Storage | 6x SATA 6Gb/s ports SATA5~8 (From Z690 Chipset) SATAA~B (From ASMedia ASM1061) 2 x SATA 6Gb/s ports - SATAA & SATAB (From ASMedia ASM1061) 4x M.2 slots (Key M) M2_1 slot (From CPU) Supports PCIe 4.0 x4 Supports 2260/ 2280/ 22110 storage devices M2_2 slot (From Z690 Chipset) Supports PCIe 4.0 x4 Supports 2260/ 2280 storage devices M2_3 slot (From Z690 Chipset) Supports PCIe 4.0 x4 Supports SATA 6Gb/s Supports 2242/ 2260/ 2280 storage devices M2_4 slot (From Z690 Chipset) Supports PCIe 4.0 x4 Supports SATA 6Gb/s Supports 2242/ 2260/ 2280 storage devices M2_2~4 support Intel® Optane™ Memory Supports Intel® Smart Response Technology for Intel® Core™ processors |
| LAN | 1x Intel I225V 2.5Gbps LAN controller |
| Audio | Realtek ALC4080 Codec- 7.1-Channel High Definition Audio Supports S/PDIF output |
| USB Port | Intel® Z690 Chipset 1x USB 3.2 Gen 2x2 20Gbps Type-C port on the back panel 6x USB 3.2 Gen 2 10Gbps ports (1 Type-C internal connector and 5 Type-A ports on the back panel) 2x USB 2.0 Type-A ports on the back panel 2x USB 3.2 Gen 1 5Gbps ports available through the internal USB connector USB Hub-GL850G 4x USB 2.0 ports available through internal connectors |
| Internal I/O Ports | 1x 24-pin ATX main power connector 2x 8-pin ATX 12V power connectors 6x SATA 6Gb/s connectors 4x M.2 slots (M-Key) 1x USB 3.2 Gen 2 10Gbps Type-C port 1x USB 3.2 Gen 1 5Gbps connector (supports additional 2 USB 3.2 Gen 1 5Gbps ports) 2x USB 2.0 connectors (supports additional 4 USB 2.0 ports) 1x 4-pin CPU fan connector 1x 4-pin water-pump fan connector 6x 4-pin system fan connectors 1x Front panel audio connector 2x System panel connectors 1x Chassis Intrusion connector 1xTPM module connector 1x Clear CMOS jumper 1x Tuning controller connector 1x TBT connector (Supports RTD3) |
| External I/O Ports | DisplayPort 2.5G LAN Wireless Antenna Audio Connectors Flash BIOS Button USB 2.0 HDMI USB 3.2 Gen 2 10Gbps Type-A USB 3.2 Gen 2x2 20Gbps Type-C Optical S/PDIF Out |
| WiFi | Intel® Wi-Fi 6E The Wireless module is pre-installed in the M.2 (Key-E) slot Supports MU-MIMO TX/RX, 2.4GHz/ 5GHz/6GHz (160MHz) up to 2.4Gbps Supports 802.11 a/ b/ g/ n/ ac/ ax Supports Bluetooth® 5.2, FIPS, FISMA |
| DIMENSIONS | 12 in. x 9.6 in. (30.5 cm x 24.4 cm) |
| Form Factor | ATX Form Factor |
| Warranty Information | |
| Warranty | 3 years |
Nexus will be your first choice If you want to buy MSI Z690 EDGE WIFI DDR5 Motherboard in Bangladesh, Because we sale only MSI authorized original Motherboard. So you are at the right place to buy right MSI Motherboard at the lowest price in Bangladesh.
Nexus Offers you MSI Z690 EDGE WIFI DDR5 Motherboard at the best price in Bangladesh, which is your budget-friendly Motherboard. Do you want to know what is the price of MSI Z690 EDGE WIFI DDR5 Motherboard? and where you can get MSI Motherboard at lowest price in BD? Yes, it is Nexus. MSI Z690 EDGE WIFI DDR5 Motherboard now available at Nexus, So Don’t Think more to buy MSI Z690 EDGE WIFI DDR5 Motherboard.
