MSI MAG Z890 TOMAHAWK WIFI LGA 1851 ATX Motherboard
Please sign in so that we can notify you about a reply
Specification
| Category | Details |
|---|---|
| Supported CPU | Supports Intel® Core™ Ultra Processors (Series 2) |
| Chipset | Intel Z890 |
| Form Factor | ATX (243.84 × 304.8 mm) |
| Audio | Realtek® ALC1220P Codec, 7.1-Channel HD Audio, S/PDIF Support |
| PCIe Slots | 3× PCIe x16 (PCIe 5.0/4.0 with BIOS lane adjustment) |
| M.2 Slots | 5× M.2 (PCIe 5.0/4.0 + SATA support on M.2_5) |
| Memory Type | DDR5 |
| Memory Slots | 4 DIMM Slots |
| Supported Speed | 9200–6400 MT/s (OC), 6400–4800 MT/s (JEDEC) |
| Maximum Memory | Up to 256GB |
| Graphics Output | 1× HDMI 2.1 (up to 8K/60Hz), 2× Thunderbolt 4 Type-C (DP 1.4 HBR3, up to 8K/60Hz) |

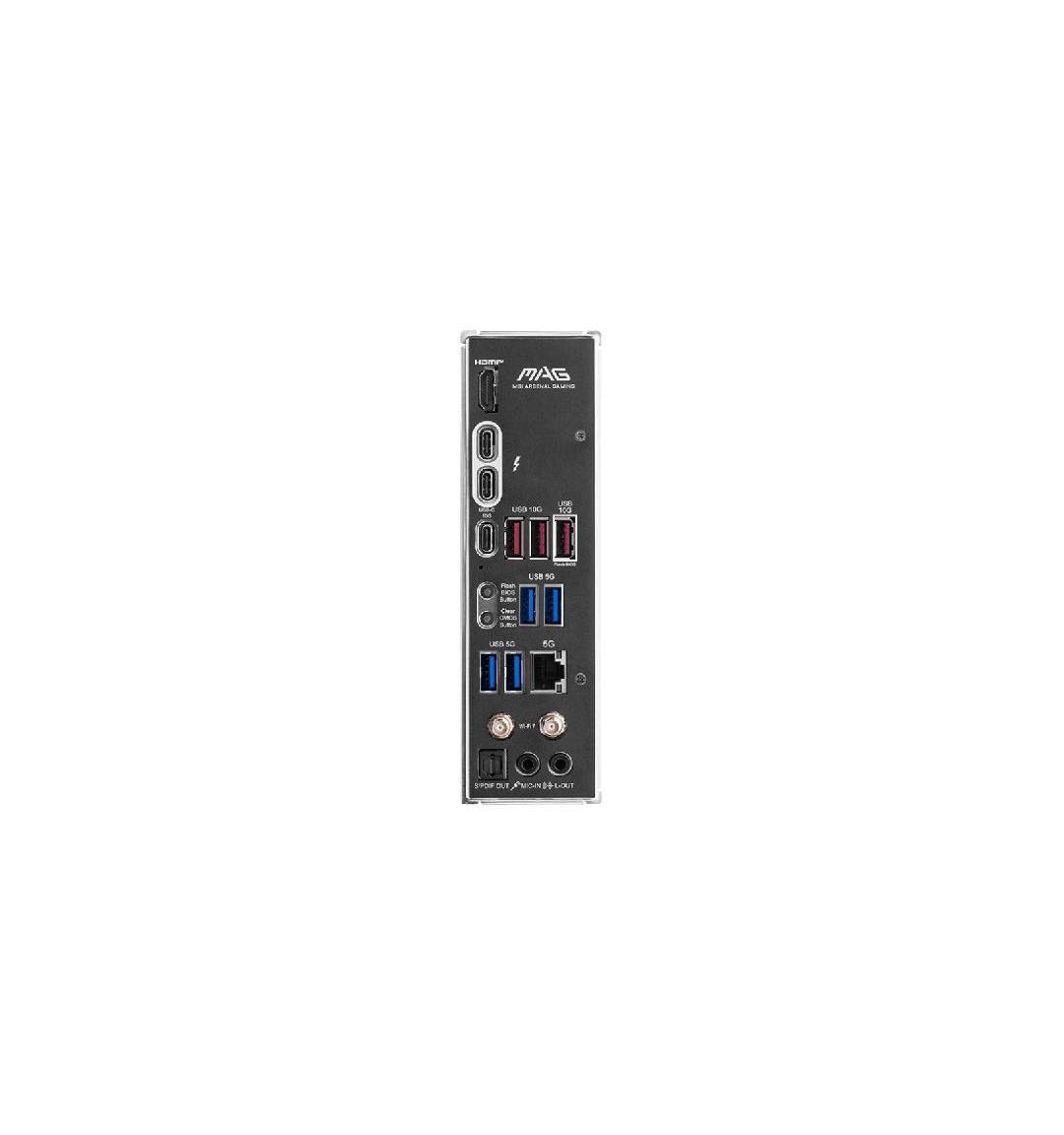

| USB (Rear) | 10× USB 10Gbps Type-A, 1× USB 10Gbps Type-C |
| USB (Front) | 4× USB 2.0, 4× USB 5Gbps Type-A, 1× USB 20Gbps Type-C (27W PD) |
| LAN | 1× Intel Killer E5000B 5G LAN, 1× Intel I226V 2.5G LAN |
| Wi-Fi / Bluetooth | Intel Killer BE1750x Wi-Fi 7, Bluetooth 5.4 |
| SATA Ports | 4× SATA 6Gb/s |
| RAID Support | RAID 0/1/5/10 (SATA & NVMe) |
| Internal Headers | ATX/CPU/PCIe Power, 1× CPU Fan, 1× Pump Fan, 5× System Fan, RGB headers, TPM 2.0 header, USB headers, Thermal sensor, Water flow, Chassis intrusion |
| Debug LEDs | 4× EZ Debug LED, 1× EZ Digit Debug LED |
| Special Features | PCIe 5.0 support, M.2 Gen5 ready, advanced cooling support |
| Warranty | 3 Years Manufacturing Warranty |
Description
The MSI MPG Z890 CARBON WIFI LGA 1851 ATX Motherboard is a high-performance, feature-rich platform built for gamers, creators, and AI enthusiasts who demand cutting-edge technology and premium reliability. Designed to support the latest Intel Core Ultra Processors (Series 2) on the LGA 1851 platform with the powerful Z890 chipset, it delivers next-generation performance with support for up to 256GB of ultra-fast DDR5 memory clocked at over 9200 MT/s (OC). The motherboard features three PCIe x16 slots with PCIe 5.0 capability and five high-speed M.2 slots, including Gen5 support, making it fully future-ready for the latest GPUs and ultra-fast NVMe storage solutions. Connectivity is exceptional, offering Intel Killer Wi-Fi 7, dual LAN (5G + 2.5G), Thunderbolt 4 Type-C DisplayPort outputs, and an extensive selection of high-speed USB ports, including a 20Gbps front Type-C with 27W PD charging. Built with premium materials and advanced power delivery, the MPG Z890 CARBON WIFI ensures rock-solid stability even under heavy workloads or overclocking. Its sophisticated carbon-black design with Mystic Light RGB enhances aesthetics, while advanced cooling solutions, multiple fan headers, and thermal sensor support help maintain optimal temperatures. With comprehensive RAID support for both SATA and NVMe storage, high-fidelity Realtek ALC1220P audio, and user-friendly EZ Debug LEDs, this motherboard strikes an ideal balance between performance, expandability, and ease of use—making it a top-tier choice for high-end gaming rigs and professional workstations.
