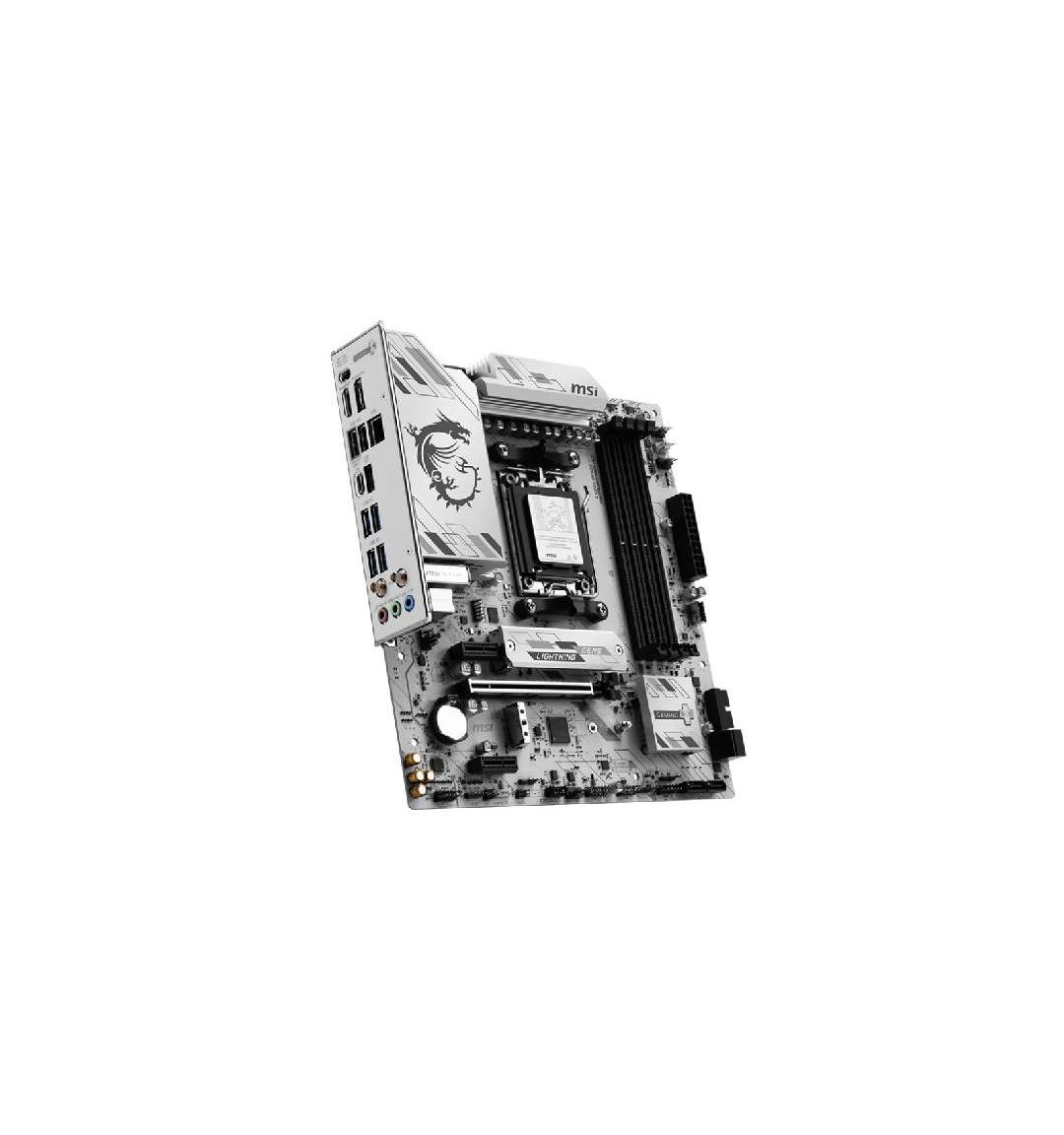

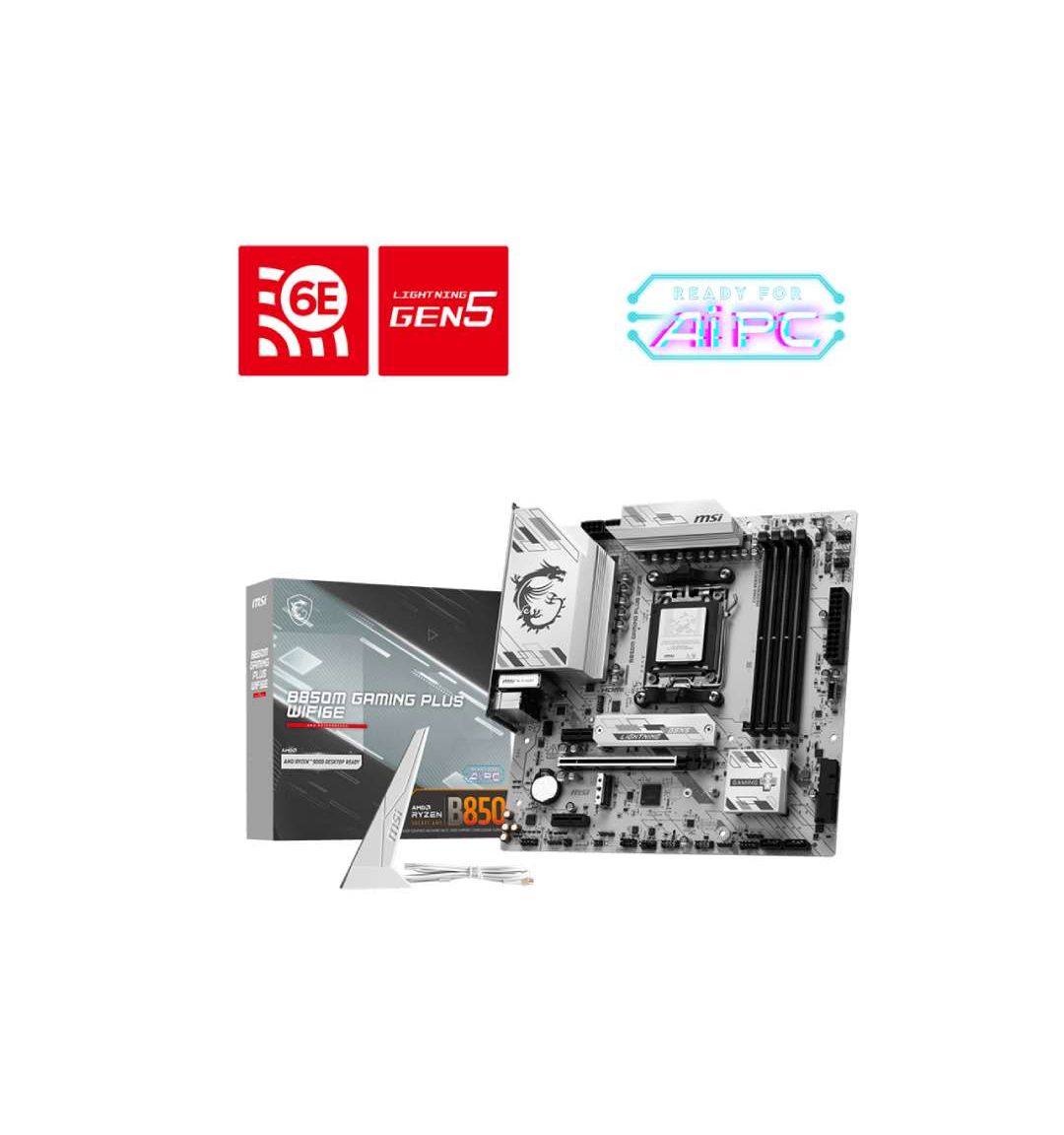

MSI B850M GAMING PLUS WIFI6E AM5 mATX Motherboard
Please sign in so that we can notify you about a reply
Specification
| Category | Details |
|---|---|
| Model | MSI B850M GAMING PLUS WIFI6E |
| Supported CPU | AMD Ryzen™ 9000 / 8000 / 7000 Series |
| Socket | AM5 |
| Chipset | AMD B850 |
| BIOS | Flash BIOS Button |
| Form Factor | mATX (243.84 × 243.84 mm) |
| Memory Type | DDR5 |
| Memory Slots | 4× UDIMM |
| Maximum Memory | Up to 256GB |
| Supported Speed | 8200–5600 MT/s (OC), 5600–4800 MT/s (JEDEC) |
| PCIe Slots | 1× PCIe 4.0 x16, 2× PCIe 3.0 x1 |
| M.2 Slots | 2× M.2 (1× PCIe 5.0 x4, 1× PCIe 4.0 x4) |
| SATA Ports | 4× SATA 6Gb/s |
| Graphics Output | 1× HDMI 2.1 (4K@60Hz), 1× DisplayPort 1.4 (4K@60Hz) |
| USB (Rear) | 4× USB 5Gbps Type-A, 3× USB 10Gbps Type-A, 1× USB 10Gbps Type-C |
| USB (Front) | 4× USB 2.0, 2× USB 5Gbps Type-A, 1× USB 10Gbps Type-C |
| LAN | Realtek 8125D 2.5Gbps LAN |
| Wi-Fi / Bluetooth | Wi-Fi 6E, Bluetooth 5.3 |
| Audio | Realtek ALC897, 7.1-Channel HD Audio |
| RAID Support | RAID 0/1/10 (SATA), RAID 0/1 (NVMe) |
| Cooling Support | 1× CPU Fan, 1× Pump Fan, 3× System Fans |
| RGB Support | 3× ARGB, 1× RGB |
| Debug Features | 4× EZ Debug LED, EZ Memory Detection LED |
| TPM Support | TPM 2.0 Header |
| Operating System | Windows 11 64-bit Supported |
| Warranty | 3 Years Manufacturing Warranty |
Description
The MSI B850M GAMING PLUS WIFI6E AM5 mATX Motherboard is a powerful and feature-rich solution built for gamers and performance-focused PC builders seeking next-generation AMD compatibility in a compact form factor. Designed around the AMD B850 chipset, it supports AMD Ryzen 9000, 8000, and 7000 Series processors on the AM5 platform and delivers outstanding memory performance with DDR5 support up to 8200+ MT/s (OC) across four DIMM slots using AMD EXPO profiles. It features a PCIe 4.0 x16 slot for modern graphics cards and two high-speed M.2 slots, including a PCIe 5.0 x4 slot for ultra-fast NVMe SSDs, alongside four SATA 6Gb/s ports for additional storage. Connectivity is strong with Realtek 2.5Gbps LAN, integrated Wi-Fi 6E, and Bluetooth 5.3, ensuring fast and stable networking for gaming, streaming, and productivity. Display output is handled by HDMI 2.1 and DisplayPort 1.4, both supporting 4K resolution at 60Hz on compatible processors. Audio is powered by the Realtek ALC897 codec with immersive 7.1-channel HD sound, while MSI’s EZ Debug LEDs, Flash BIOS support, RGB headers, robust power delivery, and efficient thermal design make the MSI B850M GAMING PLUS WIFI6E a reliable, future-ready, and highly versatile micro-ATX motherboard for modern AMD builds.
