MSI B850 GAMING PLUS WIFI6E AM5 ATX Motherboard
Please sign in so that we can notify you about a reply
Specification
| Category | Details |
|---|---|
| Model | MSI B850 GAMING PLUS WIFI6E |
| Supported CPU | AMD Ryzen™ 9000 / 8000 / 7000 Series |
| Socket | AM5 |
| Chipset | AMD B850 |
| Form Factor | ATX (243.84 × 304.8 mm) |
| Memory Type | DDR5 |
| Memory Slots | 4× UDIMM |
| Maximum Memory | Up to 256GB |
| Supported Speed | 8200–5600 MT/s (OC), 5600–4800 MT/s (JEDEC) |
| PCIe Slots | 2× PCIe (1× PCIe 4.0 x16, 1× PCIe 4.0 x4), 1× PCIe 3.0 x1 |
| M.2 Slots | 2× M.2 (1× PCIe 5.0 x4, 1× PCIe 4.0 x4) |
| SATA Ports | 4× SATA 6Gb/s |
| Graphics Output | 1× HDMI 2.1 (4K@60Hz), 1× DisplayPort 1.4 (4K@60Hz) |

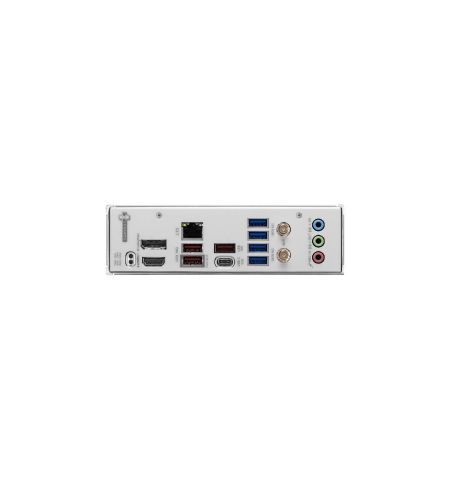

| USB (Rear) | 4× USB 5Gbps Type-A, 3× USB 10Gbps Type-A, 1× USB 10Gbps Type-C |
| USB (Front) | 4× USB 2.0, 2× USB 5Gbps Type-A, 1× USB 10Gbps Type-C |
| LAN | Realtek 8125D 2.5Gbps LAN |
| Wi-Fi / Bluetooth | Wi-Fi 6E, Bluetooth 5.3 |
| Audio | Realtek ALC897, 7.1-Channel HD Audio |
| RAID Support | RAID 0/1/10 (SATA), RAID 0/1 (NVMe) |
| Cooling Support | 1× CPU Fan, 1× Pump Fan, 4× System Fans |
| RGB Support | 3× ARGB, 1× RGB |
| Debug Features | EZ Debug LED, EZ Memory Detection LED |
| TPM Support | TPM 2.0 Header |
| Warranty | 3 Years Manufacturing Warranty |
Description
The MSI B850 GAMING PLUS WIFI6E AM5 ATX Motherboard is a powerful and well-balanced platform designed for gamers and PC builders who demand stability, performance, and future-ready features. Built on the AMD B850 chipset and supporting AMD Ryzen 9000, 8000, and 7000 Series processors, this motherboard delivers excellent computing power with support for up to 256GB of high-speed DDR5 memory clocked up to 8200+ MT/s through AMD EXPO and overclocking. It features a PCIe 4.0 x16 slot for modern graphics cards and two high-speed M.2 slots, including a PCIe 5.0 x4 slot for next-generation NVMe SSDs, along with four SATA 6Gb/s ports for additional storage. Networking is fast and reliable with integrated Wi-Fi 6E, Bluetooth 5.3, and Realtek 2.5Gbps LAN, making it ideal for competitive gaming and high-bandwidth workloads. The board offers extensive USB connectivity, including a rear USB 10Gbps Type-C port and multiple high-speed USB 10Gbps and 5Gbps ports for peripherals and external devices. Visual output is handled via HDMI 2.1 and DisplayPort 1.4, supporting up to 4K resolution at 60Hz on compatible CPUs. Audio is powered by the Realtek ALC897 codec with 7.1-channel HD sound for immersive gaming and entertainment. Built with MSI’s durable 6-layer PCB, advanced thermal design, and EZ DIY features such as EZ Debug LEDs, EZ M.2 Clip, and EZ PCIe Clip, the MSI B850 GAMING PLUS WIFI6E stands as a reliable, well-equipped, and future-proof ATX motherboard for modern AMD systems.
