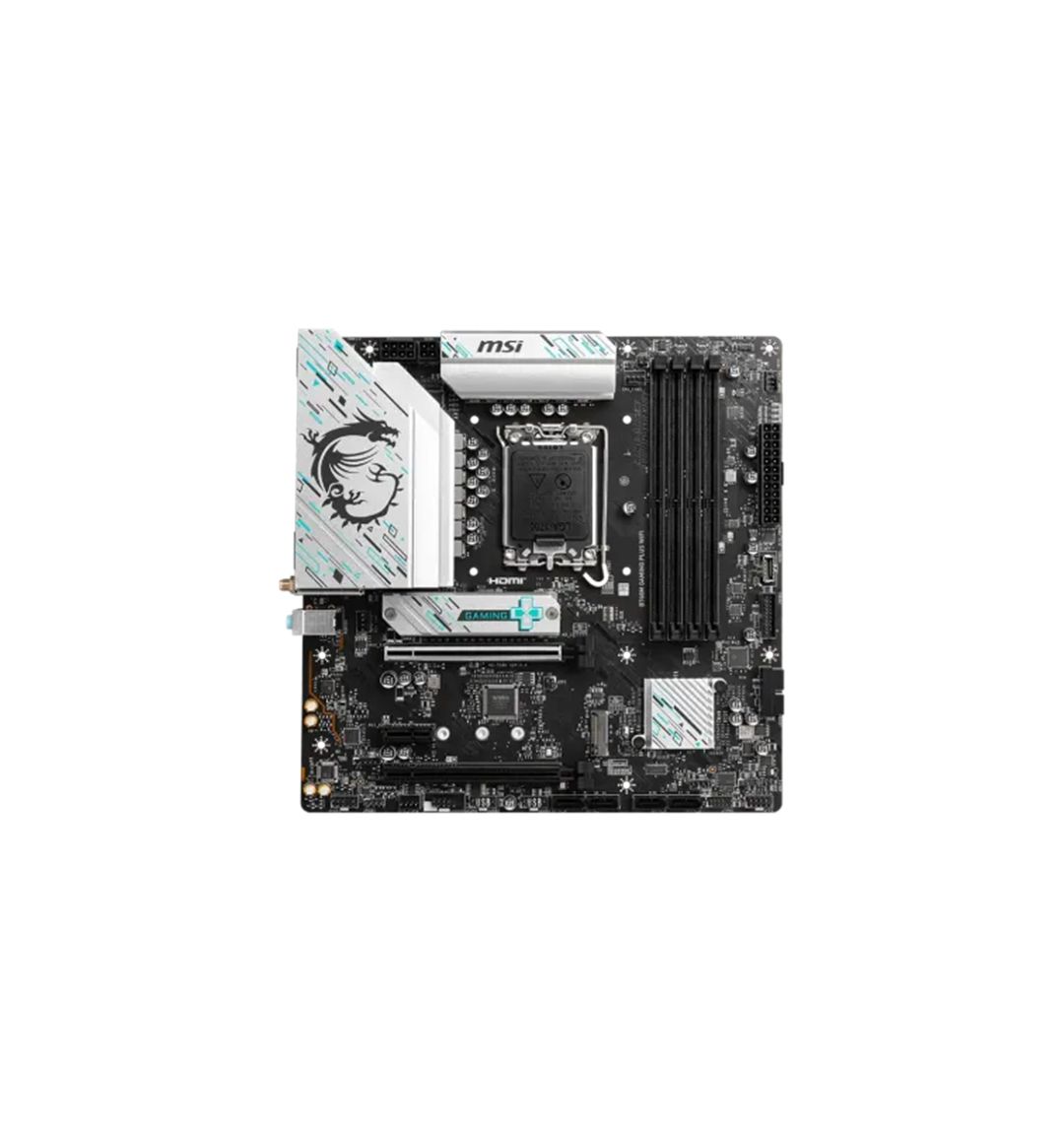

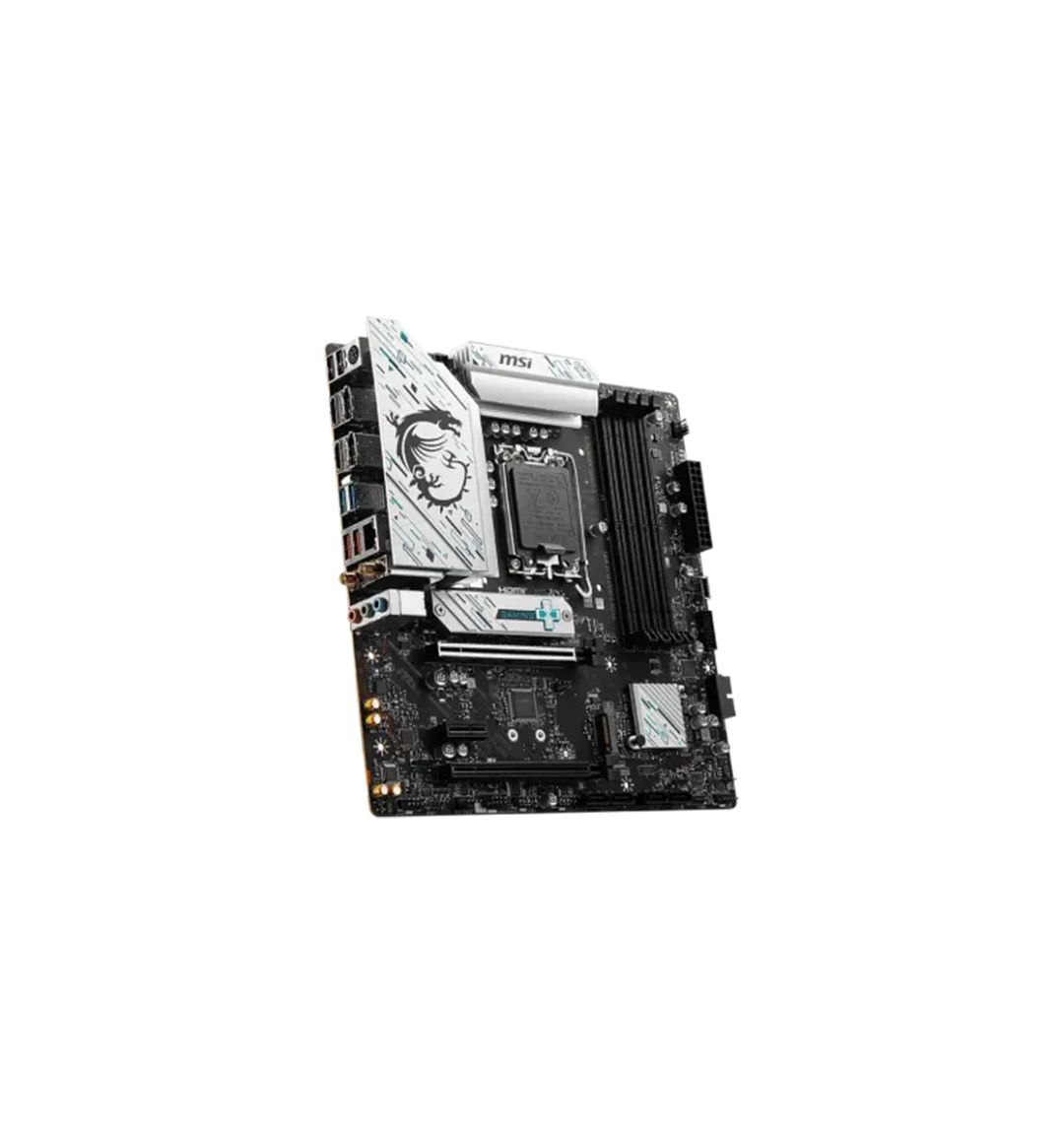

MSI B760M GAMING PLUS WIFI 6E mATX Motherboard

Basic Information

Supported CPU

Supports 14th/12th/13th Gen Intel Core Processors, Pentium Gold and Celeron Processors

LGA 1700

Chipset

INTEL B760

Form Factor

m-ATX

243.84mmx243.84mm

Audio

Realtek ALC897 Codec

7.1-Channel High Definition Audio

Expansion Slots

PCI

2x PCI-E x16 slot

1x PCI-E x1 slot

PCI_E1 Gen PCIe 4.0 supports up to x16 (From CPU)

PCI_E2 Gen PCIe 3.0 supports up to x1 (From Chipset)

PCI_E3 Gen PCIe 4.0 supports up to x4 (From Chipset)

Memory

Type

DDR5

Slots

4

Supported Memory

6800+(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(JEDEC)/ 5400(JEDEC)/ 5200(JEDEC)/ 5000(JEDEC)/ 4800(JEDEC) MHz

Maximum Memory

192GB

Graphics

Graphics

2x HDMI

Support HDMI 2.1, maximum resolution of 4K 60Hz

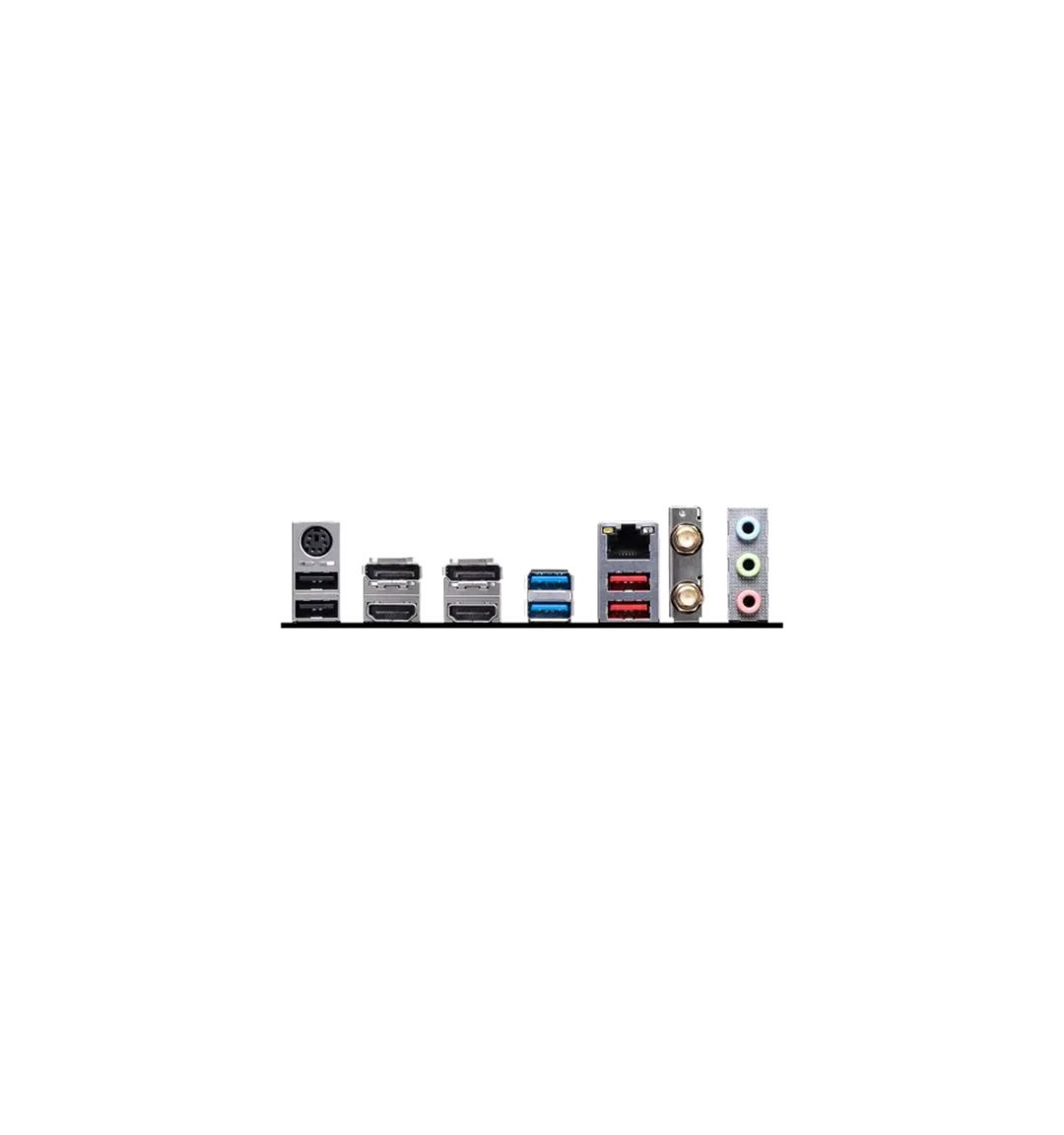

Connector & Ports

Display Port (s)

2x DisplayPort 1.4

USB (s)

2x USB 2.0 (Rear)

4x USB 2.0 (Front)

2x USB 3.2 Gen1 Type A (Rear)

4x USB 3.2 Gen1 Type A (Front)

1x USB 3.2 Gen1 Type C (Front)

2x USB 3.2 Gen2 Type A (Rear)

LAN Port (s)

Realtek RTL8125BG 2.5G LAN

Wireless Communication module

Wi-Fi 7

The Wireless module is pre-installed in the M.2 (Key-E) slot

Supports MU-MIMO TX/RX, 2.4GHz / 5GHz / 6GHz (320MHz) up to 5.8Gbps

Supports 802.11 a/ b/ g/ n/ ac/ ax/ be

Supports Bluetooth 5.4, MLO, 4KQAM

Supported Storage

Intel Wi-Fi 6E

The Wireless module is pre-installed in the M.2 (Key-E) slot

Supports MU-MIMO TX/RX, 2.4GHz / 5GHz / 6GHz* (160MHz) up to 2.4Gbps

Supports 802.11 a/ b/ g/ n/ ac/ ax

RAID

Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices

Audio

7.1-Channel High Definition Audio

Internal I/O Ports

x Power Connector(ATX_PWR)

2x Power Connector(CPU_PWR)

1x CPU Fan

1x Pump Fan

2x System Fan

2x Front Panel (JFP)

1x Chassis Intrusion (JCI)

1x Front Audio (JAUD)

1x Com Port (JCOM)

2x Addressable V2 RGB LED connector (JARGB_V2)

1x RGB LED connector(JRGB)

1x TPM pin header(Support TPM 2.0)

4x USB 2.0 ports

4x USB 3.2 Gen1 Type A ports

1x USB 3.2 Gen1 Type C ports

TPM (Trusted Platform Module )

1x TPM pin header(Support TPM 2.0)

Others

Special Features

1x EZ LED Control switch

4x EZ Debug LED

1x 2-Digit Debug Code LED

Warranty Information

Manufacturing Warranty

3 years
