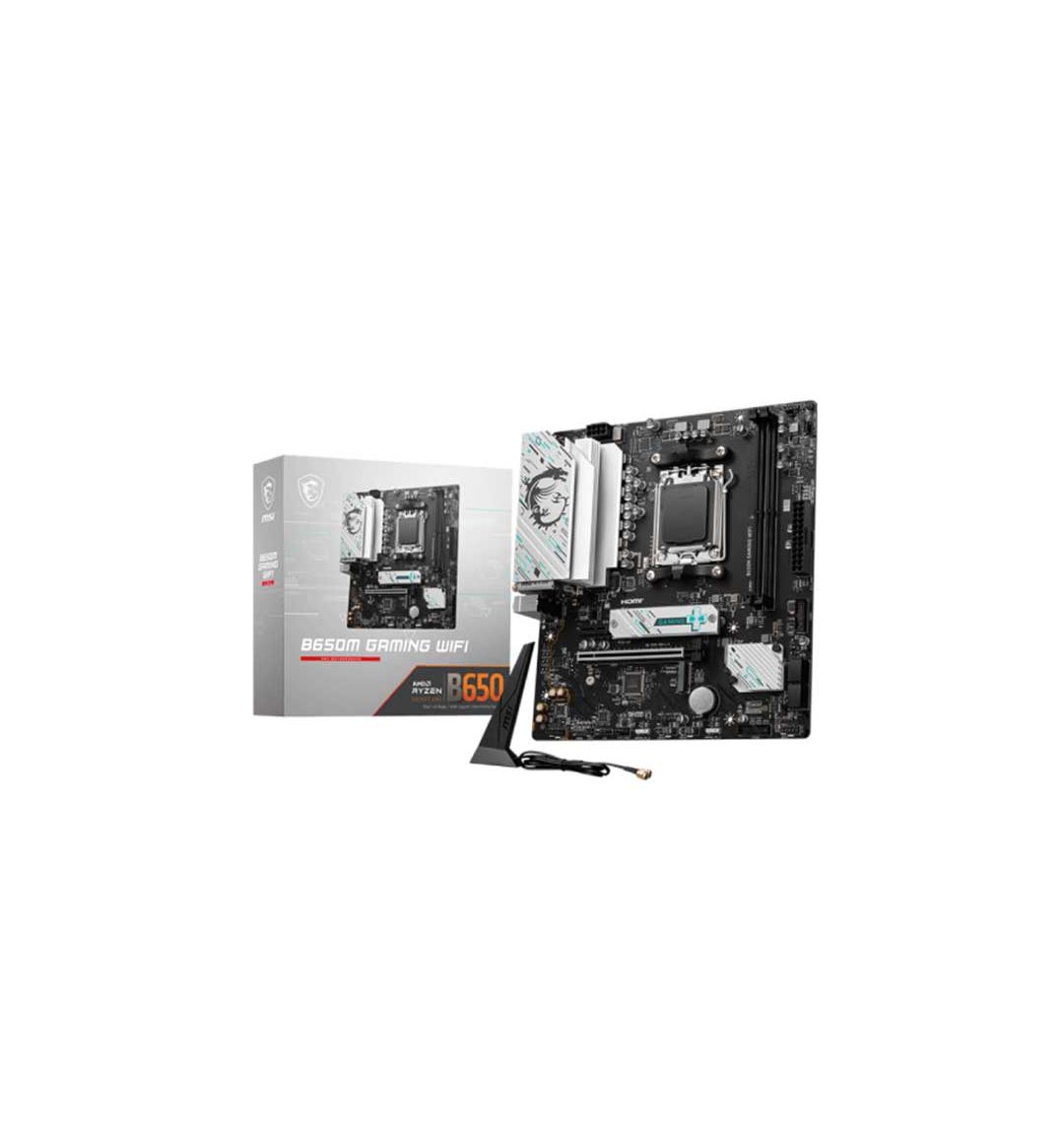

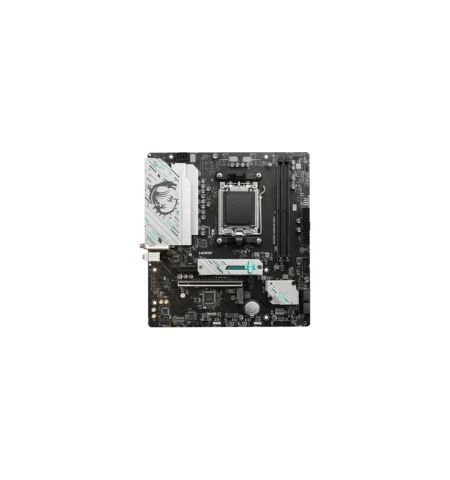

MSI B650M GAMING WIFI AM5 mATX Motherboard
Please sign in so that we can notify you about a reply
Specification
| Basic Information | |
| Supported CPU | Supports AMD Ryzen 8000/ 7000 Series Desktop Processors Socket AM5 |
| Chipset | AMD B650 |
| Form Factor | mATX 226mmx243.84mm |
| Audio | Realtek ALC897 Codec 7.1-Channel High Definition Audio |
| Expansion Slots | |
| PCI | 1x PCI-E x16 slot Supports x16/x1 • Supports x16 (For Ryzen 7000 Series processors) • Supports x8 (For Ryzen 7 8700G and Ryzen 5 8600G processors) • Supports x4 (For Ryzen 5 8500G processor) 1x PCI-E x1 slot PCI_E1 Gen PCIe 3.0 supports up to x1 (From Chipset) PCI_E2 Gen PCIe 4.0 supports up to x16 (From CPU) |
| M.2 Socket | 2x M.2 |
| Memory | |
| Type | DDR5 |
| Slots | 2 |
| Supported Memory | 7800+(OC)/ 7600(OC)/ 7400(OC)/ 7200(OC)/ 7000(OC)/ 6800(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(OC)/ 5400(OC)/ 5200(OC)/ 5000(OC)/ 4800(JEDEC) MHz Max. overclocking frequency: • 1DPC 1R Max speed up to 7800+ MHz • 1DPC 2R Max speed up to 6400+ MHz Supports Dual-Channel mode Supports non-ECC, un-buffered memory Supports AMD EXPO |
| Maximum Memory | 128GB |
| Graphics | |
| Graphics | 1x HDMI Support HDMI 2.1, maximum resolution of 4K 60Hz* 1x DisplayPort Support DP 1.4, maximum resolution of 4K 60Hz* |
| Connector & Ports | |
| HDMI | 1x HDMI |
| Display Port (s) | 1x DisplayPort |
| USB (s) | 2x USB 2.0 (Rear) 4x USB 2.0 (Front) 3x USB 5Gbps Type A (Rear) 1x USB 5Gbps Type C (Rear) 4x USB 5Gbps Type A (Front) |
| LAN Port (s) | Realtek RTL8125BG 2.5Gbps LAN |
| Wireless Communication module | AMD Wi-Fi 6E The Wireless module is pre-installed in the M.2 (Key-E) slot Supports MU-MIMO TX/RX Supports 20MHz, 40MHz, 80MHz,160MHz bandwidth in 2.4GHz/ 5GHz or 6GHz* bands Supports 802.11 a/ b/ g/ n/ ac/ ax Supports Bluetooth 5.3 |
| Supported Storage | 2x M.2 M.2_1 Source (From CPU) supports up to PCIe 4.0 x4 , supports 2280 devices M.2_2 Source (From CPU) supports up to PCIe 4.0 x4 , supports 2280 devices 4x SATA 6G • M2_2 supports PCIe 4.0 x2 speed when Ryzen 5 8500G is installed |
| RAID | Supports RAID 0, RAID 1, and RAID 10 for SATA storage devices Supports RAID 0, RAID 1, and RAID 10 for M.2 NVMe storage devices |

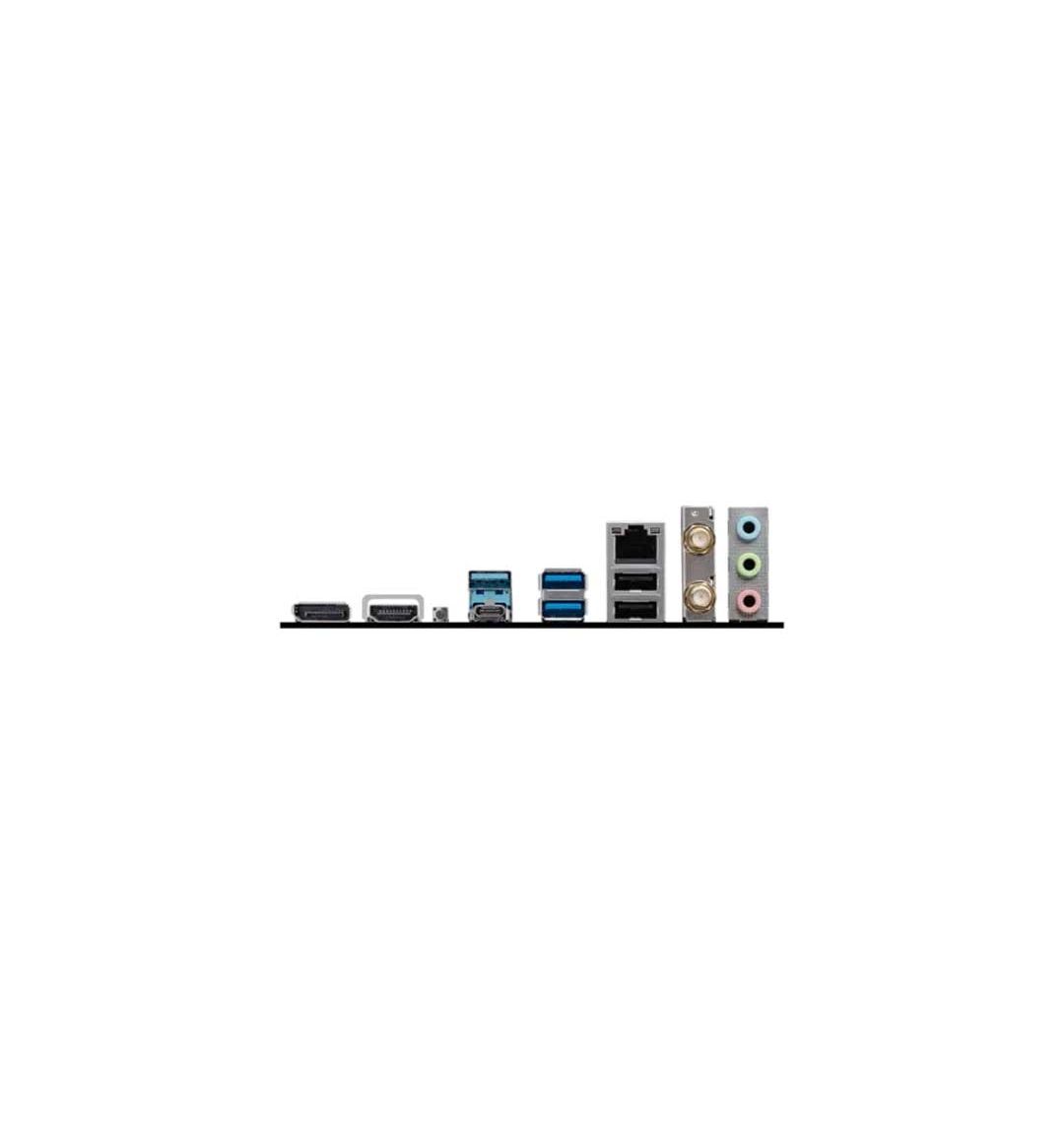

| Internal I/O Ports | INTERNAL IO 1x Power Connector(ATX_PWR) 1x Power Connector(CPU_PWR) 1x CPU Fan 3x System Fan 2x Front Panel (JFP) 1x Chassis Intrusion (JCI) 1x Front Audio (JAUD) 2x Addressable V2 RGB LED connector (JARGB_V2) 1x RGB LED connector(JRGB) 4x USB 2.0 ports 4x USB 5Gbps Type A ports BACK PANEL PORTS DisplayPort HDMI USB 3.2 Gen 1 5Gbps (Type-A) 2.5G LAN Wi-Fi / Bluetooth Audio connectors Flash BIOS Button USB 3.2 Gen 1 5Gbps (Type-C) USB 3.2 Gen 1 5Gbps (Type-A) USB 2.0 |
| TPM (Trusted Platform Module ) | 1x TPM pin header(Support TPM 2.0) |
| Warranty Information | |
| Manufacturing Warranty | 3 Years |
MSI B650M GAMING WIFI AM5 mATX Motherboard
Elevate Your Gaming Experience with the MSI B650M GAMING WIFI AM5 mATX Motherboard
The MSI B650M GAMING WIFI AM5 motherboard is engineered to unlock the full potential of your gaming rig, whether you're a hardcore gamer or a tech enthusiast. Designed with AMD's latest Ryzen 8000/7000 Series processors in mind, this mATX motherboard combines performance, versatility, and reliability to deliver an unparalleled computing experience.
Key Features:
- Powerful Compatibility: Supports the latest AMD Ryzen 8000/7000 Series Desktop Processors with the AM5 socket, ensuring you’re equipped with cutting-edge performance for any gaming or productivity task.
- Rapid Connectivity: With support for up to DDR5 7800+(OC) memory, dual M.2 slots, and a variety of USB ports including USB 3.2 Gen 1 5Gbps (Type-C), the B650M ensures you have the bandwidth to handle any task, from high-speed data transfer to intensive gaming.
- Superior Audio Experience: The Realtek ALC897 Codec delivers 7.1-Channel High Definition Audio, providing crystal-clear sound to immerse you fully in your gaming environment.
- Comprehensive Networking: Equipped with Realtek RTL8125BG 2.5Gbps LAN and AMD Wi-Fi 6E, this motherboard ensures a fast, stable, and versatile connection, whether you're gaming, streaming, or multitasking.
- Advanced Cooling: The board supports comprehensive cooling solutions with multiple fan headers, including a CPU fan and three system fans, ensuring that your system remains cool even during the most intense gaming sessions.
- Flexible Storage Options: With two PCIe 4.0 M.2 slots and four SATA 6G ports, the B650M motherboard offers ample and flexible storage solutions. Additionally, it supports RAID 0, RAID 1, and RAID 10 for both SATA and NVMe storage devices, allowing you to configure your storage setup to best suit your needs.
- Future-Ready Design: The mATX form factor offers a compact, space-saving design without sacrificing performance. The board is ready for future upgrades with support for the latest technology, including PCIe 4.0, DDR5 memory, and TPM 2.0 for enhanced security.
Why Choose MSI B650M GAMING WIFI?
MSI has a long-standing reputation for producing high-quality gaming components, and the B650M GAMING WIFI is no exception. It is built with the latest technology, offering robust performance, exceptional connectivity, and seamless upgradability. Whether you're building a new system or upgrading an existing one, the MSI B650M GAMING WIFI AM5 motherboard is the ideal foundation for any serious gamer or PC enthusiast.
MSI B650M GAMING WIFI AM5 mATX Motherboard - FAQs
Q1: What processors are compatible with the MSI B650M GAMING WIFI motherboard?
- A: The MSI B650M GAMING WIFI motherboard supports AMD Ryzen 8000 and 7000 Series Desktop Processors using the AM5 socket. This ensures that you can use the latest CPUs for optimal performance.
Q2: What type of memory does the MSI B650M GAMING WIFI support?
- A: This motherboard supports DDR5 memory with speeds up to 7800+ MHz (overclocked). It has two slots that can accommodate up to 128GB of memory.
Q3: Does this motherboard have built-in Wi-Fi?
- A: Yes, the MSI B650M GAMING WIFI motherboard comes with an AMD Wi-Fi 6E module pre-installed. It supports MU-MIMO and various bandwidths (2.4GHz, 5GHz, and 6GHz), ensuring a fast and reliable wireless connection.
Q4: How many M.2 slots are available on the MSI B650M GAMING WIFI?
- A: The motherboard features two M.2 slots that support PCIe 4.0 x4. This allows for fast NVMe storage solutions, ensuring quick data access and transfer speeds.
Q5: Does the MSI B650M GAMING WIFI support RAID configurations?
- A: Yes, it supports RAID 0, RAID 1, and RAID 10 configurations for both SATA and M.2 NVMe storage devices, providing flexibility in setting up your storage array.
Q6: What kind of audio quality can I expect from this motherboard?
- A: The motherboard uses the Realtek ALC897 Codec, which provides 7.1-Channel High Definition Audio, delivering clear and immersive sound for gaming and multimedia experiences.
Q7: How many USB ports does the MSI B650M GAMING WIFI offer?
- A: The motherboard provides a variety of USB ports including 2x USB 2.0 ports (rear), 4x USB 2.0 ports (front), 3x USB 5Gbps Type-A ports (rear), 1x USB 5Gbps Type-C port (rear), and 4x USB 5Gbps Type-A ports (front), offering extensive connectivity options for peripherals.
Q8: What are the dimensions of the MSI B650M GAMING WIFI motherboard?
- A: The motherboard has dimensions of 226mm x 243.84mm, making it an mATX form factor, which is ideal for compact builds without sacrificing performance or expandability.
Q9: Does the motherboard come with a warranty?
- A: Yes, the MSI B650M GAMING WIFI motherboard comes with a 3-year manufacturing warranty, ensuring peace of mind with your purchase.
Q10: Is this motherboard good for overclocking?
- A: Yes, the MSIB650M GAMING WIFI is designed to support overclocking, especially with DDR5 memory. It offers robust power delivery and cooling options to help achieve stable overclocked performance.
What is the price of MSI B650M GAMING WIFI AM5 mATX Motherboard in Bangladesh?
The latest price of MSI B650M GAMING WIFI AM5 mATX Motherboard in Bangladesh is 18,000৳. You can buy the MSI B650M GAMING WIFI AM5 mATX Motherboard at best price from our website or visit any of our showrooms.
