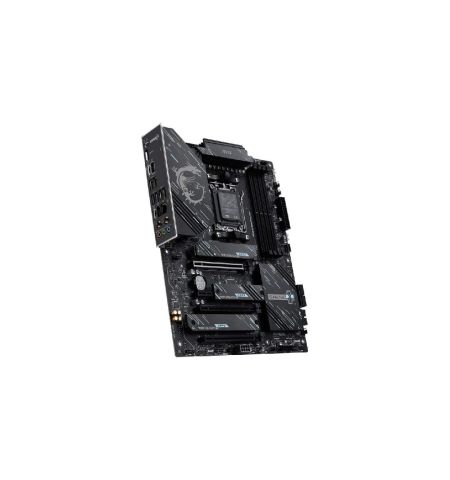

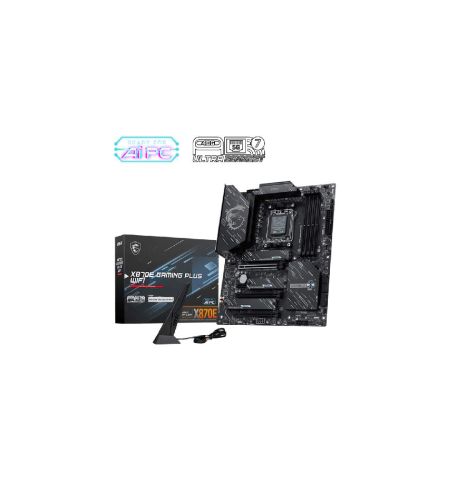

MSI X870E GAMING PLUS WIFI AM5 ATX Motherboard
Please sign in so that we can notify you about a reply
Specification
| Category | Details |
|---|---|
| Model | MSI X870E GAMING PLUS WIFI |
| Supported CPU | AMD Ryzen™ 9000 / 8000 / 7000 Series |
| Socket | AM5 |
| Chipset | AMD X870E |
| Form Factor | ATX (243.84 × 304.8 mm) |
| Memory Type | DDR5 |
| Memory Slots | 4× DIMM |
| Maximum Memory | Up to 256GB |
| Supported Speed | 8200–5600 MT/s (OC), 5600–4800 MT/s (JEDEC) |
| PCIe Slots | 1× PCIe 5.0 x16, 1× PCIe 4.0 x4, 2× PCIe 3.0 x1 |
| M.2 Slots | 3× M.2 (1× PCIe 5.0 x4, 2× PCIe 4.0 x4) |
| SATA Ports | 4× SATA 6Gb/s |
| Graphics Output | 1× HDMI 2.1 (4K@60Hz), 1× USB4 Type-C DP (4K@120Hz) |
| USB (Rear) | USB4 40Gbps Type-C, USB 20Gbps Type-C, 2× USB 10Gbps Type-A, 2× USB 5Gbps Type-A, 4× USB 2.0 |
| USB (Front) | 1× USB 10Gbps Type-C, 4× USB 5Gbps Type-A, 6× USB 2.0 |
| LAN | Realtek 8126VB 5Gbps LAN |
| Wi-Fi / Bluetooth | Wi-Fi 7 (802.11be), Bluetooth 5.4 |
| Audio | Realtek ALC897, 7.1-Channel HD Audio |
| RAID Support | RAID 0/1/10 (SATA), RAID 0/1/5 (NVMe) |
| Cooling Support | 1× CPU Fan, 1× Pump Fan, 6× System Fans |
| RGB Support | 3× ARGB, 1× RGB |
| Debug Features | EZ Debug LED, EZ Memory Detection LED |
| TPM Support | TPM 2.0 Header |
| Warranty | 3 Years Manufacturing Warranty |
Description
The MSI X870E GAMING PLUS WIFI AM5 ATX Motherboard is a next-generation, high-performance motherboard built for enthusiasts, gamers, and content creators who demand cutting-edge technology and long-term platform stability. Powered by the advanced AMD X870E chipset and supporting AMD Ryzen 9000, 8000, and 7000 Series processors on the AM5 socket, it delivers exceptional performance with support for up to 256GB of ultra-fast DDR5 memory clocked at over 8200 MT/s (OC) using AMD EXPO profiles. The board features a PCIe 5.0 x16 slot for next-gen graphics cards, along with three high-speed M.2 slots including a PCIe 5.0 x4 slot for ultra-fast NVMe storage. Connectivity is outstanding, offering USB4 40Gbps, USB 20Gbps Type-C, Wi-Fi 7, Bluetooth 5.4, and 5Gbps LAN for extreme data transfer speeds and low-latency networking. Display outputs include HDMI 2.1 and USB4 DisplayPort support for up to 4K at 120Hz on supported CPUs. Built with a robust 14+2+1 Duet Rail power design, premium PCB, extended heatsinks, and MSI Frozr Guard cooling, the X870E GAMING PLUS WIFI ensures rock-solid stability under heavy workloads and overclocking. With extensive USB connectivity, RAID support, RGB customization, and DIY-friendly features like EZ Debug LEDs and EZ M.2 installation, this motherboard is a future-proof, high-end platform ideal for powerful gaming rigs and professional workstations.
