MSI X570-A PRO, SOCKET AM4, AMD X570 Chipset, DIMM SLOTS 4, MAX MEMORY (GB)128, M.2 SLOT 2 MOTHERBOARD
Please sign in so that we can notify you about a reply

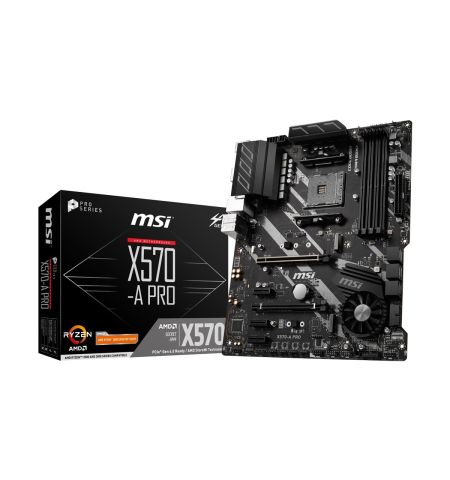

MSI X570-A Pro DDR4 AMD AM4 Socket Mainboard
MSI X570-A Pro, CPU Sockets - AM4, Chipset - AMD X570 Chipset, Supported CPU - AMD Ryzen 2nd and 3rd Generation / Ryzen with Radeon Vega Graphics Processors, AMD Ryzen 2nd Generation Radeon Graphics Desktop Processors, Memory Type - DDR4,Memory MHz - 1866/ 2133/ 2400/ 2667/ 2800/ 2933/ 3000/ 3066/ 3200/3466 /3600/3733 /3866 /4000 /4133 /4266 /4400MHz, Memory Channel - Dual Channel, Memory Slot - 4, Memory Max. - 128GB, Optane Memory Support - No, Graphic - Onboard Graphics, Multi-GPU Support - 2-Way AMD CrossFire, PCI Express Slot - 1 x PCIe4.0/ 3.0 x16 slot (PCI_E1), 1 x PCIe 4.0/ 3.0 x16 slot (PCI_E3, supports x4 mode), 3 x PCIe 3.0 x1 slots, Storage Interface - 6Gb/s, M.2 Slot - 2 x M.2 slot (Supports PCIe 4.0 x4, Supports PCIe 3.0 x4, Supports 2242/ 2260/ 2280/22110 storage devices), LAN Chipset - Realtek 8111H Gigabit LAN, LAN Speed(Mbps) - 10/100/1000Mbps, Audio Chipset - Realtek ALC1220, Audio Channel -7.1-Channel, USB Port - 1 x USB3.2 Gen 2 Type-C, 1 x USB3.2 Gen 2, Type-A, 8 x USB3.2 Gen 1 Type-A, 6 x USB2.0, HDMI Port - 1, SATA Port - 2 x SATA, 4 x SATA,DirectX Support - 12, Supported Operating System - Windows 10, Form Factor -ATX, RaidSupport - 0,1,10, CrossFire Support - Yes, Special Features - Inspired from architectural design, with Lightning Gen 4 PCIe and M.2 solution, DDR4 Boost, Audio Boost 4, USB 3.2 Gen 2 connector, Lightning Gen 4 Solution, The Latest Gen 4 PCI-E and M.2 solution with up to 64GB/s bandwidth for maximum transfer speed and performance, Core Boost, 8+4 pin CPU power connectors, DDR4 Boost, Audio Boost 4, Multi-GPU With Steel armor PCI-E slots, Supports 2-Way AMD Crossfire, AMD Turbo USB 3.2 Gen2, Powered by AMD USB 3.2 Gen2 controller,ensures an uninterrupted connection with more stability and fastest USB speeds,Others - 2 x M.2 slot, 1 x 4-pin CPU fan connector, 1 x 4-pin water-pump connector, 4 x 4-pin system fan connectors, 1 x Front panel audio connector, 2x System panel connectors, 1 x TPM module connector, 1 x Serial port connector,1 x Clear CMOS jumper, 1 x Chassis Intrusion connector, 4 x EZ Debug LEDs, HDAudio Connectors, Flash BIOS Button, 9 mounting holes, Warranty - 3 years.
