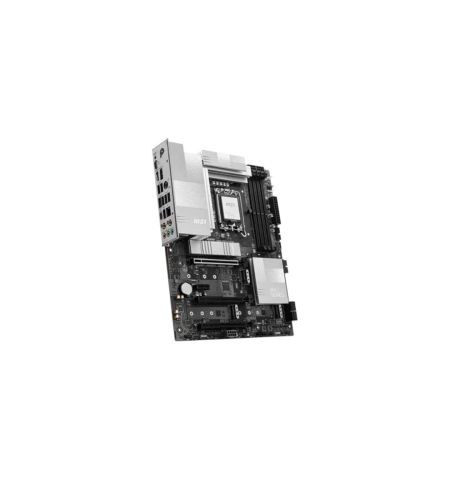

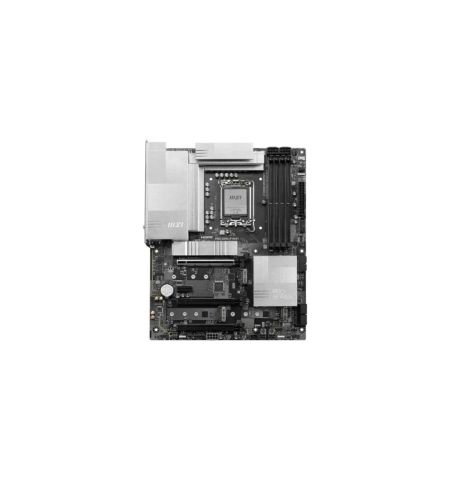

MSI PRO Z890-P LGA 1851 ATX Motherboard
Please sign in so that we can notify you about a reply
Specification
| Chipset | Intel Z890 |
| CPU | Supports Intel Core Ultra Processors (Series 2), LGA 1851 |
| Memory | 4x DDR5 UDIMM, Maximum Memory Capacity 256GB Memory Support: 9200 - 6400 (OC) MT/s / 6400 - 4800 (JEDEC) MT/s Max Overclocking Frequency: - 1DPC 1R: Up to 9200+ MT/s - 1DPC 2R: Up to 7200+ MT/s - 2DPC 1R: Up to 6400+ MT/s - 2DPC 2R: Up to 5600+ MT/s Supports Intel POR Speed, JEDEC Speed, Memory Overclocking, Intel XMP 3.0 Dual-Controller Dual-Channel Mode, Non-ECC, Un-buffered Memory, and CUDIMM |
| Onboard Graphics | 1x HDMI 2.1 (Max Resolution: 4K 60Hz)* 1x DisplayPort 1.4 (Max Resolution: 4K 60Hz)* 1x Thunderbolt 4 Type-C DisplayPort (Supports DisplayPort 2.1, 4K@120Hz/8K@60Hz)* *Available only on processors featuring integrated graphics. |
| Expansion Slots | 3x PCI-E x16, 1x PCI-E x1 - PCI_E1: PCIe 5.0 up to x16 (From CPU) - PCI_E2: PCIe 4.0 up to x1 (From Chipset) - PCI_E3 & PCI_E4: PCIe 4.0 up to x4 (From Chipset) |
| Audio | Realtek ALC897 Codec, 7.1-Channel High Definition Audio |
| Storage | 4x M.2 Slots: - M.2_1 (From CPU): PCIe 5.0 x4, Supports 2280/2260 - M.2_2 (From CPU): PCIe 4.0 x4, Supports 22110/2280/2260 - M.2_3 & M.2_4 (From Chipset): PCIe 4.0 x4/SATA, Supports 2280/2260/2242 4x SATA 6G RAID 0, RAID 1, RAID 5, RAID 10 (SATA and NVMe) |
| Thunderbolt 4 | 1x Port (Rear), Up to 40Gbps Transfer Rate USB4: Up to 20Gbps, USB 3.2: Up to 10Gbps, USB 2.0: Up to 5Gbps Supports Daisy-Chain (3 Thunderbolt 4/5 Thunderbolt 3 Devices), Power Charging 5V/3A (15W), Display up to 8K |
| USB Ports
| - Rear: 4x USB 2.0, 2x USB 5Gbps Type-A, 1x USB 10Gbps Type-A, 1x USB 10Gbps Type-C - Front: 4x USB 2.0, 4x USB 5Gbps Type-A, 1x USB 20Gbps Type-C |
| LAN | Realtek 8126 5Gbps LAN |
| Internal IO | - Power Connectors: 1x ATX_PWR, 2x CPU_PWR, 1x PCIE_PWR 8pin - Fans: 1x CPU Fan, 1x Combo Fan (Pump_Sys), 5x System Fan - RGB: 3x Addressable V2 RGB LED, 1x RGB LED Connector - TPM 2.0, EZ Conn-header, Front Panel, Chassis Intrusion, Front Audio |
| LED Features | 4x EZ Debug LEDs |
| Back Panel Ports
| - DisplayPort, HDMI, Thunderbolt 4 40Gbps (Type-C), 5G LAN, USB 2.0/5Gbps/10Gbps, Audio Connectors - Flash BIOS Button |
| Operating System | Windows 11 64-bit Supported |
| Warranty | 3 Years |
