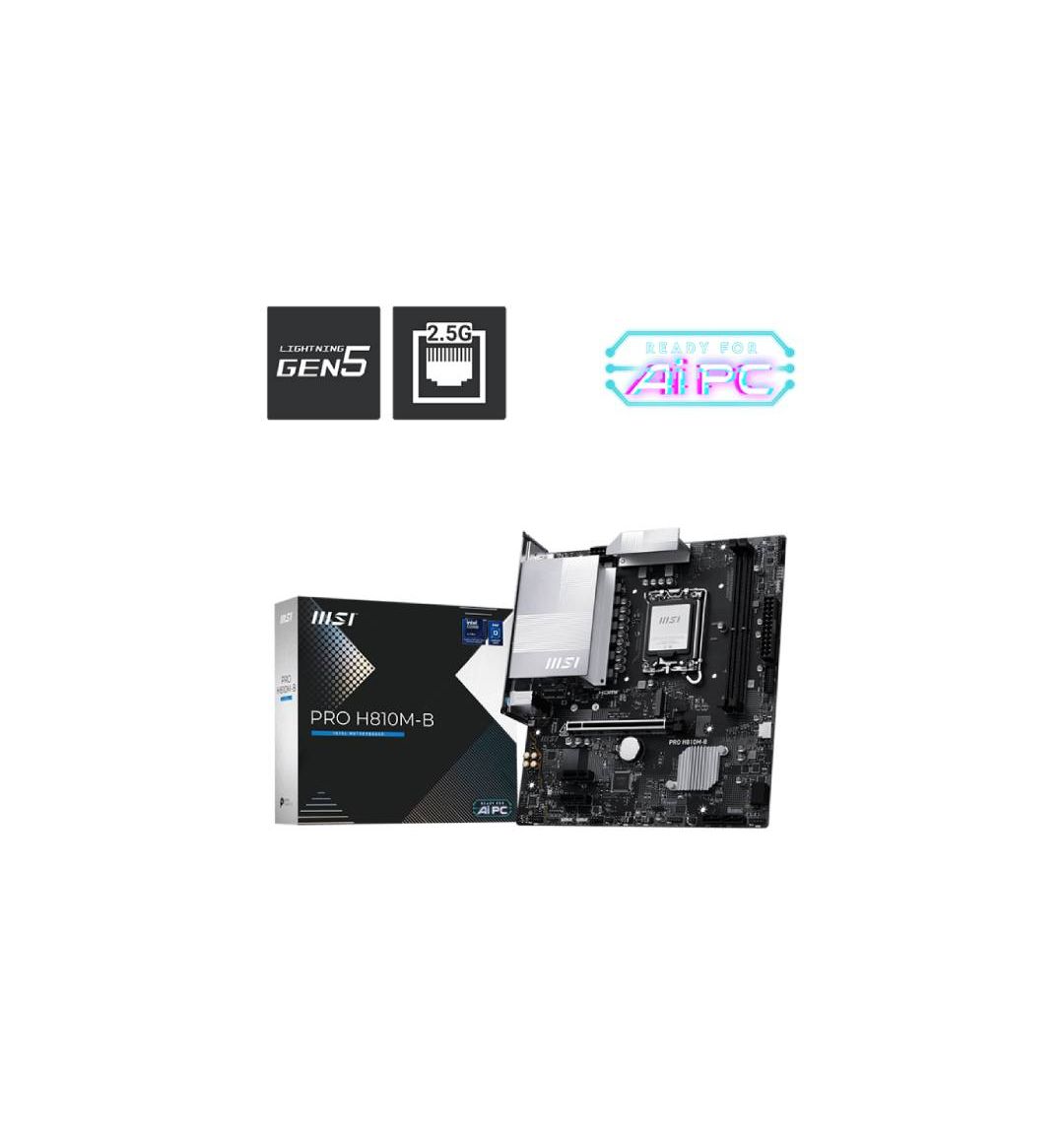

MSI PRO H810M-B DDR5 LGA1851 mATX Motherboard
Please sign in so that we can notify you about a reply
Specification
| Category | Details |
|---|---|
| Supported CPU | Intel® Core™ Ultra Processors (Series 2), LGA 1851 |
| Chipset | Intel H810 |
| BIOS | Flash BIOS Button |
| Form Factor | Micro-ATX |
| Audio | Realtek ALC897 Codec |
| PCIe Slots | 1× PCIe 5.0 x16 (CPU), 2× PCIe 4.0 x1 (Chipset) |
| M.2 Slots | 1× M.2 (PCIe 4.0 x4, supports 2260/2280) |
| Memory Type | DDR5 |
| Memory Slots | 2× UDIMM |
| Maximum Memory | Up to 128GB |
| Graphics Output | 1× HDMI, 1× DisplayPort |
| USB (Rear) | 4× USB 2.0 Type-A, 2× USB 5Gbps Type-A |
| LAN | Realtek RTL8125D 2.5G LAN |
| SATA Support | SATA 6.0Gb/s |
| TPM | 1× TPM 2.0 Header |
| Debug LEDs | 4× EZ Debug LED |
| Special Features | Flash BIOS Button, PCIe 5.0 support |
| Warranty | 3 Years Manufacturing Warranty |
Description
The MSI PRO H810M-B DDR5 LGA1851 mATX Motherboard is a compact, reliable, and future-ready motherboard designed for modern AI-ready PCs and high-efficiency productivity systems. Built on the Intel H810 chipset and supporting Intel Core Ultra (Series 2) processors via the LGA 1851 socket, this MSI Intel motherboard delivers stable performance with dual-channel DDR5 memory support of up to 128GB for faster data processing, improved multitasking, and better power efficiency. It features a PCIe 5.0 x16 slot for next-generation graphics cards and a PCIe 4.0 x4 M.2 slot for ultra-fast NVMe storage, ensuring high-speed performance for demanding workloads. Networking is powered by a Realtek RTL8125D 2.5G LAN, providing fast and stable connectivity for professional use, content creation, and online tasks. The board includes essential display outputs via HDMI and DisplayPort, making it versatile for office and home setups, while Realtek ALC897 audio delivers clear and immersive sound quality. Designed with MSI’s user-friendly features such as Flash BIOS Button and EZ Debug LEDs, system building and troubleshooting are simplified. With its clean, professional design, micro-ATX form factor, and strong reliability, the MSI PRO H810M-B is an excellent choice for business desktops, AI-enabled workstations, and modern home PCs seeking performance, stability, and upgrade potential in a compact build.
