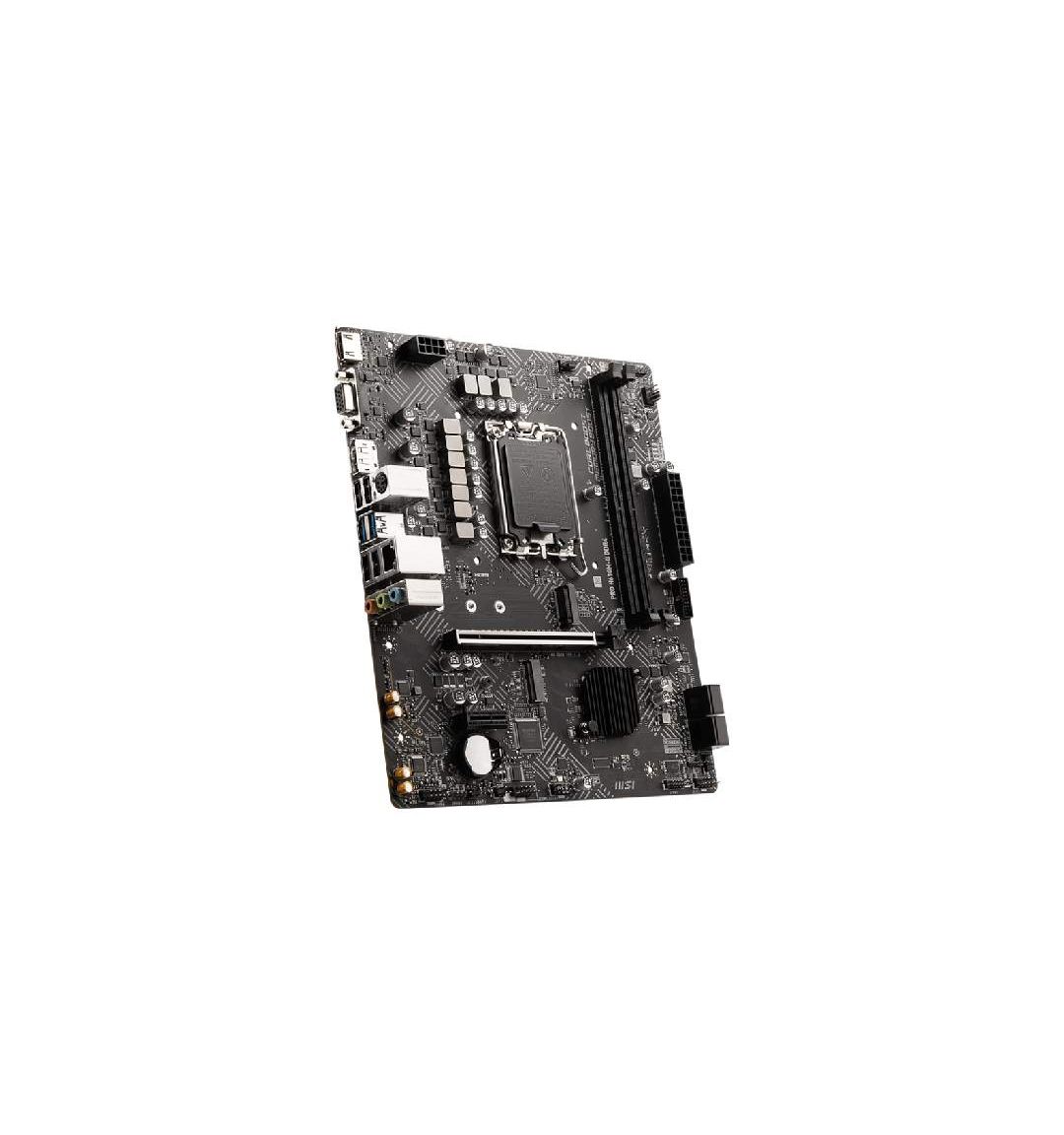

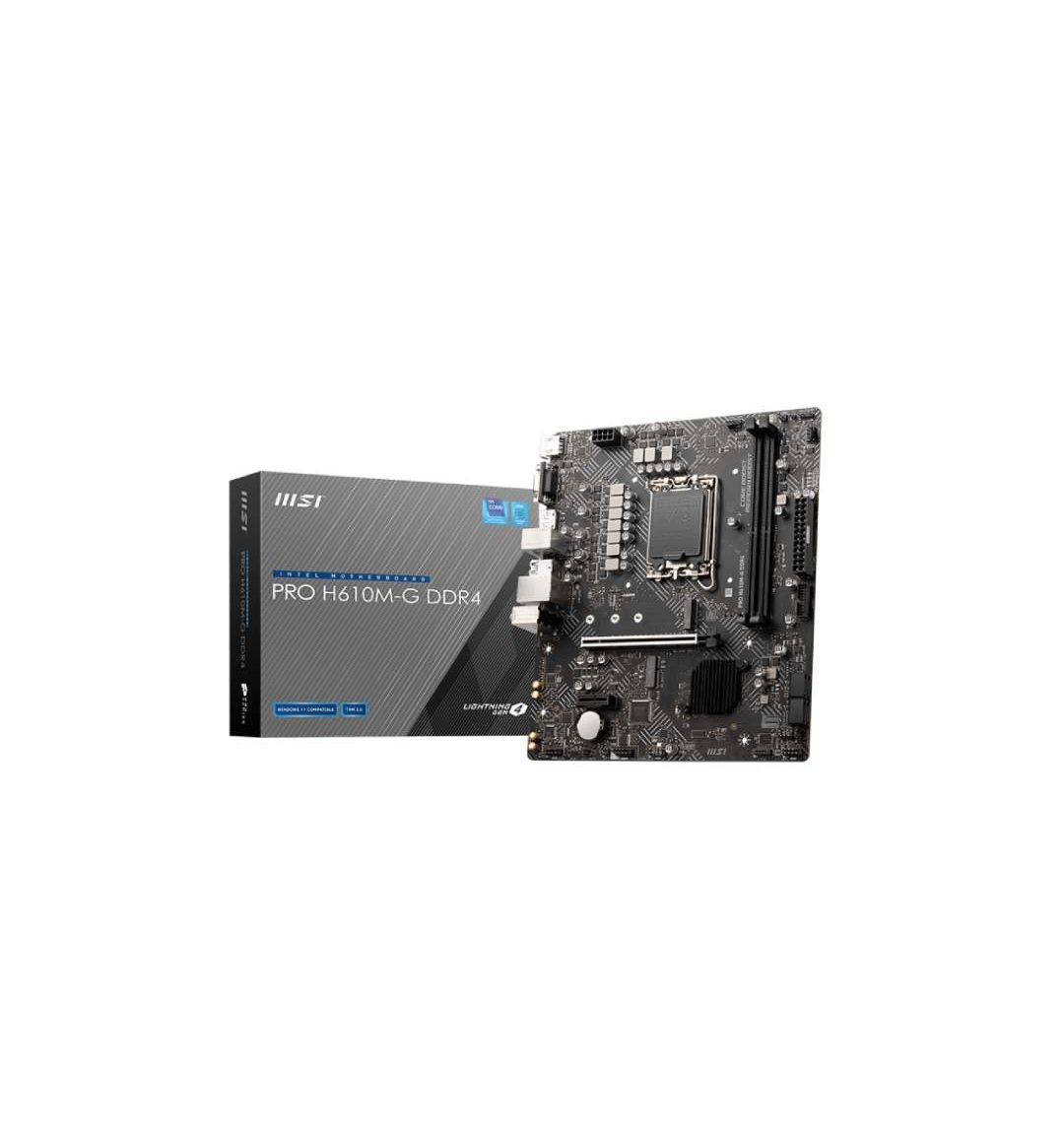

MSI PRO H610M-G DDR4 Micro-ATX Motherboard
Please sign in so that we can notify you about a reply
Specification
| Category | Details |
|---|---|
| Model | MSI PRO H610M-G DDR4 |
| Supported CPU | Intel® 14th / 13th / 12th Gen Core™, Pentium® Gold & Celeron® |
| Socket | LGA 1700 |
| Chipset | Intel H610 |
| Form Factor | mATX (23.6 × 20.2 cm) |
| Memory Type | DDR4 |
| Memory Slots | 2× DDR4 DIMM |
| Maximum Memory | Up to 64GB |
| Supported Speed | 2133 / 2666 / 2933 / 3200 MHz |
| PCIe Slots | 1× PCIe 4.0 x16, 1× PCIe 3.0 x1 |
| M.2 Slots | 1× M.2 PCIe 3.0 x4 (2242/2260/2280) |
| SATA Ports | 4× SATA 6Gb/s |

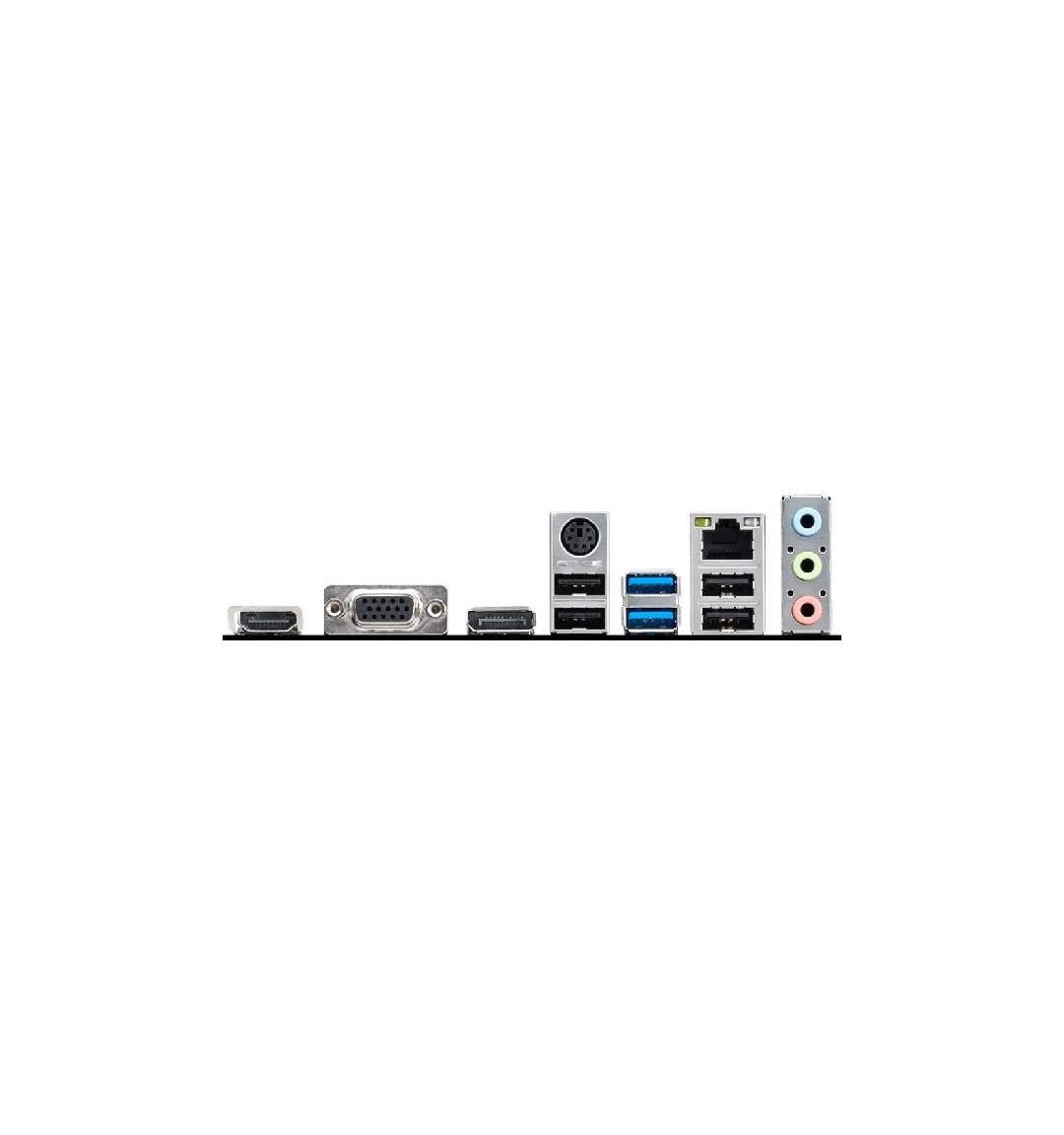

| Graphics Output | 1× HDMI 2.1 (4K@60Hz), 1× DisplayPort 1.4, 1× VGA |
| USB (Rear + Front) | 4× USB 3.2 Gen1 (5Gbps), 6× USB 2.0 |
| LAN | Intel I219V 1Gbps LAN |
| Audio | Realtek ALC892 / ALC897, 7.1-Channel HD Audio |
| Cooling Support | 1× CPU Fan, 1× System Fan |
| RGB Support | 1× RGB Header, 2× ARGB (Rainbow) Headers |
| Debug Features | 4× EZ Debug LED |
| TPM Support | TPM 2.0 Header |
| Warranty | 3 Years Manufacturing Warranty |
Description
The MSI PRO H610M-G DDR4 Micro-ATX Motherboard is a reliable and budget-friendly motherboard designed for everyday computing, office systems, and entry-level gaming builds. Supporting Intel 14th, 13th, and 12th Gen Core processors on the LGA 1700 platform, it delivers stable performance with dual-channel DDR4 memory support up to 64GB at speeds up to 3200MHz. It features a PCIe 4.0 x16 slot for modern graphics cards, a PCIe 3.0 x4 M.2 slot for fast NVMe storage, and four SATA ports for additional drives. Display connectivity includes HDMI 2.1, DisplayPort 1.4, and VGA, making it suitable for both modern and legacy monitors. The board is equipped with Intel I219V Gigabit LAN for reliable networking and Realtek ALC892/ALC897 audio for immersive 7.1-channel sound. Built with a solid 6+1+1 power design, steel-reinforced PCIe slot, Smart Fan 6 cooling system, and RGB lighting support, the MSI PRO H610M-G DDR4 offers excellent stability, essential features, and long-term reliability, making it an ideal choice for home, office, and affordable Intel-based PC builds.
