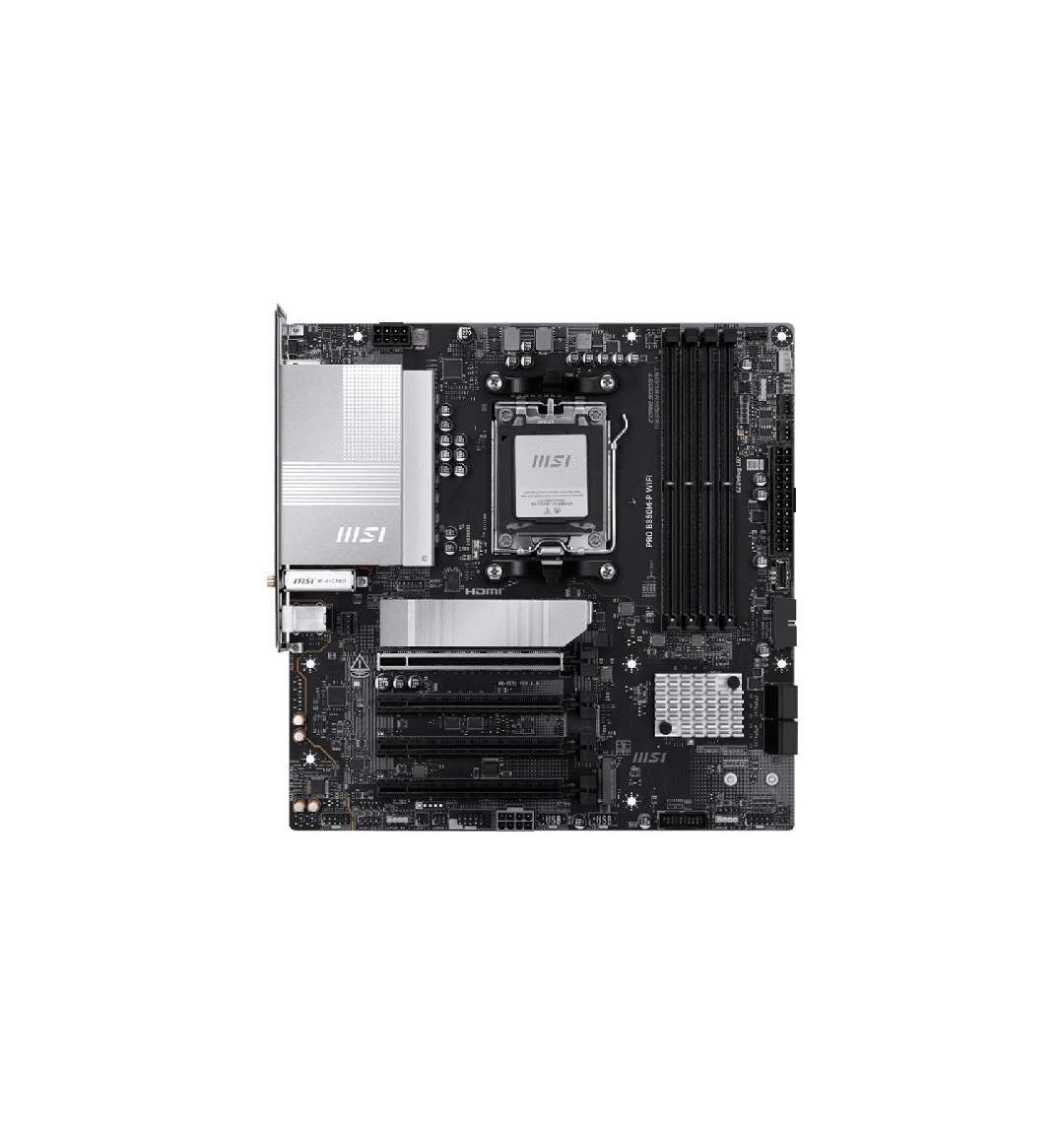

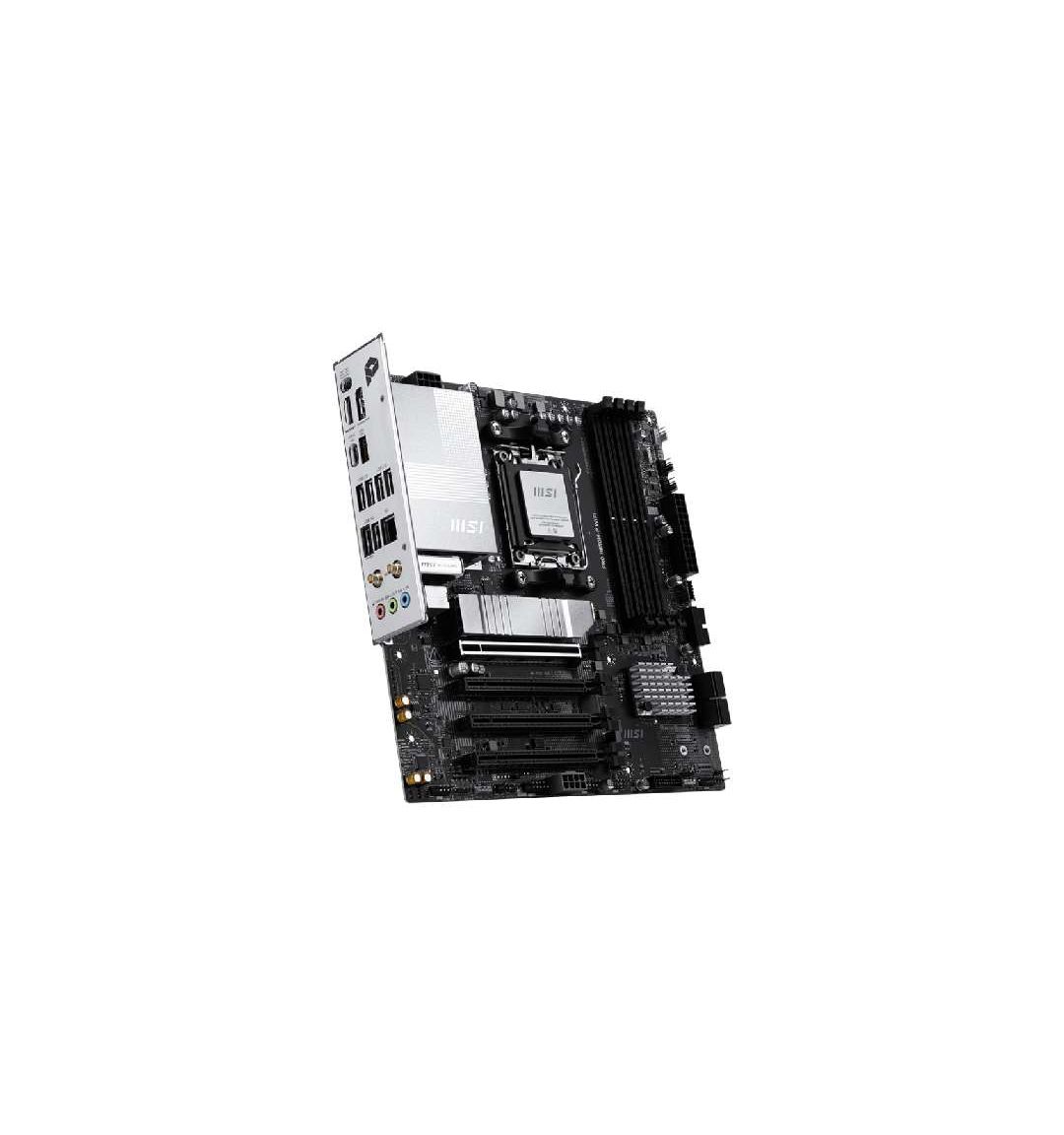

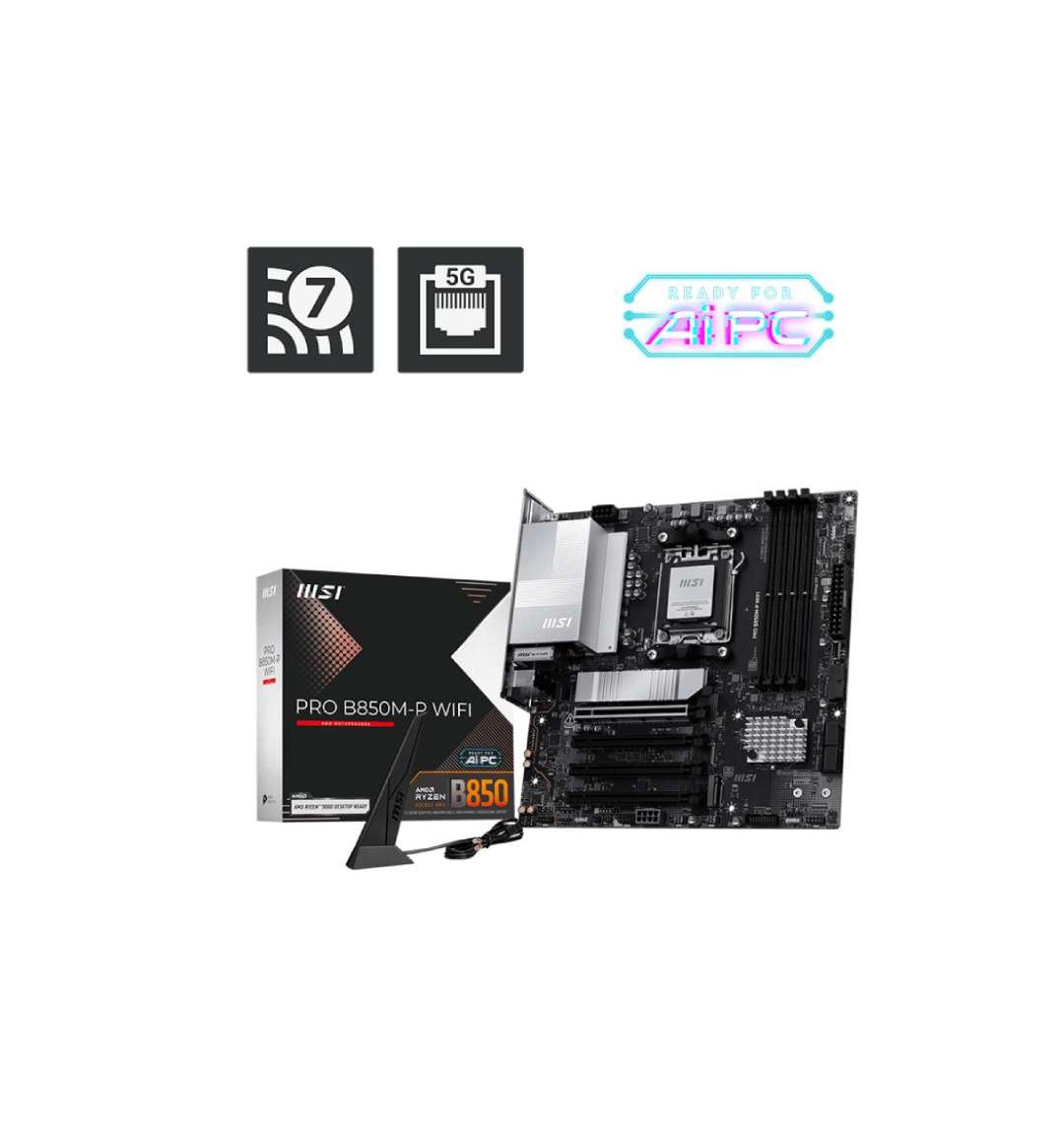

MSI PRO B850M-P WIFI AM5 mATX Motherboard
Please sign in so that we can notify you about a reply
Specification
| Category | Details |
|---|---|
| Model | MSI PRO B850M-P WIFI |
| Supported CPU | AMD Ryzen™ 9000 / 8000 / 7000 Series |
| Socket | AM5 |
| Chipset | AMD B850 |
| BIOS | Flash BIOS Button |
| Form Factor | mATX (243.84 × 243.84 mm) |
| Memory Type | DDR5 |
| Memory Slots | 4× UDIMM |
| Maximum Memory | Up to 256GB |
| Supported Speed | 8200–5600 MT/s (OC), 5600–4800 MT/s (JEDEC) |
| PCIe Slots | 1× PCIe 5.0 x16, 3× PCIe 3.0 x1 |
| M.2 Slots | 3× M.2 (1× PCIe 5.0 x4, 1× PCIe 4.0 x4, 1× PCIe 4.0 x2) |
| SATA Ports | 4× SATA 6Gb/s |
| Graphics Output | 1× HDMI 2.1 (4K@60Hz), 1× DisplayPort 1.4 (4K@60Hz) |
| USB (Rear) | 4× USB 2.0, 2× USB 5Gbps Type-A, 1× USB 10Gbps Type-A, 1× USB 10Gbps Type-C |
| USB (Front) | 4× USB 2.0, 4× USB 5Gbps Type-A, 1× USB 10Gbps Type-C |
| LAN | Realtek 8126VB 5Gbps LAN |
| Wi-Fi / Bluetooth | Wi-Fi 7, Bluetooth 5.4 |
| Audio | Realtek ALC897, 7.1-Channel HD Audio |
| RAID Support | RAID 0/1/10 (SATA), RAID 0/1/5 (NVMe) |
| Cooling Support | 1× CPU Fan, 1× Pump Fan, 3× System Fans |
| RGB Support | 3× ARGB, 1× RGB |
| Debug Features | 4× EZ Debug LED, EZ Memory Detection LED |
| TPM Support | TPM 2.0 Header |
| Operating System | Windows 11 64-bit Supported |
| Warranty | 3 Years Manufacturing Warranty |
Description
The MSI PRO B850M-P WIFI AM5 mATX Motherboard is a next-generation compact motherboard built for professionals, gamers, and creators who demand powerful performance, future-ready connectivity, and efficient thermal control in a space-saving form factor. Based on the AMD B850 chipset and supporting AMD Ryzen 9000, 8000, and 7000 Series processors, this MSI motherboard delivers exceptional responsiveness with DDR5 memory support up to 8200+ MT/s (OC) using AMD EXPO. It features a PCIe 5.0 x16 slot for next-gen graphics cards and three M.2 slots including a PCIe 5.0 x4 slot for ultra-fast NVMe SSDs, along with four SATA 6Gb/s ports for flexible storage expansion. Networking is cutting-edge with integrated Wi-Fi 7, Bluetooth 5.4, and Realtek 5Gbps LAN, ensuring low-latency, high-speed connectivity for gaming, streaming, and professional workloads. Display output is handled by HDMI 2.1 and DisplayPort 1.4, both supporting 4K resolution at 60Hz on supported processors. Audio is powered by the Realtek ALC897 codec with immersive 7.1-channel HD sound, while MSI’s Frozr Guard thermal design, Flash BIOS support, EZ Debug LEDs, robust power delivery, and DIY-friendly features make the MSI PRO B850M-P WIFI a highly reliable, future-proof, and performance-focused foundation for modern AM5 systems.
