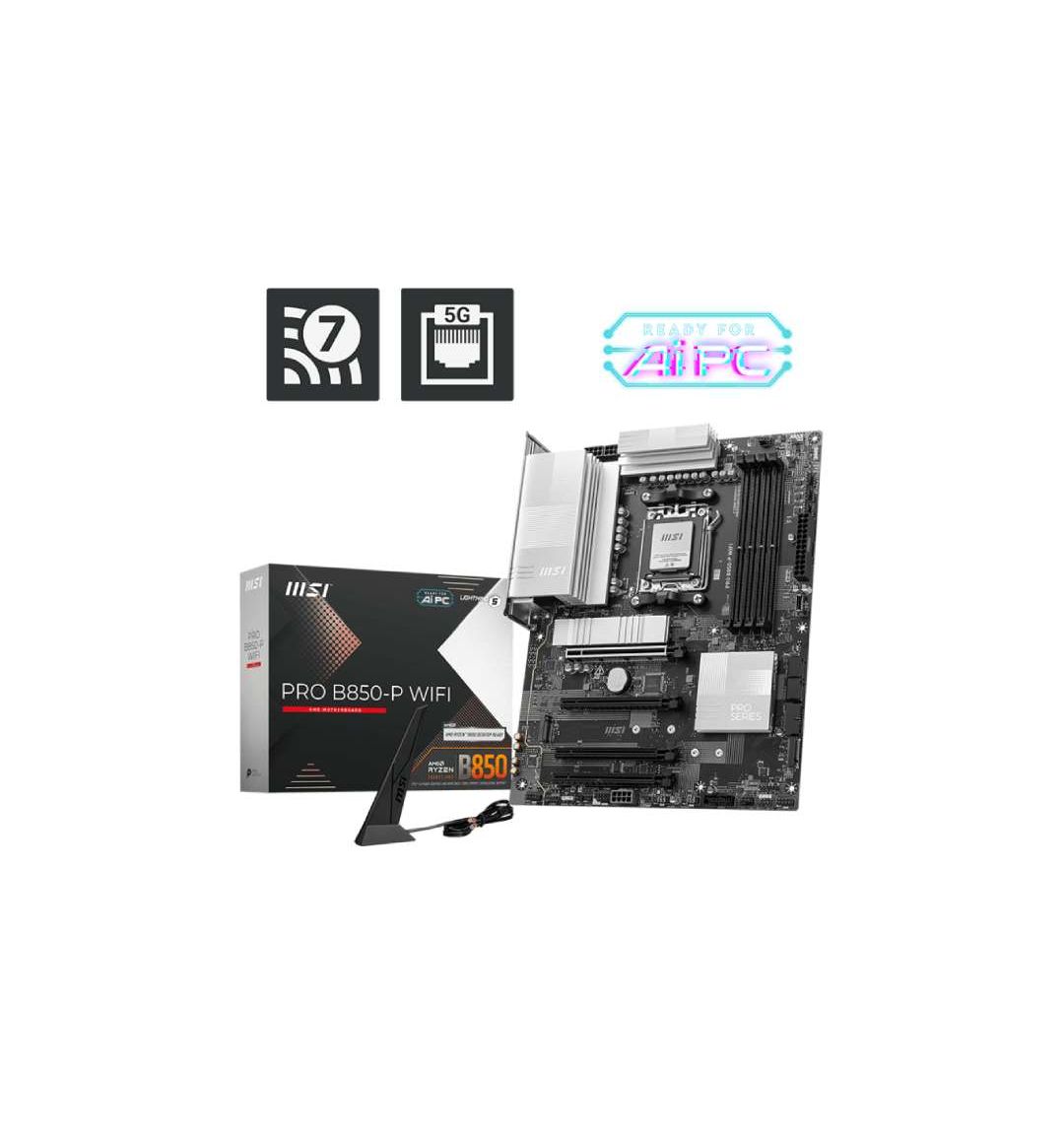

MSI PRO B850-P WIFI AM5 ATX Motherboard
Please sign in so that we can notify you about a reply
Specification
| Category | Details |
|---|---|
| Model | MSI PRO B850-P WIFI |
| Supported CPU | AMD Ryzen™ 9000 / 8000 / 7000 Series |
| Socket | AM5 |
| Chipset | AMD B850 |
| BIOS | Flash BIOS Button |
| Form Factor | ATX (243.84 × 304.8 mm) |
| Memory Type | DDR5 |
| Memory Slots | 4× UDIMM |
| Maximum Memory | Up to 256GB |
| Supported Speed | 8200–5600 MT/s (OC), 5600–4800 MT/s (JEDEC) |
| PCIe Slots | 1× PCIe 5.0 x16, 1× PCIe 4.0 x4, 2× PCIe 3.0 x1 |
| M.2 Slots | 3× M.2 (1× PCIe 5.0 x4, 1× PCIe 4.0 x4, 1× PCIe 4.0 x2) |
| SATA Ports | 4× SATA 6Gb/s |
| Graphics Output | 1× HDMI 2.1 (4K@60Hz) |
| USB (Rear) | 4× USB 2.0, 1× USB 5Gbps Type-A, 1× USB 10Gbps Type-A, 2× USB 10Gbps Type-C |
| USB (Front) | 4× USB 2.0, 4× USB 5Gbps Type-A, 1× USB 5Gbps Type-C |
| LAN | Realtek 8126VB 5Gbps LAN |
| Wi-Fi / Bluetooth | Wi-Fi 7, Bluetooth 5.4 |
| Audio | Realtek ALC897, 7.1-Channel HD Audio |
| RAID Support | RAID 0/1 (SATA & NVMe) |
| Cooling Support | 1× CPU Fan, 1× Pump Fan, 4× System Fans |
| RGB Support | 3× ARGB, 1× RGB |
| Debug Features | 4× EZ Debug LED |
| TPM Support | TPM 2.0 Header |
| Warranty | 3 Years Manufacturing Warranty |
Description
The MSI PRO B850-P WIFI AM5 ATX Motherboard is a high-performance and future-ready platform designed for professionals, creators, and gamers who demand reliability, speed, and modern connectivity. Built on the AMD B850 chipset and supporting AMD Ryzen 9000, 8000, and 7000 Series processors, this MSI motherboard delivers outstanding performance with support for up to 256GB of DDR5 memory clocked up to 8200+ MT/s through AMD EXPO and overclocking. It features a PCIe 5.0 x16 slot for next-generation graphics cards and three high-speed M.2 slots, including a PCIe 5.0 x4 slot for ultra-fast NVMe SSDs, alongside four SATA 6Gb/s ports for flexible storage expansion. Connectivity is exceptional with integrated Wi-Fi 7, Bluetooth 5.4, and a Realtek 5Gbps LAN, ensuring ultra-low latency and high-bandwidth networking for demanding workloads. The board provides extensive USB connectivity, including dual rear USB 10Gbps Type-C ports, making it ideal for modern peripherals and high-speed data transfer. Visual output is supported via HDMI 2.1 with 4K resolution at 60Hz on compatible CPUs. Audio is powered by the Realtek ALC897 codec with 7.1-channel HD sound for immersive entertainment and professional use. Featuring MSI’s robust power delivery, advanced thermal design, Flash BIOS button, and EZ Debug LEDs, the MSI PRO B850-P WIFI stands as a dependable, clean-looking, and future-proof ATX motherboard, perfectly suited for high-end AM5 builds that prioritize stability, performance, and next-generation technology.
