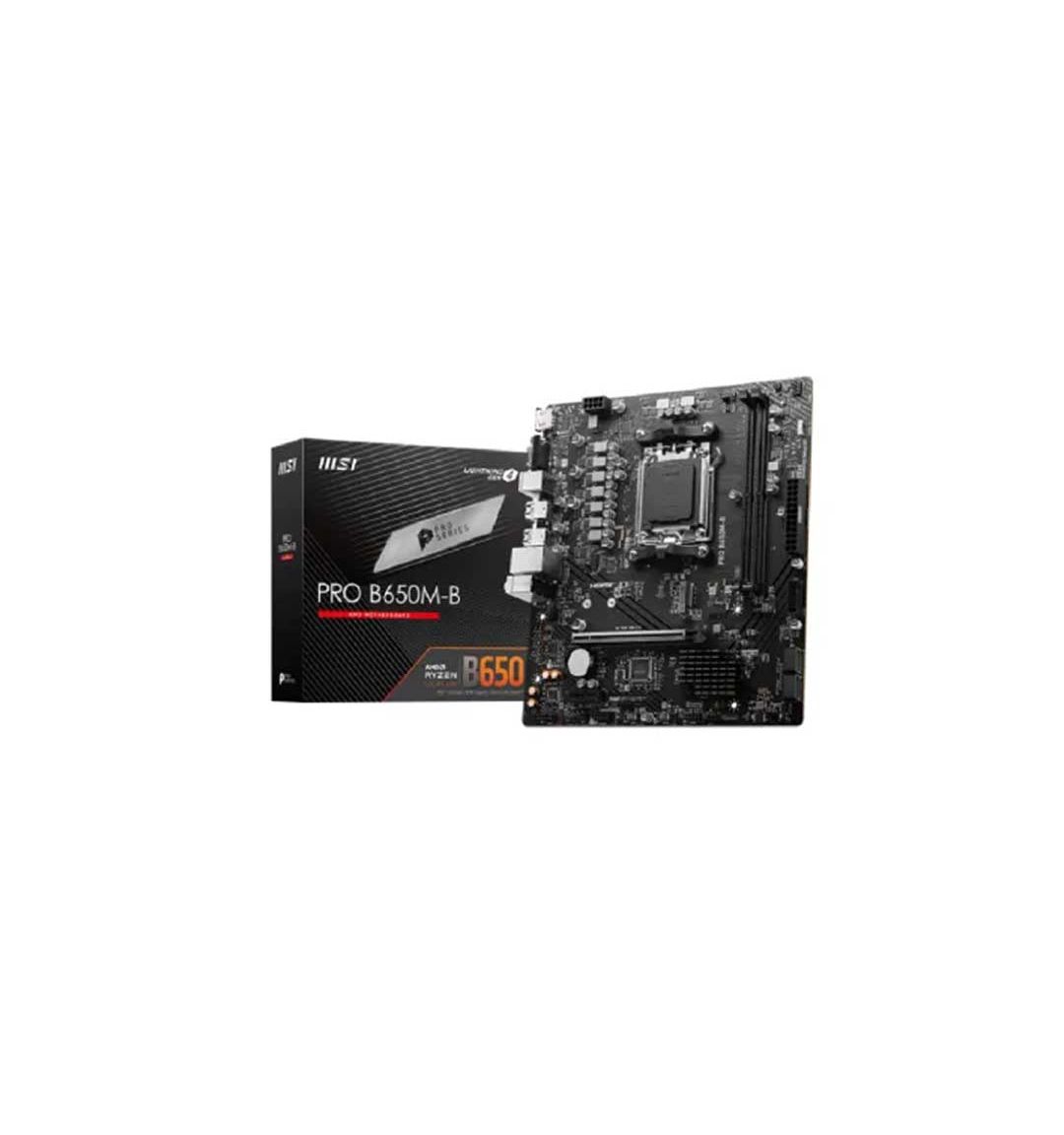

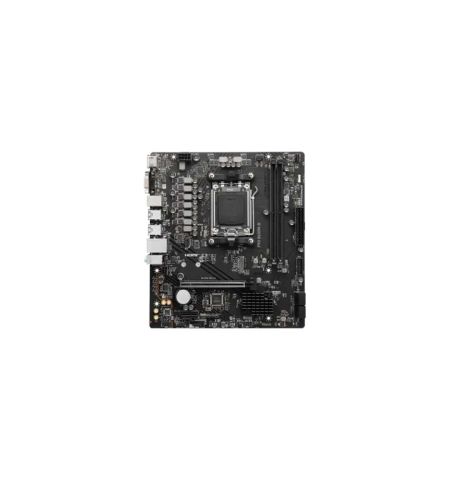

MSI PRO B650M-B DDR5 AMD m-ATX Motherboard
Please sign in so that we can notify you about a reply
Specification
| Basic Information | |
| Supported CPU | Supports AMD Ryzen 8000/ 7000 Series Desktop Processors Socket AM5 |
| Chipset | AMD B650 |
| Form Factor | mATX 243.84mmx243.84mm |
| Audio | Realtek ALC897 Codec 7.1-Channel High Definition Audio |
| Expansion Slots | |
| PCI | 1x PCI-E x16 slot 1x PCI-E x1 slot PCI_E1 Gen PCIe 4.0 supports up to x16 (From CPU) PCI_E2 Gen PCIe 3.0 supports up to x1 (From Chipset) |
| Memory | |
| Type | DDR5 |
| Slots | 2 |
| Supported Memory | 6800+(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(OC)/ 5400(OC)/ 5200(OC)/ 5000(OC)/ 4800(JEDEC) MHz |
| Maximum Memory | 96GB |
| Graphics | |
| Graphics | 1x HDMI Support HDMITM 2.1, maximum resolution of 4K 60Hz 1x VGA Support VGA, maximum resolution of 2048x1536 50Hz, 2048x1280 60Hz, 1920x1200 60Hz |
| Connector & Ports | |
| HDMI | 1x HDMI |
| Display Port (s) | 1x DisplayPort |
| USB (s) | 2x USB 2.0 (Rear) 4x USB 2.0 (Front) 4x USB 3.2 Gen1 Type A (Rear) 2x USB 3.2 Gen1 Type A (Front) |
| LAN Port (s) | Realtek RTL8125BG 2.5G LAN |
| Supported Storage | 1x M.2 M.2_1 Source (From CPU) supports up to PCIe 4.0 x4 , supports 2280/2260 devices 4x SATA 6G |
| RAID | Supports RAID 0, RAID 1 and RAID 10 for SATA storage devices |
| Audio | Audio Connectors |
| Internal I/O Ports | 1x Power Connector(ATX_PWR) 1x Power Connector(CPU_PWR) 1x CPU Fan 2x System Fan 2x Front Panel (JFP) 1x Chassis Intrusion (JCI) 1x Front Audio (JAUD) 1x Com Port (JCOM) 1x Addressable V2 RGB LED connector (JARGB_V2) 1x RGB LED connector(JRGB) 1x TPM pin header(Support TPM 2.0) 4x USB 2.0 ports 2x USB 3.2 Gen1 Type A ports |
| TPM (Trusted Platform Module ) | 1x TPM pin header(Support TPM 2.0) |
| Warranty Information | |
| Manufacturing Warranty | 3 Years |
MSI PRO B650M-B DDR5 AMD AM5 m-ATX Motherboard
Overview
Elevate your PC building experience with the MSI PRO B650M-B DDR5 motherboard. Designed for the latest AMD Ryzen 8000 and 7000 series desktop processors, this micro ATX motherboard combines advanced technology with a user-friendly layout. Whether you’re creating a high-performance gaming rig or a productivity workstation, the PRO B650M-B offers the features you need to push your system to the next level.
Key Features
- AMD AM5 Socket Support: This motherboard supports AMD Ryzen 8000/7000 series processors, providing a solid foundation for your next build.
- High-Speed DDR5 Memory: With support for up to 96GB of DDR5 memory, the PRO B650M-B accommodates high-performance memory modules with speeds up to 6800 MHz (overclocked).
- Enhanced Graphics Capability: Enjoy stunning visuals with support for HDMI 2.1 (4K @ 60Hz) and VGA outputs, making it ideal for gaming and multimedia applications.
- Multiple Expansion Slots: Equipped with one PCIe 4.0 x16 slot and one PCIe 3.0 x1 slot, the motherboard allows for flexible expansion options to meet your unique needs.
- Fast Storage Options: With one M.2 slot supporting PCIe 4.0 and four SATA 6Gb/s ports, the PRO B650M-B ensures you have plenty of storage solutions to choose from, including RAID support for enhanced performance and redundancy.
- High-Quality Audio: Experience immersive sound with the Realtek ALC897 codec, offering 7.1-channel high-definition audio for gaming and media playback.
- Comprehensive Connectivity: The motherboard features multiple USB ports, including USB 2.0 and USB 3.2 Gen 1 Type-A, along with a 2.5G LAN port for blazing-fast internet speeds.
Why Choose the MSI PRO B650M-B?
The MSI PRO B650M-B is engineered for those who demand performance, reliability, and scalability in their systems. With its extensive feature set, this motherboard is perfect for gamers, content creators, and professionals looking to build a powerful and efficient PC.
FAQ - MSI PRO B650M-B DDR5 AMD AM5 m-ATX Motherboard
1. What processors are compatible with the MSI PRO B650M-B? The MSI PRO B650M-B supports AMD Ryzen 8000 and 7000 series desktop processors using the AM5 socket.
2. What type of RAM does this motherboard support? This motherboard supports DDR5 RAM with speeds up to 6800 MHz (overclocked) and has a maximum capacity of 96GB.
3. How many expansion slots does the MSI PRO B650M-B have? The motherboard features one PCIe 4.0 x16 slot and one PCIe 3.0 x1 slot for expansion.
4. Can I use M.2 SSDs with this motherboard? Yes, the MSI PRO B650M-B includes one M.2 slot that supports PCIe 4.0 x4 SSDs, as well as four SATA 6Gb/s ports for additional storage options.
5. What audio features does the MSI PRO B650M-B offer? This motherboard features the Realtek ALC897 codec, providing 7.1-channel high-definition audio for an immersive sound experience.
6. Does the MSI PRO B650M-B support RAID configurations? Yes, it supports RAID 0, RAID 1, and RAID 10 configurations for SATA storage devices.
7. What type of warranty does this motherboard come with? The MSI PRO B650M-B comes with a 3-year manufacturing warranty.
8. What connectivity options are available on this motherboard? It includes multiple USB ports (USB 2.0 and USB 3.2 Gen 1 Type A), HDMI 2.1, VGA, and a 2.5G LAN port for high-speed internet connectivity.
9. Is there RGB lighting support on this motherboard? Yes, the MSI PRO B650M-B features connectors for addressable RGB lighting to enhance your build's aesthetics.
10. Where can I find the latest BIOS updates for the MSI PRO B650M-B? You can download the latest BIOS updates from the MSI official website in the support section for this motherboard model.
