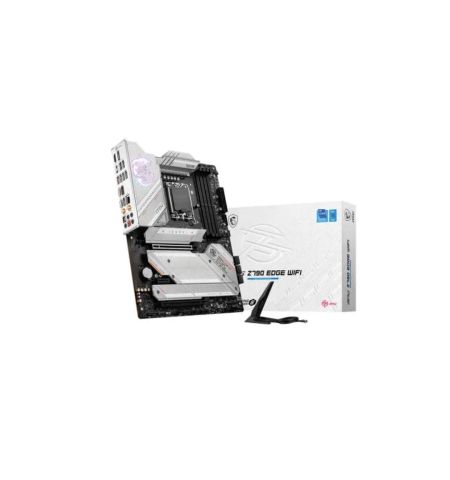

MSI MPG Z790 EDGE WIFI DDR5 13th & 12th Gen ATX Motherboard
Save 12%
Please sign in so that we can notify you about a reply
MSI MPG Z790 EDGE WIFI DDR5 Motherboard
SPECIFICATION
| Specifications | |
| Supported CPU | Supports 12th/13th Gen Intel Core Processors, Pentium Gold and Celeron Processors LGA 1700 |
| Chipset | INTEL Z790 |
| Form Factor | ATX 243.84mmx304.8mm |
| Audio | Realtek ALC4080 Codec 7.1-Channel USB High Performance Audio Supports up to 32-Bit/384 kHz playback on front panel |
| Slots | |
| PCI | 2x PCI-E x16 slot 1x PCI-E x1 slot PCI_E1 PCIe 5.0 supports up to x16 (From CPU) PCI_E2 PCIe 3.0 supports up to x1 (From Chipset) PCI_E3 PCIe 4.0 supports up to x4 (From Chipset) |
| Memory | |
| Type | DDR5 |
| Slots | 4 x DIMM |
| Supported Memory | 7200+(OC)/ 7000(OC)/ 6800(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(JEDEC)/ 5400(JEDEC)/ 5200(JEDEC)/ 5000(JEDEC)/ 4800(JEDEC) MHz Max. overclocking frequency: • 1DPC 1R Max speed up to 7200+ MHz • 1DPC 2R Max speed up to 6600+ MHz • 2DPC 1R Max speed up to 6400+ MHz • 2DPC 2R Max speed up to 5600+ MHz Supports Intel XMP3.0 OC Supports Dual-Controller Dual-Channel mode Supports non-ECC, un-buffered memory |
| Maximum Memory | 128GB |
| Graphics | |
| Graphics | 1x HDMI 1x DisplayPort Support HDMI 2.1, maximum resolution of 4K 60Hz Support DP 1.4, maximum resolution of 8K 60Hz |
| Connector & Ports | |
| HDMI | 1x HDMI |
| Display Port (s) | 1x DisplayPort |
| USB (s) | 4x USB 2.0 (Front) 4x USB 3.2 Gen1 Type A (Rear) 2x USB 3.2 Gen1 Type A (Front) 4x USB 3.2 Gen2 Type A (Rear) 1x USB 3.2 Gen2 Type C (Rear) 1x USB 3.2 Gen2 Type C (Front) 1x USB 3.2 Gen2x2 Type C (Rear) |
| LAN Port (s) | Intel 2.5Gbps LAN |
| Wireless Communication module | Intel Wi-Fi 6E The Wireless module is pre-installed in the M.2 (Key-E) slot Supports MU-MIMO TX/RX, 2.4GHz / 5GHz / 6GHz* (160MHz) up to 2.4Gbps Supports 802.11 a/ b/ g/ n/ ac/ ax Supports Bluetooth 5.3, FIPS, FISMA |
| Supported Storage | 5x M.2 slot M.2_1 (From CPU) supports up to PCIe 4.0 x4 , supports 22110/2280/2260 devices M.2_2 (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260 devices M.2_3 (From Chipset) supports up to PCIe 4.0 x4 / SATA mode, supports 2280/2260/2242 devices M.2_4 (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260/2242 devices M.2_5 (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260 devices 7x SATA 6G port |
| RAID | Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices Supports RAID 0, RAID 1, RAID 5 and RAID 10 for M.2 NVMe storage devices * SATA_A1~A2 do not support RAID function. |
| Audio | Audio Connectors |
| Internal I/O Ports | 1x Power Connector(ATX_PWR) 2x Power Connector(CPU_PWR) 1x CPU Fan 1x Pump Fan 6x System Fan 2x Front Panel (JFP) 1x Chassis Intrusion (JCI) 1x Front Audio (JAUD) 1x TBT connector (JTBT, supports RTD3) 1x Tuning Controller connector(JDASH) 3x Addressable V2 RGB LED connector (JARGB_V2) 1x RGB LED connector(JRGB) 4x USB 2.0 2x USB 3.2 Gen1 Type A 1x USB 3.2 Gen2 Type C |
| TPM (Trusted Platform Module ) | 1x TPM pin header(Support TPM 2.0) |
| Others Features | |
| Special Features | 4x EZ Debug LED 1x EZ LED Control switch |
Warranty: 03 Years
Nexus will be your first choice If you want to buy MSI MPG Z790 EDGE WIFI DDR5 Motherboard in Bangladesh Because we sell only MSI-authorized original Motherboard. So you are at the right place to buy the right MSI Motherboard at the lowest price in Bangladesh.
Nexus Offers you MSI MPG Z790 EDGE WIFI DDR5 Motherboard at the best price in Bangladesh, which is your budget-friendly Motherboard. Do you want to know what is the price of MSI MPG Z790 EDGE WIFI DDR5 Motherboard? and where you can get the MSI Motherboard at the lowest price in BD? Yes, it is Nexus. MSI MPG Z790 EDGE WIFI DDR5 Motherboard is now available at Nexus, So Don’t Think more to buy MSI MPG Z790 EDGE WIFI DDR5 Motherboard.
Brand:
MSI
