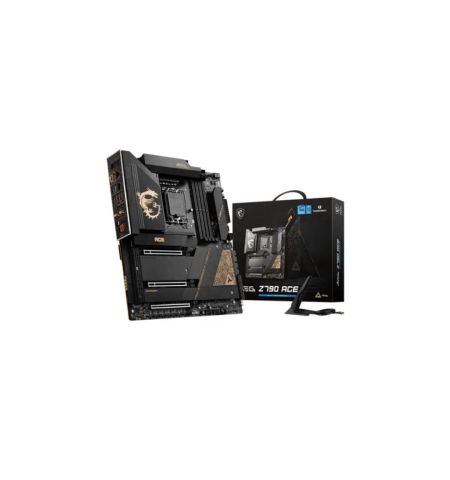

MSI MEG Z790 ACE 13th And 12th Gen DDR5 E-ATX Motherboard
Please sign in so that we can notify you about a reply

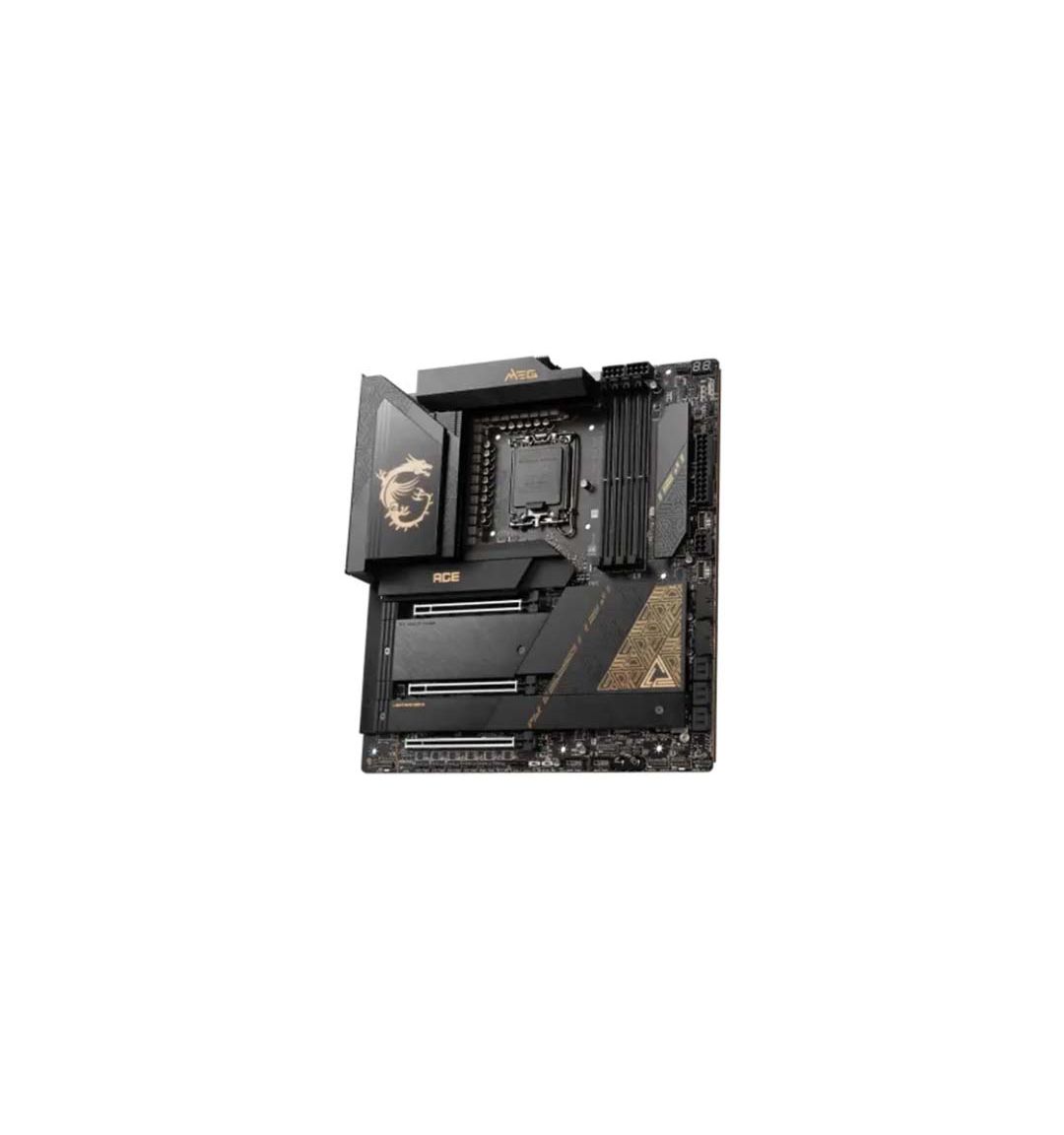

MSI MEG Z790 ACE E-ATX Motherboard
SPECIFICATION
| Specifications | |
| Supported CPU | Supports 12th/13th Gen Intel Core Processors, Pentium Gold and Celeron Processors LGA 1700 |
| Chipset | INTEL Z790 |
| Form Factor | E-ATX 277mmx304.8mm |
| Audio | Realtek ALC4082 Codec + ESS ES9280AQ Combo DAC/HPA 7.1-Channel USB High Performance Audio Supports S/PDIF output Supports up to 32-Bit/384 kHz playback on front panel |
| Slots | |
| PCI | 3x PCI-E x16 slot PCI_E1 PCIe 5.0 supports up to x16 (From CPU) PCI_E2 PCIe 5.0 supports up to x8 (From CPU) PCI_E3 PCIe 4.0 supports up to x4 (From Chipset) |
| Memory | |
| Type | DDR5 |
| Slots | 4 x DIMM |
| Supported Memory | 7800+(OC)/ 7600(OC)/ 7400(OC)/ 7200(OC)/ 7000(OC)/ 6800(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(JEDEC)/ 5400(JEDEC)/ 5200(JEDEC)/ 5000(JEDEC)/ 4800(JEDEC) MHz Max. overclocking frequency: • 1DPC 1R Max speed up to 7800+ MHz • 1DPC 2R Max speed up to 6600+ MHz • 2DPC 1R Max speed up to 6400+ MHz • 2DPC 2R Max speed up to 5600+ MHz Supports Intel XMP3.0 OC Supports Dual-Controller Dual-Channel mode Supports non-ECC, un-buffered memory |
| Maximum Memory | 128GB |
| Graphics | |
| Graphics | 1x Type-C DisplayPort Supports a maximum resolution of 4K 60Hz |
| Network & Connectivity | |
| Display Port (s) | 1x Type-C DisplayPort |
| USB (s) | 4x USB 2.0 (Front) 4x USB 3.2 Gen1 Type A (Front) 7x USB 3.2 Gen2 Type A (Rear) 1x USB 3.2 Gen2 Type C (Rear) 2x USB 3.2 Gen2x2 Type C (Front) |
| LAN Port (s) | 2x Intel 2.5Gbps LAN |
| Wireless Communication module | Intel Wi-Fi 6E The Wireless module is pre-installed in the M.2 (Key-E) slot Supports MU-MIMO TX/RX, 2.4GHz / 5GHz / 6GHz* (160MHz) up to 2.4Gbps Supports 802.11 a/ b/ g/ n/ ac/ ax Supports Bluetooth 5.3, FIPS, FISMA |
| Supported Storage | 5x M.2 slot M.2_1 (From CPU) supports up to PCIe 4.0 x4 , supports 22110/2280/2260 devices M.2_2 (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260 devices M.2_3 (From Chipset) supports up to PCIe 4.0 x4 / SATA mode, supports 2280/2260 devices M.2_4 (From CPU) supports up to PCIe 5.0 x4 , supports 2280 devices M.2_5 (From Chipset) supports up to PCIe 4.0 x4 / SATA mode, supports 22110/2280/2260 devices 6x SATA 6G port |
| RAID | Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices Supports RAID 0, RAID 1, RAID 5 and RAID 10 for M.2 NVMe storage devices * SATA_A1~A2 do not support RAID function. |
| Audio | Audio Connectors |
| Internal I/O Ports | 1x Power Connector(ATX_PWR) 2x Power Connector(CPU_PWR) 1x CPU Fan 2x Pump Fan 5x System Fan 2x Front Panel (JFP) 1x Chassis Intrusion (JCI) 1x Water Flow connector 1x Slow Mode Booting Jumper(JSLOW) 1x Front Audio (JAUD) 2x Thermal Sensor connectors(T_SEN) 1x Tuning Controller connector(JDASH) 3x Addressable V2 RGB LED connector (JARGB_V2) 1x RGB LED connector(JRGB) 4x USB 2.0 2x USB 3.2 Gen1 Type A 2x USB 3.2 Gen 2x2 Type C V-check point |
| TPM (Trusted Platform Module ) | 1x TPM pin header(Support TPM 2.0) |
| Others Features | |
| Special Features | 1x EZ LED Control switch 4x EZ Debug LED 1x 2-Digit Debug Code LED |
Warranty: 03 Years
