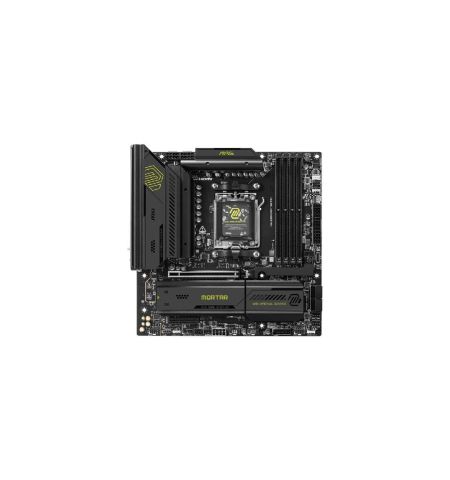

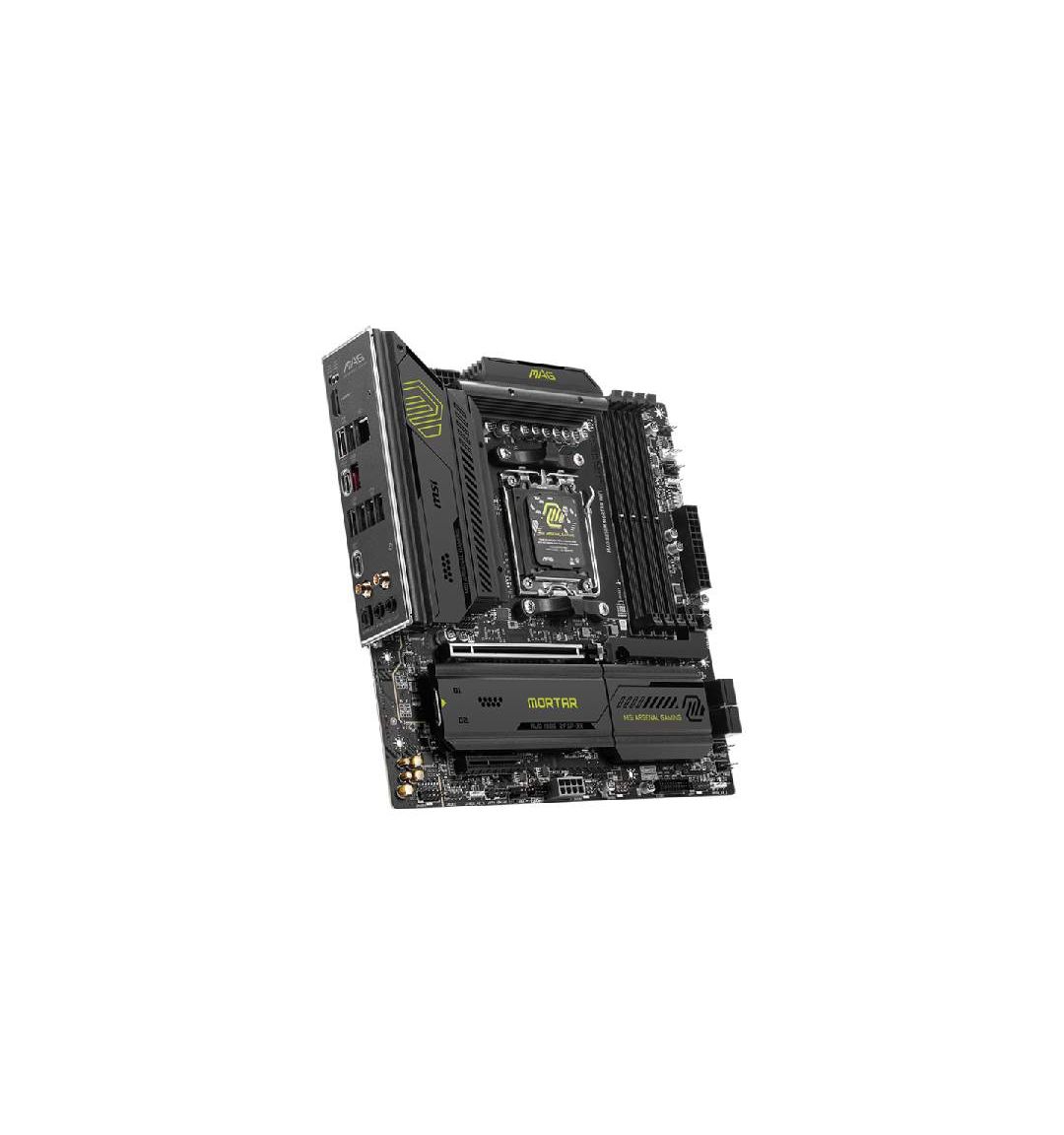

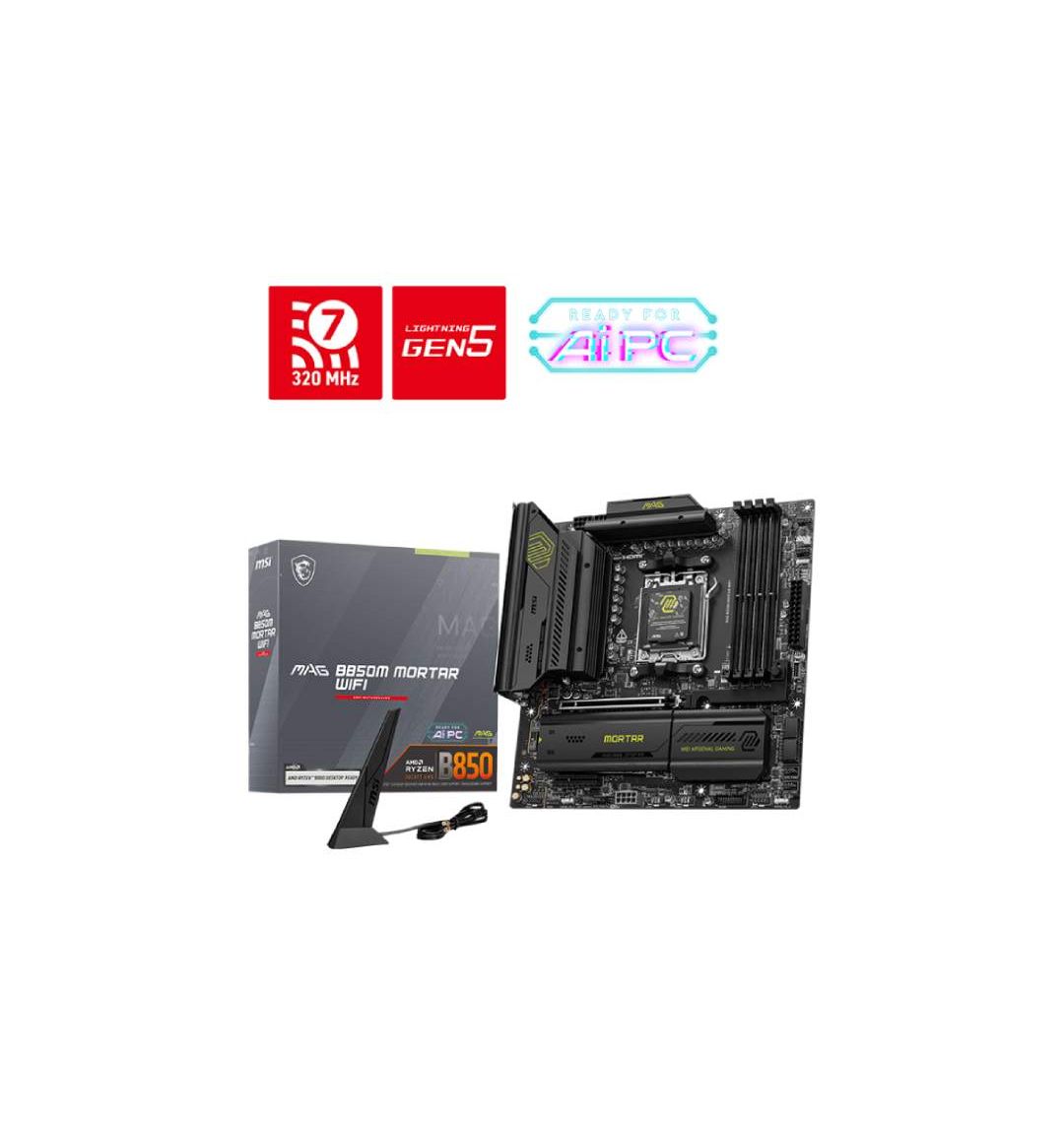

MSI MAG B850M MORTAR WIFI AM5 mATX Motherboard
Please sign in so that we can notify you about a reply
Specification
| Category | Details |
|---|---|
| Model | MSI MAG B850M MORTAR WIFI |
| Supported CPU | AMD Ryzen™ 9000 / 8000 / 7000 Series |
| Socket | AM5 |
| Chipset | AMD B850 |
| Form Factor | mATX (243.84 × 243.84 mm) |
| Memory Type | DDR5 |
| Memory Slots | 4× DIMMs |
| Maximum Memory | Up to 256GB |
| Supported Speed | 8200–5600 MT/s (OC), 5600–4800 MT/s (JEDEC) |
| PCIe Slots | 1× PCIe 5.0 x16, 1× PCIe 4.0 x4 |
| M.2 Slots | 3× M.2 (2× PCIe 5.0 x4, 1× PCIe 4.0 x2) |
| SATA Ports | 4× SATA 6Gb/s |
| Graphics Output | 1× HDMI 2.1 FRL (up to 8K@60Hz) |
| USB (Rear) | 4× USB 5Gbps Type-A, 3× USB 10Gbps Type-A, 1× USB 10Gbps Type-C, 1× USB 20Gbps Type-C |
| USB (Front) | 4× USB 2.0, 2× USB 5Gbps Type-A, 1× USB 10Gbps Type-C |
| LAN | Realtek 8126-VB 5Gbps LAN |
| Wi-Fi / Bluetooth | Wi-Fi 7, Bluetooth 5.4 |
| Audio | Realtek ALC4080, 7.1-Channel HD Audio, 32-bit/384kHz, S/PDIF |
| RAID Support | RAID 0/1/10 (SATA), RAID 0/1/5 (NVMe) |
| Cooling Support | 1× CPU Fan, 1× Pump Fan, 4× System Fans |
| RGB Support | 3× ARGB, 1× RGB |
| Debug Features | EZ Debug LED, EZ Memory Detection LED |
| TPM Support | TPM 2.0 Header |
| Warranty | 3 Years Manufacturing Warranty |
Description
The MSI MAG B850M MORTAR WIFI AM5 mATX Motherboard is a high-end, compact powerhouse designed for enthusiasts who want cutting-edge performance on AMD’s latest AM5 platform. Built on the advanced AMD B850 chipset, this motherboard supports AMD Ryzen 9000, 8000, and 7000 Series processors and delivers exceptional computing power with support for up to 256GB of high-speed DDR5 memory across four DIMM slots, reaching up to 8200+ MT/s through overclocking and AMD EXPO. It features a next-generation PCIe 5.0 x16 slot for modern GPUs and three M.2 slots, including two PCIe 5.0 x4 slots for ultra-fast NVMe SSDs, along with four SATA ports for additional storage. Connectivity is truly future-ready with integrated Wi-Fi 7, Bluetooth 5.4, and a blazing-fast Realtek 5Gbps LAN, ensuring ultra-low latency and high-speed networking for gaming and professional workloads. USB connectivity is extensive, including a rear USB 20Gbps Type-C port, multiple 10Gbps and 5Gbps USB ports, and front-panel Type-C support. For integrated graphics users, the HDMI 2.1 FRL port supports up to 8K resolution at 60Hz. Audio is powered by the premium Realtek ALC4080 codec, delivering 7.1-channel HD sound with 32-bit/384kHz playback and S/PDIF output for immersive audio quality. Built with MSI’s robust power delivery, advanced thermal design, EZ Debug features, and a durable mATX layout, the MSI MAG B850M MORTAR WIFI stands out as one of the most powerful, future-proof, and feature-rich micro-ATX motherboards for next-generation AMD gaming and workstation builds.
