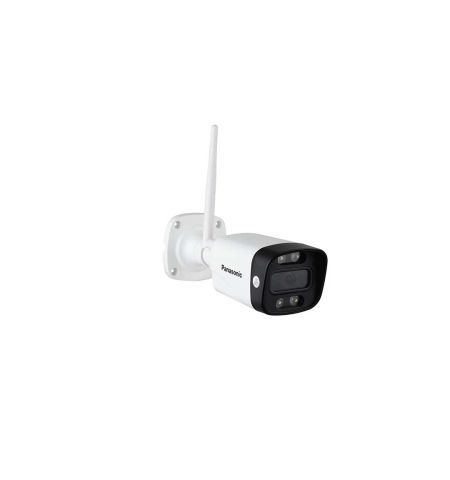

Panasonic PI-BUA3MWA 3mp WiFi IP Bullet Camera
Please sign in so that we can notify you about a reply
Specification
| Image Sensor | 1/2.7” 3MP Progressive CMOS Sensor |
| Effective Pixels | 2304x1296 |
| Minimum Illumination | Color: 0.01 Lux @ (F1.2, AGC ON), B/W: 0 Lux with IR |
| S/N Ratio | >60dB |
| IR Distance | IR Distance 20m |
| Shutter Speed | Auto, Manual Mode: 1/50sec~ 1/10000sec |
| WDR | 80db |
| IR On/Off Control | Auto/ Manual |
| IR LEDs | 4 Nos Dual Source LEDs, IR Distance 20m & Color Image up to 10m |
| Lens Type | Fixed |
| Mount Type | M12 |
| Focal Length | 3.6mm Lens |
| Max. Aperture | F1.2 |
| Angle of View | Horizontal Angle- 82°, Vertical Angle- 63°, Diagonal Angle- 92° |
| Focus Control | Fixed |
| Compression | H.265+, H.265, H.264 |
| Streaming Capability | 2 Streams |
| Resolution | 3MP (2304x1296)/2MP (1920×1080)/D1(704×576)/ VGA (640×480)/ CIF (352×288) |
| Streams | Mainstream:3MP/2MP @25/30fps, Sub Stream: D1/ VGA/ CIF @25 FPS |
| Frame Rate | 1 ~ 30fps |
| Bit Rate Control | CBR/VBR |
| Bit Rate | 221-8192Kbps |
| Day/Night | Automatic/ Black and white |
| Exposure Mode | Automatic/Manual-(1/50-1/10000) |
| BLC Mode | On/Off |
| Profiles | Auto, Low Light Priority, High Light Priority |
| Noise Filter | Auto/ 1-5Levels |
| Digital Zoom | Supports upto 64X (Area selection with Mouse) |
| Anti-Flicker | On/Off |
| AE reference | 1-255Level |
| AE Sensitivity | 1-10Level |
| Flip | Off / On |
| IR reverse | Support |
| Mirror | Off / On |
| Text Overlay | Title, Date & Time, Weekday |
| Privacy Masking | Yes (4 zones) |
| Motion Detection | 22X18 Zones |
| Video Blind | Support |
| Abnormality | No Disk, Disk Error, Disk No Space, Network Cable Disconnected, IP Address Conflict |
| Smart Functions | Intrusion Detection, Line Crossing Detection, Human Detection |
| Event Actions | Record alarm, Email link, Upload FTP, Snapshot |
| 3-Axis Adjustment (Bracket) | Pan:0° ~360°; Tilt:0° ~90°; Rotation:0° ~360° |
| ONVIF Authentication | ON, OFF |
| RTSP Authentication | Digest, None |
| Compression | G.711A/U |
| Talk Back | NA |
| Ethernet | 10/100M adaptive Ethernet interface |
| Protocol | TCP/IP, IPv4, ICMP, HTTP, HTTPS, HTTP-Base64, HTTP-Digest, DHCP, DNS, DDNS, RTP, RTSP, RTCP, NTP, UPnP, SMTP, FTP, IGMP, P2P,IP Filter, Wi-Fi |
| Interoperability | ONVIF Profile S & T |
| Max. User Access | 30 Users |
| Edge Storage | Local PC for instant recording, one clicks Snapshot, one clicks triple Snapshot |
| Web Viewer | IE, Chrome, Firefox, Safari |
| Management Software | Panasonic VMS |
| Smart Phone | Supports Panasonic PHS for iPhone, Android |
| Audio | 1 Input |
| Operating Conditions | -30°C ~ +60°C (-22°F ~ +140°F) / Less than 95% RH |
| Storage Conditions | -30°C ~ +60°C (-22°F ~ +140°F) / Less than 95% RH |
| Ingress protection | IP66 Compliant |
| Vandalism protection | NA |
| Power Supply | DC 12V ± 10%, PoE (802.3af, class 3) |
| Power Consumption | Max 12W |
| Dimension & Weight | 178mm(L)x60mm(H) x 64.6mm(W), 322g |
Panasonic PI-BUA3MWA 3MP WiFi IP Bullet Camera
Overview
The Panasonic PI-BUA3MWA 3MP WiFi IP Bullet Camera is a high-performance surveillance solution designed for both indoor and outdoor security applications. Equipped with a 3MP CMOS sensor, advanced IR LEDs, and smart detection features, this camera ensures crystal-clear footage and reliable monitoring day or night. Its IP66-rated weatherproof design and WiFi connectivity make it ideal for versatile installation in various environments.
Key Features
- High-Quality Imaging: Features a 1/2.7” 3MP CMOS sensor delivering 2304x1296 resolution for sharp and detailed video footage.
- Exceptional Night Vision: Advanced IR LEDs provide a clear vision up to 20m in complete darkness, while color imaging is supported up to 10m.
- Wide Dynamic Range (WDR): 80dB WDR ensures balanced exposure in challenging lighting conditions.
- Smart Detection: Intrusion detection, line crossing detection, and human detection for intelligent surveillance.
- Privacy Masking: Support for up to 4 privacy zones for secure and confidential monitoring.
- Flexible Connectivity: WiFi-enabled and supports ONVIF Profile S & T for seamless integration with other systems.
- Durable Design: IP66-rated weatherproof housing withstands harsh weather conditions.
- Multiple Streaming Options: Dual streaming with H.265+/H.265/H.264 compression ensures efficient bandwidth usage.
Applications
- Residential Security: Monitor entrances, driveways, and outdoor spaces with high-resolution video.
- Retail and Commercial Spaces: Enhance surveillance in stores, offices, and warehouses for theft prevention and safety.
- Public Areas: Ideal for monitoring streets, parks, and parking lots with smart detection capabilities.
- Industrial Facilities: Ensure safety and compliance in manufacturing units and storage facilities.
Why Choose Panasonic PI-BUA3MWA?
- Advanced Technology: Equipped with smart features like motion detection and privacy masking for efficient monitoring.
- Easy Installation: WiFi connectivity and PoE support reduce the hassle of wiring, enabling flexible installation.
- Reliable Performance: Operates seamlessly in extreme temperatures (-30°C to +60°C) with low power consumption.
- Comprehensive Management: Supports Panasonic VMS and mobile apps for remote surveillance and control.
- Peace of Mind: Certified for quality and durability with CE, FCC, and BIS registrations.
FAQs
1. What is the maximum resolution supported by this camera? The Panasonic PI-BUA3MWA supports up to 3MP (2304x1296) resolution for high-quality video capture.
2. How far can the camera see in complete darkness? The camera offers a night vision range of up to 20m in IR mode and color imaging up to 10m.
3. Is this camera compatible with other security systems? Yes, the camera supports ONVIF Profile S & T, ensuring seamless integration with most security systems.
4. Can this camera operate in extreme weather conditions? Yes, the camera is IP66-rated and operates reliably in temperatures ranging from -30°C to +60°C.
5. Does it support remote access via smartphones? Yes, the camera is compatible with the Panasonic PHS app for iOS and Android devices, enabling remote access and management.
6. What type of power supply is required? The camera supports DC 12V ±10% and PoE (802.3af, Class 3) for flexible power options.
7. Does it support video storage? Yes, the camera supports local PC recording and triple snapshots for efficient video storage.
8. What smart features does this camera offer? The Panasonic PI-BUA3MWA includes smart functions such as intrusion detection, line crossing detection, and human detection.
