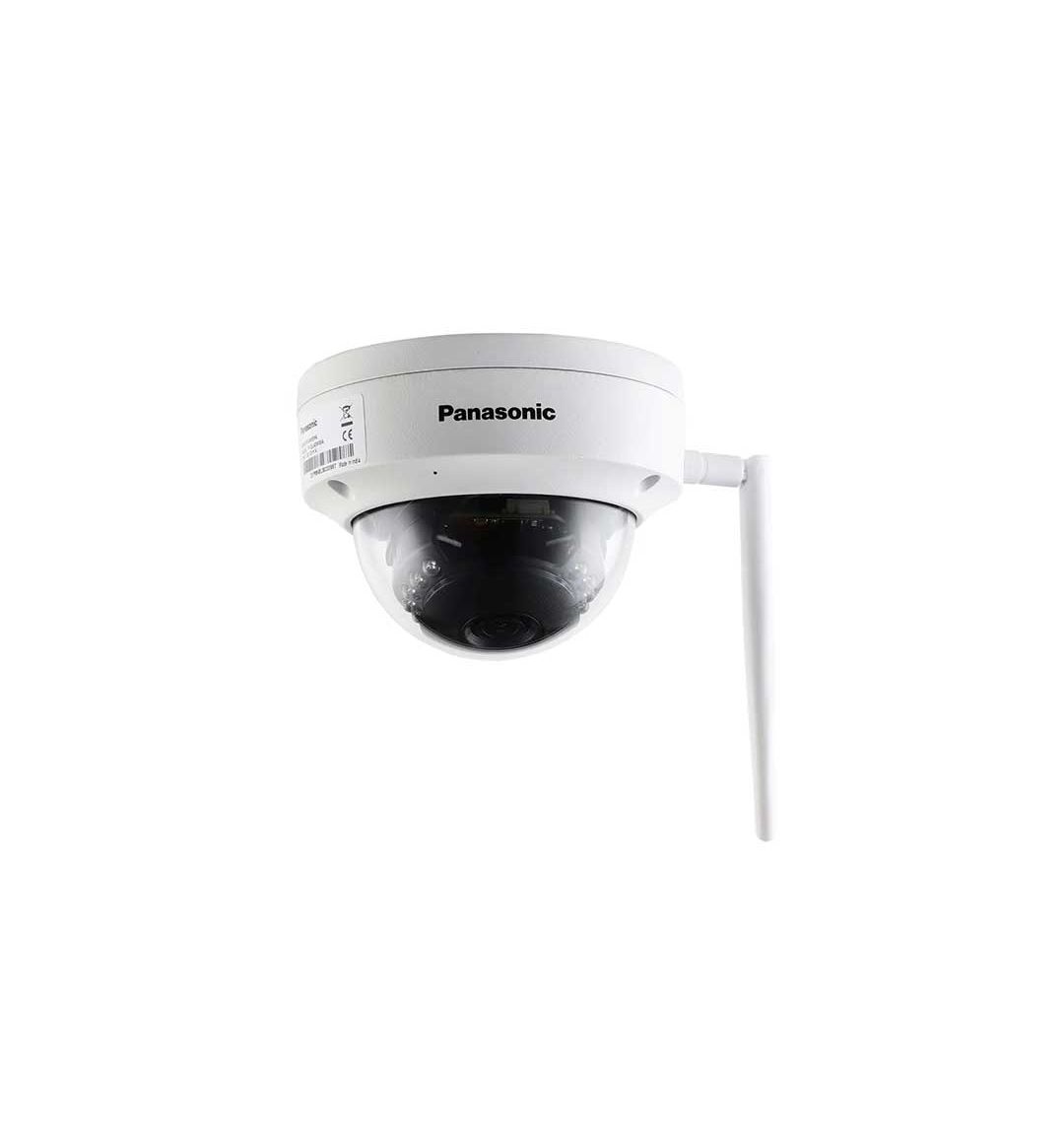

Panasonic PI-DUA5MWA 5mp Wi-Fi Ip Dome Camera
Please sign in so that we can notify you about a reply
Specification
| Image Sensor | 1/2.9” 5MP Progressive CMOS Sensor |
| Effective Pixels | 2880x1620 |
| Minimum Illumination | Color: 0.01 Lux @ (1.2, AGC ON), B/W: 0 Lux with IR |
| S/N Ratio | >60dB |
| IR Distance | IR Distance 20m |
| Shutter Speed | Auto, Manual Mode: 1/50sec~ 1/10000sec |
| WDR | 80db |
| IR On/Off Control | Auto/ Manual |
| IR LEDs | 15 IR LED, IR Distance 20m |
| Lens Type | Fixed |
| Mount Type | M12 |
| Focal Length | 3.6mm Lens |
| Aperture | F1.2 |
| Angle of View | Horizontal Angle- 81°, Vertical Angle- 60°, Diagonal Angle- 92° |
| Focus Control | Fixed |
| Compression | H.265+, H.265, H.264 |
| Streaming Capability | 2 Streams |
| Resolution | 5MP (2880X1620)/4MP (2560X1440)/ 2MP (1920×1080)/ D1(704×576)/ VGA (640×480)/ CIF (352×240) |
| Streams | Mainstream: 5MP (2880X1620) @20FPS/ 4MP (2560x1440)/ 2MP (1920×1080) @25/30FPS, |
| Sub Stream: D1 (704x576)/ VGA (640x480)/CIF (352×240) @15/25FPS | |
| Frame Rate | 1 ~ 30fps |
| Bit Rate Control | CBR/VBR |
| Bit Rate | 221-8192Kbps |
| Day/Night | Automatic/ Black and white |
| Exposure Mode | Automatic/Manual-(1/50-1/10000) |
| BLC Mode | On/Off |
| Profiles | Auto, Low Light Priority, High Light Priority |
| Noise Filter | Auto/ 1-5Levels |
| Digital Zoom | Supports upto 64X (Area selection with Mouse) |
| Anti-Flicker | On/Off |
| AE reference | 1-255Level |
| AE Sensitivity | 1-10Level |
| Flip | Off / On |
| IR reverse | Support |
| Mirror | Off / On |
| Text Overlay | Title, Date & Time, Weekday |
| Privacy Masking | Yes (4 zones) |
| Motion Detection | 22X18 Zones |
| Video Blind | Support |
| Abnormality | No Disk, Disk Error, Disk No Space, Network Cable Disconnected, IP Address Conflict |
| Smart Functions | Intrusion Detection, Line crossing detection, Human Detection |
| Event Actions | Record alarm, Sound alarm, Email link, Upload FTP, Snapshot |
| 3-Axis Adjustment (Bracket) | Pan:0° ~360°; Tilt:0° ~90°; Rotation:0° ~360° |
| ONVIF Authentication | ON, OFF |
| RTSP Authentication | Digest, None |
| Compression | G.711A/U |
| Talk Back | Support (Optional) |
| Ethernet | 10/100M adaptive Ethernet interface |
| Protocol | TCP/IP, IPv4, ICMP, HTTP, HTTPS, HTTP-Base64, HTTP-Digest, DHCP, DNS, DDNS, RTP, RTSP, RTCP, NTP, UPnP, SMTP, FTP, IGMP, P2P,IP Filter, Wi-Fi |
| Interoperability | ONVIF Profile S & T |
| Max. User Access | 30 Users |
| Edge Storage | Local PC for instant recording, one clicks Snapshot, one clicks triple Snapshot |
| Web Viewer | IE, Chrome, Firefox, Safari |
| Management Software | Panasonic VMS |
| Smart Phone | Supports Panasonic PHS for iPhone, Android |
| Audio | 1 Input |
| Operating Conditions | -30°C ~ +60°C (-22°F ~ +140°F) / Less than 95% RH |
| Storage Conditions | -30°C ~ +60°C (-22°F ~ +140°F) / Less than 95% RH |
| Ingress protection | IP66 Compliant |
| Vandalism protection | IK10 Compliant |
| Power Supply | DC 12V ± 10%, PoE (802.3af, class 3) |
| Power Consumption | Max 12W |
| Dimension & Weight | 82.15mm(H) x112.25mm(W) ,630g |
Panasonic PI-DUA5MWA 5MP Wi-Fi IP Dome Camera
Overview:
The Panasonic PI-DUA5MWA 5MP Wi-Fi IP Dome Camera offers advanced security solutions with high-definition imaging, robust features, and reliable performance. Featuring a 5MP progressive CMOS sensor, it delivers crystal-clear video quality, ensuring sharp and detailed footage for surveillance. Its powerful Wi-Fi connectivity allows for seamless remote access and monitoring, making it an ideal choice for both residential and commercial use. Designed for both indoor and outdoor use, the camera supports high-quality video recording with infrared capabilities for enhanced visibility in low light conditions.
Key Features:
- 5MP HD Imaging: The camera boasts a 5MP resolution (2880x1620), providing superior image clarity for detailed surveillance.
- Wi-Fi Connectivity: Enjoy easy installation and remote access via Wi-Fi, eliminating the need for complex wiring.
- Advanced Night Vision: With 15 IR LEDs and a 20m IR distance, the PI-DUA5MWA ensures clear video capture even in complete darkness.
- Wide Angle View: The camera offers a wide 92° diagonal field of view, covering more area with fewer cameras.
- Smart Functions: Includes Intrusion Detection, Line Crossing Detection, and Human Detection to enhance security by identifying potential threats.
- Automatic Day/Night Switching: Automatic transition between color and black & white modes for optimal performance day or night.
- Weather-Resistant: IP66-rated for protection against dust and water, making it suitable for both indoor and outdoor environments.
- Vandal-Proof Design: IK10-rated for resistance to physical impact, ensuring durability in high-risk areas.
- Easy Setup & Management: Supports ONVIF, allowing integration with third-party systems, and offers a user-friendly web interface and mobile app support for remote viewing and configuration.
Applications:
- Residential Security: Monitor entrances, driveways, and backyards with clear HD video to keep your home safe.
- Commercial Surveillance: Ideal for monitoring stores, offices, parking lots, and other commercial spaces.
- Remote Monitoring: Access video feeds remotely via mobile devices or PCs for continuous monitoring.
- Warehouse/Facility Surveillance: Keep an eye on large spaces with panoramic coverage, ensuring full-area security.
Why Choose the Panasonic PI-DUA5MWA 5MP Wi-Fi IP Dome Camera?
- High-Quality Video Recording: With 5MP resolution and advanced image processing, this camera ensures you never miss important details.
- Easy Installation & Remote Access: The Wi-Fi connectivity and flexible design make installation easy, while remote access gives you full control over your surveillance.
- Robust Features: With advanced motion detection, smart alerts, and powerful infrared night vision, it provides enhanced security and peace of mind.
- Durable & Weather-Resistant: Built to withstand the elements and physical tampering, ensuring long-lasting performance in both indoor and outdoor settings.
FAQs:
- What is the resolution of the Panasonic PI-DUA5MWA camera?
- The camera offers a 5MP resolution (2880x1620), delivering clear and detailed footage.
- Can I access the camera remotely?
- Yes, the camera supports Wi-Fi connectivity, allowing you to view live footage remotely through your mobile device or PC.
- Does this camera have night vision?
- Yes, the camera is equipped with 15 IR LEDs and can capture clear footage up to 20 meters in low-light conditions.
- Is the camera weatherproof?
- The PI-DUA5MWA is IP66-rated, meaning it is protected from dust and water, making it ideal for outdoor use.
- Can I integrate this camera with other security systems?
- Yes, the camera supports ONVIF, allowing it to be integrated with most third-party security systems.
- How many users can access the camera at once?
- The camera can support up to 30 simultaneous users.
- What are the power options for this camera?
- The PI-DUA5MWA can be powered using DC 12V or PoE (802.3af, class 3) for flexible installation.
