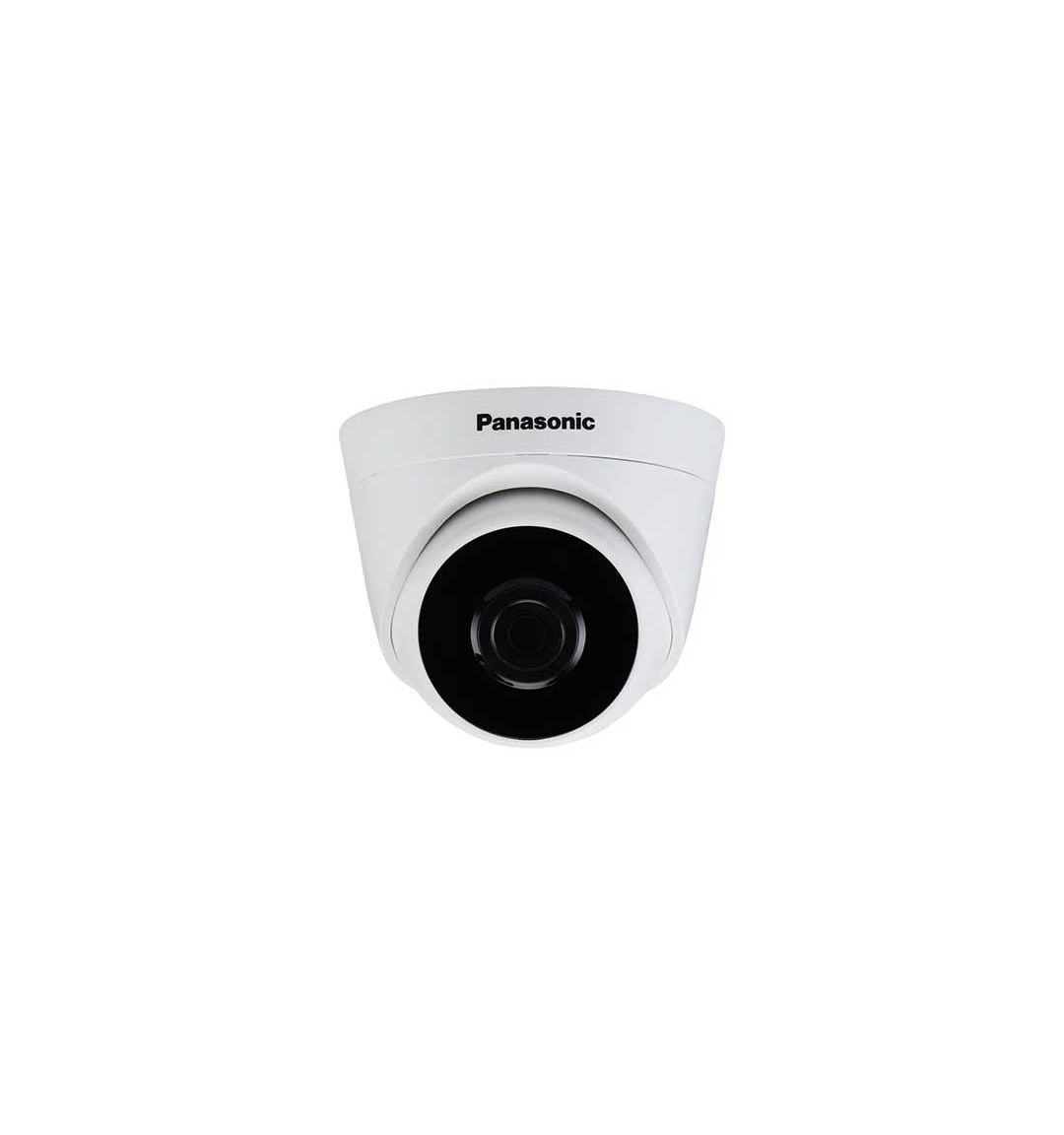

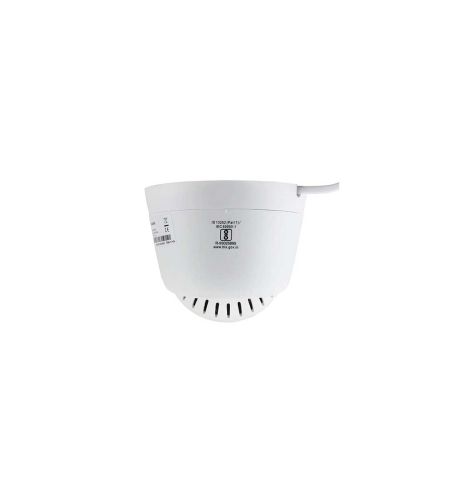

3MP Panasonic PI-DNA3PWA Dome CCTV Camera
Please sign in so that we can notify you about a reply
Specification
| Image Sensor | 1/2.7” 3MP Progressive CMOS Sensor |
| Effective Pixels | 2304x1296 |
| Minimum Illumination | Color: 0.01 Lux @ (F1.2, AGC ON), B/W: 0 Lux with IR |
| S/N Ratio | >60dB |
| IR Distance | IR Distance 30m |
| Shutter Speed | Auto, Manual Mode: 1/50sec~ 1/10000sec |
| WDR | 80db |
| IR On/Off Control | Auto/ Manual |
| IR LEDs | 3 Array LED, IR Distance 30m |
| Lens Type | Fixed |
| Mount Type | M12 |
| Focal Length | 3.6mm Lens |
| Max. Aperture | F1.2 |
| Angle of View | Horizontal Angle- 82°, Vertical Angle- 63°, Diagonal Angle- 92° |
| Focus Control | Fixed |
| Compression | H.265+, H.265, H.264 |
| Streaming Capability | 2 Streams |
| Resolution | 3MP (2304x1296)/2MP (1920×1080)/D1(704×576)/ VGA (640×480)/ CIF (352×288) |
| Streams | Mainstream:3MP/2MP @25/30fps, Sub Stream: D1/ VGA/ CIF @25 FPS |
| Frame Rate | 1 ~ 30fps |
| Bit Rate Control | CBR/VBR |
| Bit Rate | 221-8192Kbps |
| Day/Night | Automatic/ Black and white |
| Exposure Mode | Automatic/Manual-(1/50-1/10000) |
| BLC Mode | On/Off |
| Profiles | Auto, Low Light Priority, High Light Priority |
| Noise Filter | Auto/ 1-5Levels |
| Digital Zoom | Supports upto 64X (Area selection with Mouse) |
| Anti-Flicker | On/Off |
| AE reference | 1-255Level |
| AE Sensitivity | 1-10Level |
| Flip | Off / On |
| IR reverse | Support |
| Mirror | Off / On |
| Text Overlay | Title, Date & Time, Weekday |
| Privacy Masking | Yes (4 zones) |
| Motion Detection | 22X18 Zones |
| Video Blind | Support |
| Abnormality | No Disk, Disk Error, Disk No Space, Network Cable Disconnected, IP Address Conflict |
| Smart Functions | Intrusion Detection, Line Crossing Detection, Human Detection |
| Event Actions | Record alarm, Email link, Upload FTP, Snapshot |
| 3-Axis Adjustment (Bracket) | Pan:0° ~360°; Tilt:0° ~90°; Rotation:0° ~360° |
| ONVIF Authentication | ON, OFF |
| RTSP Authentication | Digest, None |
| Compression | G.711A/U |
| Talk Back | NA |
| Ethernet | 10/100M adaptive Ethernet interface |
| Protocol | TCP/IP, IPv4, ICMP, HTTP, HTTPS, HTTP-Base64, HTTP-Digest, DHCP, DNS, DDNS, RTP, RTSP, RTCP, NTP, UPnP, SMTP, FTP, IGMP, P2P,IP Filter, Wi-Fi |
| Interoperability | ONVIF Profile S & T |
| Max. User Access | 30 Users |
| Edge Storage | Local PC for instant recording, one clicks Snapshot, one clicks triple Snapshot |
| Web Viewer | IE, Chrome, Firefox, Safari |
| Management Software | Panasonic VMS |
| Smart Phone | Supports Panasonic PHS for iPhone, Android |
| Audio | 1 Input |
| Operating Conditions | -30°C ~ +60°C (-22°F ~ +140°F) / Less than 95% RH |
| Storage Conditions | -30°C ~ +60°C (-22°F ~ +140°F) / Less than 95% RH |
| Ingress protection | NA |
| Vandalism protection | NA |
| Power Supply | DC 12V ± 10%, PoE (802.3af, class 3) |
| Power Consumption | Max 12W |
| Dimension & Weight | 90.25mm(H) x110mm(W), 200g |
Overview
The Panasonic PI-DNA3PWA 3MP Dome CCTV Camera is a high-performance surveillance solution designed for superior security monitoring. Equipped with a 3MP progressive CMOS sensor, it delivers crystal-clear visuals, even in low-light environments. Its robust features, including advanced motion detection, smart intrusion alerts, and a powerful IR distance of up to 30 meters, make it an ideal choice for both indoor and outdoor applications.
Key Features
- High-Resolution Imaging: 3MP (2304x1296) CMOS sensor ensures clear and detailed video quality.
- Night Vision: Infrared LEDs enable up to 30 meters of night visibility.
- Wide Dynamic Range (WDR): 80dB WDR balances light exposure for high-quality images.
- Smart Functions: Includes intrusion detection, line crossing alerts, and human detection.
- Advanced Streaming: Dual-stream capability with H.265+, H.265, and H.264 compression formats.
- Flexible Installation: 3-axis adjustment with a fixed 3.6mm lens for easy mounting.
- Durable Design: Operates efficiently in extreme temperatures (-30°C to +60°C).
Applications
- Residential Security: Enhance home safety with real-time monitoring and motion detection.
- Retail Stores: Monitor daily operations and deter theft with clear, high-resolution footage.
- Offices and Commercial Spaces: Ensure 24/7 security with reliable night vision and smart alerts.
- Industrial Sites: Withstand harsh environments and monitor large areas effectively.
Why Choose Panasonic PI-DNA3PWA?
- Exceptional Clarity: Offers 3MP resolution for precise detail capture.
- Advanced Compression: Saves bandwidth and storage with H.265+ technology.
- Intelligent Alerts: Smart motion detection reduces false alarms.
- User-Friendly: Easy to install with a flexible adjustment mechanism.
- Trusted Brand: Backed by Panasonic’s legacy of quality and innovation.
FAQs
1. Does this camera support night vision? Yes, it is equipped with infrared LEDs that provide visibility up to 30 meters in complete darkness.
2. Can I access the camera remotely? Yes, the camera supports remote access via web browsers (Chrome, IE, Safari) and Panasonic PHS for smartphones.
3. Is it weatherproof? While it operates in extreme temperatures, this model does not have specific ingress protection (IP) ratings for water or dust resistance.
4. What is the maximum user access for this camera? The camera supports up to 30 simultaneous users.
5. Can this camera be integrated with other systems? Yes, it supports ONVIF profiles S and T for seamless interoperability with other systems.
6. What are the power options available? It supports DC 12V ± 10% and PoE (802.3af, Class 3) for flexible power supply options.
7. How does it handle low-light conditions? The camera features a minimum illumination of 0.01 Lux in color and 0 Lux in black-and-white mode with IR.
8. Does it support local storage? Yes, it offers local PC recording and snapshot features for instant data storage.
