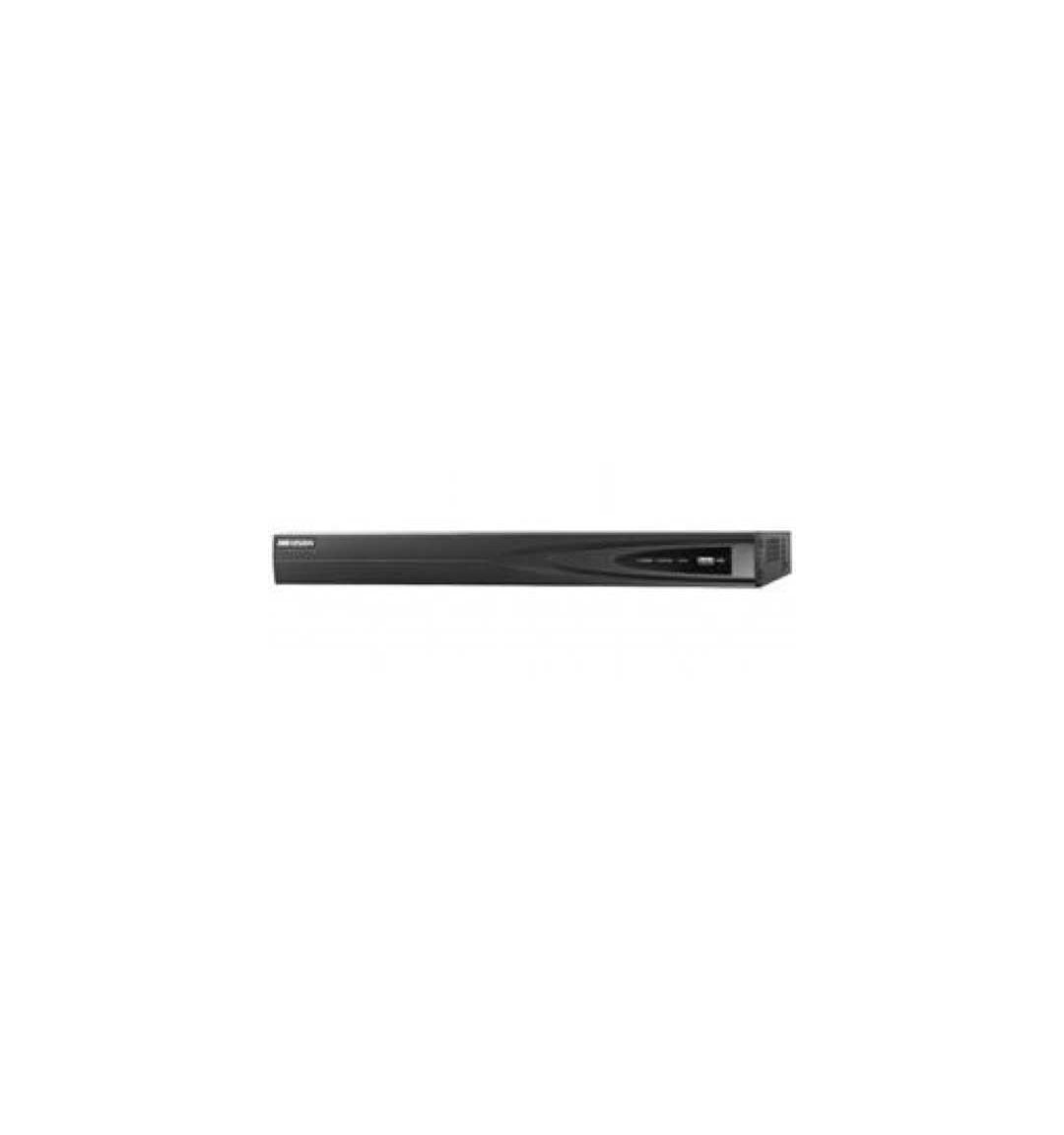

Hikvision DS-7616NI-Q1 16 Channel Network Video Recorder (NVR)
Save 9%
Please sign in so that we can notify you about a reply
Specification
| IP Camera Input | Up to 16 IP cameras can be connected HDMI/VGA simultaneous output (DS-7604NI-Q1) |
| Two-Way Talk | 1-ch, RCA (2.0 Vp-p, 1 k Ω) |
| Display | |
| Interface | HDMI and VGA independent outputs (DS-7608NI-Q1 and DS-7616NI-Q1) |
| Resolution | HDMI output resolution : 1-ch, 4K (3840 × 2160)/30Hz, 1920 × 1080p/60Hz, 1600 × 1200/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz VGA output resolution : 1-ch, 1920 × 1080p/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz |
| Decoding Capacity | 1-ch @ 8 MP / 4-ch @ 1080p/8-ch @ 1080p |
| Recording | |
| Compression | H.265+/H.265/H.264/H.264+ |
| Resolution | 8 MP/6 MP/5 MP/4 MP/3 MP/1080p/UXGA /720p/VGA/4CIF/DCIF/ 2CIF/CIF/QCIF |
| Record Rate | 160 Mbps |
| Video Detection And Alarm | |
| Alarm Input | 4/1 (optional) |
| Playback And Backup | |
| Sync Playback | Yes ( 16-ch )H.265+/H.265/H.264/H.264+ |
| Playback Function | live view, storage, and playback |
| Backup Mode | USB Device/Network |
| Network | |
| Interface | 1, RJ-45 10/100/1000 Mbps self-adaptive Ethernet interface |
| Ethernet Port | 1 |
| Network Function | TCP/IP, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, SMTP, NFS, iSCSI, UPnP, HTTPS |
| Storage | |
| HDD Mode | 1 SATA interface Up to 6TB capacity for each disk |
| Auxiliary Interface | |
| USB | 2 × USB 2.0 |
| Power | |
| Power Supply | 12 VDC |
| Power Consumption | Power : ≤ 18W Consumption (without hard disk ) : ≤ 10 W |
| Construction | |
| Dimensions | 315 × 240 × 48 mm (12.4" × 9.4" × 1.9") |
| Net Weight | disk) ≤ 1 kg (2.2 lb) |
