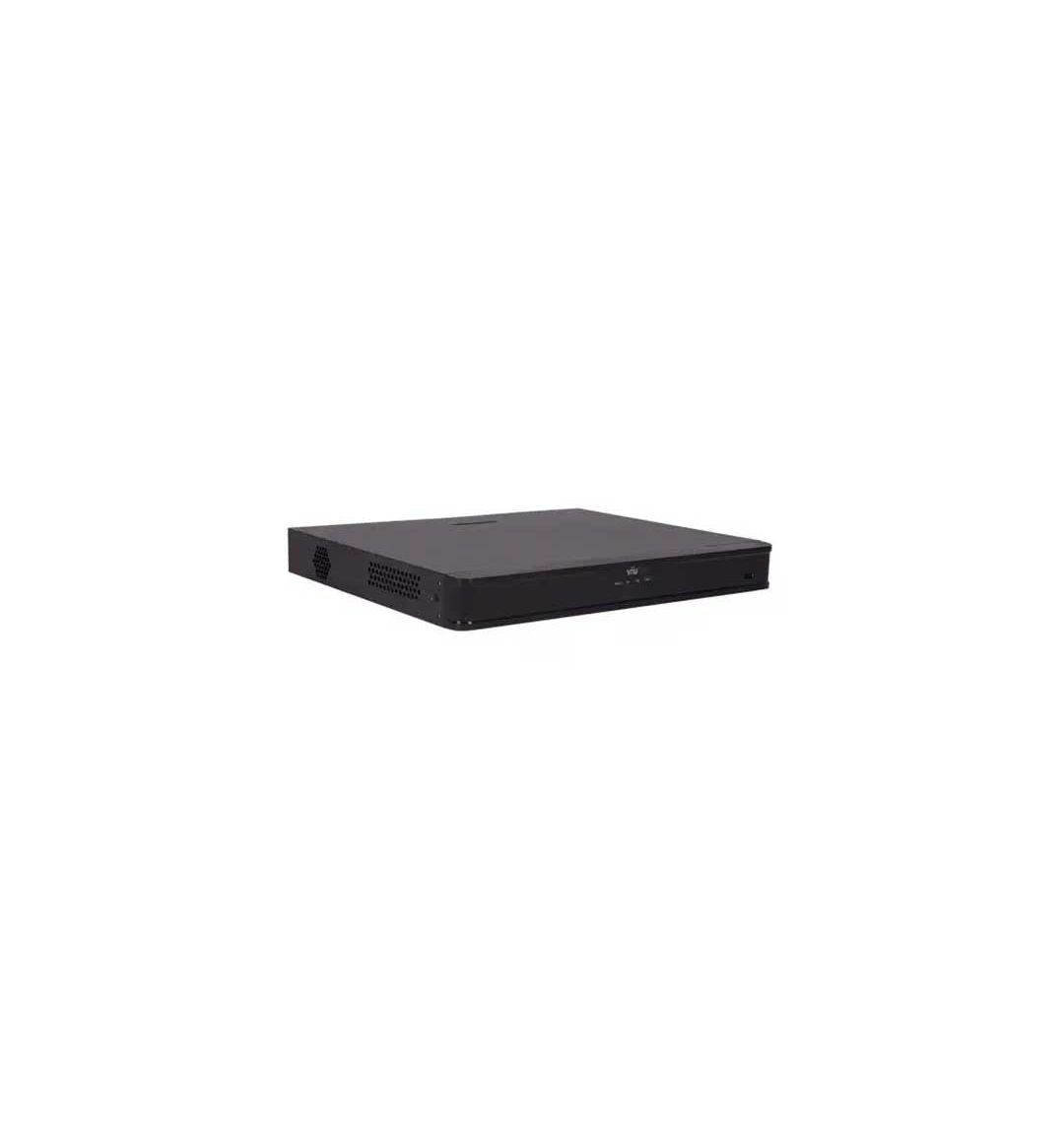

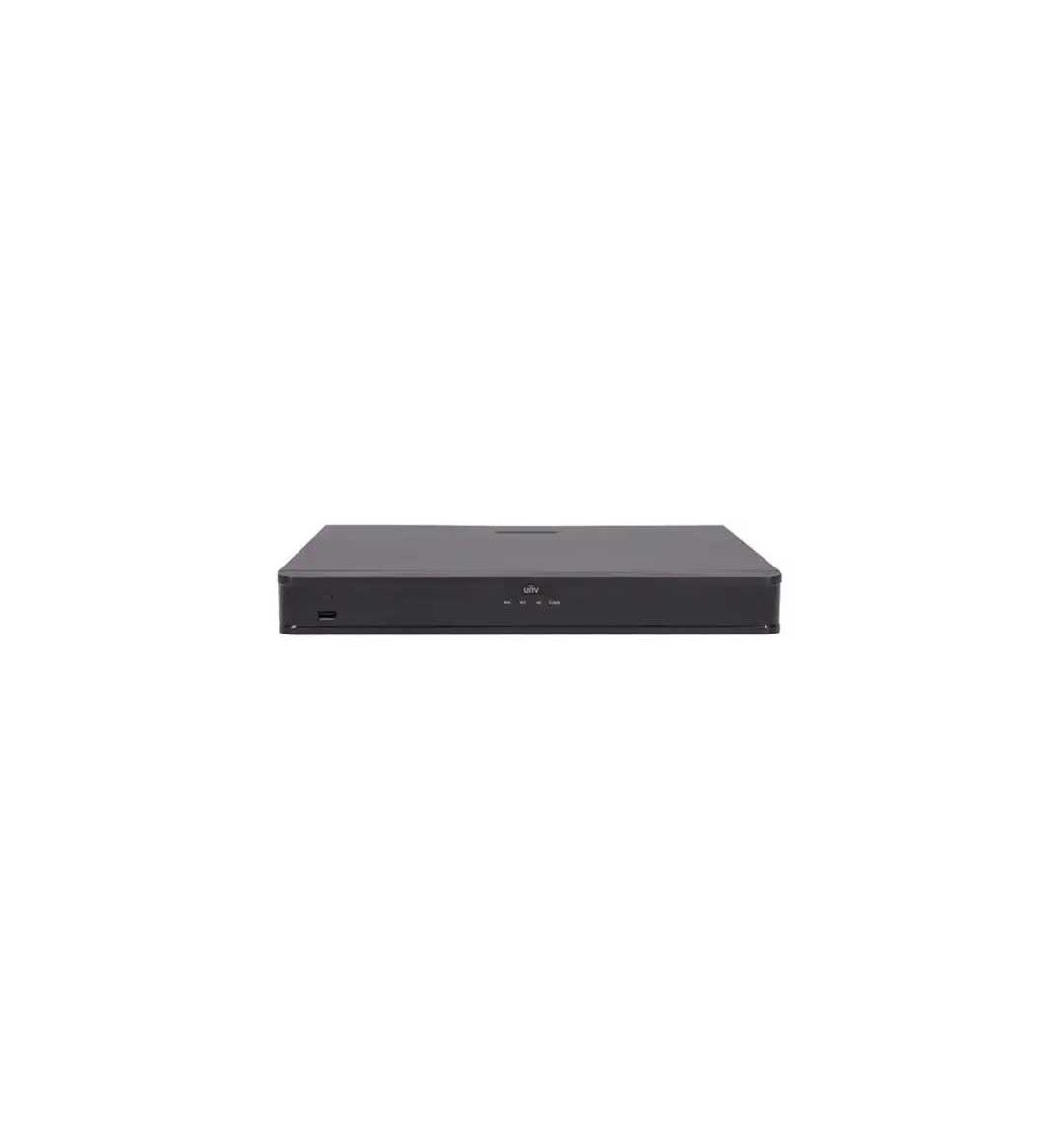

Uniview NVR302-16S 16 Channel 4K NVR
Save 6%
Please sign in so that we can notify you about a reply
Specification
| Operating System | Linux system |
| Audio and Video | |
| IP Camera Input | 16 Channel |
| Display | |
| Interface | HDMI: 3840x2160/30Hz, 1920x1080p/60Hz, 1920x1080p/50Hz, 1600x1200/60Hz, 1280x1024/60Hz, 1280x720/60Hz, 1024x768/60Hz VGA: 1920x1080p/60Hz, 1920x1080p/50Hz, 1600x1200/60Hz, 1280x1024/60Hz, 1280x720/60Hz, 1024x768/60Hz |
| Resolution | 8MP/6MP/5MP/4MP/3MP/1080p/960p/720p/D1/2CIF/CIF |
| Recording | |
| Compression | 8MP/6MP/5MP/4MP/3MP/1080p/960p/720p/D1/2CIF/CIF |
| Video Detection And Alarm | |
| Video Detection | Face detection, Intrusion detection, Cross line detection, Audio detection, Defocus detection, Scene change detection, Auto tracking, Object Left Behind, Object Removed, Face search, Behavior search, People counting |
| Playback And Backup | |
| Sync Playback | 16 channel |
| Network | |
| Interface | 1 RJ45 |
| Ethernet Port | 10M/100M/1000M self-adaptive ethernet interface |
| Network Function | Incoming Bandwidth: 112Mbps Outgoing Bandwidth: 96Mbps |
| Maximum User Access | Remote Users: 128 |
| Storage | |
| Internal HDD | 2 SATA interface |
| HDD Mode | Up to 16TB |
| Auxiliary Interface | |
| USB | Rear panel: 1 x USB2.0 Front panel: 1 x USB2.0 |
| Power | |
| Power Supply | 12V DC |
| Power Consumption | ≤ 7 W( without HDD ) |
| Component Environment | |
| Operational Conditions | -10°C ~ + 55°C ( +14°F ~ +131°F ), Humidity ≤ 90% RH(non-condensing) |
| Construction | |
| Dimensions | 380mm × 315mm ×49mm (15.0" × 12.4" ×1.9" ) |
| Net Weight | ≤ 1.6 Kg (3.53 lb ) |
| Warranty | |
| Manufacturing Warranty | 1 year Warranty |
