ASUS TUF Gaming BE6500 Dual-Band WiFi 7 Gaming Router

Technical Specifications

Product Description

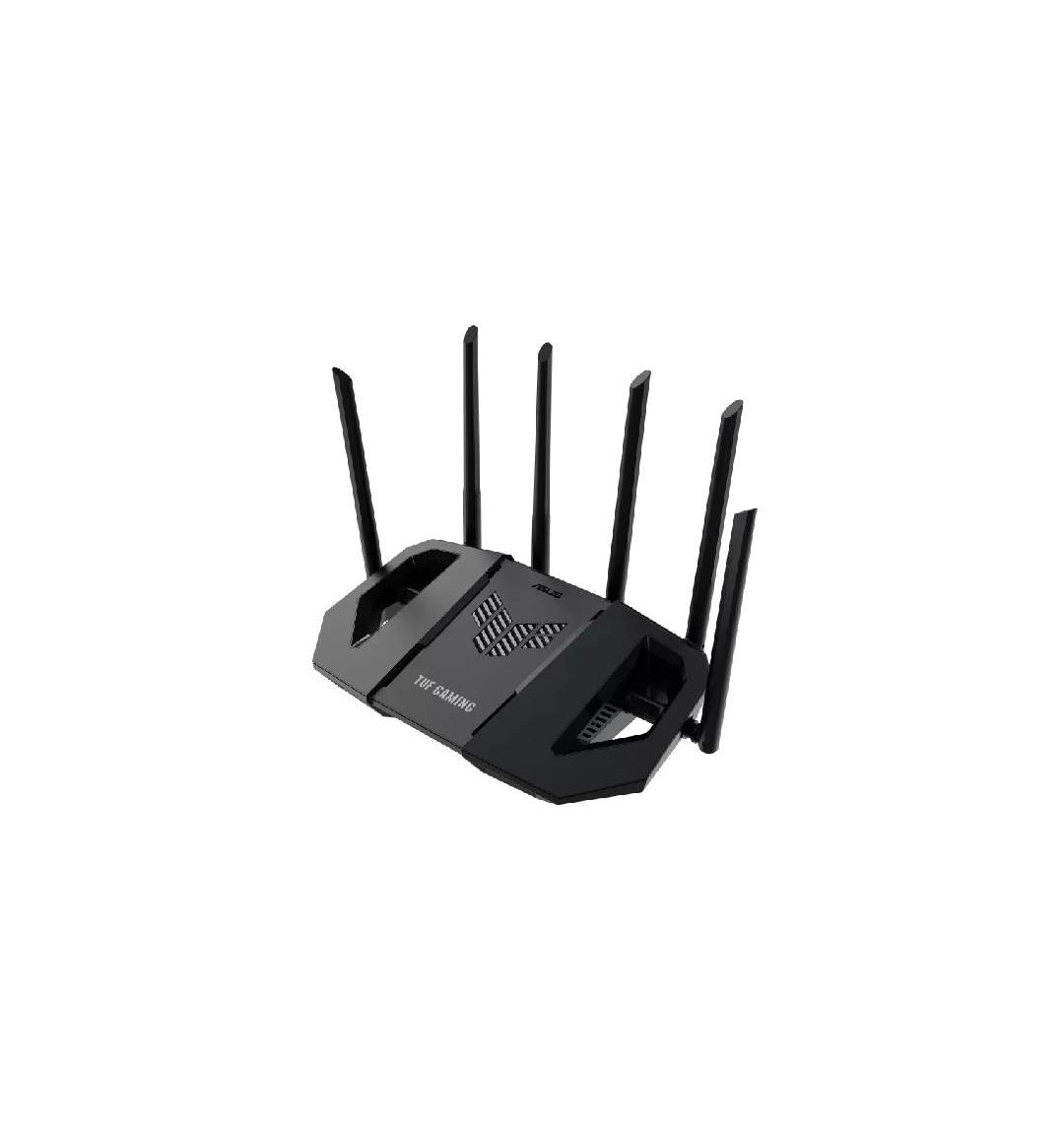

The ASUS TUF Gaming BE6500 is a dual-band WiFi 7 gaming router engineered for competitive esports players, livestreamers, 8K media streamers, and multi-gigabit home networks requiring rock-solid reliability under intense network traffic. Built within the signature TUF Gaming military-grade aesthetic, the router features a matte black industrial chassis accented with geometric lines, high-flow thermal ventilation grilles, and precision-engineered internal heatsinks. Extensively tested for physical durability and long-term operating stability, the system uses high-gain multi-angle external antennas paired with beamforming technology to deliver up to 2,500 square feet of stable, wall-penetrating wireless coverage.

At the center of the router is a 1.5 GHz 64-bit quad-core processor backed by 1GB of DDR4 RAM and 256MB of flash storage. This computational foundation enables the system to handle heavy multi-client packet queues, active stateful firewall inspection, and encrypted VPN tunnels without latency spikes or thermal throttling. Built on the IEEE 802.11be WiFi 7 standard across the 2.4 GHz and 5.0 GHz bands, the TUF-BE6500 achieves aggregated wireless throughput of up to 6500 Mbps—comprising 5764 Mbps on the 5 GHz band and 688 Mbps over the 2.4 GHz band. WiFi 7 technologies such as 4096-QAM (4K-QAM), ultrawide 160 MHz channels, OFDMA, and MU-MIMO expand wireless transmission capacity, delivering the low jitter and sustained bandwidth required for smooth 8K HDR video streaming, cloud gaming, and simultaneous smart home operations.

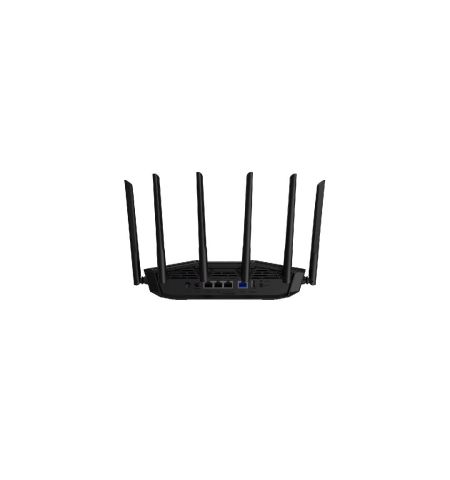

Wired connectivity is built around multi-gigabit throughput, featuring one dedicated 2.5 Gbps WAN port and three 2.5 Gbps LAN ports. Among these, a dedicated Gaming Port automatically prioritizes connected gaming PCs or next-generation consoles without requiring manual traffic shaping. The router supports Dual WAN failover and load balancing to safeguard against ISP downtime, while a versatile USB 3.2 Gen 1 port enables 4G/5G mobile hotspot backup tethering, Download Master unattended downloads, and centralized file sharing via integrated Samba and FTP servers. Five flexible operational modes—Wireless Router, Smart AiMesh Node, Access Point, Range Extender, and Media Bridge—provide versatile setup configurations across any network topology.

Gaming traffic is optimized from every angle with hardware Game Acceleration and OpenNAT profile configuration. Network security is anchored by commercial-grade ASUS AiProtection Pro powered by Trend Micro, providing lifetime subscription-free defense against malicious websites, vulnerability exploits, and compromised endpoints, bolstered by Denial of Service (DoS) protection and a built-in Security Scan engine. Remote connections remain private with built-in Multi-VPN support featuring OpenVPN Client and Server, alongside ASUS Instant Guard for encrypted mobile tunneling over public Wi-Fi. Completed with advanced parental controls featuring URL, port, and network service filters, Adaptive QoS, Bandwidth Limiting, System Event Logging, and full Smart AiMesh scalability, the ASUS TUF-BE6500 delivers a rugged and future-proof WiFi 7 gaming foundation backed by a 3-year ASUS warranty.
