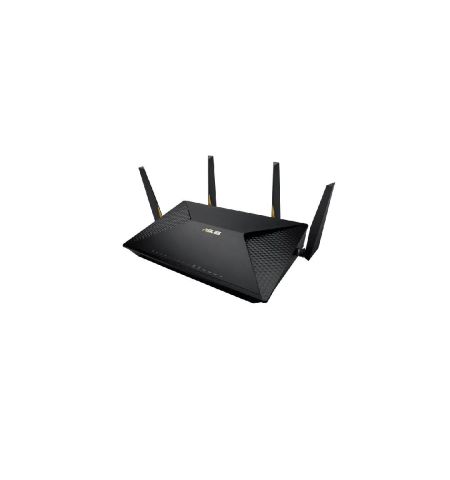

ASUS BRT-AC828 Dual-WAN VPN Business Router
Please sign in so that we can notify you about a reply
Technical Specifications
| Attribute | Detailed Specification |
| Product Full Name | ASUS BRT-AC828 Business Series AC2600 Dual-WAN VPN Router |
| Model & Part Number | BRT-AC828 |
| Brand / Manufacturer | ASUS |
| Product Series | ASUS Business & Enterprise Networking Series |
| Router Type | Dual-Band Wireless Dual-WAN Gigabit VPN Business Router |
| Color | Matte Black with Professional Industrial Geometric Finish |
| Wifi Generation | WiFi 5 (802.11ac) |
| Wireless Networking Standard | IEEE 802.11ac (WiFi 5), IEEE 802.11n (WiFi 4), IEEE 802.11a/b/g, IPv4, IPv6 |
| Band | Dual-Band (2.4 GHz + 5.0 GHz) |
| Data Transfer Rate | AC2600 (Up to 2534–2600 Mbps Total Wireless Throughput: 800 Mbps on 2.4 GHz + 1734 Mbps on 5.0 GHz) |
| Antena | 4 × 3dBi External High-Gain Multi-Angle Detachable Antennas |
| Mimo Technology | MIMO Technology / MU-MIMO (4×4 Stream Architecture: 4T4R on 2.4GHz + 4T4R on 5GHz) |
| Mesh Technology | Enterprise Access Point & Multi-SSID Network Architecture |
| Wan Network Standard | 10/100/1000 Mbps Gigabit Ethernet (2 × RJ-45 Dedicated WAN Ports with WAN Aggregation Support) |
| Lan Network Standard | 10/100/1000 Mbps Gigabit Ethernet Standards (Supports LAN Link Aggregation) |
| Number Of Lan Port | 8 × 1 Gbps RJ-45 Dedicated Gigabit LAN Ports |
| Outdoor Range / Coverage | Up to 1,100 Square Feet (Approx. 102 m² / Multi-Office Commercial Workspace Coverage) |
| No. Of Current User | Up to 250 Simultaneous Client Connections |
| Internal Storage Expansion | 1 × M.2 SATA (Socket 3) Slot for Internal High-Speed SSD Storage Integration |
| USB Connectivity | 2 × USB 3.0 (USB 3.2 Gen 1) High-Speed Ports (Supports Samba, FTP, and Mobile Tethering) |
| Processor Architecture | Dual-Core High-Performance Enterprise Network Processing Unit (SoC) |
| System Memory (RAM) | 512 MB High-Speed RAM |
| Onboard Flash Storage (ROM) | 256 MB High-Speed Flash ROM |
| Operating Modes | Wireless Router Mode, Access Point (AP) Mode |
| Dual-WAN Architecture | Dual Gigabit WAN Ports (Failover, Load Balancing & WAN Aggregation for up to 2 Gbps WAN Speeds) |
| Guest Network & Captive Portal | Multi-SSID Guest Network Support with Custom Business Captive Portal Integration |
| Commercial-Grade Security | ASUS AiProtection Classic Powered by Trend Micro (Lifetime Subscription-Free Security Suite) |
| Security Scanning & Defense | Malicious Site Blocking, Vulnerability Defense, Infected Device Isolation, Built-in SPI Firewall |
| Wireless Encryption Standards | WPA2-Enterprise, WPA/WPA2-Personal, WPS Support, Open System, RADIUS Client Support |
| Privacy & Secure DNS | Built-in SPI Firewall, Secure DNS Support, Enterprise Network Isolation |
| VPN Support & Protocols | Hardware VPN Server & VPN Client Support (IPSec, OpenVPN, PPTP VPN Server) |
| Parental & Access Controls | Access Controls, URL Filter, Keyword Content Filters, Internet Time Scheduling |
| Traffic Prioritization & QoS | Adaptive QoS, Bandwidth Monitor, Bandwidth Limiter |
| Network Management & Diagnostic | Port Forwarding, DDNS, NAT Passthrough, Airtime Fairness, Shared Folder Privileges, UTF-8 SSID |
| LAN & Streaming Features | IGMP Snooping, IPTV Passthrough Support, Manually Assign IP Address, DHCP Server, 802.3ad Link Aggregation |
| File & Storage Sharing | Built-in Samba Server, FTP Server, Shared Folder Access Privileges via M.2 SSD or USB 3.0 Drives |
| Target Workload Applications | Small-to-Medium Businesses (SMB), Co-working Spaces, Retail Captive Portals, Multi-Office Networking |
| Management Interfaces | ASUSWRT Commercial Web Dashboard & Mobile Administration App |
| Power Supply Unit | External AC Power Adapter (Input: 100–240 VAC, 50/60 Hz; Output: 19V DC) |
| Package Contents | 1 × ASUS BRT-AC828 Dual-WAN Business Router 4 × 3dBi Detachable External Antennas 1 × RJ-45 Gigabit Ethernet Cable 1 × AC Power Adapter & Power Cord 1 × Quick Start Setup Guide 1 × Warranty Documentation |
| Warranty | 2 Years Standard ASUS Brand Warranty |
Product Description
The ASUS BRT-AC828 is an AC2600 dual-band WiFi 5 business-class VPN router engineered specifically for small-to-medium businesses (SMB), startup hubs, co-working spaces, and demanding retail storefronts requiring high network concurrency, multi-link internet redundancy, and secure data storage. Housed in a heavy-duty industrial chassis with ventilation grilles optimized for continuous 24/7 operation, the router features four external 3dBi detachable high-gain antennas. The antenna layout combines with high-power RF front ends to deliver up to 1,100 square feet of stable, high-density wireless coverage.
At the center of the router is an enterprise-tier dual-core network processor backed by 512MB of RAM and 256MB of flash storage. Engineered to maintain sustained throughput across dense office environments, the BRT-AC828 supports up to 250 simultaneous client connections without encountering packet collisions or system crashes. Operating across the 2.4 GHz and 5.0 GHz wireless bands with a 4×4 MU-MIMO antenna design, the router delivers aggregated speeds up to 2600 Mbps—comprising 1734 Mbps on the 5 GHz band and 800 Mbps on the 2.4 GHz band. Airtime Fairness and multi-user MIMO technologies balance channel airtime across legacy and modern devices, ensuring fast response times for cloud CRM platforms, collaborative workplace suites, and VoIP conference calls.
Wired connectivity is tailored for enterprise environments, featuring 2 dedicated Gigabit WAN ports that support both failover and load balancing, alongside WAN Aggregation capability to deliver combined incoming broadband speeds of up to 2 Gbps. Local client infrastructure is supported by 8 dedicated Gigabit LAN ports with 802.3ad LAN Link Aggregation, allowing businesses to double data transmission rates to connected network-attached storage (NAS) units and enterprise file servers. For on-device storage, the BRT-AC828 includes an internal M.2 SATA (Socket 3) slot, enabling internal high-speed SSD installation to transform the router into a compact network file server via integrated Samba and FTP services, complemented by two external USB 3.0 ports with shared folder privilege controls.
Enterprise protection is anchored by ASUS AiProtection Classic powered by Trend Micro, shielding internal workplace networks from malicious URLs, vulnerability attacks, and compromised endpoints. Comprehensive remote access security is delivered through built-in VPN Server and VPN Client engines, including dedicated IPSec, OpenVPN, and PPTP VPN Server capabilities. Network administrators can deploy custom guest networks with branded captive portal login pages, enforce corporate authentication via RADIUS Client integration, and regulate traffic using Adaptive QoS, Bandwidth Monitors, and Bandwidth Limiters. Backed by ASUS's 2-year warranty, the ASUS BRT-AC828 stands as a reliable, redundant, and feature-complete networking center for commercial applications.
