ASUS Mainstream AX4200 Dual-Band WiFi 6 Router

Technical Specifications

Product Description

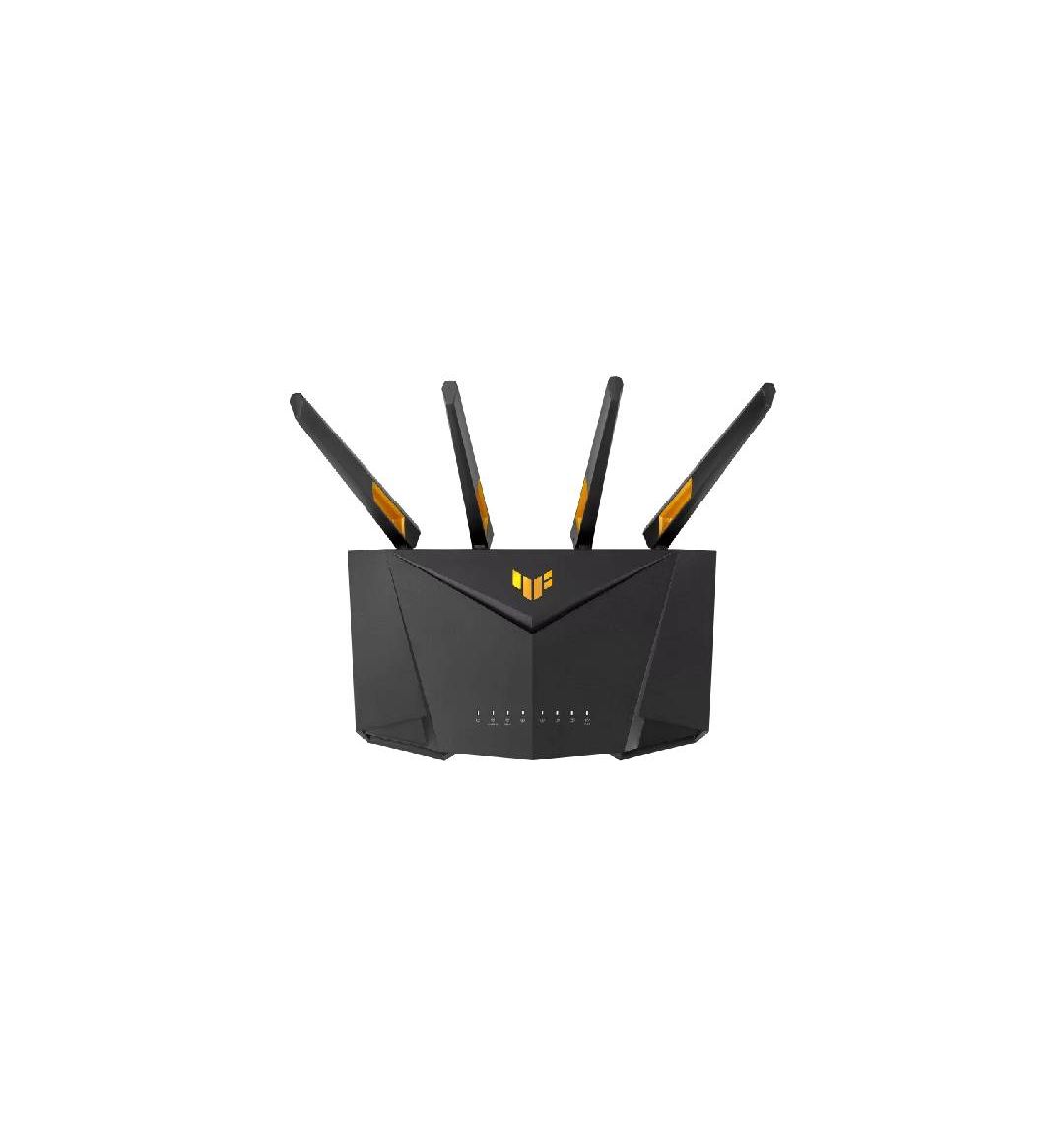

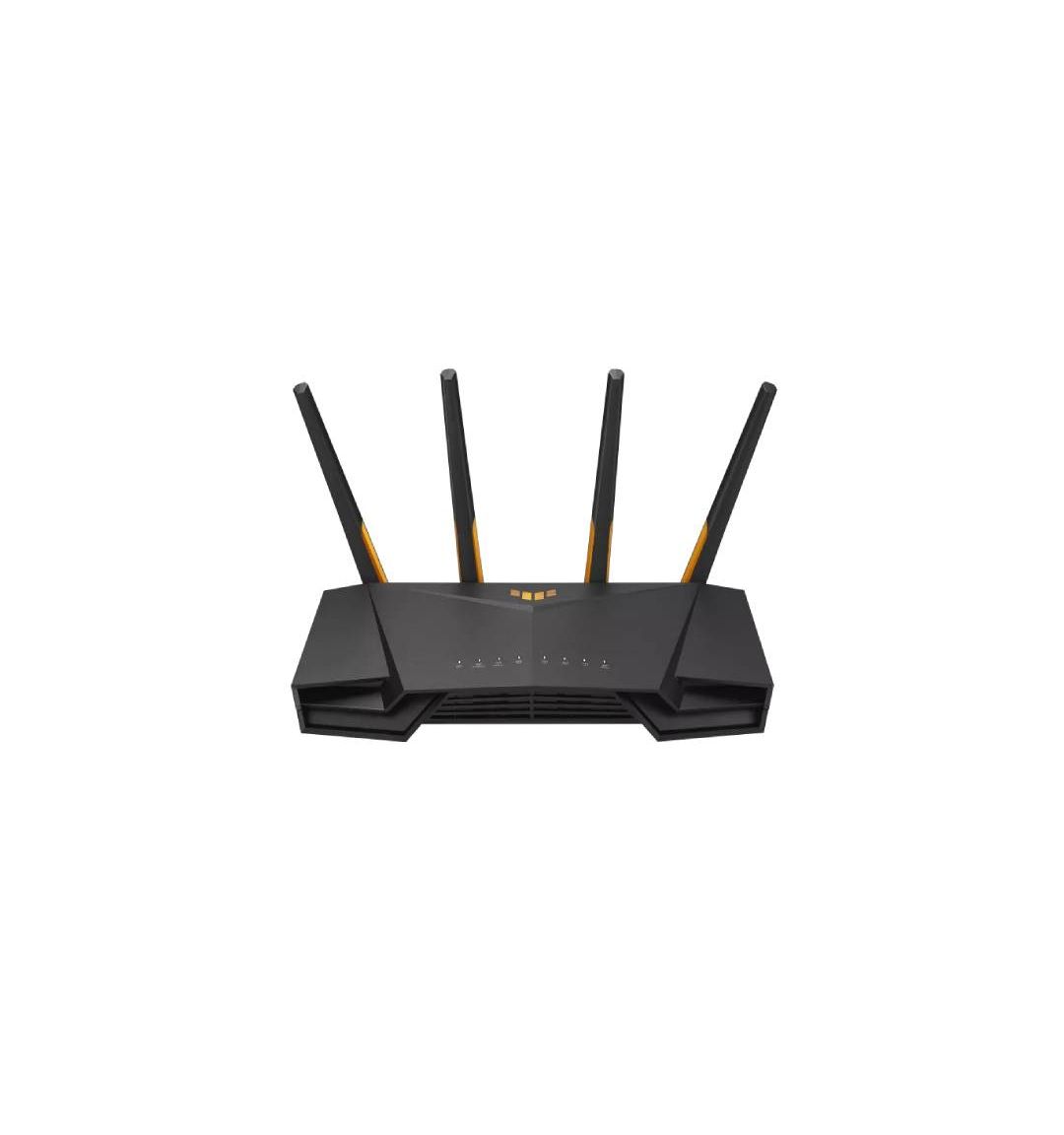

The ASUS Mainstream AX4200 is a dual-band WiFi 6 Gigabit router engineered for demanding family homes, multi-device entertainment hubs, home offices, and high-density wireless ecosystems requiring fast throughput and reliable stability. Built in a matte black chassis with integrated thermal ventilation channels, the router features external high-gain adjustable antennas. Equipped with beamforming technology, the antenna configuration actively focuses RF energy toward connected clients through walls and multi-room layouts, delivering up to 3,000 square feet of whole-home wireless coverage.

At the center of the router is a 2.0 GHz 64-bit quad-core network processor backed by 512MB of RAM and 128MB of onboard flash storage. This architecture processes dense multi-client packet queues, hardware NAT routing, stateful packet inspection, and encrypted VPN tunnels without connection buffering or thermal slowdowns. Operating on the IEEE 802.11ax WiFi 6 standard across the 2.4 GHz and 5.0 GHz bands, the router delivers aggregated speeds up to 4200 Mbps—comprising 3603 Mbps over the 5 GHz band (3×3 stream configuration) and 574 Mbps over the 2.4 GHz band (2×2 stream configuration). Technologies such as OFDMA and MU-MIMO divide wireless channels efficiently among active clients, delivering the low latency and sustained bandwidth required for simultaneous 4K Ultra HD video playback, responsive gaming, and video conference calls.

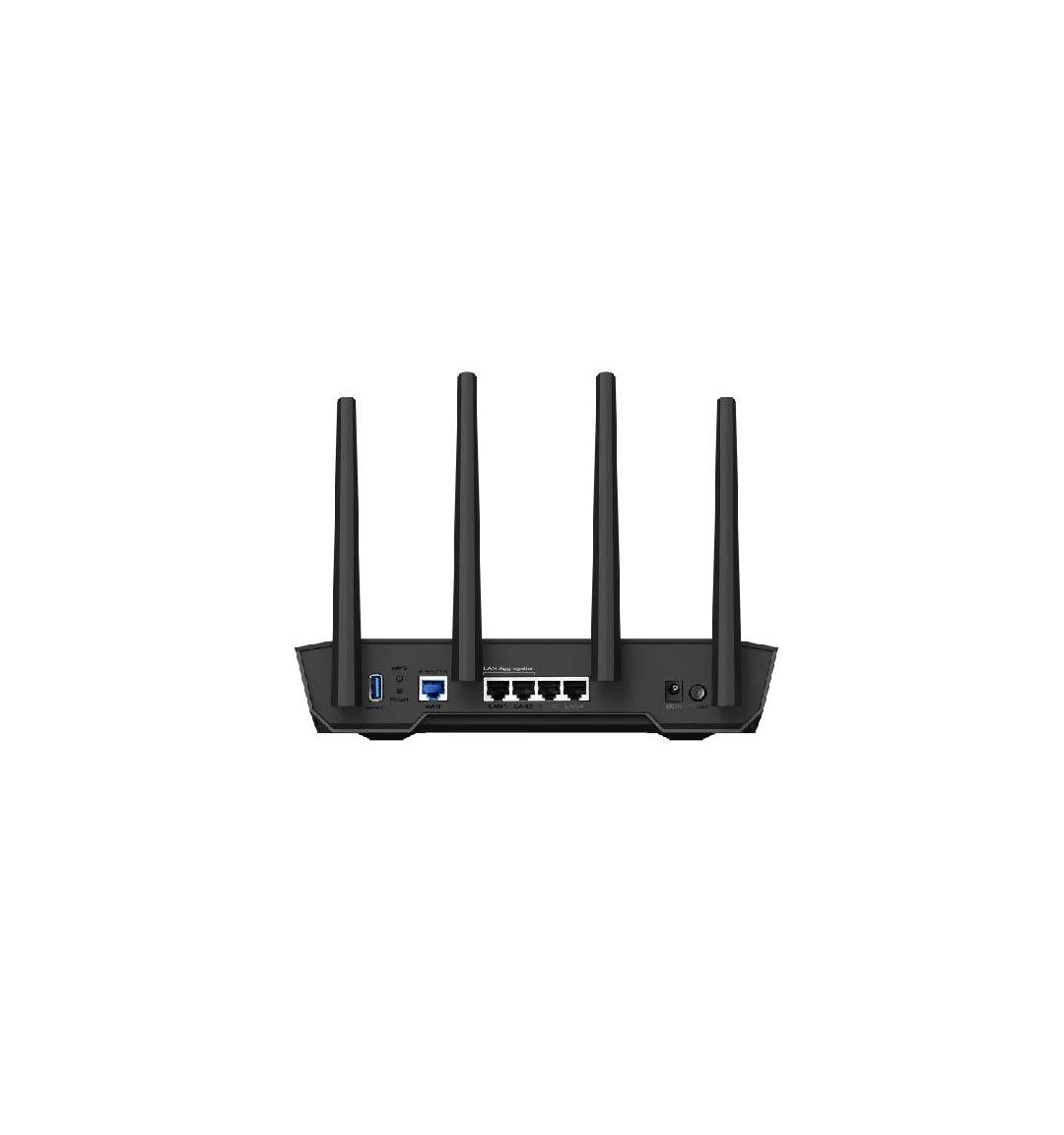

Wired and external connectivity includes one dedicated Gigabit WAN port and three dedicated Gigabit LAN ports for wired desktop PCs, gaming consoles, and smart TVs. The router features Dual WAN support for failover and load balancing, maintaining uptime during ISP outages. External device integration is supported by two onboard USB interfaces—one high-speed USB 3.2 Gen 1 port and one USB 2.0 port—enabling 4G/5G mobile hotspot backup tethering, centralized local network storage via Samba and FTP servers, and media streaming. The system supports two primary deployment modes: Wireless Router and Access Point (AP).

Network security and privacy are anchored by ASUS AiProtection Classic powered by Trend Micro, delivering lifetime subscription-free defenses including malicious website blocking, vulnerability defense, and infected device isolation. Comprehensive VPN capabilities provide complete "VPN All Support" across both VPN Server and VPN Client modes for WireGuard, OpenVPN, IPSec, and PPTP, paired with ASUS Instant Guard for one-click encrypted mobile tunneling on public Wi-Fi. Completed with advanced parental controls, Bandwidth Management with Adaptive QoS, Traffic Analyzer diagnostics, support for up to 6 isolated guest networks, and IPTV passthrough, the ASUS Mainstream AX4200 provides a reliable, secure WiFi 6 networking centerpiece backed by a 2-year warranty.
