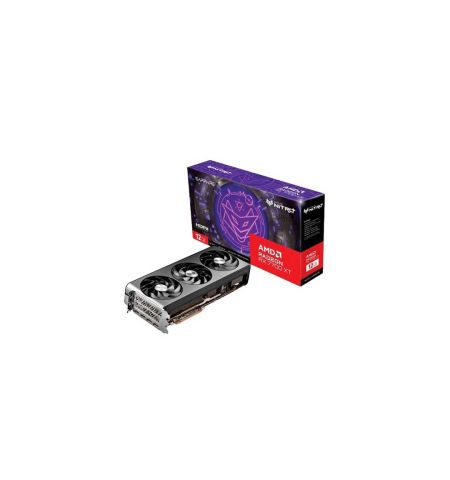

Sapphire NITRO+ AMD Radeon RX 7700 XT 12GB Graphics Card
Save 9%
Please sign in so that we can notify you about a reply
Specification
| Video Memory Specifications | |
| Type | GDDR6 |
| Size | 12GB |
| Resolution | 7680×4320 |
| Core Clock | Boost Clock: Up to 2599 MHz Game Clock: Up to 2276MHz |
| Memory Clock | 18 Gbps Effective |
| BUS Type | 192 bit |
| Memory Interface | PCI-Express 4.0 x16 |
| Stream Processors | 3456 |
| Others | Sapphire Features: Dual BIOS TriXX Software Switch Premium Digital Power Design Ultra High-Performance Conductive Polymer Aluminum Capacitors Fuse Protection Tri-X Cooling Technology High TG Copper PCB Optimized Composite Heatpipe Intelligent Fan Control Precision Fan Control Metal Backplate with ARGB ARGB Light Bar Two-Ball Bearing Fans Angular Velocity Fan Blade Assistive System Fan Control Aluminum Alloy Frame Dedicated VRM Cooling Wave Fin Design V Shape Fin Design for GPU Cooling TriXX Supported Fan Check Fan Quick Connect TriXX Boost NITRO Glow External RGB LED MB Synchronization AMD Features AMD RDNA™ 3 Architecture 54 AMD RDNA 3 Compute Units 48MB AMD Infinity Cache™ Technology DisplayPort 2.1 Support AMD Radiance Display Engine 12GB GDDR6 on 192-Bit Memory Bus PCI® Express 4.0 ready AMD FidelityFX™ Super Resolution technology* Microsoft DirectX 12 Ultimate Support Microsoft DirectStorage Support Vulkan Optimized AMD Smart Technologies AMD Software: Adrenalin Edition AMD Noise Suppression AMD Privacy View AMD Radeon Super Resolution technology AMD Link AMD FreeSync Technology |
| Interface | |
| Display Port | 2 x DisplayPort |
| HDMI | 2 x HDMI |
| Power Specifications | |
| Connectors | 2 x 8-pin Power Connector |
| Recommended PSU | Minimum 700 Watt Power Supply |
| Consumption | 252W Total Board Power |
| Display Option | |
| Multi Display | 4 |
| Application Programming Interfaces | |
| DirectX | 12 Ultimate |
| Physical Specifications | |
| Dimensions | 320(L)X 134.85(W)X 61.57 (H)mm |
| Others | 3 slot, ATX |
| Warranty | |
| Manufacturing Warranty | 2 years Warranty |
