Maxsun MS-H610M 666 WIFI6 Intel 13th, and 12th DDR4 Micro ATX Motherboard.
Maxsun MS-H610M 666 WIFI6 DDR4 Motherboard
SPECIFICATION
Brand | Maxsun |
Model | Maxsun MS-H610M 666 WIFI6 |
Chipset Brand | Intel |
Chipset | Intel H610 |
Generation | 13th, and 12th |
Form Factor | Micro ATX Form Factor; 220mm x 185mm |
Supported CPU | Supports 12th/13th Gen Intel Core Processors, Pentium Gold and Celeron Processors
LGA 1700 |
Memory Type | DDR4 |
Memory | 2x DDR4, Maximum Memory Capacity 64GB
Memory Support DDR4 3200(OC)/ 2933(OC)/ 2666(OC)/ 2400(OC) MHz Supports Intel XMP 2.0 OC Supports Dual-Controller Dual-Channel mode |
Expansion Slot | 1x PCIe 4.0 x16 slot
1x PCIe 3.0 x1 slot |
Supported Storage | M.2 slot (Key M), type 2242/2280 (supports PCIe 3.0 x4 mode)
4x SATA 6Gb/s ports |
LAN | Realtek RTL8111H 1G LAN |
Audio | Realtek ALC897 Codec
5.1-Channel High Definition Audio |

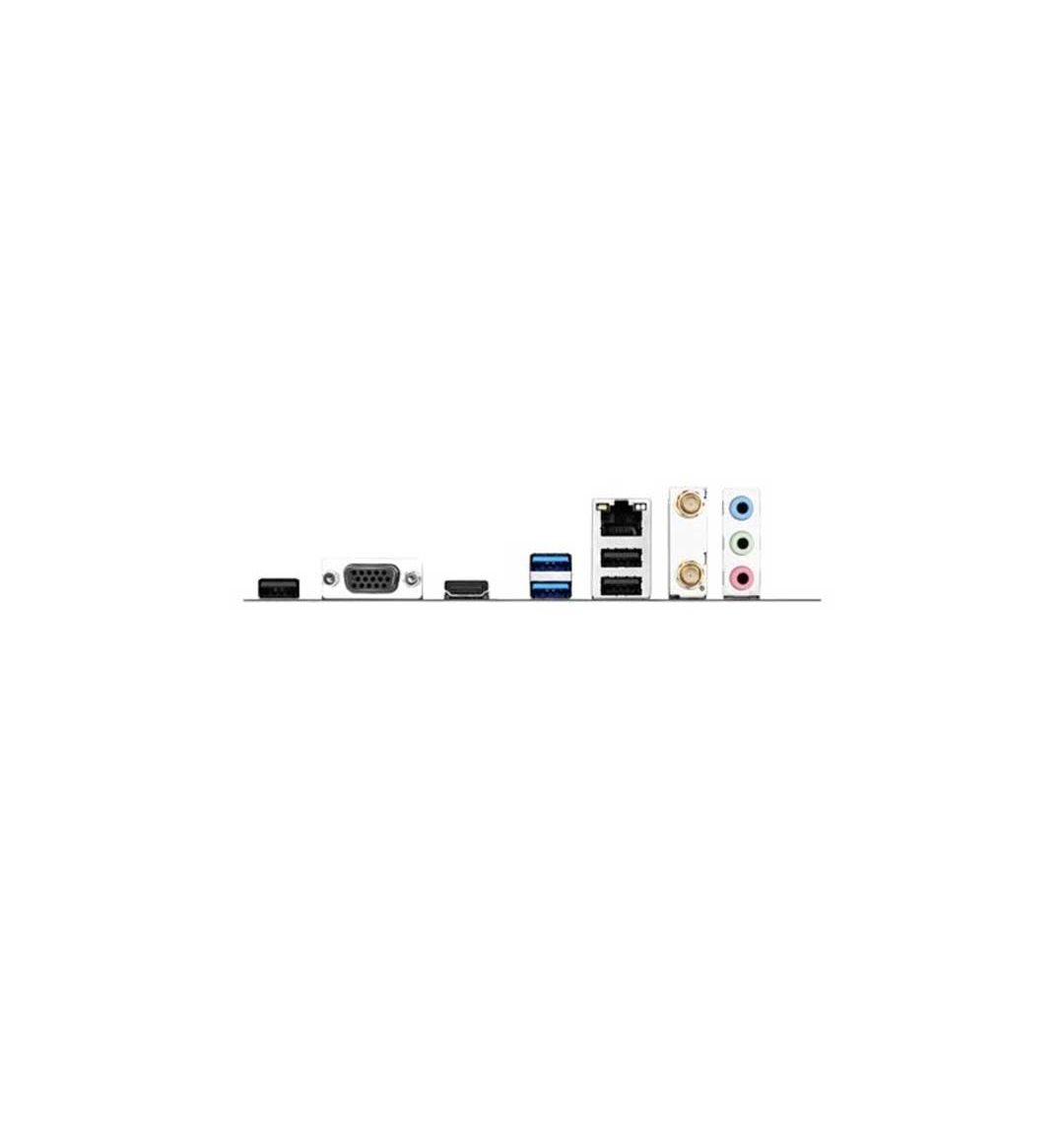

USB Port | Front USB (Total 4 ports)
2 x USB 3.2 Gen1 Type A 2 x USB 2.0 Rear USB (Total 6 ports) 2 x USB 3.2 Gen1 Type A 4 x USB 2.0 |
Internal I/O Ports | 1 x 24-pin Power Connector(ATX_PWR)
1 x 8-pin Power Connector(CPU_PWR) 1 x CPU Fan 3 x System Fan 1 x M.2 slots (Key-M) 4 x SATA 6Gb/s ports 1 x 2-Pin CLR_CMOS 1 x 4-Pin BUZZER 1 x Front Audio 1 x COM_A Port 1 x 9-Pin DEBUG_CON 1 x TPM pin header(Support TPM 2.0) |
Supported Operating System | Support for Windows 11 64-bit
Support for Windows 10 64-bit |
Warranty Information | |
Warranty | 3 years |

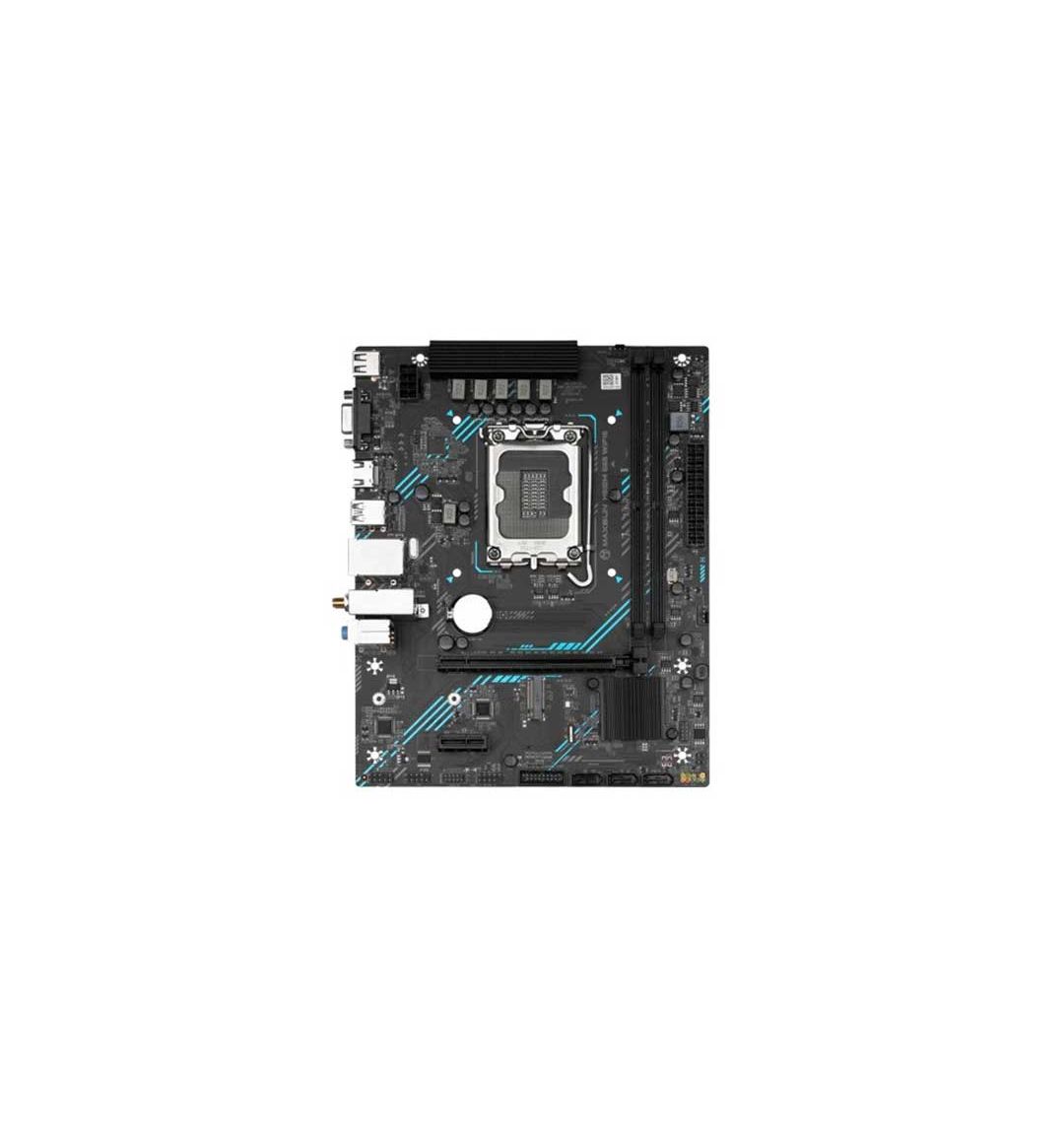

Maxsun MS-H610M 666 (Wi-Fi 6) Motherboard
Overview
The Maxsun MS-H610M 666 (Wi-Fi 6) Motherboard is engineered to deliver high performance and reliability for modern computing needs. With support for the latest Intel 12th and 13th Gen processors, this Micro-ATX motherboard offers a compact yet powerful foundation for a variety of applications, from gaming to content creation. Equipped with Wi-Fi 6 technology, dual-channel DDR4 memory support, and flexible expansion options, this motherboard is designed to enhance connectivity and system performance.
Key Features
- Intel H610 Chipset: Powered by the latest Intel H610 chipset, it supports 12th/13th Gen Intel Core, Pentium Gold, and Celeron processors, ensuring future-ready performance.
- High-Speed Wi-Fi 6: Integrated Intel Wi-Fi 6 for faster, more reliable wireless connections, ideal for smooth gaming and seamless streaming.
- Dual DDR4 Memory Support: Supports up to 64GB of DDR4 RAM at speeds up to 3200MHz (OC) for efficient multitasking.
- Flexible Storage Options: Comes with one M.2 slot supporting PCIe 3.0 x4 mode and four SATA 6.0 Gb/s connectors for ample storage expansion.
- Enhanced Audio and Networking: Realtek ALC897 audio chipset for high-definition 5.1-channel audio, along with Realtek RTL8111H LAN for reliable wired connections.
- Compact Micro-ATX Form Factor: A versatile size compatible with smaller cases, perfect for building compact setups with powerful performance.
Applications
The Maxsun MS-H610M 666 (Wi-Fi 6) Motherboard is ideal for:
- Gaming Setups: With PCIe 4.0 support and Wi-Fi 6, it’s tailored for budget-friendly gaming builds.
- Home & Office Use: Its dual memory channels and robust connectivity make it perfect for general-purpose and productivity-based systems.
- Content Creation: Handles multitasking efficiently for creators needing reliable performance on a budget.
- Compact Builds: Its Micro-ATX form factor is suitable for compact cases, allowing flexibility in building small but powerful systems.
Why Choose the Maxsun MS-H610M 666?
- Future-Ready Compatibility: Supports 12th and 13th Gen Intel processors, ensuring your system is built for future upgrades.
- Enhanced Connectivity: With integrated Wi-Fi 6 and Bluetooth 5.2, connect effortlessly without the need for external adapters.
- Cost-Effective Performance: Affordable yet packed with premium features for powerful performance at a reasonable price.
- High-Definition Audio: Realtek ALC897 codec offers crystal-clear sound quality for an immersive audio experience.
- Compact Design: Perfect for Micro-ATX cases, ideal for space-saving builds without compromising on features.
FAQs
- Does the Maxsun MS-H610M 666 motherboard support Intel Optane Memory? No, this motherboard does not support Intel Optane Memory.
- What is the maximum RAM capacity? This motherboard supports up to 64GB of DDR4 RAM across two slots.
- Is this motherboard compatible with Intel 13th Gen processors? Yes, it is compatible with both 12th and 13th Gen Intel Core, Pentium Gold, and Celeron processors.
- Does it have built-in Wi-Fi? Yes, it includes Intel Wi-Fi 6, providing fast and reliable wireless connectivity.
- What expansion slots are available? It has one PCIe 4.0 x16 slot and one PCIe 3.0 x1 slot for additional cards.
- Does it support RGB lighting? No, this motherboard does not include RGB support.
- Which operating systems are compatible with this motherboard? It is compatible with Windows 10 and Windows 11.
- What warranty does this motherboard come with? It comes with a 3-year replacement warranty.
