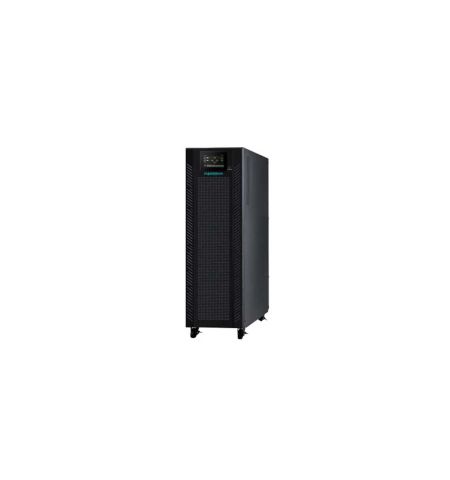

Marsriva MR-US3320K-H Energy Efficient 20kVA Online UPS
Save 15%
Please sign in so that we can notify you about a reply
Specification
| Main Feature | |
| Capacity | 20kVA |
| Load Capacity | 20kW |
| Input Voltage | 3 x 400VAC (3Ph+N) / 230VAC (1Ph+N) |
| Output Voltage | 3 x 360*/380*/400/415 VAC (3Ph+N) |
| Frequency (Battery Mode) | 50Hz ± 0.1 Hz or 60Hz ± 0.1 Hz |
| Others | Output Harmonic Distortion (THDi): ≤2% THD (Linear Load) ; ≤5 % THD (Non-linear Load) Output Overload Capability: 100 – 110% for 60min, 111 – 125% for 10min, 126% – 150% 1min, ＞150% immediately Input Harmonic Distortion (THDi): ＜4% at full linear load |
| Input Features | |
| Frequency | 46 – 54Hz @ 50Hz system; 56 – 64Hz @ 60Hz system |
| Power Factor | ≥0.99 @ 100% Load |
| Voltage Range | 110 – 300VAC ± 3 % @ 50% load; 176 – 276VAC ± 3 % @ 100% load |
| Output Features | |
| Type of Wave | Pure Sine wave |
| Transfer Time | AC Mode to Batt. Mode: 0ms Inverter to Bypass: 0ms |
| Manufacture Warranty | |
| Warranty | 01-year warranty |
