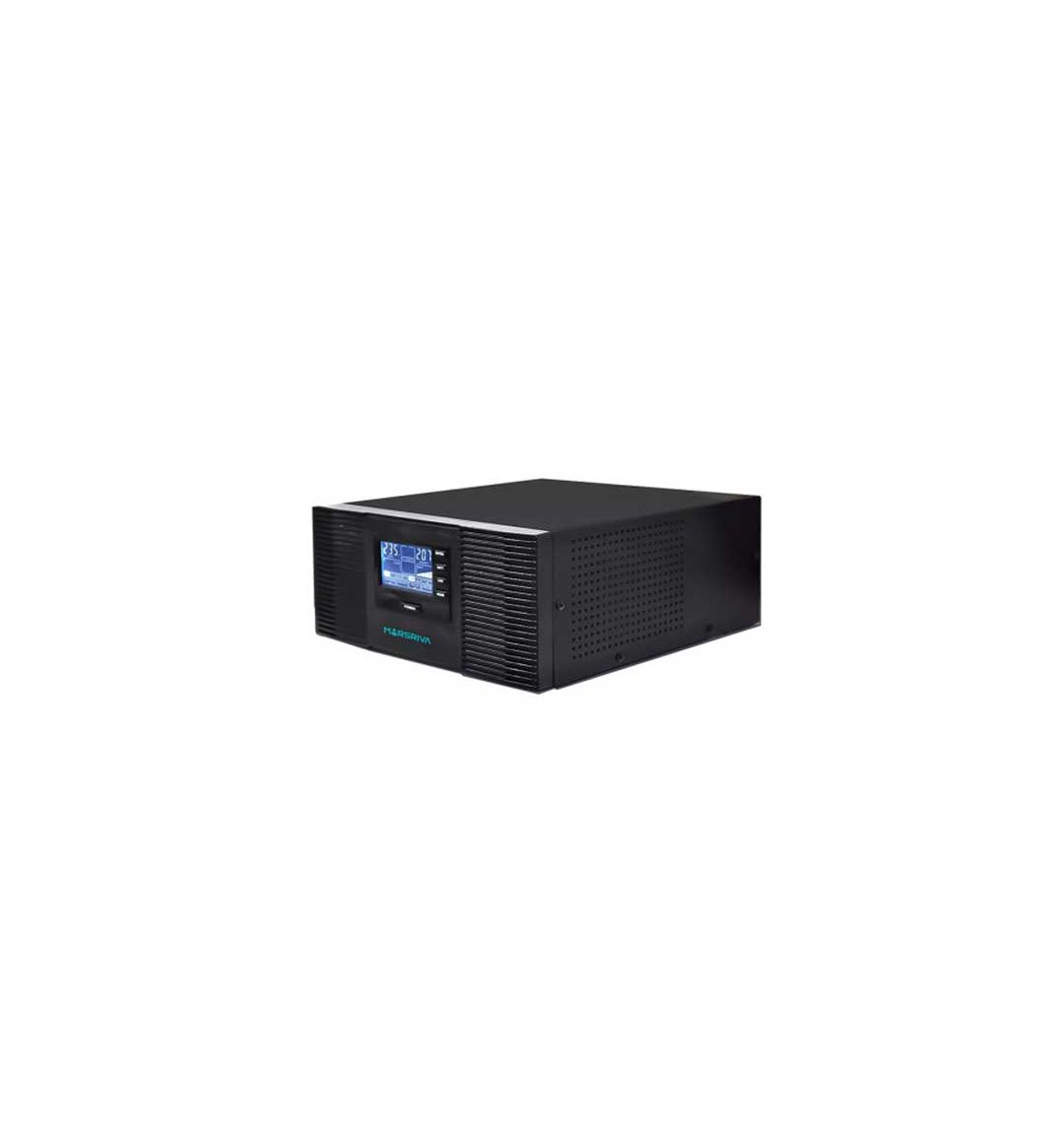

Marsriva MR-UT600 SoHo Inverter
Please sign in so that we can notify you about a reply
Specification
| Model | MR-UT600 | MR-UT800 | MR-UT1000 | MR-UT1200 | MR-UT1500 | ||||||||
| Rated Capacity | 600VA / 500W | 800VA / 640W | 1000VA / 800W | 1200VA / 1000W | 1500VA / 1200W | ||||||||
| Output | |||||||||||||
| Output Voltage (AC Mode) | UPS mode: 203–238VAC±5VAC INV mode: 150–255VAC±5VAC | ||||||||||||
| Output Voltage (Battery Mode) | 220VAC ± 5VAC | ||||||||||||
| Output Frequency (Battery Mode) | 50Hz ± 0.5Hz | ||||||||||||
| Transfer Time | ＜10ms | ||||||||||||
| Output Wave Form (Battery Mode) | Pure sine wave | ||||||||||||
| Input | |||||||||||||
| Nominal Battery Voltage | 12VDC | 12VDC | 12VDC | 12VDC | 24VDC | ||||||||
| Input Voltage Range | PS mode: 145–270VAC±5VAC INV mode: 100–290VAC±5VAC | ||||||||||||
| Input Frequency | 45Hz - 65Hz | ||||||||||||
| Chargincurrent (Max.) | 10A / 20A (selectable) | ||||||||||||
| Physical | |||||||||||||
| Unit dimension(mm) | 290 x 257 x 123 | ||||||||||||
| Environment | |||||||||||||
| Operating temperature | 0℃ – 40℃ | ||||||||||||
| Humidit | 20% to 90% (non condensing) | ||||||||||||
