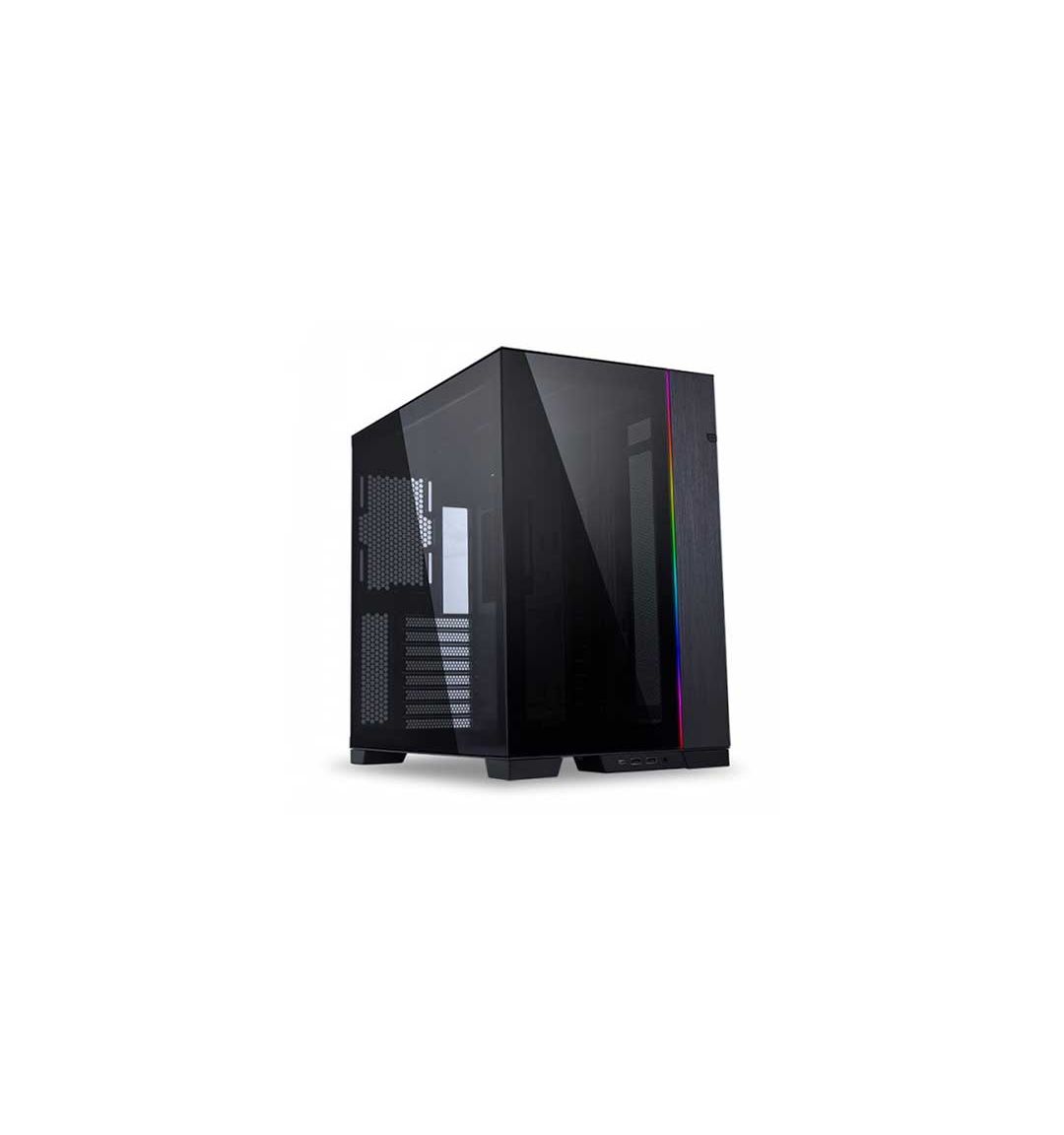

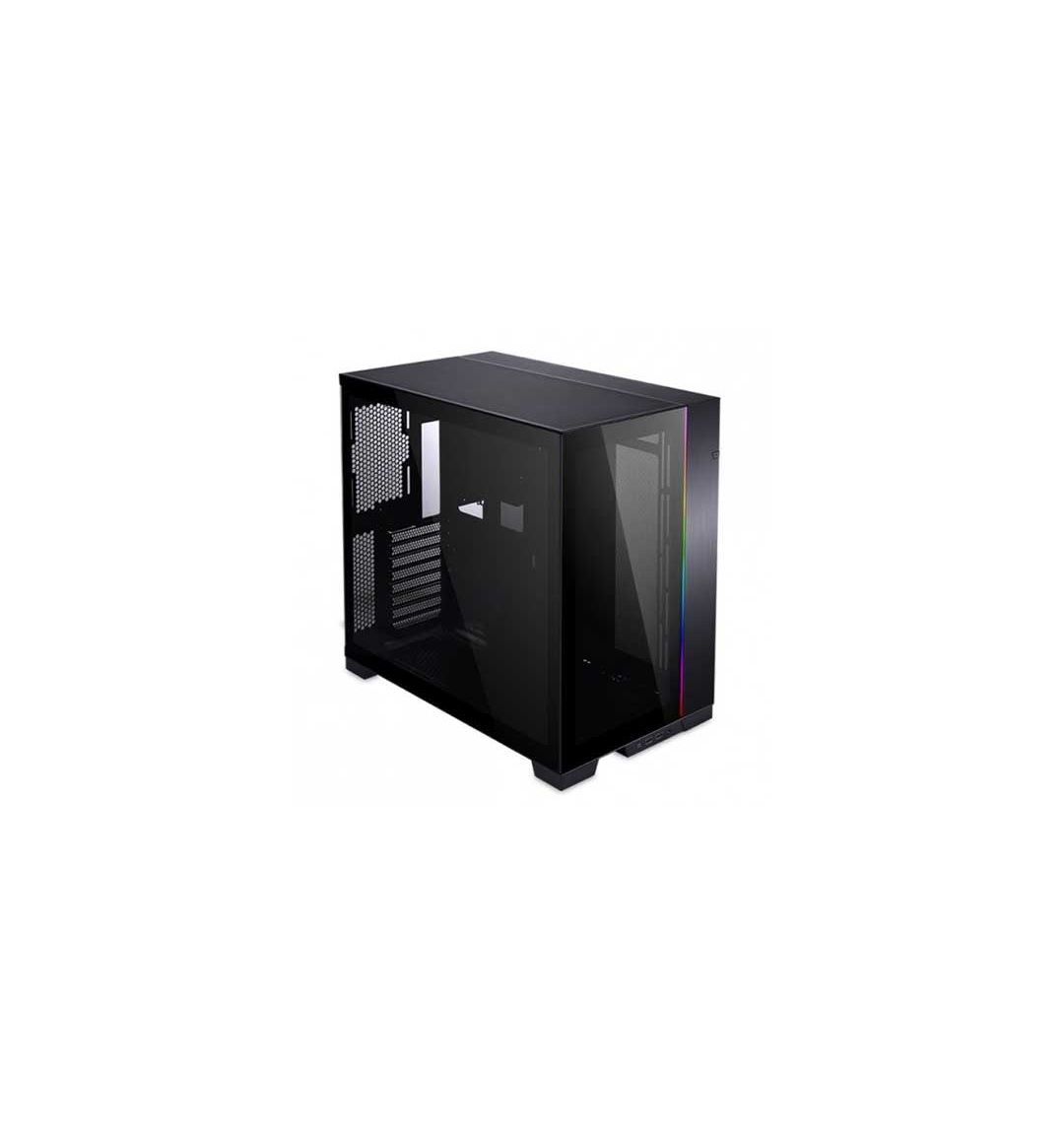

LIAN LI O11 DYNAMIC EVO Mid Tower Gaming Case Black
Save 7%
Please sign in so that we can notify you about a reply
Specification
| Details | |
| Model | O11 DYNAMIC EVO |
| Color | Black |
| Case Material | 4mm Aluminum 4mm Tempered Glass 1mm Steel Structure |
| Motherboard Compatibility | E-ATX (width: under 280mm)/ATX /M-ATX/ITX |
| Side Panel Window | Tempered Glass Side Panel |
| Features | |
| Expansion Slots | 8 |
| I/O Port | 2 × USB 3.0 1 × USB 3.1 TYPE-C, 1 × HD AUDIO/ MIC LED Color and Mode button Reset Button Power Button |
| Fan Support | Top: 120mm × 3 or 140mm × 2 Side: 120mm × 3 or 140mm × 2 Bottom: 120mm × 3 or 140mm × 2 Rear: 120mm × 1 On Drive Cage: 60mm × 1 |
| Component Compatibility | GPU LENGTH CLEARANCE: 426 mm CPU HEIGHT CLEARANCE: 167 mm |
| Drive Bays | Bottom：2.5” SSD × 4 or 3.5” HDD × 2 Side：2.5” SSD × 4 or 3.5” HDD × 2 Drive Cage：2.5” SSD × 3 or 3.5” HDD × 2 + 2.5” SSD × 1 Cable Management Bar：2.5” SSD × 2 *Only 9 sets of 2.5” SSD mounting pads are provided |
| Radiator Support | Top: 360mm × 1 or 280mm × 1 *Total max thickness: 87.5mm Side: 360mm × 1 or 280mm × 1 *Inner scenario total max thickness: 83mm(120mm fan on top and bottom) 63mm(140mm fan on top and bottom) *Outer scenario total max. thickness： 120mm(120mm fan on top and bottom) 100mm(140mm fan on top and bottom) Bottom: 360mm × 1 *Total max thickness: 87.5mm |
| Dimensions & Weight | |
| Dimensions | (D)465mm × (W)285mm × (H)459mm |
