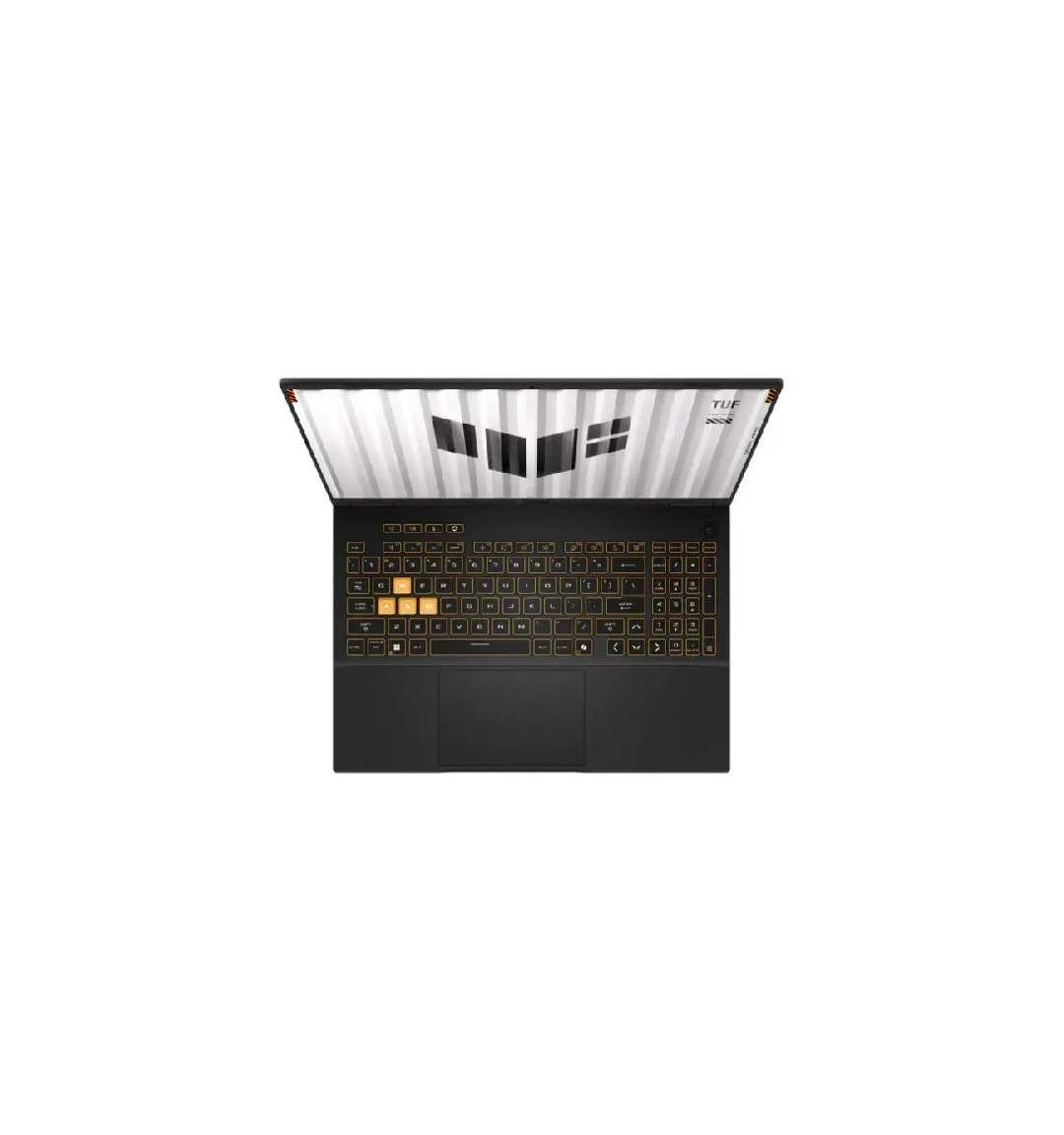

ASUS TUF Gaming F16 FX608JPR-RV055WN Core i7 14th Gen 16" WUXGA Gaming Laptop
Please sign in so that we can notify you about a reply
Technical Specifications
| Attribute | Detailed Specification |
| Product Name | ASUS TUF Gaming F16 FX608JPR-RV055WN |
| Model / Series | TUF Gaming F16 FX608JPR (2026 Series Layout) |
| Processor Brand | Intel |
| Processor Model | Intel Core i7 14650HX (14th Gen) |
| Processor Frequency | Performance-Core Base 2.20 GHz, Max Turbo Frequency up to 5.20 GHz |
| Processor Core / Thread | 16 Cores (8 Performance-cores, 8 Efficient-cores) / 24 Threads |
| CPU Cache | 30 MB Intel Smart Cache |
| Chipset Model | Mobile Intel HM770 Express Chipset |
| Screen Size | 16.0-inch |
| Display Panel Type | Value IPS-level Panel |
| Native Resolution | WUXGA / FHD+ (1920 x 1200) |
| Display Features | LED Backlit, Anti-glare, 16:10 aspect ratio, 3ms response time, 100% sRGB color gamut, 72% NTSC, 75.35% Adobe RGB, G-Sync support, MUX Switch + NVIDIA Advanced Optimus |
| Display Brightness | 300 nits |
| Refresh Rate | 165Hz |
| System Memory (RAM) | 32GB (16GB x 2 Dual-Channel layout) |
| RAM Type / Architecture | DDR5 5600 MHz (SO-DIMM layout) |
| Total Memory Slots | 2x DDR5 SO-DIMM slots (Both occupied, Max upgrade up to 64GB) |
| Storage Capacity | 1TB |
| Storage Interface Type | M.2 NVMe PCIe 4.0 x4 SSD |
| Extra Storage Expansion | 1x Extra M.2 NVMe PCIe 4.0 SSD slot available for upgrades |
| Graphics Controller | Dedicated NVIDIA GeForce RTX 5070 Laptop GPU |
| Graphics Memory | 8GB Dedicated |
| Graphics Memory Type | GDDR7 |
| Graphic Wattage (TGP) | Up to 115W TGP with Dynamic Boost (100W base + 15W boost) |
| Keyboard Layout Type | Backlit Chiclet Keyboard 1-Zone RGB with dedicated Copilot key & Numeric keypad |
| Touchpad Architecture | 10% Larger Precision Touchpad with 240Hz report rate |
| Integrated Camera | 1080P FHD IR Camera with Windows Hello support |
| Audio Infrastructure | 2-speaker system, Dolby Atmos, Hi-Res certification, AI noise-canceling technology, built-in array microphone |
| I/O Ports & Interfaces | 1x Thunderbolt 4 with support for DisplayPort / G-SYNC (40Gbps), 1x USB 3.2 Gen 2 Type-C (Supports DisplayPort / power delivery), 3x USB 3.2 Gen 2 Type-A (Up to 10Gbps data speed), 1x HDMI 2.1 FRL, 1x RJ45 LAN port, 1x 3.5mm Combo Audio Jack |
| Wireless Connectivity | Wi-Fi 6E (802.11ax) (Triple band) 2*2 + Bluetooth 5.4 Wireless Card |
| Security Architecture | Firmware Trusted Platform Module (Firmware TPM), Windows Hello Face Recognition, BIOS Setup Password Protection |
| Operating System | Windows 11 Home |
| Built-in Software | MyASUS, Armoury Crate, ScreenXpert, GlideX |
| Battery Infrastructure | 4-cell Lithium-Ion, 4S1P, 90WHrs (Fast charge 0 to 50% in ~30 minutes) |
| Power Supply Adapter | Rectangle Conn, 280W AC Adapter (Output: 20V DC, 14A; Input: 100-240V AC universal) |
| Chassis Color | Jaeger Gray |
| Structural Material | Aluminum (Top Cover), High-grade Polymer Plastic (Chassis Base) |
| Physical Dimensions | 35.4 x 26.9 x 1.79 ~ 2.73 cm |
| Device Weight | 2.20 kg (4.85 lbs) |
| Durability Certification | US MIL-STD 810H military-grade standard |
| Warranty Package | 2 Years International Brand Warranty (Battery covered for 1 Year) |
Product Description
The ASUS TUF Gaming F16 FX608JPR-RV055WN is a heavy-duty, elite-tier gaming laptop armored in an aluminum Jaeger Gray top panel and a chassis strictly engineered to pass rigid US MIL-STD 810H military durability standards. Built to thrive under intensive processing demands, this powerhouse is driven by a 14th Gen 16-core, 24-thread Intel Core i7 14650HX processor and the state-of-the-art NVIDIA GeForce RTX 5070 GPU stacked with 8GB of dedicated ultra-fast GDDR7 memory. Out of the box, it comes pre-configured with a massive 32GB of dual-channel high-speed DDR5 RAM and a huge 1TB NVMe PCIe 4.0 SSD, easily executing triple-A titles, massive software compilation grids, and heavy 3D rendering setups with jaw-dropping fluid speed.
The primary visual arena is dominated by a sweeping 16.0-inch WUXGA (1920 x 1200) anti-glare IPS display featuring a modern, workspace-expanding 16:10 aspect ratio and a blistering 165Hz refresh rate. Complete with a full 100% sRGB color gamut, 3ms response time, and hardware G-Sync support via a physical MUX switch with Advanced Optimus, it completely wipes out screen tearing and motion blur during intense multiplayer action. Rounded out by a 1-Zone RGB backlit gaming keyboard featuring a dedicated Windows Copilot shortcut key, a 10% larger precision touchpad with a 240Hz report rate, an FHD IR facial-recognition webcam, and an immense 90WHrs battery with 280W fast-charging, this laptop brings ultimate thermal cooling stability and absolute desktop-replacement mobile power to your setup.
