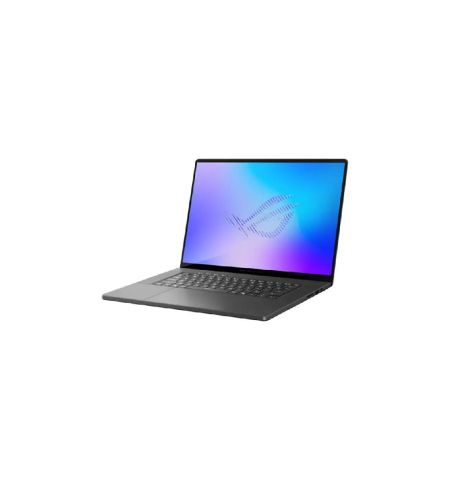

ASUS ROG Zephyrus G16 GU606AR-TB080W Core Ultra 9 32GB RAM 1TB SSD RTX 5070 Ti 16-inch OLED Gaming Laptop
Please sign in so that we can notify you about a reply
Technical Specifications
| Attribute | Detailed Specification |
| Product Model | ROG Zephyrus G16 (Specific Designation: GU606AR-TB080W) |
| Product Category | Ultra-Slim AI-Powered Premium Gaming & Creator Laptop |
| Chassis Color | Eclipse Gray |
| Chassis Material | Precision CNC-machined all-aluminum body with Slash Lighting array |
| Processor Model | Intel® Core™ Ultra 9 Processor 386H |
| Processor Architecture | 16 Cores, 16 Threads, 18MB Cache, up to 4.90 GHz Max Turbo Frequency |
| Neural Processing Unit | Intel® NPU (Up to 50 TOPS AI compute performance) |
| Graphics Processing Unit | NVIDIA® GeForce RTX™ 5070 Ti Laptop GPU (12GB GDDR7 VRAM, up to 140W max TGP in Manual Mode, MUX Switch + NVIDIA® Advanced Optimus) |
| System Memory (RAM) | 32GB LPDDR5X 8533MHz (Onboard dual-channel memory) |
| Memory Slots & Expansion | Non-removable onboard memory |
| Storage Capacity | 1TB M.2 NVMe™ PCIe® 4.0 SSD |
| Storage Expansion | 2x M.2 PCIe NVMe SSD slots |
| Display Size & Panel | 16.0-inch, 2.5K WQXGA ($2560 \times 1600$), 16:10 Aspect Ratio, ROG Nebula HDR OLED Display |
| Display Attributes | 240Hz Refresh Rate, 0.2ms Response Time, 500 nits SDR / 1100 nits Peak HDR Brightness, 100% DCI-P3 Color Gamut, VESA DisplayHDR True Black 1000, NVIDIA® G-SYNC®, Anti-Reflection (AR), Pantone® Validated |
| Operating System | Windows 11 Home |
| Webcam & Security | 1080p FHD IR Camera supporting Windows Hello face unlock, Microsoft Pluton Security Processor |
| Audio System | Smart Amp Technology, Dolby Atmos, AI Noise-Canceling, 4-speaker system (dual-force woofers + 2 tweeters) |
| Keyboard & Touchpad | Backlit Chiclet Keyboard 1-Zone RGB with dedicated Copilot AI key, Extra-large Glass Precision Touchpad |
| Wireless Connectivity | Wi-Fi 7 (802.11be) Tri-Band 2x2 + Bluetooth® 6.0 |
| I/O Ports | 1x Thunderbolt™ 4 (Supports DisplayPort & Power Delivery, 40Gbps), 1x USB 3.2 Gen 2 Type-C (Supports DisplayPort, Power Delivery & G-SYNC), 2x USB 3.2 Gen 2 Type-A (10Gbps), 1x HDMI 2.1 FRL, 1x SD Card Reader (UHS-II, 312MB/s), 1x 3.5mm Combo Audio Jack |
| Battery & Power | 90WHrs, 4S1P, 4-cell Li-ion battery (Supports 100W Type-C charging); 250W AC Power Adapter |
| Dimensions (W x D x H) | $35.40 \times 24.60 \times 1.49 \sim 1.79\text{ cm}$ |
| Product Net Weight | 1.95 kg (with battery) |
| Warranty Coverage | 2 Years Limited Brand Warranty (1 Year for Battery & Adapter) |
Product Description
The ASUS ROG Zephyrus G16 GU606AR-TB080W is an ultra-slim, AI-powered 16-inch gaming and content creation laptop designed to deliver top-tier graphics, processor speed, and display fidelity in a sleek portable chassis. Crafted from precision CNC-machined aluminum measuring 1.49 cm thin and weighing 1.95 kg, it combines structural durability with high mobility. The lid is styled with ROG's custom Slash Lighting LED array to provide a distinct aesthetic signature.
At its core, the laptop is driven by the 16-core Intel® Core™ Ultra 9 Processor 386H with clock speeds up to 4.90 GHz. Coupled with an integrated Intel® Neural Processing Unit (NPU) capable of up to 50 TOPS of AI compute performance, the system accelerates Windows 11 AI features, background audio/video filtering, and creative applications without overburdening the CPU. Graphics execution is powered by the NVIDIA® GeForce RTX™ 5070 Ti Laptop GPU featuring 12GB of GDDR7 VRAM and operating at up to 140W max TGP. Hardware support for DLSS 4 frame generation, ray tracing, a dedicated MUX Switch, and NVIDIA® Advanced Optimus guarantees maximum frame rates and low-latency rendering directly to the screen. System performance is backed by 32GB of high-speed LPDDR5X 8533MHz onboard RAM and a fast 1TB M.2 PCIe 4.0 NVMe SSD, alongside dual M.2 slots for future storage upgrades.
The centerpiece of the GU606AR is its 16.0-inch 2.5K WQXGA ($2560 \times 1600$) ROG Nebula HDR OLED display with a 16:10 aspect ratio. Delivering a 240Hz refresh rate, an ultra-fast 0.2ms response time, 1100 nits peak HDR brightness, 100% DCI-P3 color gamut coverage, and VESA DisplayHDR True Black 1000 certification, it provides vivid colors and true deep black levels. The display features an anti-reflection coating, Pantone® validation for color accuracy, and NVIDIA® G-SYNC® support for stutter-free gameplay.
Additional features include a 1-Zone RGB backlit chiclet keyboard with a dedicated Copilot key, an enlarged glass precision touchpad, a 1080p FHD IR camera with Windows Hello facial recognition support, Dolby Atmos quad-speaker audio, Wi-Fi 7 wireless connectivity, a high-speed Thunderbolt™ 4 port, a full-size SD card reader (UHS-II), and a 90WHrs battery supported by 250W primary charging and 100W USB-C Power Delivery.
