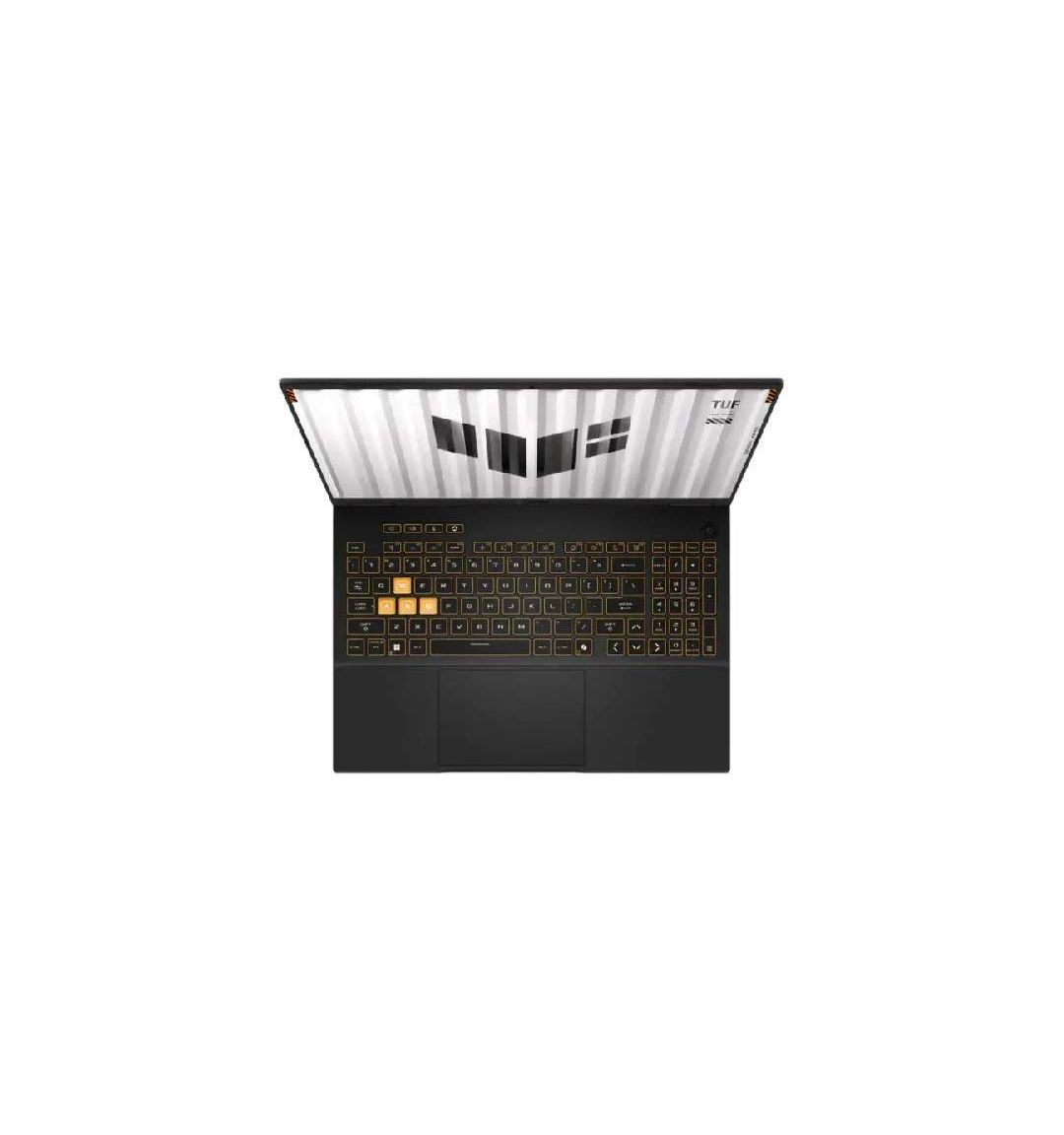

ASUS TUF Gaming F16 FX608JMR-RV060W Core i7 14th Gen 16" FHD+ Gaming Laptop
Please sign in so that we can notify you about a reply
Technical Specifications
| Attribute | Detailed Specification |
| Product Name | ASUS TUF Gaming F16 FX608JMR-RV060W |
| Model / Series | TUF Gaming F16 FX608JMR (2026 Series Layout) |
| Processor Brand | Intel |
| Processor Model | Intel Core i7 14650HX (14th Gen) |
| Processor Frequency | Performance-Core Base 2.20 GHz, Max Turbo Frequency up to 5.20 GHz |
| Processor Core / Thread | 16 Cores (8 Performance-cores, 8 Efficient-cores) / 24 Threads |
| CPU Cache | 30 MB Intel Smart Cache |
| Chipset Model | Mobile Intel HM770 Express Chipset |
| Screen Size | 16.0-inch |
| Display Panel Type | IPS-level Panel |
| Native Resolution | FHD+ / WUXGA (1920 x 1200) |
| Display Features | LED Backlit, Anti-glare, 16:10 aspect ratio, 3ms response time, 100% sRGB color gamut, 72% NTSC, 75.35% Adobe RGB, G-Sync support, MUX Switch + NVIDIA Advanced Optimus |
| Display Brightness | 300 nits |
| Refresh Rate | 165Hz |
| System Memory (RAM) | 16GB |
| RAM Type / Architecture | DDR5 5600 MHz (SO-DIMM layout) |
| Total Memory Slots | 2x DDR5 SO-DIMM slots (Max system memory expansion up to 64GB) |
| Storage Capacity | 1TB |
| Storage Interface Type | M.2 NVMe PCIe 4.0 x4 SSD |
| Extra Storage Expansion | 1x Extra M.2 NVMe PCIe 4.0 SSD slot available for upgrades |
| Graphics Controller | Dedicated NVIDIA GeForce RTX 5060 Laptop GPU |
| Graphics Memory | 8GB Dedicated |
| Graphics Memory Type | GDDR7 |
| Graphic Wattage (TGP) | Up to 115W TGP with Dynamic Boost (100W base + 15W boost) |
| Keyboard Layout Type | Backlit Chiclet Keyboard 1-Zone RGB with dedicated Copilot key & Numeric keypad |
| Touchpad Architecture | Precision Touchpad with integrated NumberPad layout |
| Integrated Camera | 1080P FHD IR Camera with Windows Hello support |
| Audio Infrastructure | 2-speaker system, Dolby Atmos, Hi-Res certification, AI noise-canceling technology, built-in array microphone |
| I/O Ports & Interfaces | 1x Thunderbolt 4 with support for DisplayPort / G-SYNC (40Gbps), 1x USB 3.2 Gen 2 Type-C (Supports DisplayPort / power delivery), 3x USB 3.2 Gen 2 Type-A (Up to 10Gbps data speed), 1x HDMI 2.1 FRL, 1x RJ45 LAN port, 1x 3.5mm Combo Audio Jack |
| Wireless Connectivity | Wi-Fi 6E (802.11ax) (Triple band) 2*2 + Bluetooth 5.3 Wireless Card |
| Security Architecture | Firmware Trusted Platform Module (Firmware TPM), Windows Hello Face Recognition, BIOS Setup Password Protection |
| Operating System | Windows 11 Home |
| Built-in Software | MyASUS, Armoury Crate, ScreenXpert, GlideX |
| Battery Infrastructure | 4-cell Lithium-Ion, 4S1P, 90WHrs (Fast charge 0 to 50% in ~30 minutes) |
| Power Supply Adapter | Rectangle Conn, 240W AC Adapter (Output: 20V DC, 12A; Input: 100-240V AC universal) |
| Chassis Color | Jaeger Gray |
| Structural Material | Aluminum (Top Cover), High-grade Polymer Plastic (Chassis Base) |
| Physical Dimensions | 35.4 x 26.9 x 1.79 ~ 2.57 cm |
| Device Weight | 2.20 kg (4.85 lbs) |
| Durability Certification | US MIL-STD 810H military-grade standard |
| Warranty Package | 2 Years International Brand Warranty (Battery covered for 1 Year) |
Product Description
The ASUS TUF Gaming F16 FX608JMR-RV060W is a heavy-duty, high-performance gaming laptop armored in an aluminum Jaeger Gray top panel and a chassis built to clear rigid US MIL-STD 810H military durability standards. Engineered to handle intensive computational pressure, competitive competitive gaming, and heavy creative asset editing, this beast is driven by a 14th Gen 16-core, 24-thread Intel Core i7 14650HX processor and the state-of-the-art NVIDIA GeForce RTX 5060 GPU stacked with 8GB of dedicated ultra-fast GDDR7 memory. Backed by a physical hardware MUX Switch, Advanced Optimus, 16GB of high-speed DDR5 RAM, and a massive 1TB NVMe PCIe 4.0 SSD, it runs AAA games, development suites, and rendering pipelines with flawless fluid speed.
The visual experience centers on a sweeping 16.0-inch FHD+ (1920 x 1200) anti-glare IPS display that features an upgraded, ultra-smooth 165Hz refresh rate and a fast 3ms response time. Formatted with a workspace-expanding 16:10 aspect ratio and complete with a full 100% sRGB color gamut and hardware G-Sync support, it completely eliminates screen tearing and stuttering during high-stakes multiplayer action while maintaining professional color accuracy. Rounded out by a 1-Zone RGB backlit gaming keyboard featuring a dedicated Windows Copilot shortcut key, a precision touchpad with a virtual NumberPad, an upgraded 1080p FHD IR camera for Windows Hello face unlock, and a massive 90WHrs battery with 240W fast-charging, this laptop brings ultimate thermal cooling stability and modern upgradeable power to any intense configuration.
