Asus TUF GAMING B450M-PLUS II DDR4 Motherboard
SPECIFICATION
| Brand | ASUS |
| Model | Asus TUF GAMING B450M-PLUS II |
| Chipset Brand | AMD |
| Chipset | AMD B450 Chipset |
| Form Factor | micro-ATX Form Factor 9.6 inch x 9.6 inch ( 24.4 cm x 24.4 cm ) |
| Supported CPU | AMD AM4 Socket for AMD Ryzen 5000 Series/ 5000 G-Series/ 4000 G-Series/ 3rd/2nd/1st Gen AMD Ryzen/ 2nd and 1st Gen AMD Ryzen with Radeon Vega Graphics/ Athlon with Radeon Vega Graphics Processors |
| Memory Type | DDR4 |
| Memory | 3rd/2nd/1st Gen AMD Ryzen/ 2nd and 1st Gen AMD Ryzen with Radeon Vega Graphics/ Athlon with Radeon Vega Graphics Processors 4 x DIMM, Max. 128GB, DDR4 4400(O.C)/4000(O.C.)/3866(O.C.)/3733(O.C.)/3600(O.C.)/3533(O.C)/3466(O.C.)/3400(O.C.)/3200(O.C.)/3000(O.C.) /2800(O.C.)/2666/2400/2133 MHz Un-buffered Memory Dual Channel Memory Architecture ECC Memory (ECC mode) support varies by CPU. |
| Graphics | Integrated Graphics in the 2nd and 1st Gen AMD Ryzen with Radeon Vega Graphics/ Athlon with Radeon Vega Graphics Processors 1 x HDMI port 1 x DVI-D |
| Expansion Slot | 3rd/2nd/1st Gen AMD Ryzen Processors 1 x PCIe 3.0/2.0 x16 (x16 mode) 2nd and 1st Gen AMD Ryzen with Radeon Vega Graphics Processors 1 x PCIe 3.0/2.0 x16 (x8 mode) Athlon with Radeon Vega Graphics Processors 1 x PCIe 3.0/2.0 x16 (max at x4 mode) AMD B450 chipset 1 x PCIe 2.0 x16 (x4 mode) 1 x PCIe 2.0 x1 |
| Supported Storage | Total supports 1 x M.2 slot(s) and 6 x SATA 6Gb/s ports 3rd/2nd/1st Gen AMD Ryzen/ 2nd and 1st Gen AMD Ryzen with Radeon Vega Graphics :1 x M.2 Socket 3, with M Key, Type 2242/2260/2280/22110(PCIE 3.0 x4 and SATA modes) storage devices support*1 Athlon with Radeon Vega Graphics Processors : 1 x M.2 Socket 3, with M key, type 2242/2260/2280/22110 storage devices support (SATA mode)*1 3rd/2nd/1st Gen AMD Ryzen/ 2nd and 1st Gen AMD Ryzen with Radeon Vega Graphics/ Athlon with Radeon Vega Graphics Processors : 2 x SATA 6Gb/s port(s), Support Raid 0, 1, 10 AMD B450 chipset : 4 x SATA 6Gb/s port(s), Support Raid 0, 1, 10 |
| Ethernet | Realtek RTL8111H 1Gb Ethernet TUF LANGuard |
| Audio | Realtek ALC887/897 7.1 Surround Sound High Definition Audio CODEC - Supports : Jack-detection, Multi-streaming, Front Panel Jack-retasking, up to 24-Bit/192kHz playbackAudio Feature : - Exclusive DTS Custom for GAMING Headsets. - Audio cover - Audio Shielding - Dedicated audio PCB layers - Premium Japanese audio capacitors |
| USB | Rear USB Port ( Total 6 ) 1 x USB 3.2 Gen 2 port(s)(1 x Type-A) 3 x USB 3.2 Gen 1 port(s)(2 x Type-A +1 x Type-C) 2 x USB 2.0 port(s)(2 x Type-A) Front USB Port ( Total 6 ) 2 x USB 3.2 Gen 1 port(s)(2 x Type-A) 4 x USB 2.0 port(s)(4 x Type-A) |

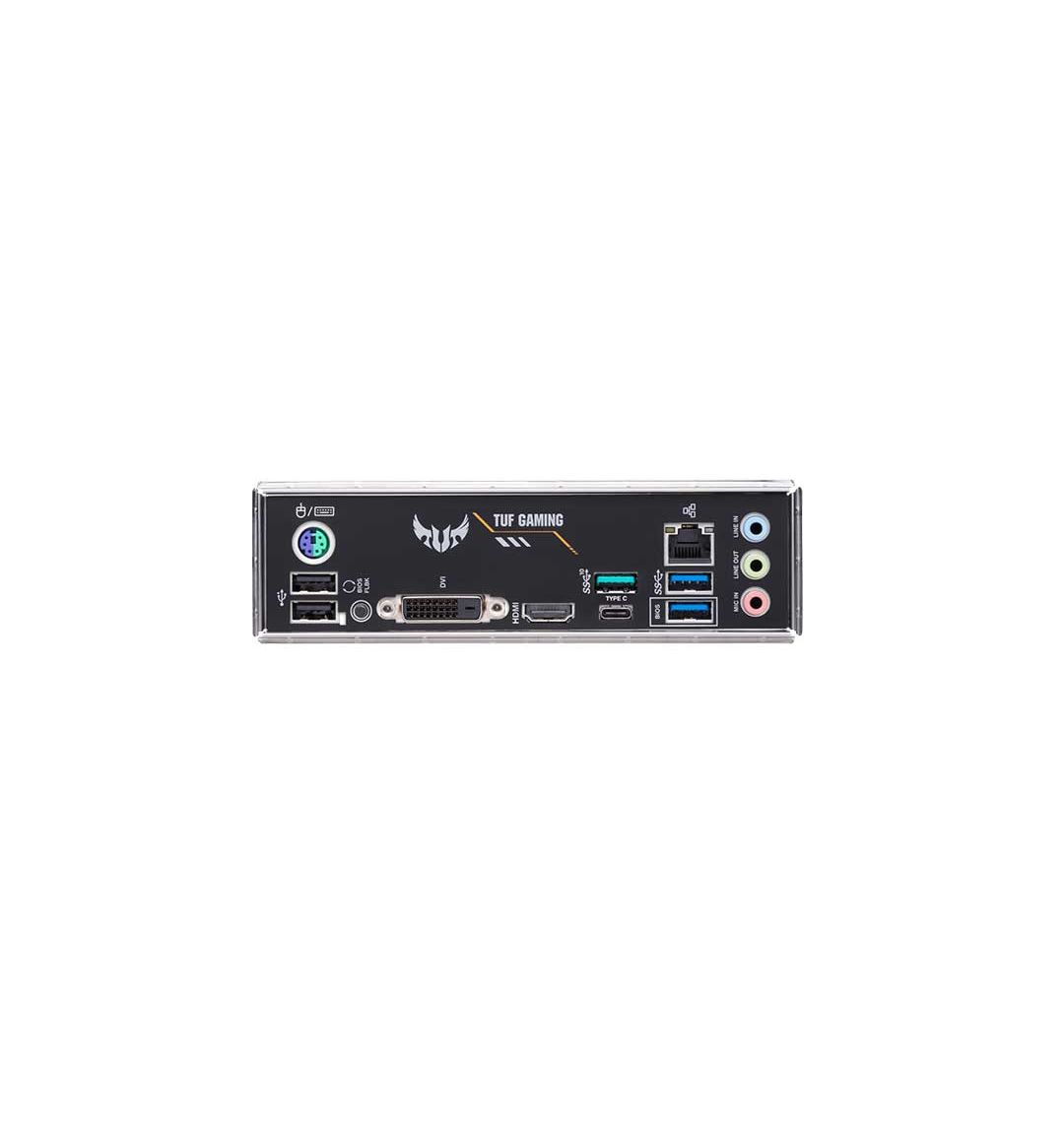

| Back Panel I/O Ports | 1 x PS/2 keyboard/mouse combo port(s) 1 x DVI-D 1 x HDMI 1 x LAN (RJ45) port(s) 1 x USB 3.2 Gen 2 (teal blue)Type-A, 2 x USB 3.2 Gen 1 (blue) Type-A 1 x USB 3.2 Gen 1 (black) Type-C 2 x USB 2.0 3 x Audio jack(s) 1 x BIOS FlashBack Button(s) |
| Internal I/O Connectors | 1 x CPU Fan connector(s) 2 x Chassis Fan connector(s) 1 x Aura RGB Strip Header 1 x USB 3.2 Gen 1(up to 5Gbps) connector(s) support(s) additional 2 USB 3.2 Gen 1 port(s) 2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s) 1 x M.2 Socket 3 with M key, type 2242/2260/2280/22110 storage devices support (SATA & PCIE 3.0 x 4 mode) 1 x SPI TPM header 6 x SATA 6Gb/s connector(s) 1 x S/PDIF out header(s) 1 x 24-pin EATX Power connector(s) 1 x 8-pin EATX 12V Power connectors 1 x Front panel audio connector(s) (AAFP) 1 x Clear CMOS jumper(s) 1 x System panel connector 1 x COM port header 1 x Speaker connector |
| Special Features | ASUS TUF PROTECTION |
| Software Features | ASUS Exclusive Software Armoury Crate - Aura Creator - Aura Sync - AI Noise-Canceling Microphone AI Suite 3 - Performance And Power Saving Utility TurboV EVO EPU Digi+ VRM Fan Xpert 2+ - EZ update - PC Cleaner TUF GAMING CPU-Z AI Charger ASUS Turbo LAN DAEMON Tools DTS Custom for GAMING Headsets Norton Anti-virus software (Free Trial for 60 days) WinRAR UEFI BIOS ASUS EZ DIY - ASUS CrashFree BIOS 3 - ASUS EZ Flash 3 - ASUS UEFI BIOS EZ Mode |
| Supported Operating System | Support for Windows 10 64-bit Support for Windows 11 64-bit |
| BIOS | 256 Mb Flash ROM, UEFI AMI BIOS |
| Warranty Information | |
| Warranty | 3 years |
Nexus will be your first choice If you want to buy Asus TUF GAMING B450M-PLUS II Motherboard in Bangladesh, Because we sale only ASUS authorized original Motherboard. So you are at the right place to buy right ASUS Motherboard at the lowest price in Bangladesh.
Nexus Offers you Asus TUF GAMING B450M-PLUS II Motherboard at the best price in Bangladesh, which is your budget-friendly Motherboard. Do you want to know what is the price of Asus TUF GAMING B450M-PLUS II Motherboard? and where you can get ASUS Motherboard at lowest price in BD? Yes, it is Nexus. Asus TUF GAMING B450M-PLUS II Motherboard now available at Nexus, So Don’t Think more to buy Asus TUF GAMING B450M-PLUS II Motherboard.
