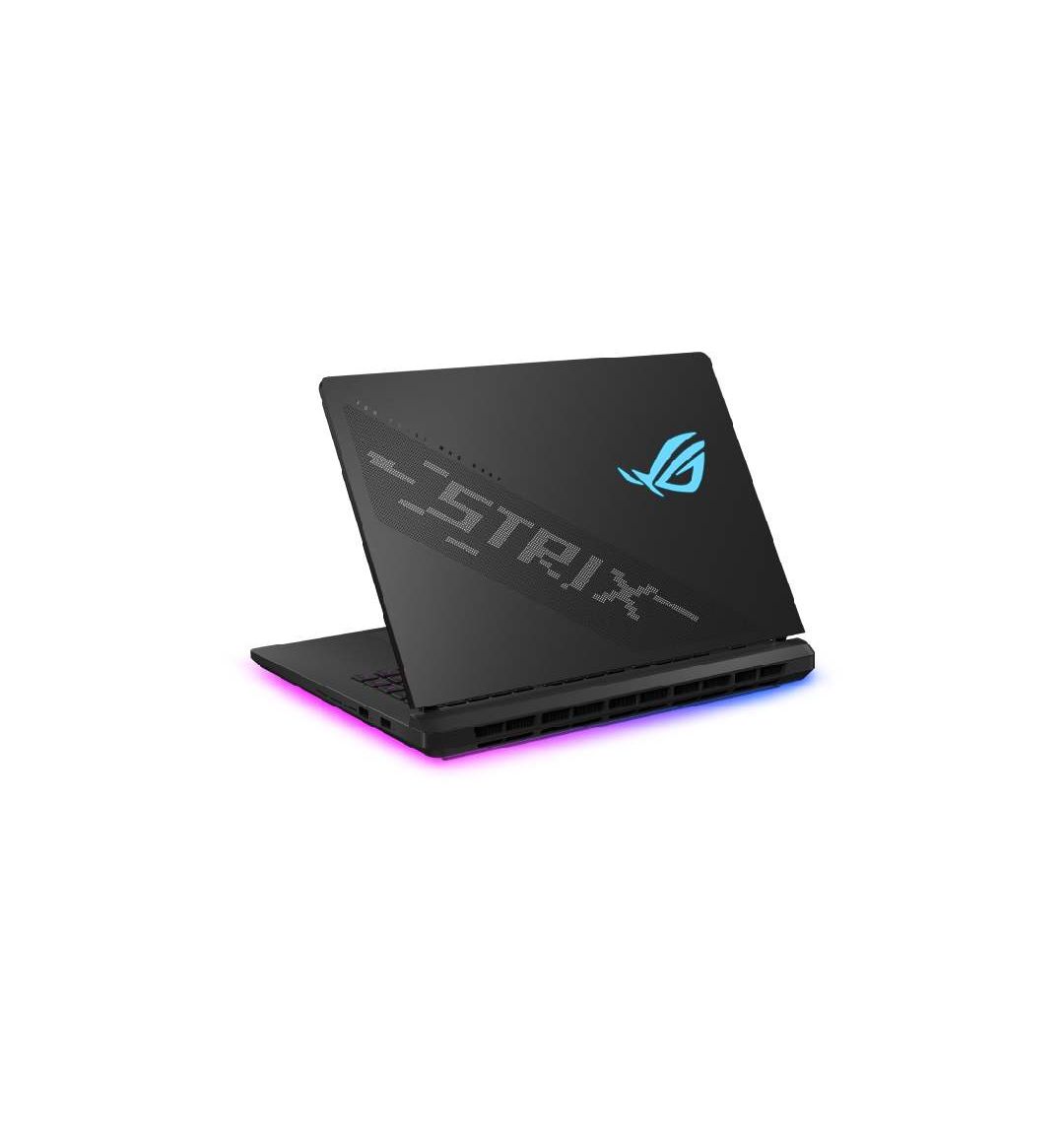

ASUS ROG Strix SCAR 16 G635LW-S5242W Intel Core Ultra 9 16" 2.5K Mini LED Gaming Laptop
Please sign in so that we can notify you about a reply
Technical Specifications
| Attribute | Detailed Specification |
| Product Name | ASUS ROG Strix SCAR 16 G635LW-S5242W |
| Model / Series | ROG Strix SCAR 16 G635LW (2025/2026 AI Flagship Series) |
| Processor Brand | Intel |
| Processor Model | Intel Core Ultra 9 Processor 275HX (Arrow Lake-HX Architecture) |
| Processor Frequency | Performance-Core Base 2.70 GHz, Max Turbo Frequency up to 5.40 GHz |
| Processor Core / Thread | 24 Cores (8 Performance-cores, 16 Efficient-cores) / 24 Threads |
| CPU Cache | 36 MB Intel Smart Cache |
| AI Processing Unit | Intel AI Boost NPU (Up to 13 TOPS) | Total System AI Power: 1334 AI TOPS |
| Chipset Model | Mobile Intel HM770 Express Chipsets |
| Screen Size | 16.0-inch |
| Display Panel Type | ROG Nebula HDR Display (Mini LED Panel) |
| Native Resolution | 2.5K WQXGA (2560 x 1600) |
| Display Features | Over 2,000 distinct local dimming zones, Nebula HDR Engine, Anti-glare display, 16:10 aspect ratio, 100% DCI-P3 color gamut, 1200:1 contrast ratio, VESA Certified DisplayHDR True Black 1000, G-Sync support, Pantone Validated, Dolby Vision HDR support, Dual-layer Ambient Contrast Ratio (ACR) film technology |
| Display Brightness | 500 nits Base, up to 1100 nits HDR Peak Brightness |
| Refresh Rate | 240Hz |
| Response Time | 3ms |
| System Memory (RAM) | 32GB (16GB x 2 Dual-Channel Layout) |
| RAM Type / Architecture | DDR5 5600 MHz (SO-DIMM layout) |
| Total Memory Slots | 2x DDR5 SO-DIMM slots (Both occupied, Max upgrade up to 64GB) |
| Storage Capacity | 2TB |
| Storage Interface Type | PCIe 4.0 NVMe M.2 Performance SSD |
| Extra Storage Expansion | 1x Extra M.2 NVMe PCIe SSD slot available (Supports RAID 0 / tool-free access upgrade) |
| Graphics Controller | Dedicated NVIDIA GeForce RTX 5080 Laptop GPU |
| Graphics Memory | 16GB Dedicated |
| Graphics Memory Type | Next-Gen GDDR7 |
| Graphic Wattage (TGP) | Up to 175W TGP with Dynamic Boost |
| Discrete/Optimus | MUX Switch + NVIDIA Advanced Optimus |
| Keyboard Layout Type | Backlit Chiclet Keyboard Per-Key RGB with Dedicated Copilot Key & Aura Sync |
| Touchpad Architecture | Windows Precision Glass Touchpad supporting integrated virtual NumberPad overlay |
| Chassis Lighting Element | Rear Glossy Surround Lightbar, Aura Sync Underglow, AniMe Vision Display Element |
| Integrated Camera | 1080P FHD IR Camera with Windows Hello support |
| Audio Infrastructure | 4-speaker system with Smart Amplifier Technology, Dolby Atmos, Hi-Res certification, AI noise-canceling technology, built-in array mic |
| I/O Ports & Interfaces | 2x Thunderbolt 5 (Supports DisplayPort / Power Delivery / G-SYNC up to 120Gbps), 1x USB 3.2 Gen 2 Type-C (Supports DisplayPort / Power Delivery), 3x USB 3.2 Gen 2 Type-A (Up to 10Gbps data speed), 1x HDMI 2.1 FRL, 1x 2.5G RJ45 LAN port, 1x 3.5mm Combo Audio Jack |
| Wireless Connectivity | Wi-Fi 7 (802.11be) (Triple band) 2*2 + Bluetooth 5.4 Wireless Card |
| Security Architecture | Firmware Trusted Platform Module (Firmware TPM), Windows Hello Face Recognition, BIOS Setup Password Protection |
| Operating System | Windows 11 Home |
| Battery Infrastructure | 4-cell Lithium-Ion, 4S1P, 90WHrs |
| Power Supply Adapter | Rectangle Conn, 380W AC Adapter (Output: 20V DC, 19A; Input: 100-240V AC universal) |
| Chassis Color | Translucent SCAR Black |
| Structural Material | Premium Aluminum (Top Cover Cover), High-grade Structural Polymer (Chassis Base) |
| Physical Dimensions | 35.4 x 26.8 x 2.28 ~ 3.08 cm |
| Device Weight | 2.80 kg (6.17 lbs) |
| Warranty Package | 2 Years International Brand Warranty (Battery covered for 1 Year) |
Product Description
The ASUS ROG Strix SCAR 16 G635LW-S5242W stands as the ultimate, uncompromised tier-one mobile battle station, armored in a signature translucent SCAR Black aesthetic and fitted with customizable Aura Sync lighting highlights. Built to drive pro-grade tournament frame rates and heavy cinematic render stacks, this powerhouse runs on ROG Intelligent Cooling technology—deploying an end-to-end full-surround vapor chamber, Tri-Fan system layout, and Thermal Grizzly's Conductonaut Extreme liquid metal compound on both the CPU and GPU. Under its shell, it packs the desktop-shattering 24-core, 24-thread Intel Core Ultra 9 275HX processor alongside the elite NVIDIA GeForce RTX 5080 GPU loaded with 16GB of ultra-fast GDDR7 memory firing at a massive 175W max TGP. Supported by a massive 32GB of dual-channel DDR5 RAM and a rapid 2TB NVMe PCIe 4.0 SSD, this Copilot+ machine effortlessly processes multi-layered development environments, heavy streaming tasks, and total system multi-tasking without breaking a sweat.
The visual masterpiece of this device is its spectacular 16.0-inch 2.5K WQXGA (2560 x 1600) ROG Nebula HDR Display, leveraging a cutting-edge Mini LED panel with more than 2,000 distinct local dimming zones. Featuring an immersive 16:10 workspace aspect ratio, a blistering 240Hz refresh rate, and a 3ms response time, it is fully calibrated to achieve 100% DCI-P3 color gamut accuracy, Pantone Validation, and a brilliant 1100-nit HDR peak brightness. To ensure absolute parity during intense competitive gunfights, it is layered with dual-layer Ambient Contrast Ratio (ACR) anti-reflective film and natively integrates hardware MUX Switch and Advanced Optimus G-Sync technology. Complete with a per-key RGB backlit chiclet keyboard hosting a dedicated Windows Copilot key, an intelligent glowing virtual NumberPad overlay on the precision glass touchpad, cutting-edge Thunderbolt 5 connectivity running up to 120Gbps, and Wi-Fi 7 wireless networking, this SCAR 16 configuration redefines absolute mobile dominance.
