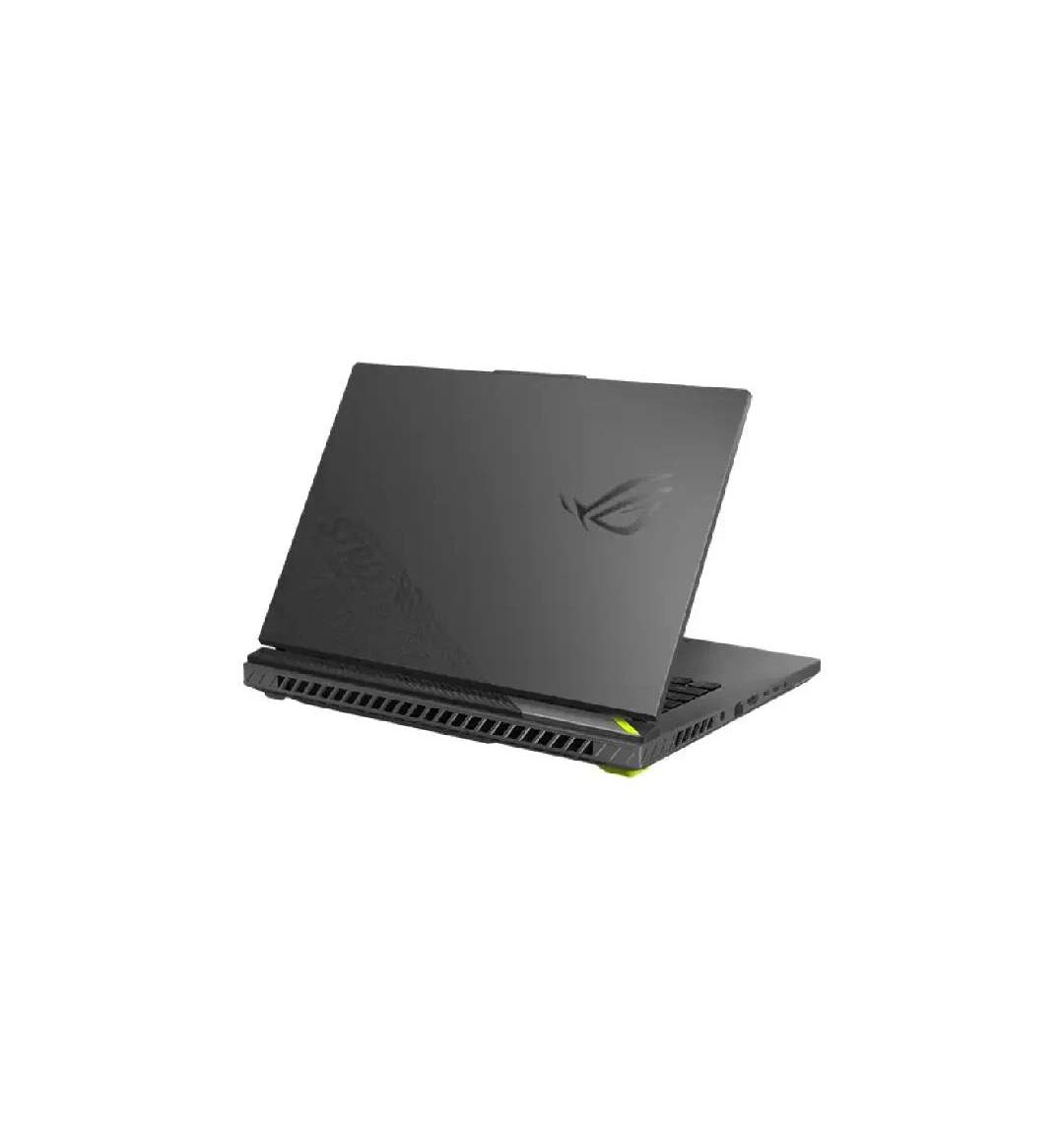

Asus ROG Strix G16 G614PH-S5107W Ryzen 9 8940HX 16" 2.5K Gaming Laptop
Please sign in so that we can notify you about a reply
Technical Specifications
| Attribute | Detailed Specification |
| Product Name | ASUS ROG Strix G16 G614PH-S5107W |
| Model / Series | ROG Strix G16 G614PH (2025/2026 Layout) |
| Processor Brand | AMD |
| Processor Model | AMD Ryzen 9 8940HX |
| Processor Frequency | Max Turbo Frequency up to 5.30 GHz |
| Processor Core / Thread | 16 Cores / 32 Threads |
| CPU Cache | 80 MB Cache |
| Screen Size | 16.0-inch |
| Display Panel Type | IPS-level ROG Nebula Display |
| Native Resolution | 2.5K WQXGA (2560 x 1600) |
| Display Features | Anti-glare, 16:10 aspect ratio, 100% DCI-P3 color gamut, 1200:1 contrast ratio, G-Sync, Pantone Validated, Dolby Vision HDR support, ROG Intelligent Cooling integration |
| Display Brightness | 500 nits |
| Refresh Rate | 240Hz |
| Response Time | 3ms |
| System Memory (RAM) | 16GB |
| RAM Type / Architecture | DDR5 5600 MHz |
| Total Memory Slots | 2x DDR5 SO-DIMM slots (Max system memory expansion up to 64GB) |
| Storage Capacity | 512GB |
| Storage Interface Type | M.2 NVMe PCIe 4.0 x4 SSD |
| Extra Storage Expansion | 1x Extra M.2 NVMe PCIe 4.0 SSD slot available for upgrades |
| Graphics Controller | Dedicated NVIDIA GeForce RTX 5050 Laptop GPU |
| Graphics Memory | 8GB Dedicated |
| Graphics Memory Type | GDDR7 |
| Discrete/Optimus | MUX Switch + NVIDIA Advanced Optimus |
| Keyboard Layout Type | Backlit Chiclet Keyboard 4-Zone RGB with Dedicated Copilot Key |
| Touchpad Architecture | Precision Touchpad |
| Integrated Camera | 1080P FHD Camera |
| Audio Infrastructure | 2-speaker system with Smart Amplifier Technology, Dolby Atmos, Hi-Res certification, AI noise-canceling technology, built-in array mic |
| I/O Ports & Interfaces | 2x Type-C USB4 (Supports DisplayPort / G-SYNC, one supports Power Delivery up to 40Gbps), 2x USB 3.2 Gen 2 Type-A (Up to 10Gbps data speed), 1x HDMI 2.1 FRL, 1x RJ45 LAN port, 1x 3.5mm Combo Audio Jack |
| Wireless Connectivity | Wi-Fi 6E (802.11ax) (Triple band) 2*2 + Bluetooth 5.3 Wireless Card |
| Security Architecture | Firmware Trusted Platform Module (Firmware TPM), BIOS Setup Password Protection |
| Operating System | Windows 11 Home |
| Battery Infrastructure | 4-cell Lithium-Ion, 4S1P, 90WHrs |
| Power Supply Adapter | ø6.0, 280W AC Adapter (Output: 20V DC, 14A; Input: 100-240V AC universal) |
| Chassis Color | Eclipse Gray |
| Structural Material | Aluminum (Top Case Cover), High-grade Polymer Plastic (Chassis Base) |
| Physical Dimensions | 35.4 x 26.4 x 2.26 ~ 3.04 cm |
| Device Weight | 2.50 kg (5.51 lbs) |
| Warranty Package | 2 Years International Brand Warranty (Battery covered for 1 Year) |
Product Description
The ASUS ROG Strix G16 G614PH-S5107W is a premium, tier-one tier gaming powerhouse, armored in an aluminum Eclipse Gray top plate and integrated with a striking Aura Sync light bar. Built to withstand intensive real-world travel and prolonged battle stations, the structural body is engineered alongside ROG Intelligent Cooling technology, utilizing a comprehensive multi-heatpipe array, a Tri-Fan thermal system, and full-surround venting layout to maximize frame output. Under the hood, this beast is driven by the monster 16-core, 32-thread AMD Ryzen 9 8940HX processor boasting an enormous 80MB cache and turbo limits up to 5.3 GHz, working alongside the next-generation NVIDIA GeForce RTX 5050 GPU stacked with 8GB of dedicated ultra-fast GDDR7 memory. Bolstered by a hardware MUX Switch, Advanced Optimus, 16GB of rapid DDR5 RAM, and a quick 512GB NVMe PCIe 4.0 SSD (with an open secondary M.2 layout ready for quick expansion), it flawlessly handles competitive competitive streaming setups, 3D asset rendering, and complex video editing tracks.
The visual masterpiece is anchored by a breathtaking 16.0-inch 2.5K WQXGA (2560 x 1600) ROG Nebula Display. Utilizing a tall 16:10 aspect ratio grid, it expands vertical workspace by serving up extra screen rows that maximize visibility while organizing editing timelines, code arrays, or game overlays. Pushing a highly competitive 240Hz refresh rate, 3ms response time, and hardware G-Sync support, it entirely eliminates screen tearing and input delay during high-stakes multiplayer firefights while delivering a full 100% cinema-grade DCI-P3 color gamut, 500 nits brightness, and Pantone validation. Rounded out by a 4-Zone RGB backlit gaming keyboard with a dedicated Windows Copilot key, a massive 90WHrs battery with a 280W power supply, a crisp 1080p FHD webcam, and dual full-speed 40Gbps USB4 Type-C ports, this laptop brings ultimate combat stability and uncompromised desktop-class mobile power to your loadout.
