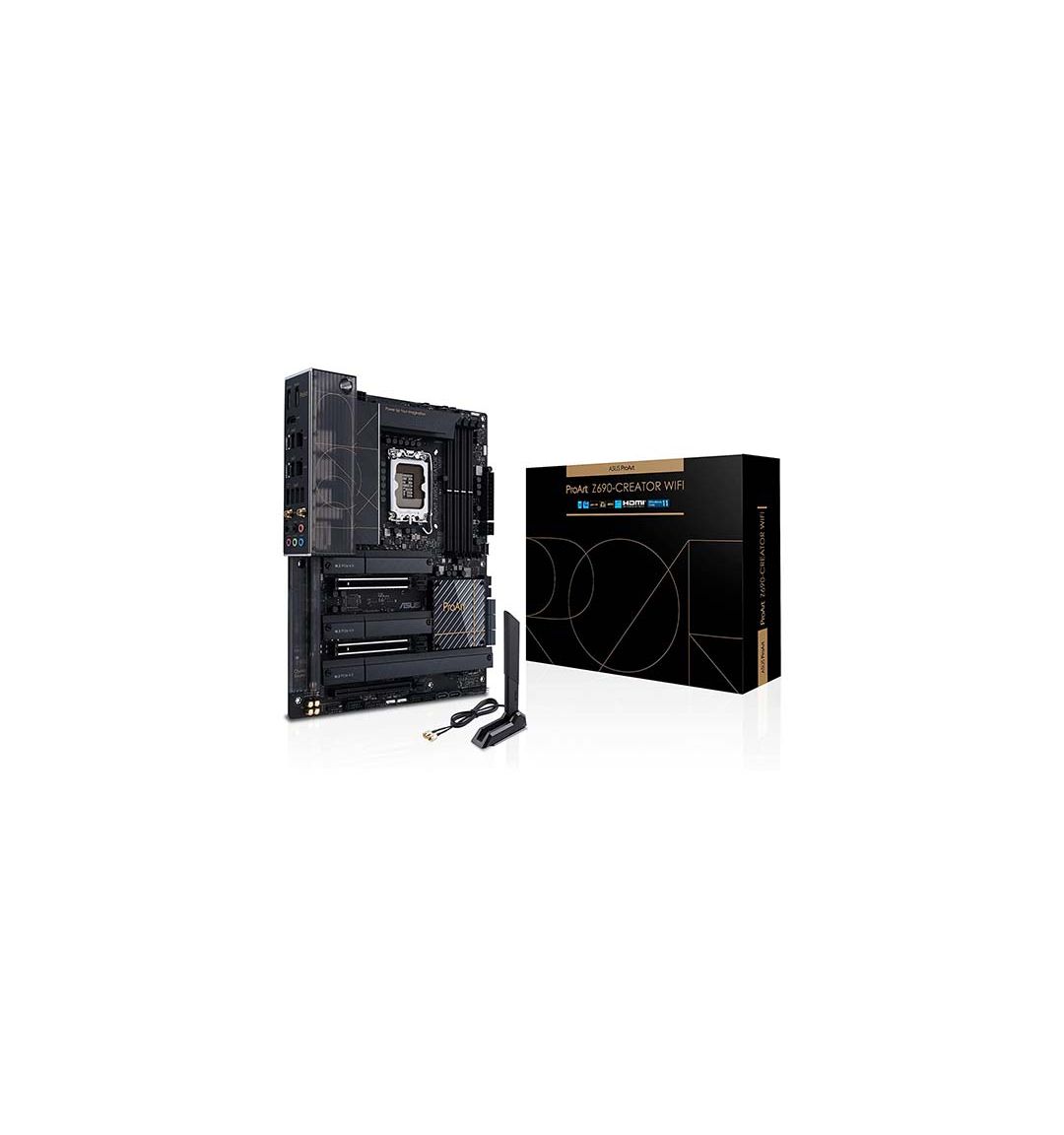

ASUS ProArt Z690-CREATOR WIFI ATX Motherboard
Save 9%
Please sign in so that we can notify you about a reply
ASUS ProArt Z690-CREATOR WIFI ATX Motherboard
SPECIFICATION
| Storage. | Supports 4 x M.2 slots and 8 x SATA 6Gb/s ports Intel® 12th Gen ProcessorsM.2_1 slot (Key M), type 2242/2260/2280/22110– Intel® 12th Gen processors support PCIe 4.0 x4 mode.Intel® Z690 Chipset**M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)M.2_3 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 mode)M.2_4 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 & SATA modes)8 x SATA 6Gb/s ports |
| Audio Port | Realtek S1220A 7.1 Surround Sound High Definition Audio CODEC*– Impedance sense for front and rear headphone outputs– Internal audio Amplifier to enhance the highest quality sound for headphone and speakers– Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking– High quality 120 dB SNR stereo playback output and 113 dB SNR recording input (Line-in)– Supports up to 32-Bit/192 kHz playback* |
| Chipset | Z690 |
| Expansion Slots | Intel® 12th Gen Processors*2 x PCIe 5.0/4.0/3.0 x16 slot(s) (supports x16 or x8/x8 mode(s))Intel® Z690 Chipset**1 x PCIe 3.0 x16 slot (supports x4 mode) |
| Form Factor | ATX |
| Graphics | 1 x HDMI® port** 2 x Intel® Thunderbolt™ 4 ports (USB Type-C®) support DisplayPort |
| Internal I/O Ports | Fan and Cooling related1 x 4-pin CPU Fan header(s)1 x 4-pin CPU OPT Fan header(s)1 x 4-pin AIO Pump header(s)5 x 4-pin Chassis Fan header(s)Power related1 x 24-pin Main Power connector1 x 8-pin +12V Power connector1 x 4-pin +12V Power connectorStorage related4 x M.2 slots (Key M)8 x SATA 6Gb/s portsUSB1 x USB 3.2 Gen 2×2 (support(s) USB Type-C®)1 x USB 3.2 Gen 1 header(s) support(s) additional 2 USB 3.2 Gen 1 ports2 x USB 2.0 header(s) support(s) additional 4 USB 2.0 portsMiscellaneous3 x Addressable Gen 2 header(s)1 x AURA RGB header(s)1 x Clear CMOS header1 x COM Port header1 x CPU Over Voltage jumper1 x Front Panel Audio header (AAFP)1 x M.2 slot (Key E)1 x Speaker header1 x SPI TPM header (14-1pin)1 x 20-3 pin System Panel header with Chassis intrude function1 x RTC Battery header1 x Thermal Sensor header |
| CPU | LGA1700 for 12th Gen Intel® Core™, Pentium® Gold and Celeron® Processors |
| PCI | 5.0/4.0/3.0 |
| Memory Slots | 4 |
| Memory Type | 128GB DDR5 |
| BIOS | 256 Mb |
| USB Ports | Rear USB:Total 8 ports 2 x Thunderbolt™ 4 port(s) (2 x USB Type-C®) with up to 5V/3A, 15W charging support6 x USB 3.2 Gen 2 port(s) (6 x Type-A)Front USB:Total 7 ports 1 x USB 3.2 Gen 2×2 connector(s) (support(s) USB Type-C® with 60W PD/QC4+)1 x USB 3.2 Gen 1 header(s) support(s) additional 2 USB 3.2 Gen 1 ports2 x USB 2.0 header(s) support(s) additional 4 USB 2.0 ports |
Warranty : 03 Years
Nexus will be your first choice If you want to buy Asus PROART Z690-CREATOR WIFI Motherboard in Bangladesh, Because we sale only Asus authorized original Motherboard. So you are at the right place to buy right Asus Motherboard at the lowest price in Bangladesh.
Nexus Offers you Asus PROART Z690-CREATOR WIFI Motherboard at the best price in Bangladesh, which is your budget-friendly Motherboard. Do you want to know what is the price of ASUS PROART Z690-CREATOR WIFI Motherboard? and where you can get Asus Motherboard at lowest price in BD? Yes, it is Nexus. ASUS PROART B660-CREATOR D4 Motherboard now available at Nexus, So Don’t Think more to buy ASUS PROART Z690-CREATOR WIFI Motherboard.
Brand:
Asus
