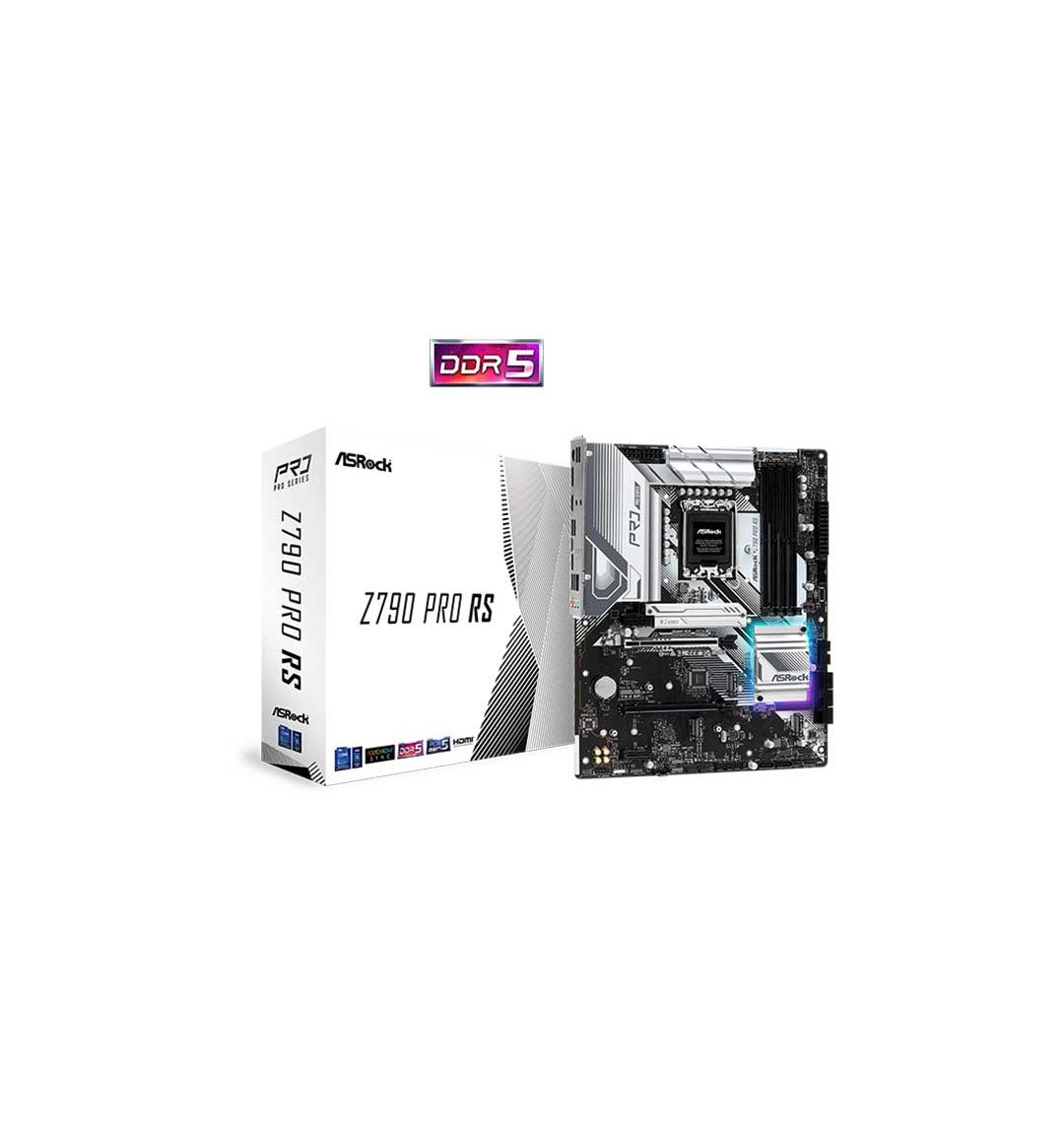

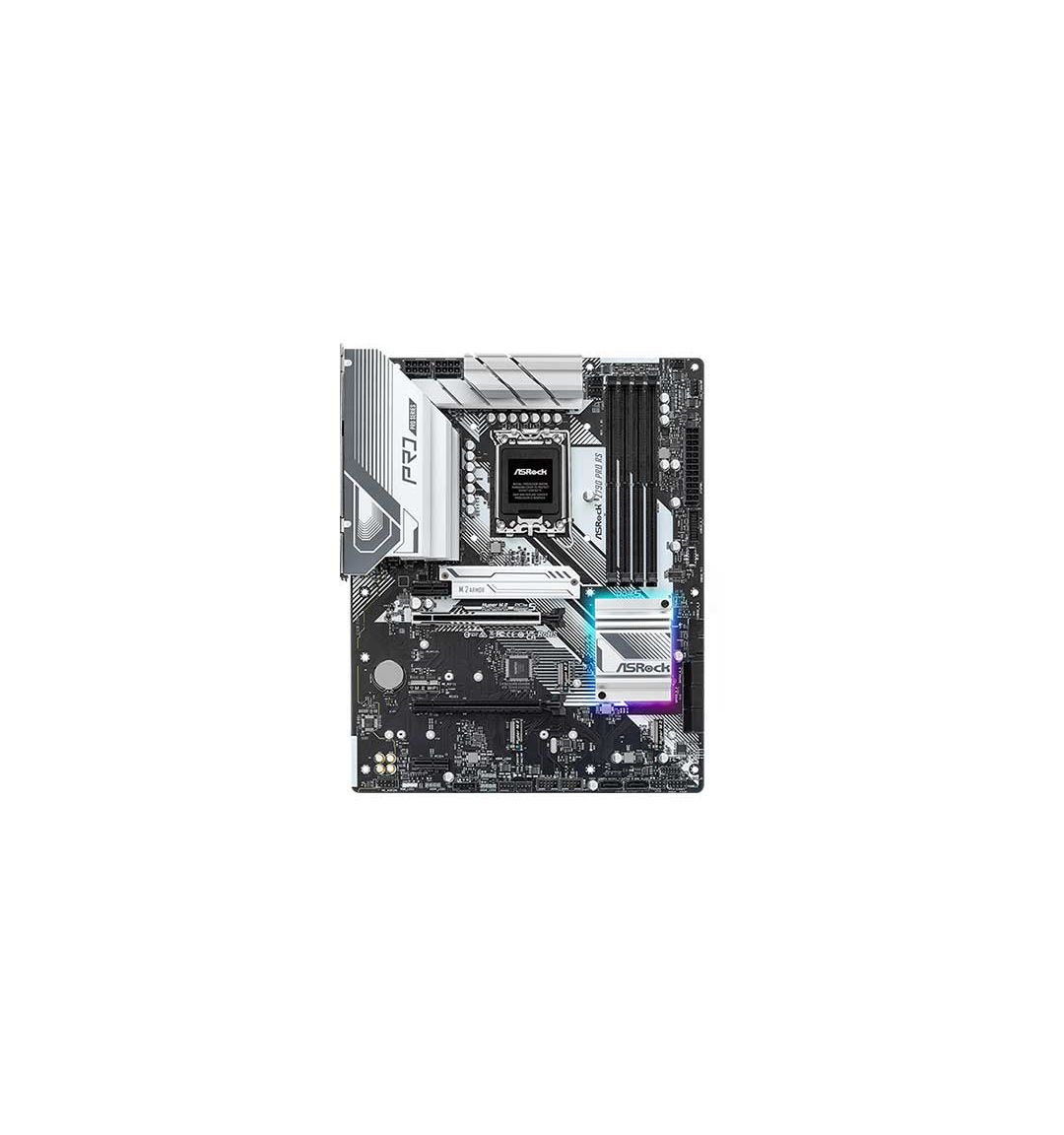

ASRock Z790 Pro RS ATX Motherboard
Please sign in so that we can notify you about a reply
ASRock Z790 Pro RS ATX Motherboard Specification
Basic Information | ||
Supported CPU | - Supports 14th Gen, 13th Gen & 12th Gen Intel Core Processors (LGA1700) - Supports Intel Hybrid Technology - Supports Intel Turbo Boost Max 3.0 Technology - Supports Intel Thermal Velocity Boost (TVB) - Supports Intel Adaptive Boost Technology (ABT) | |
Chipset | Intel Z790 | |
BIOS | 128Mb AMI UEFI Legal BIOS with GUI support | |
Form Factor | - ATX Form Factor: 12.0-in x 9.6-in, 30.5 cm x 24.4 cm - 2oz Copper PCB | |
Audio | - 7.1 CH HD Audio (Realtek ALC897 Audio Codec) - Nahimic Audio | |
Expansion Slots | ||
PCI | CPU: - 1 x PCIe 5.0 x16 Slot (PCIE2), supports x16 mode Chipset: - 1 x PCIe 4.0 x16 Slot (PCIE3), supports x4 mode - 2 x PCIe 3.0 x1 Slots (PCIE1 and PCIE4) - 1 x M.2 Socket (Key E), supports type 2230 WiFi/BT PCIe WiFi module and Intel CNVio/CNVio2 (Integrated WiFi/BT) - Supports AMD CrossFire | |
Memory | ||
Type | DDR5 | |
Slots | 4 x DDR5 DIMMs | |
Supported Memory | - Dual Channel DDR5 Memory Technology - Supports DDR5 non-ECC, un-buffered memory up to 6800+(OC) - Supports Intel Extreme Memory Profile (XMP) 3.0 | |
Maximum Memory | 128GB | |
Graphics | ||
Graphics | - Intel Xe Graphics Architecture (Gen 12) - 1 x eDP 1.4, supports max. resolution up to Full HD 60Hz - 1 x HDMI 2.1 TMDS Compatible, supports HDCP 2.3 and max. resolution up to 4K 60Hz - 1 x DisplayPort 1.4 with DSC (compressed), supports HDCP 2.3 and max. resolution up to 8K 60Hz / 5K 120Hz | |
Connector & Ports | ||
HDMI | 1 x HDMI Port | |
Display Port (s) | 1 x DisplayPort 1.4 | |
USB (s) | - 1 x USB 3.2 Gen2x2 Type-C (Front) - 1 x USB 3.2 Gen2 Type-C (Rear) - 1 x USB 3.2 Gen2 Type-A (Rear) - 6 x USB 3.2 Gen1 (2 Rear, 4 Front) - 8 x USB 2.0 (4 Rear, 4 Front) | |
LAN Port (s) | - 2.5 Gigabit LAN 10/100/1000/2500 Mb/s - Dragon RTL8125BG - Supports Dragon 2.5G LAN Software - Smart Auto Adjust Bandwidth Control - Visual User Friendly UI - Visual Network Usage Statistics - Optimized Default Setting for Game, Browser, and Streaming Modes - User Customized Priority Control | |
Supported Storage | CPU: - 1 x Hyper M.2 Socket (M2_1, Key M), supports type 2260/2280 PCIe Gen4x4 (64 Gb/s) mode Chipset: - 1 x Hyper M.2 Socket (M2_2, Key M), supports type 2260/2280 PCIe Gen4x4 (64 Gb/s) mode - 1 x Hyper M.2 Socket (M2_3, Key M), supports type 2260/2280 PCIe Gen4x4 (64 Gb/s) mode - 1 x Hyper M.2 Socket (M2_4, Key M), supports type 2260/2280 PCIe Gen4x4 (64 Gb/s) mode - 8 x SATA3 6.0 Gb/s Connectors | |
RAID | - Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices - Supports RAID 0, RAID 1 and RAID 5 for M.2 NVMe storage devices | |
Audio | HD Audio Jacks: Line in / Front Speaker / Microphone | |
Internal I/O Ports | - 1 x eDP Signal Connector - 1 x Power LED and Speaker Header - 1 x RGB LED Header - 3 x Addressable LED Headers - 1 x CPU Fan Connector (4-pin) - 1 x CPU/Water Pump Fan Connector (4-pin) (Smart Fan Speed Control) - 5 x Chassis/Water Pump Fan Connectors (4-pin) (Smart Fan Speed Control) - 1 x 24 pin ATX Power Connector - 2 x 8 pin 12V Power Connectors (Hi-Density Power Connector) - 1 x Front Panel Audio Connector - 1 x Thunderbolt AIC Connector (5-pin) (Supports ASRock Thunderbolt 4 AIC Card) - 2 x USB 2.0 Headers (Support 4 USB 2.0 ports) - 2 x USB 3.2 Gen1 Headers (Support 4 USB 3.2 Gen1 ports) - 1 x Front Panel Type C USB 3.2 Gen2x2 Header (20 Gb/s) | |
TPM (Trusted Platform Module ) | 1 x SPI TPM Header | |
Others | ||
Special Features | Superb Productivity - PCIe Gen5 (Graphics) Rock-Solid Durability - 14+1+1 Power Phase, 50A Dr.MOS for VCore+GT with Enlarged Heatsink Armor - Flexible Integrated I/O Shield Ultrafast Connectivity - 2.5G LAN EZ Update - ASRock Auto Driver Installer EZ Troubleshooter - ASRock Post Status Checker | |
Bundled Software | Software - ASRock Motherboard Utility (A-Tuning) - ASRock Dragon 2.5G LAN Software - ASRock Polychrome SYNC UEFI - ASRock EZ Mode - ASRock Full HD UEFI - ASRock My Favorites in UEFI - ASRock Auto Driver Installer - ASRock Instant Flash - ASRock Easy RAID Installer | |
Warranty Information | ||
Manufacturing Warranty | 3 years | |
ASRock Z790 Pro RS ATX Motherboard
Overview of ASRock Z790 Pro RS ATX Motherboard
The ASRock Z790 Pro RS ATX Motherboard is a high-performance motherboard designed to support the latest Intel processors and deliver cutting-edge features for gamers, creators, and power users. With robust support for the 12th, 13th, and 14th Gen Intel Core processors and advanced technologies, it provides a reliable foundation for building a high-performance PC.
Key Features of ASRock Z790 Pro RS ATX Motherboard
Powerful Processor Support
- CPU Compatibility: Supports 12th, 13th, and 14th Gen Intel Core processors (LGA1700) with Intel Hybrid Technology, Turbo Boost Max 3.0, Thermal Velocity Boost (TVB), and Adaptive Boost Technology (ABT) for exceptional performance and efficiency.
Cutting-Edge Connectivity
- Chipset: Powered by the Intel Z790 chipset, offering enhanced performance and connectivity options.
- Networking: Includes 2.5 Gigabit LAN with Dragon RTL8125BG for ultra-fast, reliable network performance.
- USB Ports: Features multiple USB ports including USB 3.2 Gen2x2 Type-C, USB 3.2 Gen2, and USB 2.0 for versatile connectivity and high-speed data transfer.
Superior Graphics and Audio
- Graphics: Supports Intel Xe Graphics Architecture with HDMI 2.1, DisplayPort 1.4, and eDP 1.4 for resolutions up to 8K 60Hz.
- Audio: Equipped with 7.1 CH HD Audio powered by Realtek ALC897 and Nahimic Audio for an immersive audio experience.
Expandability and Storage
- Expansion Slots: Includes a PCIe 5.0 x16 slot, PCIe 4.0 x16 slot, and multiple PCIe 3.0 slots, supporting AMD CrossFire and various expansion needs.
- Memory: Supports up to 128GB of DDR5 memory with speeds up to 6800+(OC), utilizing Intel Extreme Memory Profile (XMP) 3.0 for optimized performance.
- Storage: Features four M.2 slots and eight SATA3 connectors for extensive storage options and RAID support.
Durability and Ease of Use
- Power Phases: 14+1+1 power phases with 50A Dr.MOS ensure stable power delivery and durability.
- Cooling: Includes an enlarged heatsink armor and flexible integrated I/O shield for enhanced cooling and protection.
- Software: Bundled with ASRock’s utilities, including A-Tuning, Dragon 2.5G LAN Software, and Polychrome SYNC for system optimization and customization.
Why Buy from Nexus?
Purchasing the ASRock Z790 Pro RS ATX Motherboard from Nexus provides several benefits:
- Trusted Quality: Nexus is known for offering high-quality products with reliable performance and warranty support.
- Competitive Pricing: Benefit from Nexus’s competitive pricing and potential special offers for great value.
- Expert Assistance: Enjoy dedicated customer support and professional assistance with your purchase and setup.
Ideal For
The ASRock Z790 Pro RS is ideal for high-performance gaming rigs, content creation, and professional workstations. Its extensive feature set and advanced connectivity options make it a versatile choice for users seeking top-tier performance and reliability in their builds.
What is the price of ASRock Z790 Pro RS ATX Motherboard in Bangladesh?
The latest price of ASRock Z790 Pro RS ATX Motherboard in Bangladesh is 29,990৳. You can buy the ASRock Z790 Pro RS ATX Motherboard at best price from our website or visit any of our showrooms.
