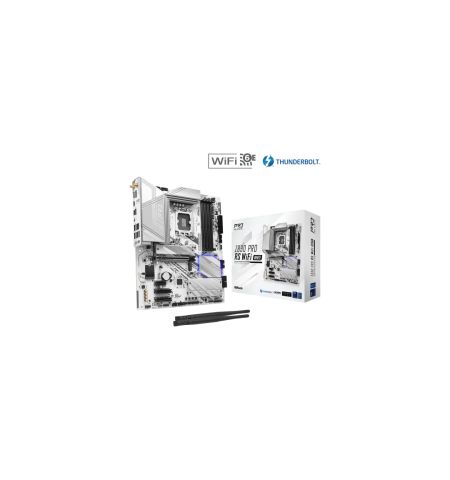

ASRock Z890 Pro RS WiFi LGA1851 DDR5 ATX White Motherboard
Save 10%
Please sign in so that we can notify you about a reply
Specification
| Supported CPU | Supports Intel Core Ultra Processors (Series 2) (LGA1851RL-ILM) Supports Intel Hybrid Technology Supports Intel Turbo Boost Max 3.0 Technology Supports Intel Thermal Velocity Boost (TVB) Supports Intel Adaptive Boost Technology (ABT) Integrated NPU for dedicated AI acceleration |
| Chipset | Intel Z890 |
| BIOS | 256Mb AMI UEFI Legal BIOS with GUI support |
| Form Factor | ATX Form Factor: 12.0-in x 9.6-in, 30.5 cm x 24.4 cm 2oz Copper PCB |
| Audio | 7.1 CH HD Audio (Realtek ALC897 Audio Codec) Nahimic Audio |
| PCI | CPU: 1 x PCIe 5.0 x16 Slot (PCIE1), supports x16 mode Chipset: 2 x PCIe 4.0 x4 Slots (PCIE3 and PCIE4), support x4 mode 1 x PCIe 4.0 x1 Slot (PCIE2) 1 x M.2 Socket (Key E), supports type 2230 WiFi/BT PCIe WiFi module and Intel CNVio/CNVio2 (Integrated WiFi/BT) |
| M.2 Socket | CPU: 1 x Blazing M.2 Socket (M2_1, Key M), supports type 2280 PCIe Gen5x4 (128 Gb/s) mode 1 x Hyper M.2 Socket (M2_2, Key M), supports type 2280 PCIe Gen4x4 (64 Gb/s) mode* Chipset: 1 x Hyper M.2 Socket (M2_3, Key M), supports type 2280 PCIe Gen4x4 (64 Gb/s) mode 1 x Hyper M.2 Socket (M2_4, Key M), supports type 2230/2242/2260/2280 SATA3 6.0 Gb/s & PCIe Gen4x4 (64 Gb/s) modes |
| Type | Dual Channel DDR5 Memory Technology |
| Slots | 4 x DDR5 DIMM Slots |
| Supported Memory | Supports DDR5 non-ECC, un-buffered memory up to 9066MHz+(OC) Supports Clocked Unbuffered DIMM (CUDIMM) Supports Intel® Extreme Memory Profile (XMP) 3.0x |
| Maximum Memory | 256GB |
| Graphics | Intel Xe LPG Graphics Architecture - 1 x HDMI 2.1 TMDS/FRL 8G Compatible, supports HDR, HDCP 2.3 and max. resolution up to 4K 120Hz - 1 x DisplayPort 1.4 with DSC (compressed), supports HDCP 2.3 and max. resolution up to 8K 60Hz / 5K 120Hz - 2 x Intel Thunderbolt™ 4, support HDCP 2.3 and max. resolution up to 8K 60Hz / 5K 120Hz* |
| HDMI | 1 x HDMI |
| Display Port (s) | 1 x DisplayPort 1.4 |
| USB (s) | CPU: - 2 x Thunderbolt™ 4 Type-C (Rear) Chipset: - 1 x USB 3.2 Gen2x2 Type-C (Front) - 1 x USB 3.2 Gen2 Type-A (Rear) - 6 x USB 3.2 Gen1 (2 Rear, 4 Front) - 8 x USB 2.0 (4 Rear, 4 Front) |
| LAN Port (s) | 2.5 Gigabit LAN 10/100/1000/2500 Mb/s Dragon RTL8125BG Supports Dragon 2.5G LAN Software Smart Auto Adjust Bandwidth Control Visual User Friendly UI Visual Network Usage Statistics Optimized Default Setting for Game, Browser, and Streaming Modes User Customized Priority Control |
| Wireless Communication module | 802.11axe Wi-Fi 6E Module Supports IEEE 802.11a/b/g/n/ac/ax/axe Supports Dual-Band 2x2 with extended 6GHz band* support 2 antennas to support 2 (Transmit) x 2 (Receive) diversity technology Supports Bluetooth 5.3 Supports MU-MIMO |
| Supported Storage | CPU: - 1 x Blazing M.2 Socket (M2_1, Key M), supports type 2280 PCIe Gen5x4 (128 Gb/s) mode* - 1 x Hyper M.2 Socket (M2_2, Key M), supports type 2280 PCIe Gen4x4 (64 Gb/s) mode* Chipset: - 1 x Hyper M.2 Socket (M2_3, Key M), supports type 2280 PCIe Gen4x4 (64 Gb/s) mode* - 1 x Hyper M.2 Socket (M2_4, Key M), supports type 2230/2242/2260/2280 SATA3 6.0 Gb/s & PCIe Gen4x4 (64 Gb/s) modes* - 4 x SATA3 6.0 Gb/s Connectors |
| RAID | Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices Supports RAID 0, RAID 1, RAID 5 and RAID 10 for M.2 NVMe storage devices |
| Audio | HD Audio Jacks: Line in / Front Speaker / Microphone |
| Internal I/O Ports | 1 x 24-pin ATX main power connector 2 x 8-pin ATX 12V power connectors 1 x CPU fan header 1 x CPU fan/water cooling pump header 3 x system fan headers 1 x system fan/water cooling pump header 3 x addressable RGB Gen2 LED strip headers 1 x RGB LED strip header 4 x M.2 Socket 3 connectors 4 x SATA 6Gb/s connectors 1 x front panel header 1 x front panel audio header 1 x USB Type-C® header, with USB 3.2 Gen 2 support 1 x USB 3.2 Gen 1 header 2 x USB 2.0/1.1 headers 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0/GC-TPM2.0 SPI V2 module only) 1 x HDMI port (Note) 1 x power button 1 x reset button 1 x Q-Flash Plus button 1 x reset jumper 1 x Clear CMOS jumper Back Panel Connectors 1 x Intel® Thunderbolt™ 4 connectors (USB Type-C® ports) 2 x USB 3.2 Gen 2 Type-A ports (red) 3 x USB 3.2 Gen 1 ports 4 x USB 2.0/1.1 ports 2 x antenna connectors (2T2R) 1 x DisplayPort (Note) 1 x RJ-45 port 1 x optical S/PDIF Out connector 2 x audio jacks |
| TPM (Trusted Platform Module ) | 1 x SPI TPM Header |
| Special Features | Superb Productivity - PCIe Gen5 (Graphics, M.2) - Dual Channel DDR5 - Thunderbolt™ 4 Type-C Ports (40 Gb/s) Rock-Solid Durability - 16+1+1+1+1 Power Phase, Dr. MOS for VCore+GT with Enlarged Heatsink Armor - Memory OC Shield - Flexible Integrated I/O Shield Ultrafast Connectivity - 2.5G LAN, 802.11axe Wi-Fi 6E Module EZ Update - BIOS Flashback Button - ASRock Auto Driver Installer EZ Troubleshooter - ASRock Post Status Checker |
| Bundled Software | Software - ASRock Motherboard Utility (A-Tuning) - ASRock Dragon 2.5G LAN Software - ASRock Polychrome SYNC* UEFI - ASRock EZ Mode - ASRock Full HD UEFI - ASRock My Favorites in UEFI - ASRock Auto Driver Installer - ASRock Instant Flash |
| Manufacturing Warranty | 3 Year Warranty |
Overview
The ASRock Intel Z890 ATX Motherboard is built for cutting-edge performance with support for Intel® Core™ Ultra Processors (Series 2), enabling exceptional processing power and gaming capabilities. Designed for enthusiasts and professionals, this motherboard supports Intel® Hybrid Technology and Intel® Turbo Boost Max 3.0 Technology, offering optimized performance for a range of tasks from heavy multitasking to gaming. Equipped with the Intel Z890 chipset, it ensures stability and high-speed connectivity, making it the perfect foundation for building a high-performance PC.
Key Features
- Supports Intel® Core™ Ultra Processors (LGA1851RL-ILM) for next-gen computing power.
- Intel® Hybrid Technology for superior multitasking and efficiency.
- Intel® Turbo Boost Max 3.0 Technology for optimal performance in demanding applications.
- Integrated NPU for dedicated AI acceleration.
- Dual Channel DDR5 Memory Technology with support for up to 256GB of DDR5 RAM at speeds up to 9066MHz+ (OC).
- 4 x PCIe 5.0/4.0 Slots for powerful graphics and expansion options.
- Thunderbolt™ 4 Ports for ultra-fast data transfer (up to 40 Gb/s).
- Comprehensive Storage Support with M.2 PCIe Gen5 and SATA3 connectors.
- 2.5G LAN and Wi-Fi 6E for blazing-fast internet connectivity.
- 7.1 CH HD Audio with Realtek ALC897 codec for superior sound quality.
- 3-Year Manufacturer’s Warranty for peace of mind.
Applications
The ASRock Intel Z890 ATX Motherboard is ideal for:
- Gaming PCs: With PCIe Gen5 slots and support for high-performance GPUs, it’s perfect for building a top-tier gaming system.
- Content Creation: Whether you're working with video editing, 3D rendering, or AI-based applications, the motherboard’s powerful CPU and RAM support provide the ideal foundation for creative professionals.
- Workstations: For tasks requiring high processing power, multi-tasking, and stability, this motherboard excels in demanding environments such as software development, engineering, and financial analysis.
Why Choose ASRock Intel Z890 ATX Motherboard?
- High-Speed Performance: With support for PCIe Gen5 and DDR5 memory, this motherboard offers next-gen performance that ensures your system stays future-proof.
- Optimized for Gamers & Creators: Thunderbolt™ 4 ports, multiple M.2 sockets, and 2.5G LAN ensure your gaming and content creation experience is fast and smooth.
- Superior Durability: Built with a robust 16+1+1+1+1 power phase design and Dr. MOS for enhanced stability and durability, this motherboard can handle demanding workloads.
- Comprehensive Connectivity: From Thunderbolt™ 4 to Wi-Fi 6E, it offers superior connectivity options, ensuring your system can handle anything you throw at it.
FAQs
- What processors are supported by the ASRock Intel Z890 ATX Motherboard?
- The motherboard supports Intel® Core™ Ultra Processors (Series 2) and Intel® Hybrid Technology processors.
- What is the maximum supported RAM capacity?
- The motherboard supports up to 256GB of DDR5 RAM.
- Can I use PCIe Gen5 devices on this motherboard?
- Yes, the motherboard supports PCIe Gen5 for both graphics and M.2 devices, ensuring next-gen speed and bandwidth.
- Does the motherboard support Wi-Fi?
- Yes, it comes with Wi-Fi 6E support, enabling fast and stable wireless connections.
- What storage options are available?
- The ASRock Z890 motherboard supports M.2 PCIe Gen5x4, PCIe Gen4x4, and SATA3 connections, offering various high-speed storage options.
- Is this motherboard suitable for gaming?
- Absolutely! With support for high-end processors, GPUs, and ultra-fast storage, this motherboard is designed for gaming performance.
- What kind of warranty is provided?
- The motherboard comes with a 3-year warranty for manufacturing defects and peace of mind.
Why Buy from Nexus?
Purchasing the ASRock Z890 Pro RS WiFi White ATX Motherboard from Nexus ensures that you get the best price. Nexus is known for its exceptional customer service and after-sales support, making it a trusted choice for IT products. Whether you’re a creative professional, a gamer, or simply need a dependable casing for everyday tasks, the ASRock Z890 Pro RS WiFi White ATX Motherboard delivers outstanding performance at an affordable price.
Brand:
ASRock
Motherboard
Body Color :
White
Chipset:
Intwl Z890
Chipset Brand :
Intel
Form Factor :
ATX
Generation:
Not Applicable
M.2/SSD Expansion Slot :
4
Max Memory :
256GB
Memory Slot :
4
Memory type :
DDR5
RGB Support :
ARGB
Socket Support :
LGA1851RL
Wifi:
Yes
VGA Port:
No
DVI Port:
No
HDMI Port:
1
DisplayPort (DP):
1
Thunderbolt:
2
Warranty.:
3 Year
