ASRock B760M-HDV/M.2 D4 Micro ATX Motherboard Specification
Basic Information | ||
Supported CPU | Supports 14th Gen, 13th & 12th Gen and next-gen Intel Core Processors (LGA1700) Supports Intel Hybrid Technology Supports Intel Turbo Boost Max 3.0 Technology Supports Intel Thermal Velocity Boost (TVB) Supports Intel Adaptive Boost Technology (ABT) | |
Chipset | Intel B760 | |
BIOS | 128Mb AMI UEFI Legal BIOS with GUI support | |
Form Factor | Micro ATX Form Factor: 9.6-in x 7.9-in, 24.4 cm x 20.1 cm | |
Audio | 7.1 CH HD Audio (Realtek ALC897 Audio Codec) | |
Expansion Slots | ||
PCI | CPU: - 1 x PCIe 4.0 x16 Slot (PCIE1), supports x16 mode* Chipset: - 2 x PCIe 3.0 x1 Slots (PCIE2 and PCIE3)* - 1 x M.2 Socket (Key E), supports type 2230 WiFi/BT PCIe WiFi module | |
Memory | ||
Type | DDR4 | |
Slots | 2 | |
Supported Memory | Dual Channel DDR4 Memory Technology Supports DDR4 non-ECC, un-buffered memory up to 5333+(OC) Supports ECC UDIMM memory modules (operate in non-ECC mode) Supports Intel Extreme Memory Profile (XMP) 2.0 1DPC 1R Up to 5333+ MHz (OC), 3200 MHz Natively. 1DPC 2R Up to 4400+ MHz (OC), 3200 MHz Natively. | |
Maximum Memory | 64GB | |
Graphics | ||
Graphics | Intel Xe Graphics Architecture (Gen 12) 1 x HDMI 2.1 TMDS Compatible, supports HDCP 2.3 and max. resolution up to 4K 60Hz 1 x DisplayPort 1.4 with DSC (compressed), supports HDCP 2.3 and max. resolution up to 8K 60Hz / 5K 120Hz 1 x D-Sub, supports max. resolution up to Full HD (1920x1080) 60Hz | |

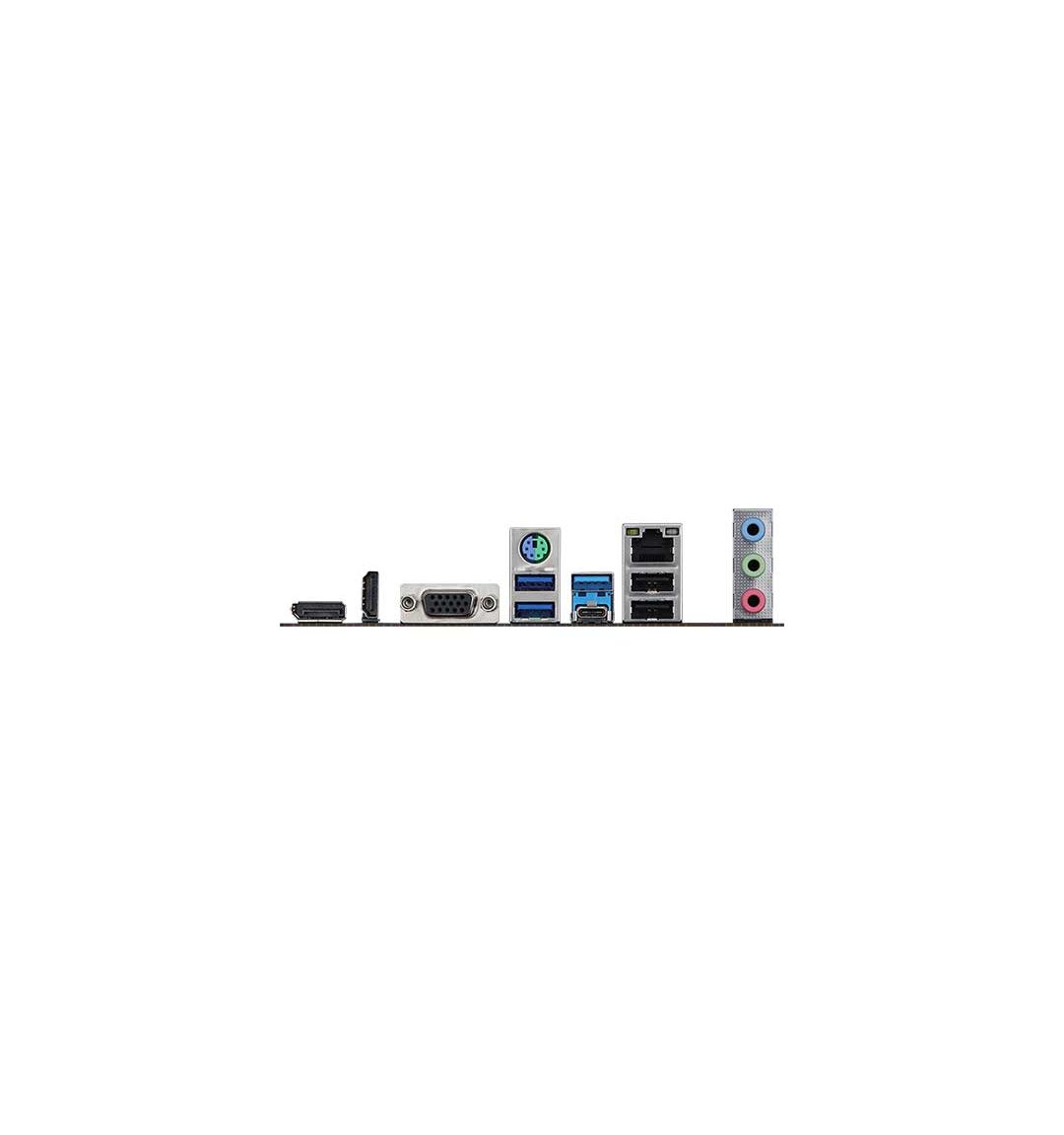

Connector & Ports | ||
HDMI | 1x HDMI | |
Display Port (s) | 1x DisplayPort | |
D-Sub (s) | 1 x D-Sub | |
USB (s) | 1 x USB 3.2 Gen1 Type-C (Rear) 5 x USB 3.2 Gen1 Type-A (3 Rear, 2 Front) 5 x USB 2.0 (2 Rear, 3 Front) * All USB ports support ESD Protection | |
LAN Port (s) | Gigabit LAN 10/100/1000 Mb/s Realtek 8111H | |
Supported Storage | CPU: - 1 x Hyper M.2 Socket (M2_1, Key M), supports type 2260/2280 PCIe Gen4x4 (64 Gb/s) mode* Chipset: - 1 x Ultra M.2 Socket (M2_2, Key M), supports type 2260/2280 SATA3 6.0 Gb/s & PCIe Gen3x4 (32 Gb/s) modes* - 4 x SATA3 6.0 Gb/s Connectors | |
RAID | Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices | |
Audio | HD Audio Jacks: Line in / Front Speaker / Microphone | |
Internal I/O Ports | 1 x Chassis Intrusion and Speaker Header 1 x CPU Fan Connector (4-pin) 1 x CPU/Water Pump Fan Connector (4-pin) (Smart Fan Speed Control) 2 x Chassis/Water Pump Fan Connectors (4-pin) (Smart Fan Speed Control) 1 x 24 pin ATX Power Connector 1 x 8 pin 12V Power Connector 1 x Front Panel Audio Connector 2 x USB 2.0 Headers (Support 3 USB 2.0 ports) 1 x USB 3.2 Gen1 Header (Supports 2 USB 3.2 Gen1 ports) | |
TPM (Trusted Platform Module ) | 1 x SPI TPM Header | |
Others | ||
Special Features | Rock-Solid Durability - 5+1+1 Power Phase EZ Update - ASRock Auto Driver Installer | |
Bundled Software | Software - ASRock Motherboard Utility (A-Tuning) - ASRock XFast LAN UEFI - ASRock EZ Mode - ASRock Full HD UEFI - ASRock My Favorites in UEFI - ASRock Auto Driver Installer - ASRock Instant Flash - ASRock Easy RAID Installer | |
Warranty Information | ||
Manufacturing Warranty | 3 years | |

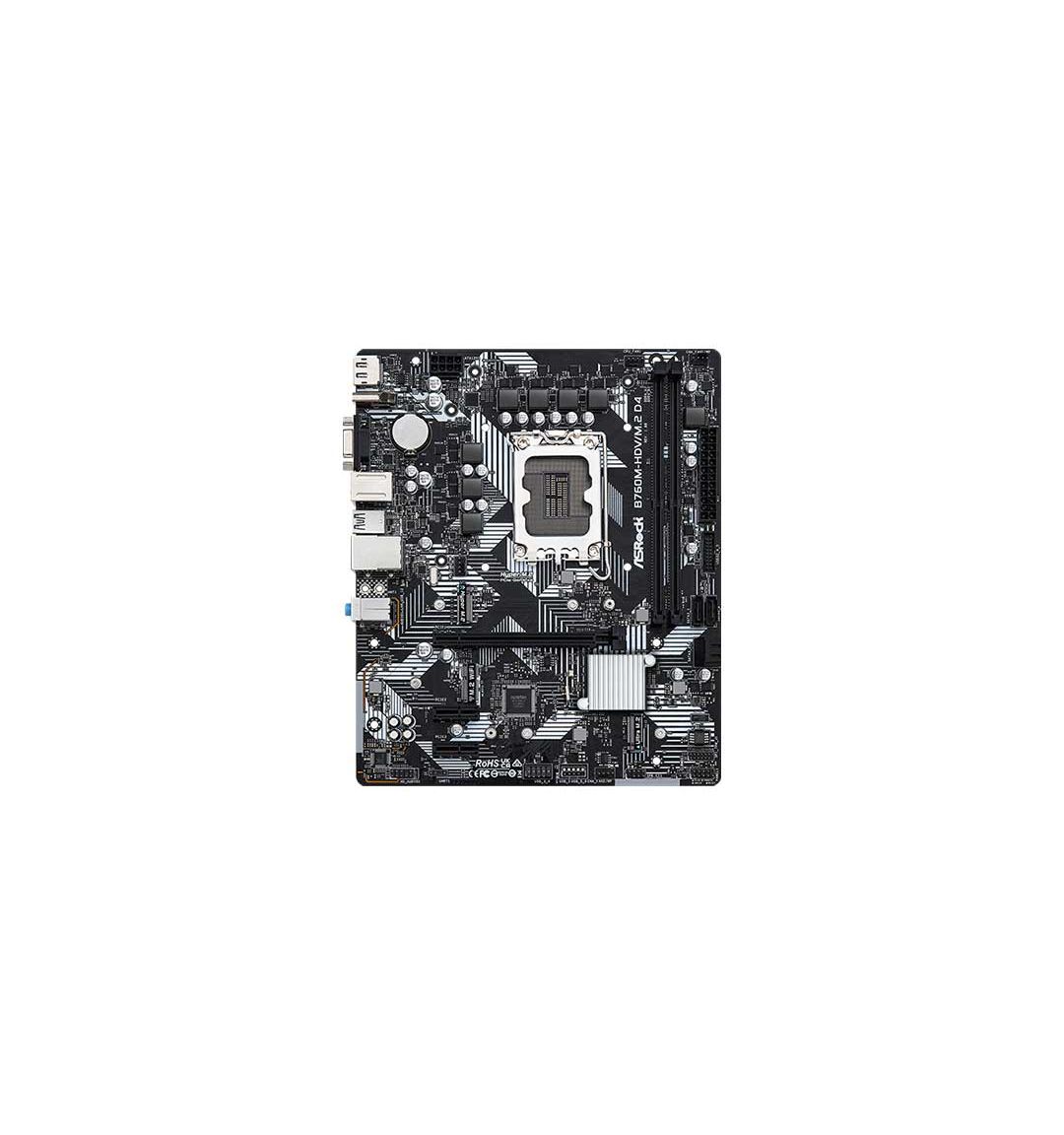

ASRock B760M-HDV/M.2 D4 Micro ATX Motherboard
Overview of ASRock B760M HDV/M.2 D4 Motherboard
The ASRock B760M HDV/M.2 D4 is a compact yet powerful micro ATX motherboard designed to support Intel’s 12th, 13th, and 14th Gen Core processors. Featuring the Intel B760 chipset, this motherboard is ideal for users seeking a balance of performance and value in their PC build.
Key Features of ASRock B760M-HDV/M.2 D4 Micro ATX Motherboard
Robust CPU and Memory Support
- Processor Compatibility: Supports Intel 12th, 13th, and 14th Gen processors with Intel Hybrid Technology, Turbo Boost Max 3.0, and Thermal Velocity Boost (TVB).
- Memory: Equipped with two DDR4 slots, supporting up to 64GB of memory with speeds up to 5333+(OC) MHz. Includes support for Intel Extreme Memory Profile (XMP) 2.0.
Versatile Graphics and Connectivity
- Graphics Outputs: Offers HDMI 2.1, DisplayPort 1.4, and D-Sub connectors, supporting resolutions up to 8K 60Hz and Full HD 60Hz.
- USB Ports: Features a variety of USB options including USB 3.2 Gen1 Type-C, multiple USB 3.2 Gen1 and USB 2.0 ports for extensive peripheral connectivity.
High-Speed Storage and Networking
- Storage Options: Includes Hyper M.2 and Ultra M.2 slots for high-speed NVMe SSDs, along with four SATA3 connectors. Supports RAID 0, 1, 5, and 10 for SATA devices.
- Networking: Gigabit LAN connectivity powered by Realtek 8111H for reliable network performance.
Durability and Ease of Use
- Power Phases: Features a 5+1+1 power phase design for stable and durable power delivery.
- Software and BIOS: Comes with ASRock’s EZ Mode UEFI, A-Tuning utility, and XFast LAN software for easy system management and optimization.
Why Buy from Nexus?
Nexus offers the ASRock B760M HDV/M.2 D4 Motherboard with reliable quality and customer support. By purchasing from Nexus, you benefit from competitive pricing, a comprehensive warranty, and expert assistance, ensuring you get the most out of your motherboard.
Ideal For
The ASRock B760M HDV/M.2 D4 is perfect for budget-conscious gamers, office workers, and everyday users who need a reliable and feature-rich motherboard for their PC builds. Its compact form factor and robust performance make it a versatile choice for various computing needs.
What is the price of ASRock B760M-HDV/M.2 D4 Micro ATX Motherboard in Bangladesh?
The latest price of ASRock B760M-HDV/M.2 D4 Micro ATX Motherboard in Bangladesh is 12,990৳. You can buy the ASRock B760M-HDV/M.2 D4 Micro ATX Motherboard at best price from our website or visit any of our showrooms.
